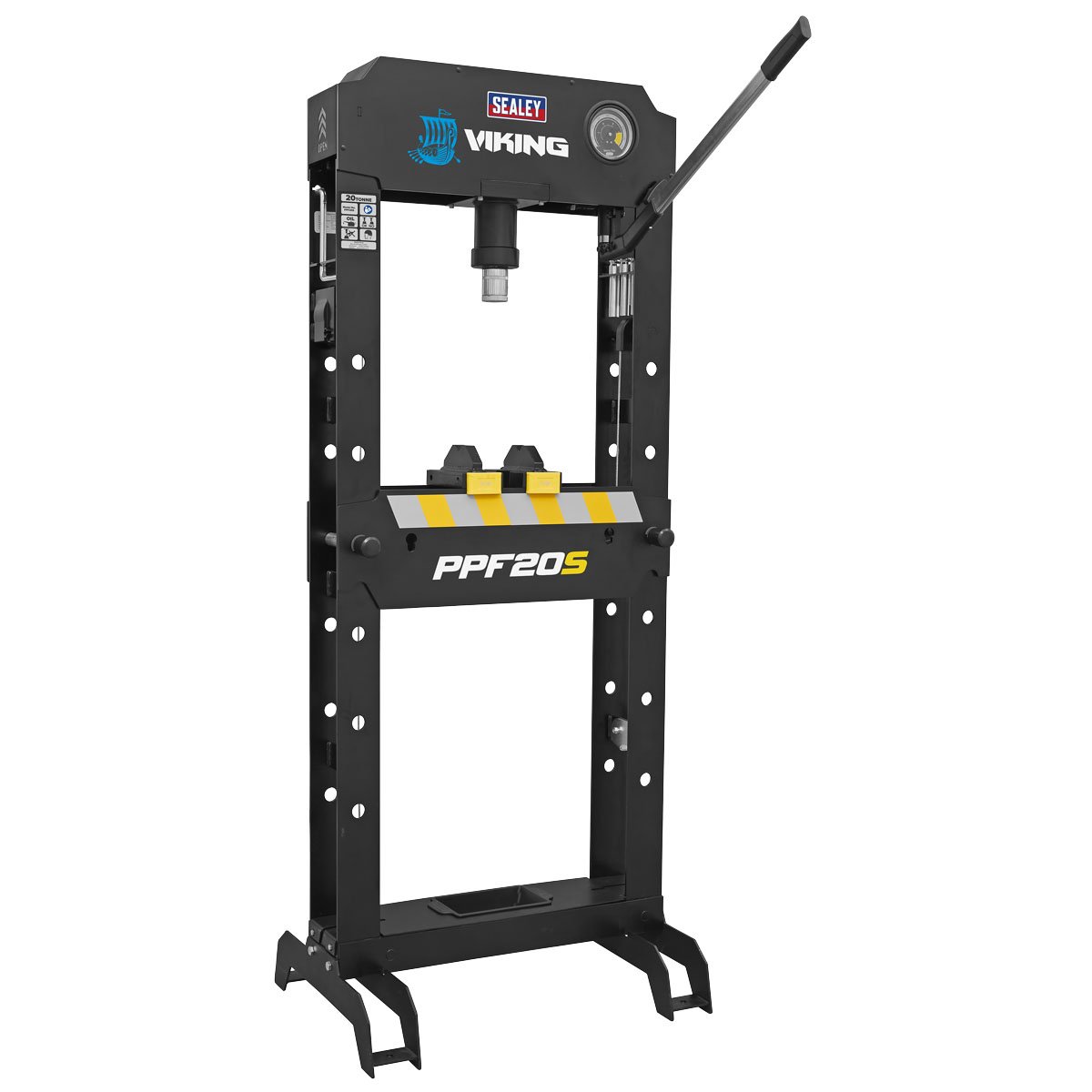

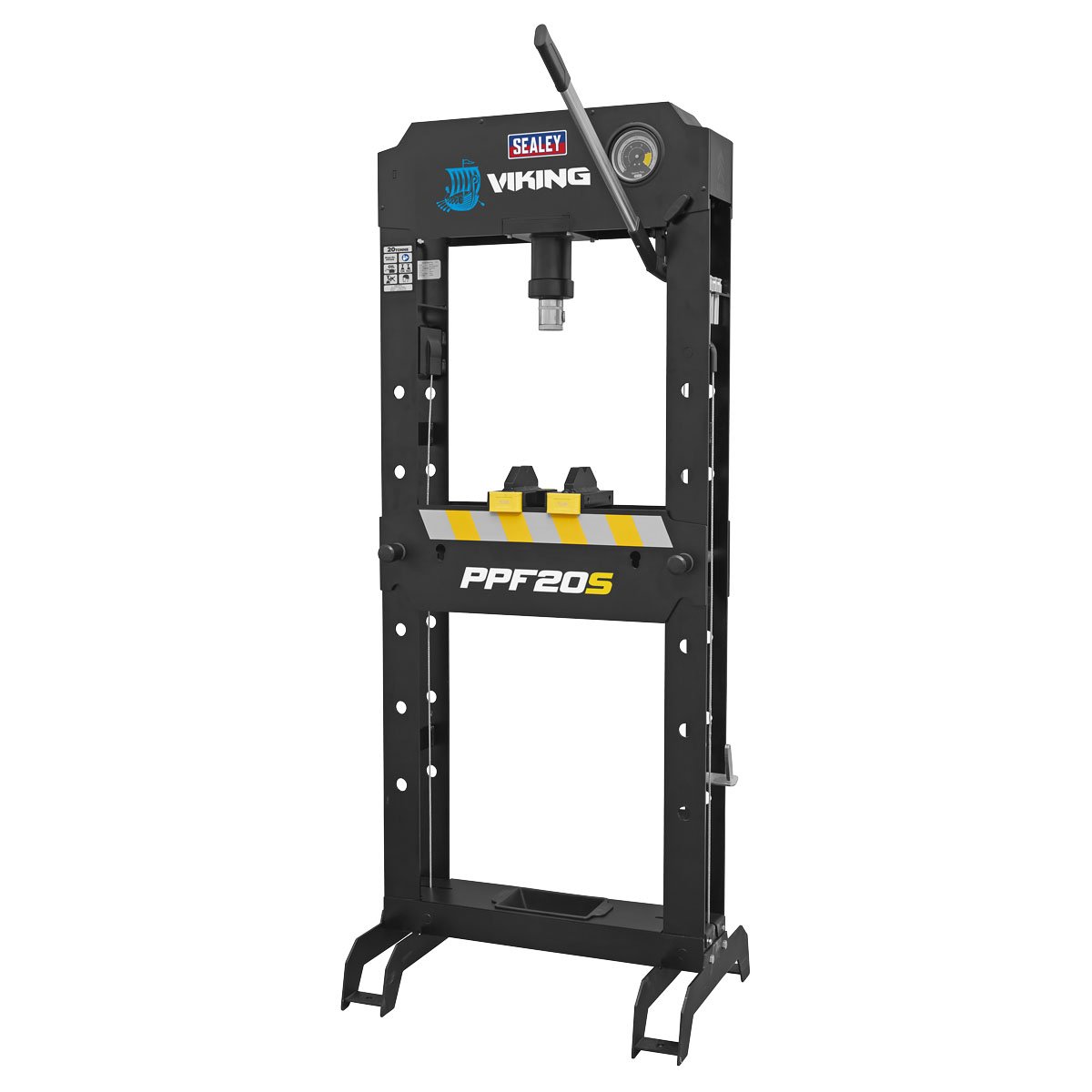

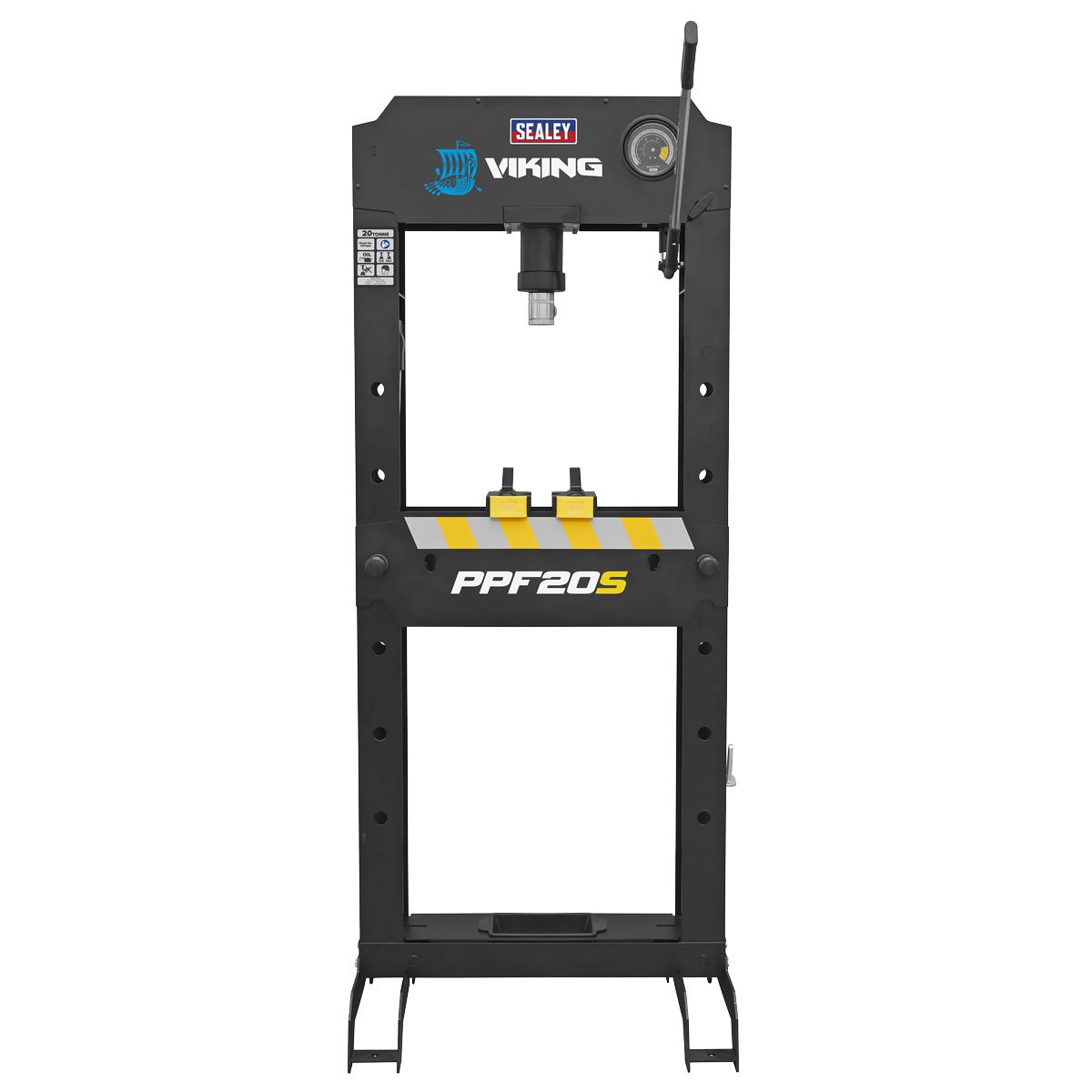

Heavy-duty steel frame construction with handle operated hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Winch assisted press table adjustment. Frame head fitted with ram pressure gauge. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks.

Model Number: PPF20S
Heavy-duty steel frame construction with handle operated hydraulic pump unit.

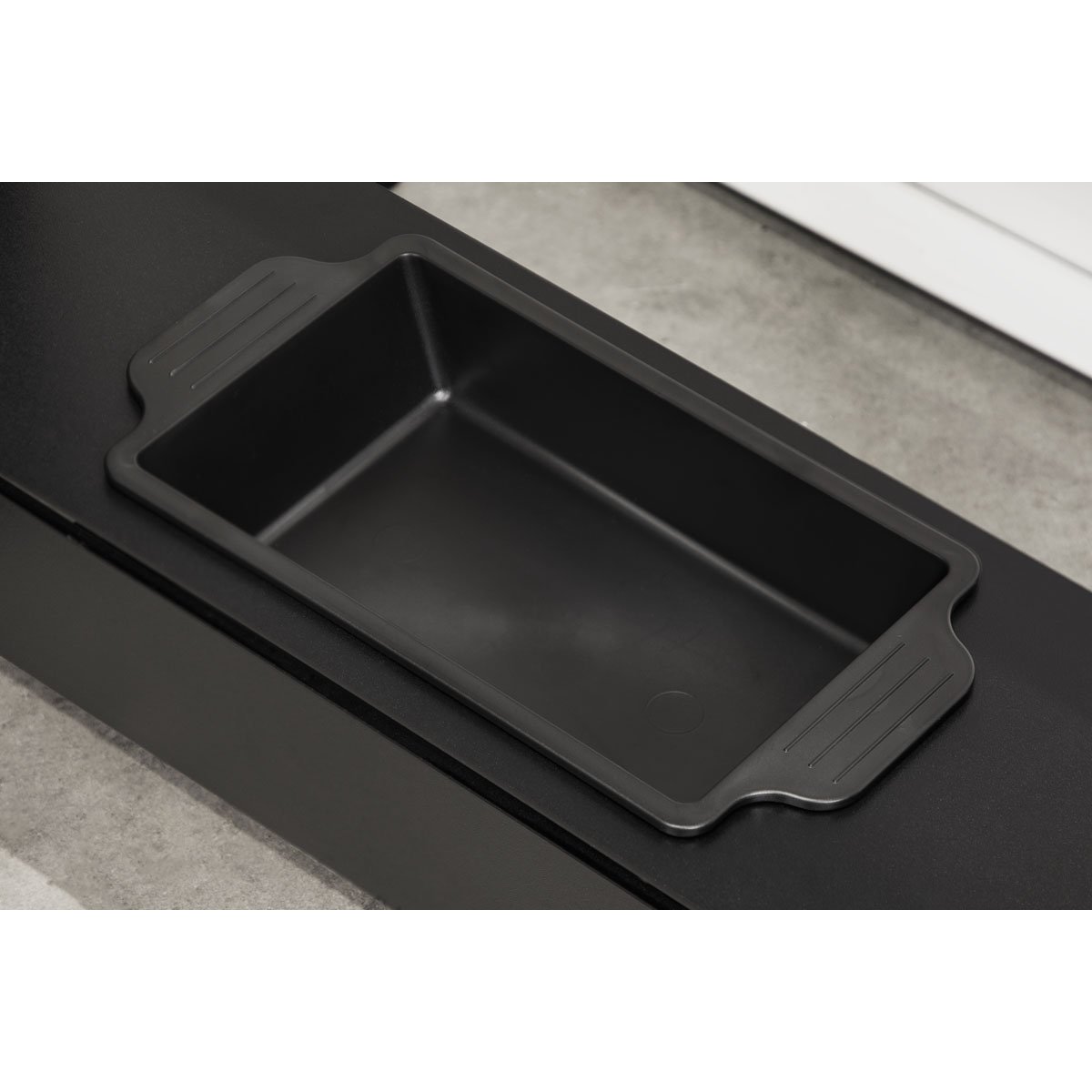

Screw adjustable ram and adjustable work area with removable tray.

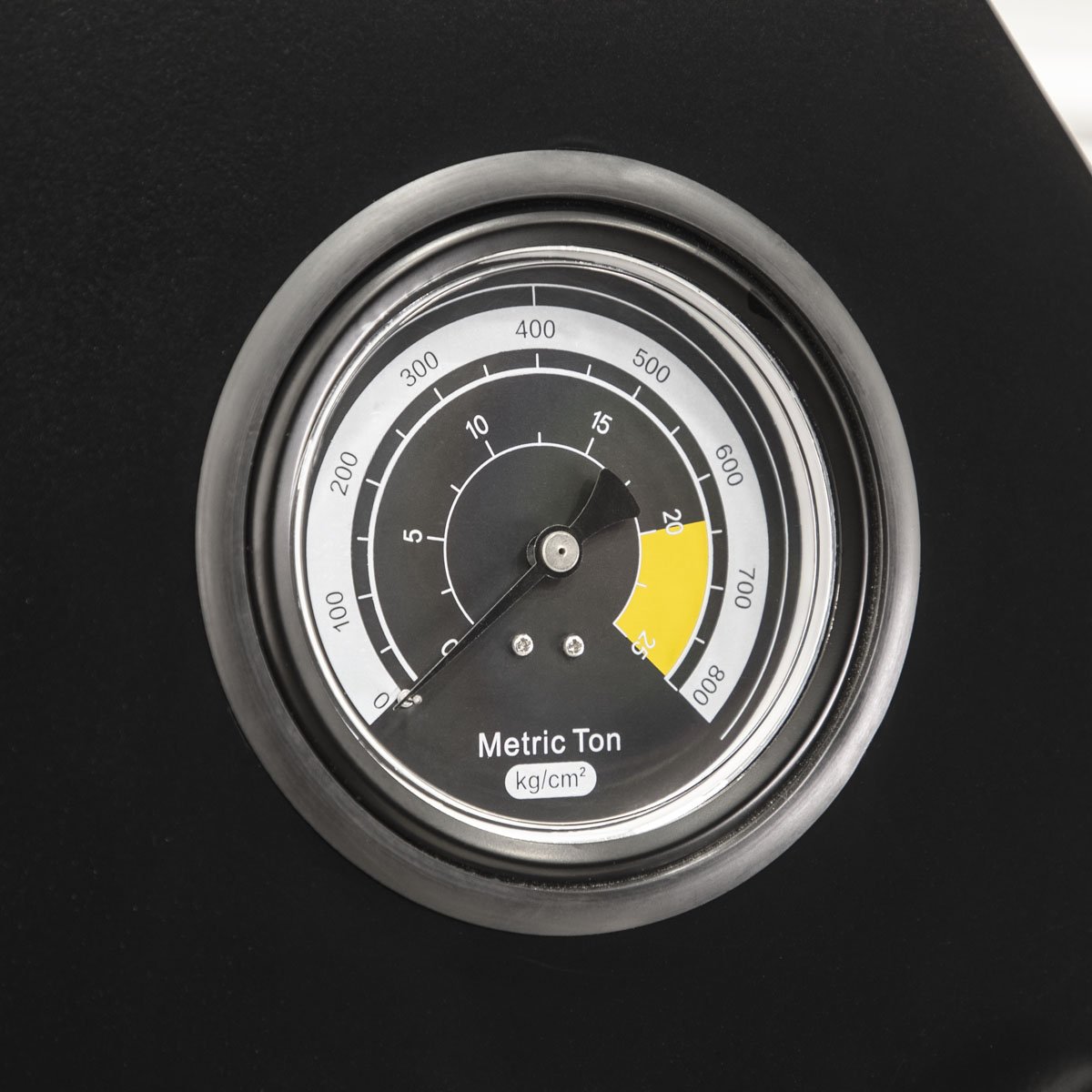

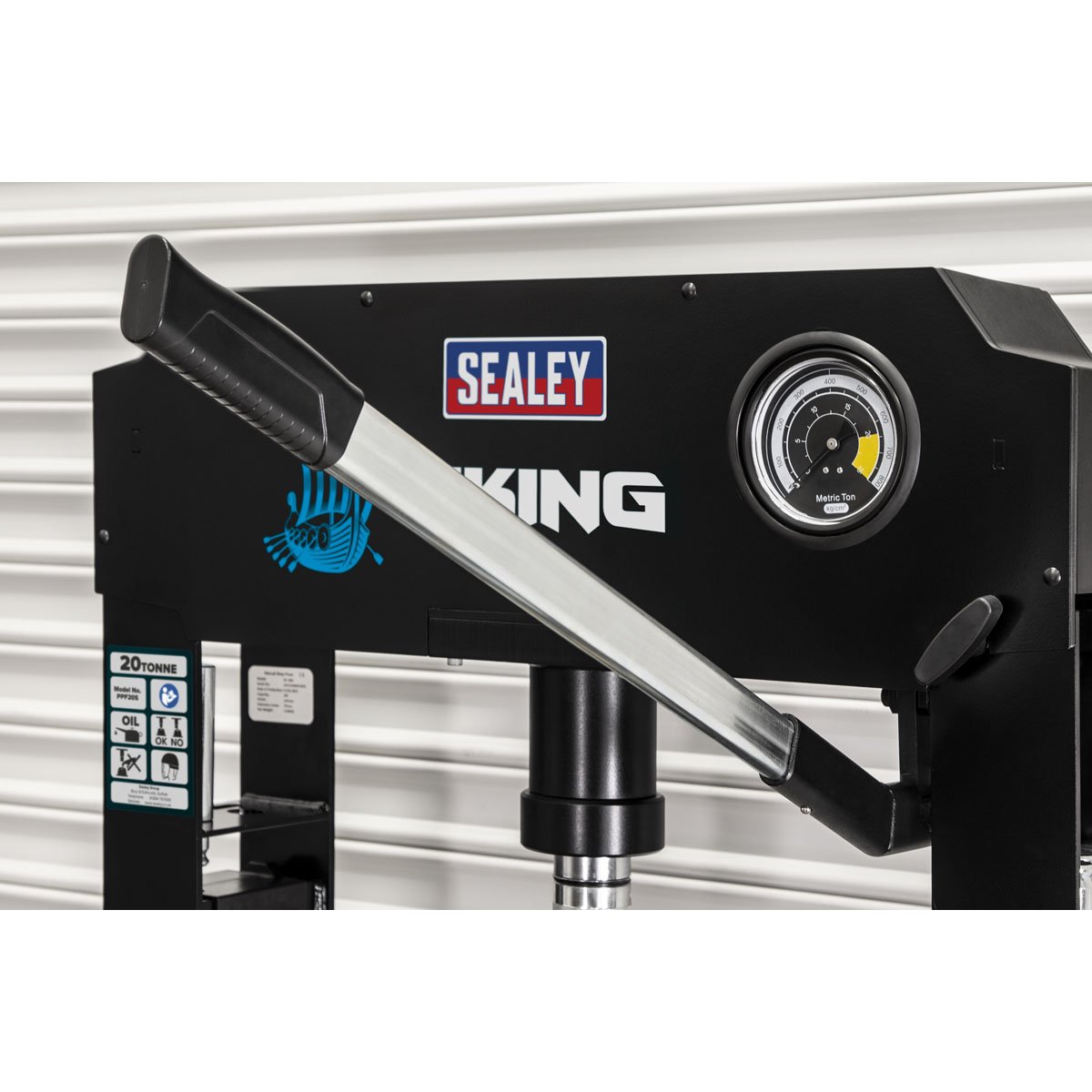

Frame head fitted with ram pressure gauge.

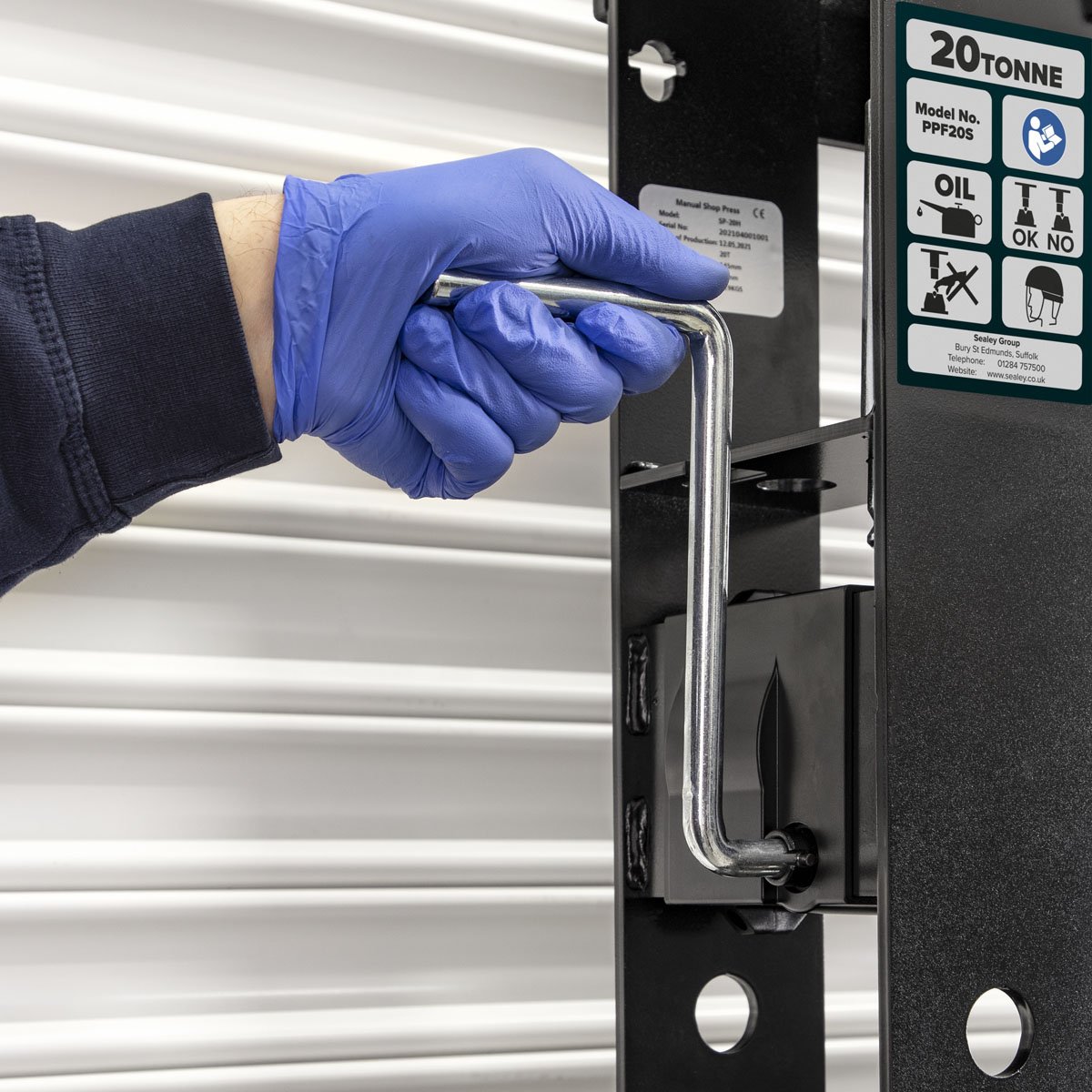

Winch assisted press table adjustment.

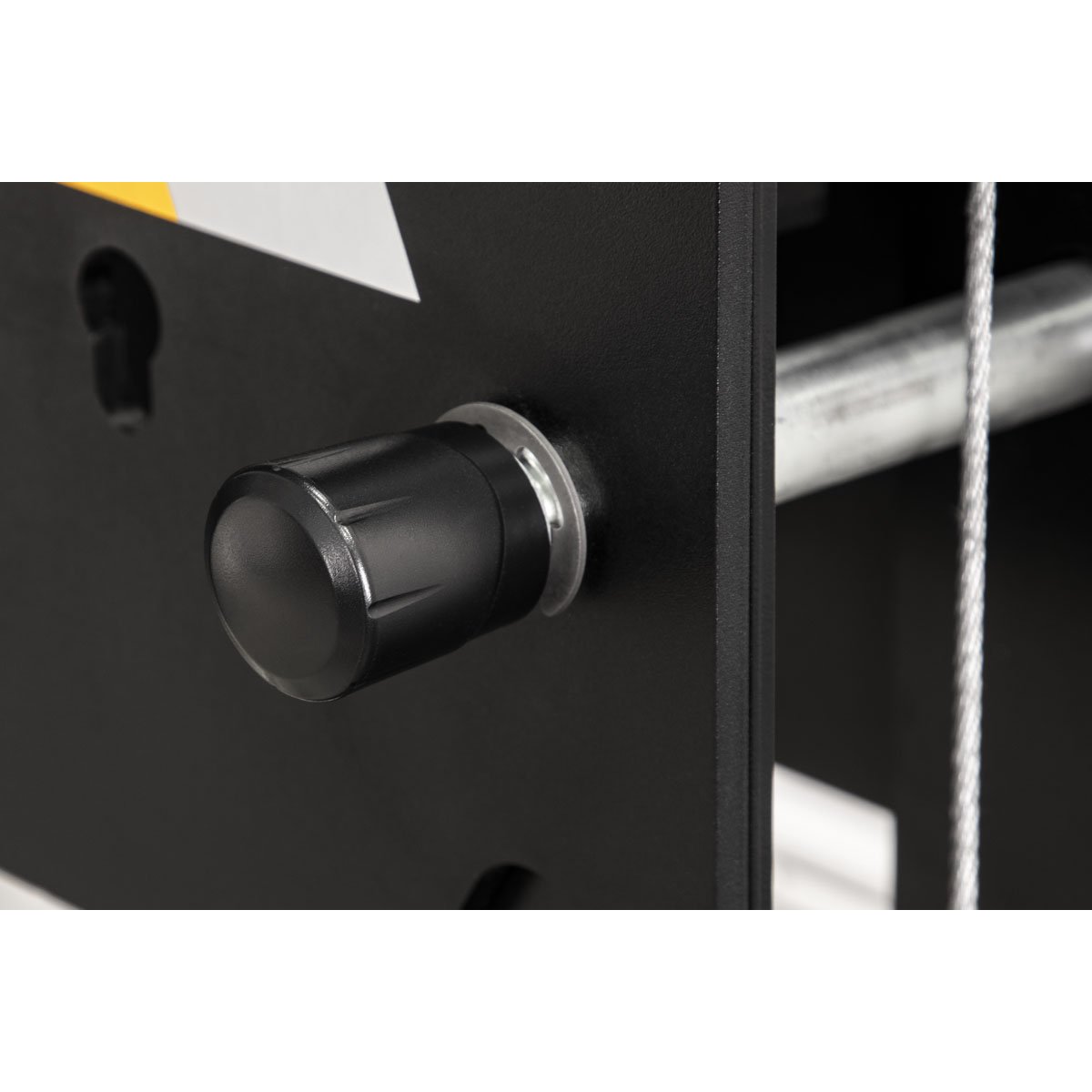

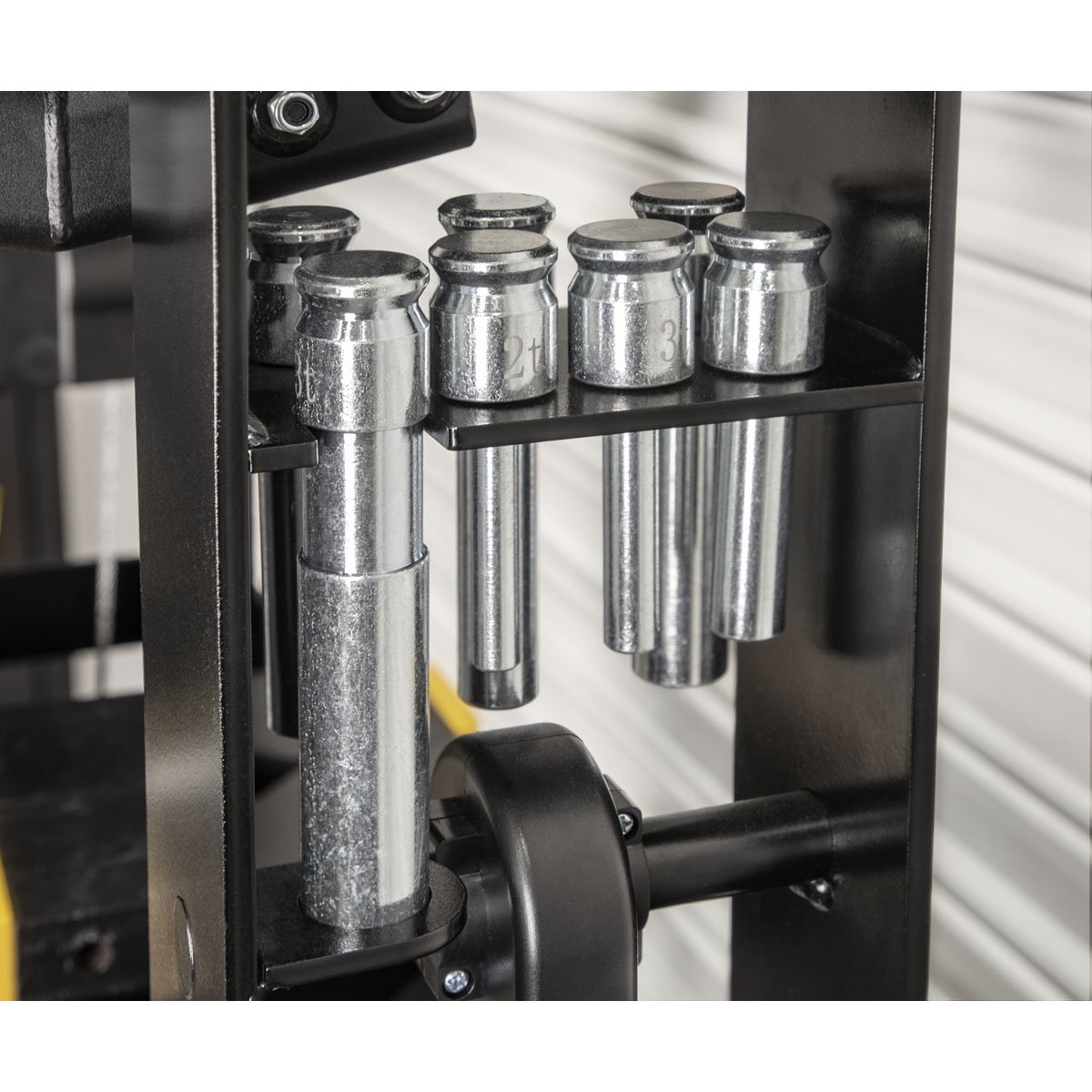

Storage for press pins included in frame.

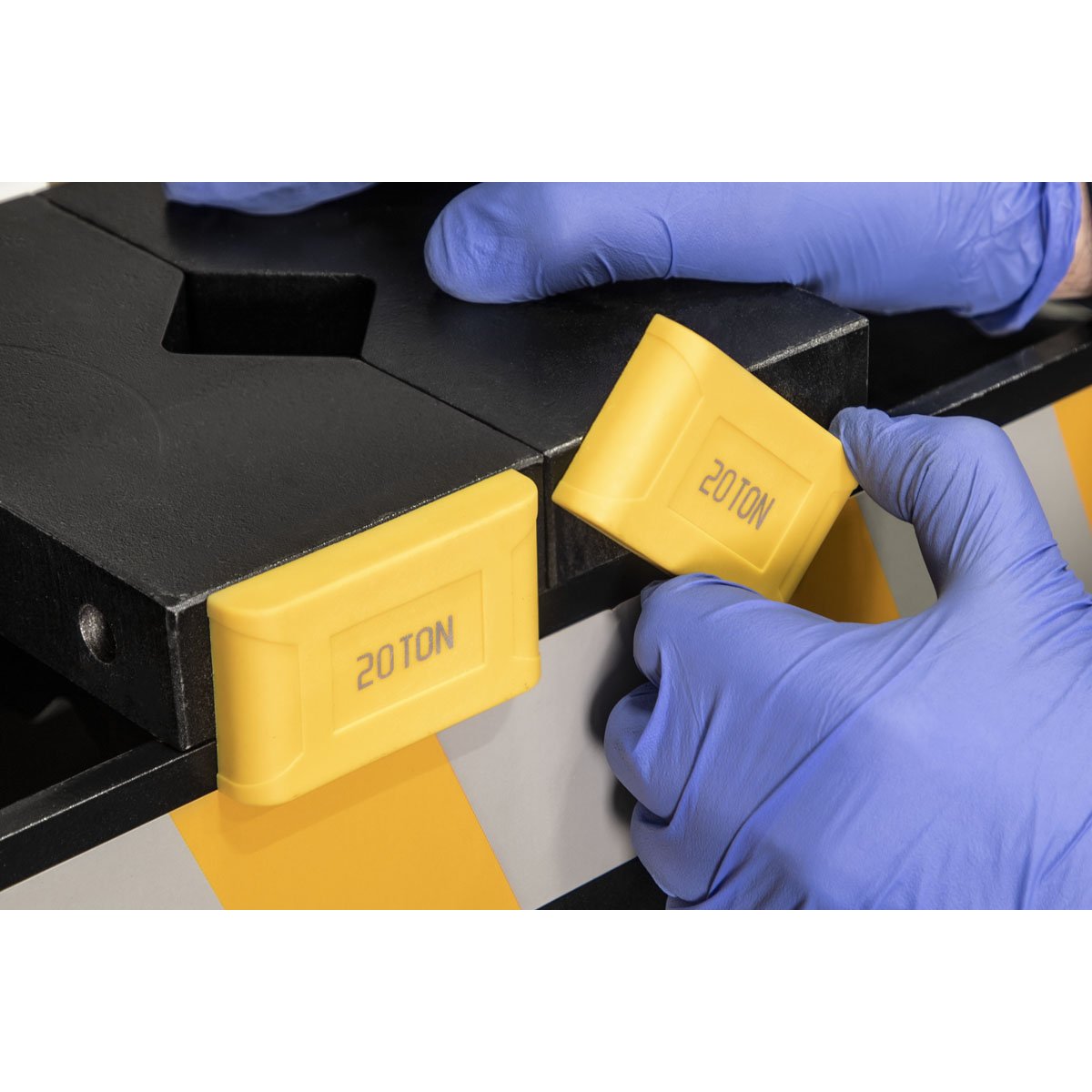

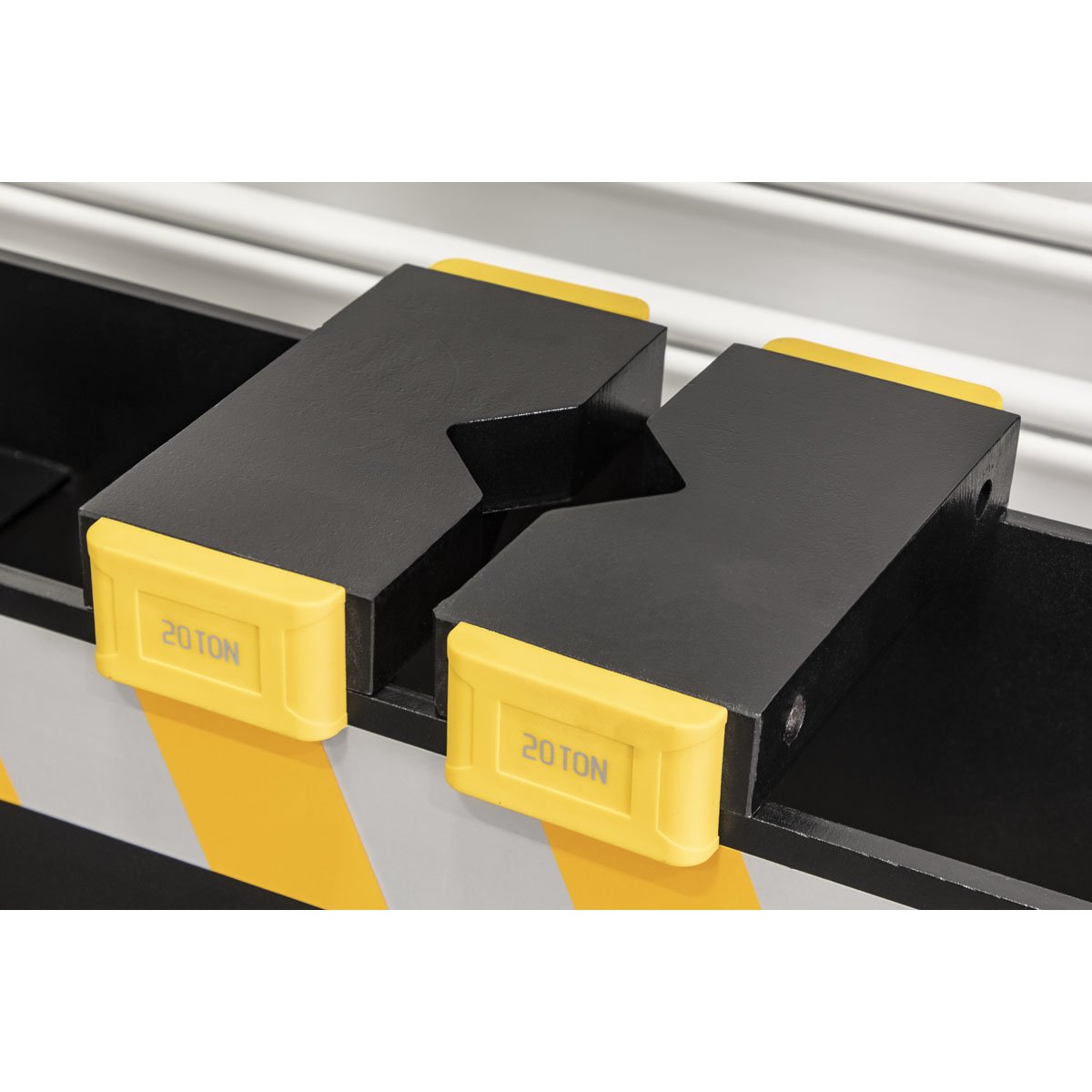

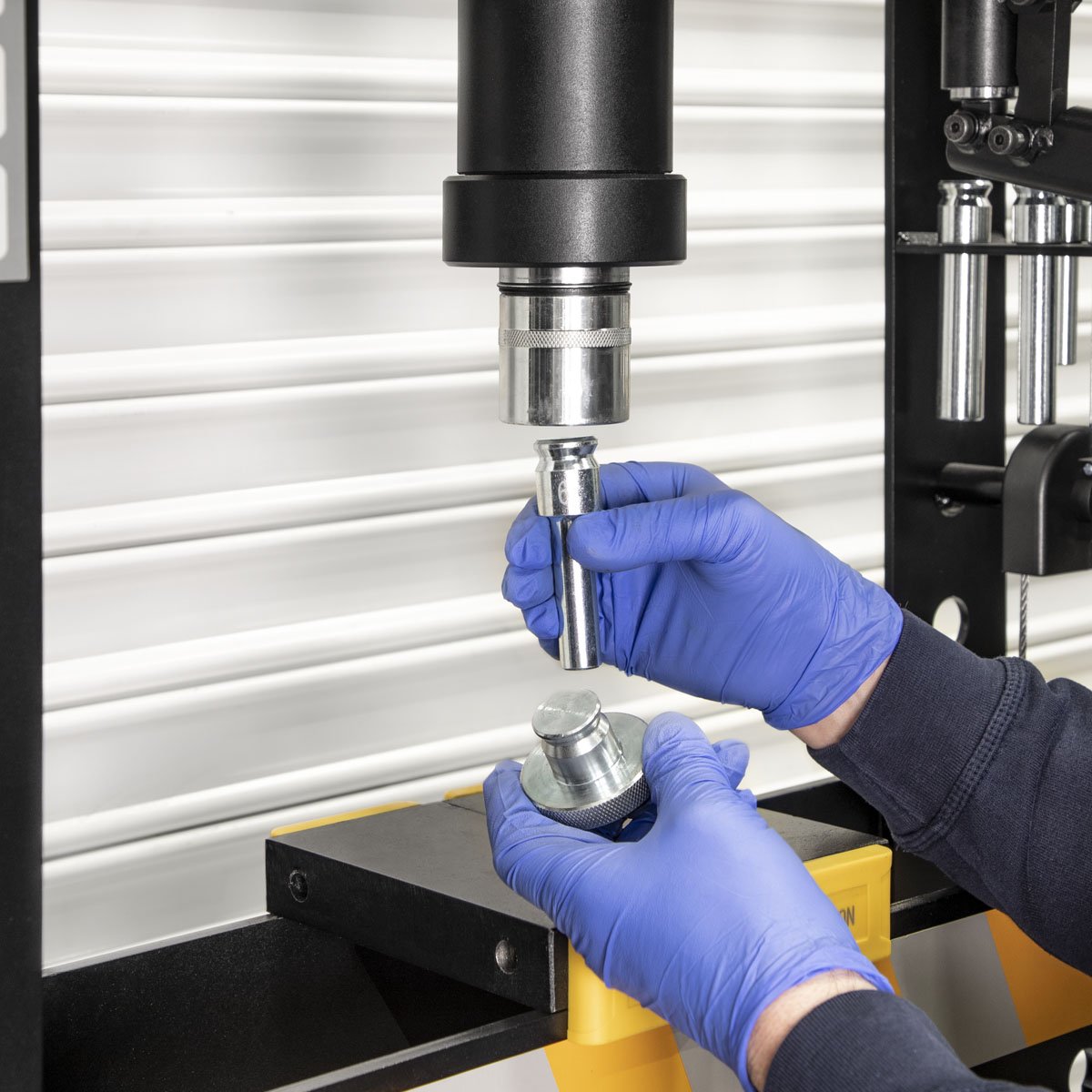

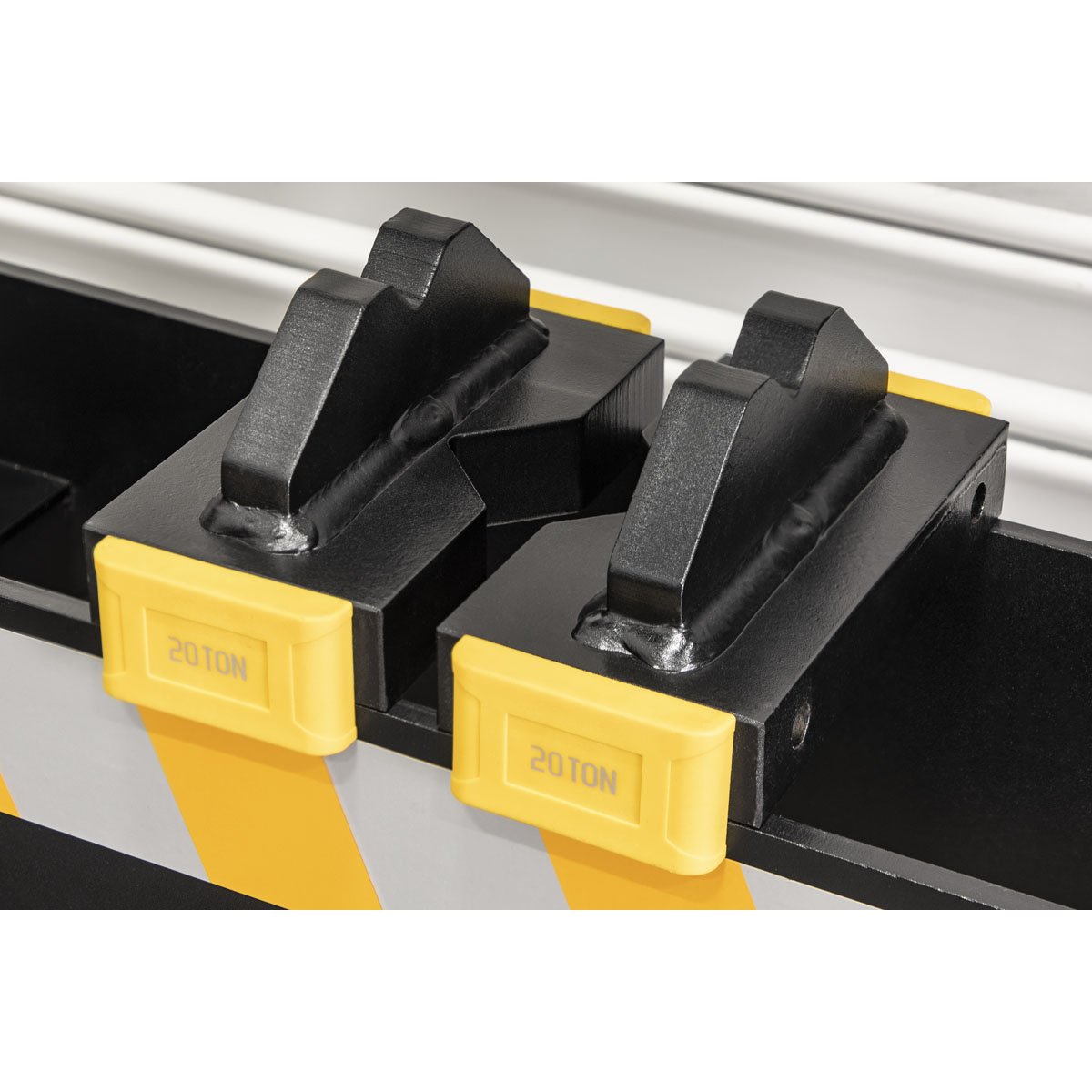

Supplied with press pins, flat pressing plate/V-blocks.
5 Year guarantee*.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Warranty: 5 years Years
Sealey catalogue page number: 330
Variant number of the model: 001

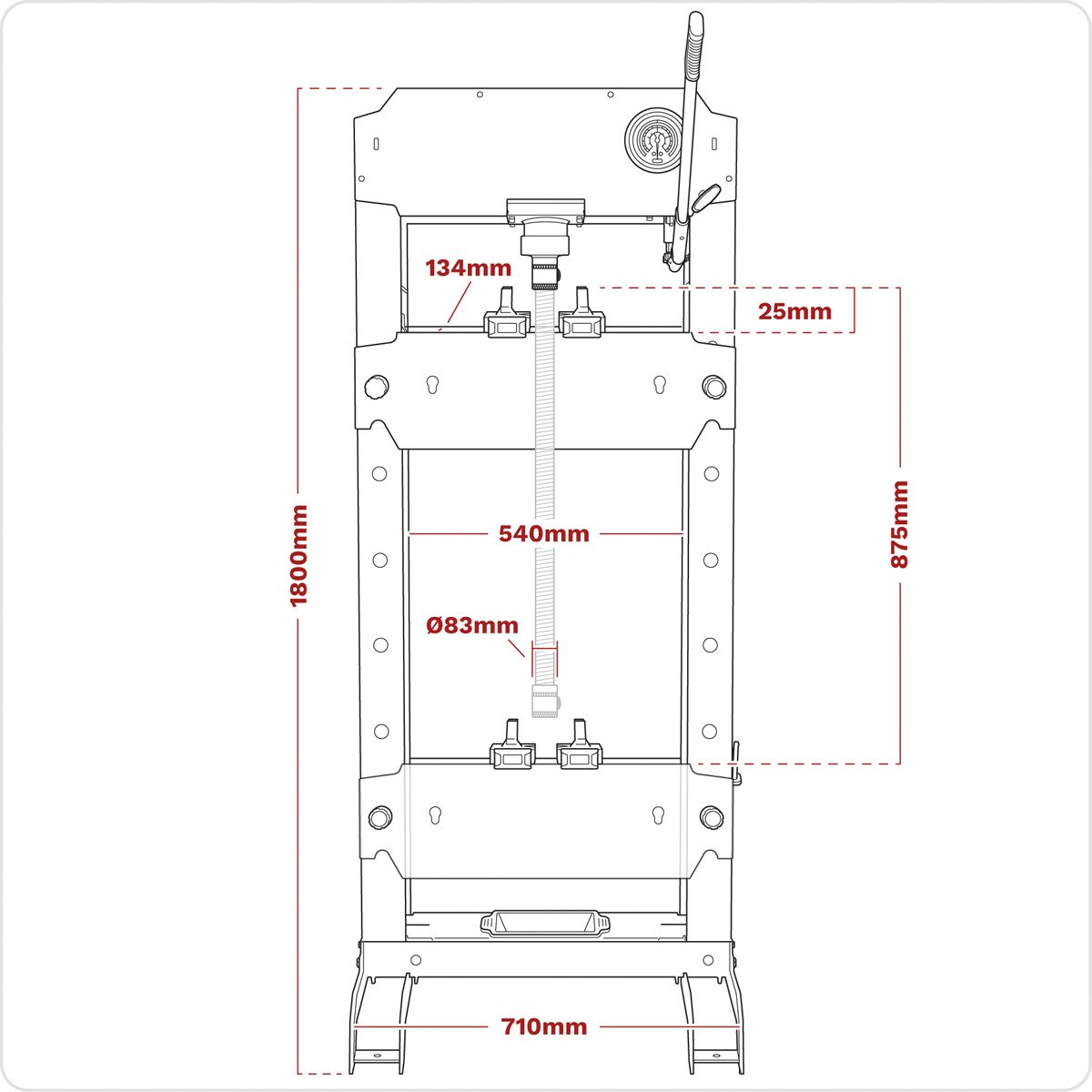

Specification:

Model No	PPF20S
Bench or Floor Mounting:	Floor
Brand:	Viking
Capacity:	20 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	n/a
Maximum Height - Ram to Table:	850mm
Minimum Height - Ram to Table:	25mm
Nett Weight:	121.4kg
Operating Table Width:	540mm
Overall Height:	1800mm
Ram Diameter:	Ø84.2mm
Ram Stroke:	220mm
Screw Extension:	75mm
Table Aperture:	150mm
Type:	Floor
Working Table Depth:	166mm
Working Table Width:	710mm
