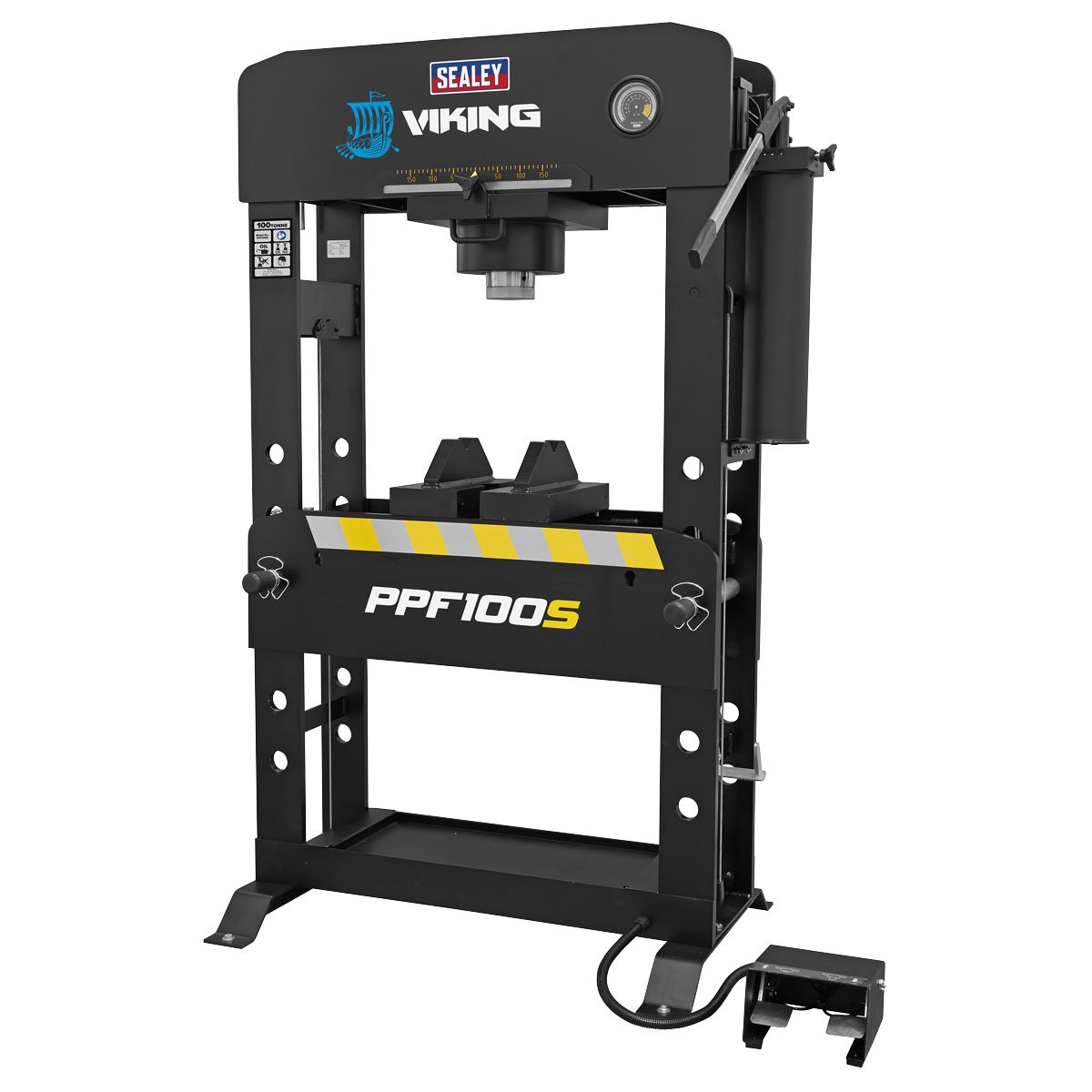

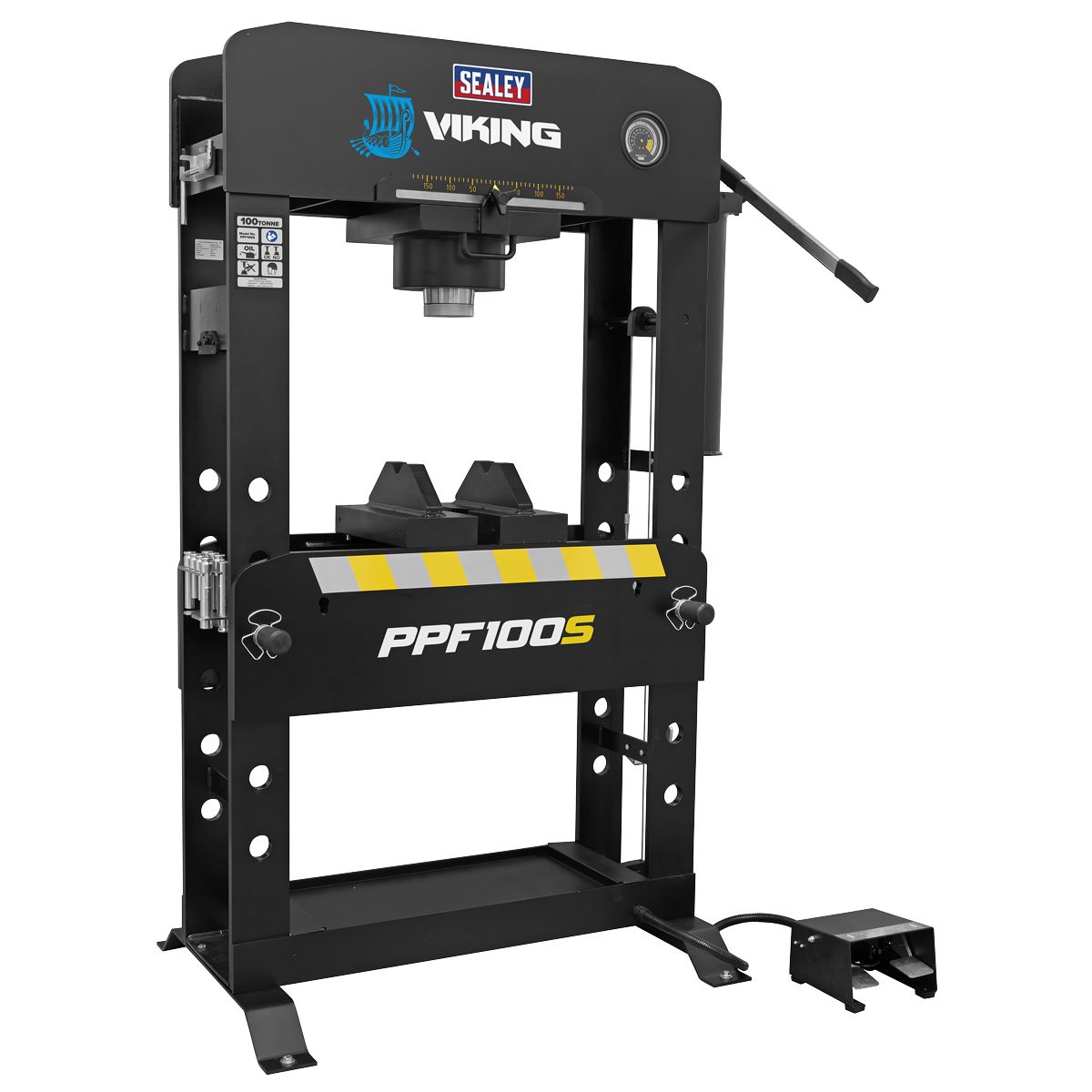

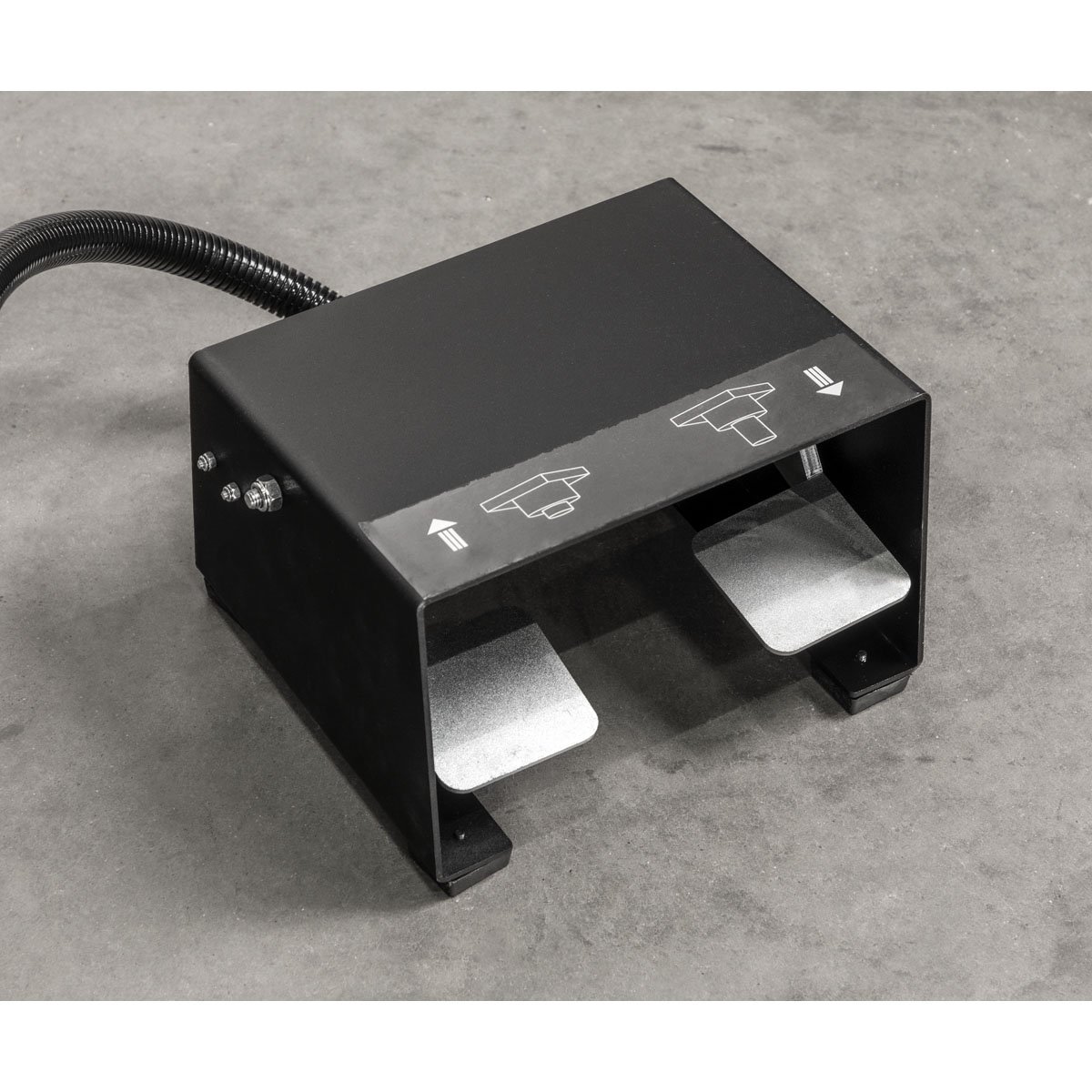

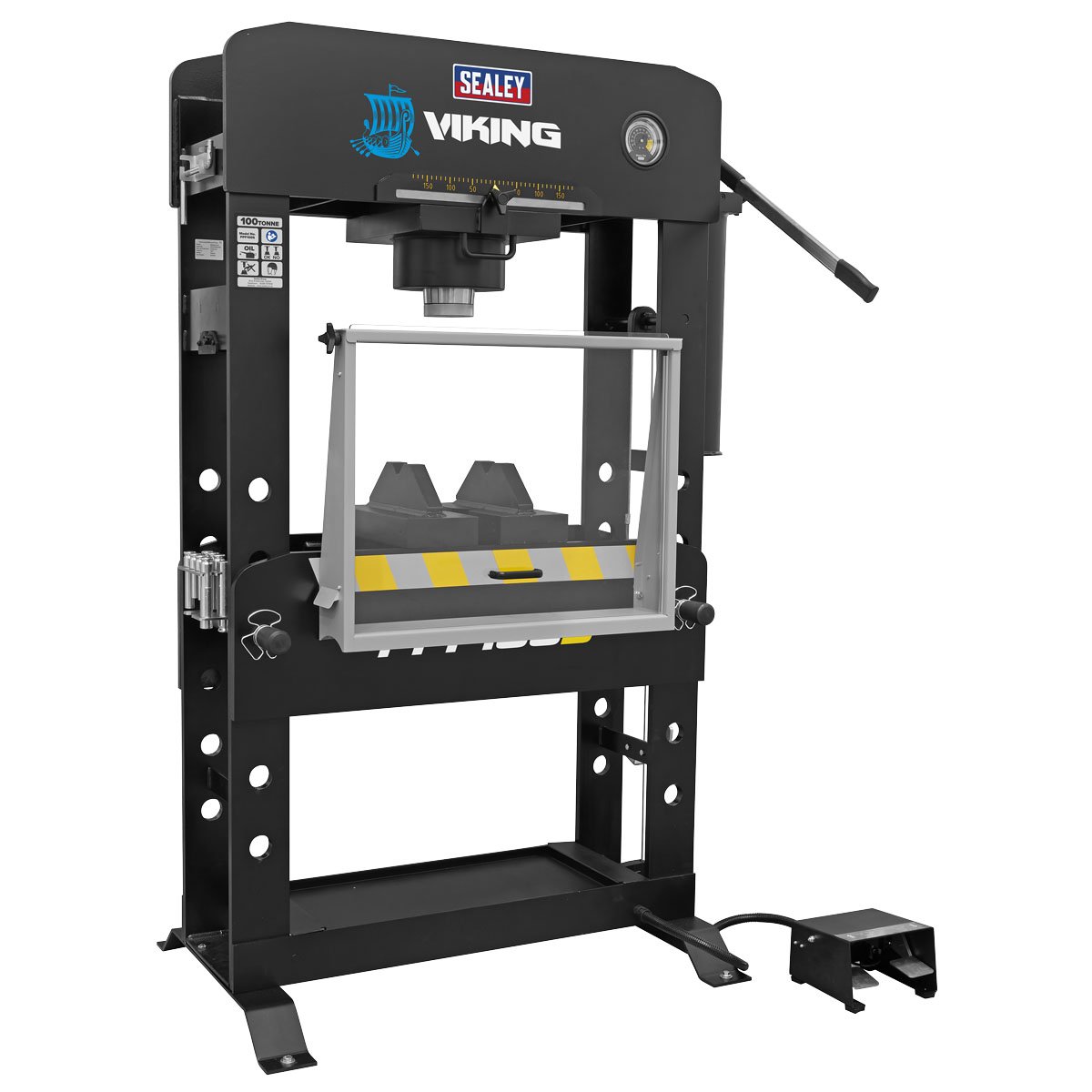

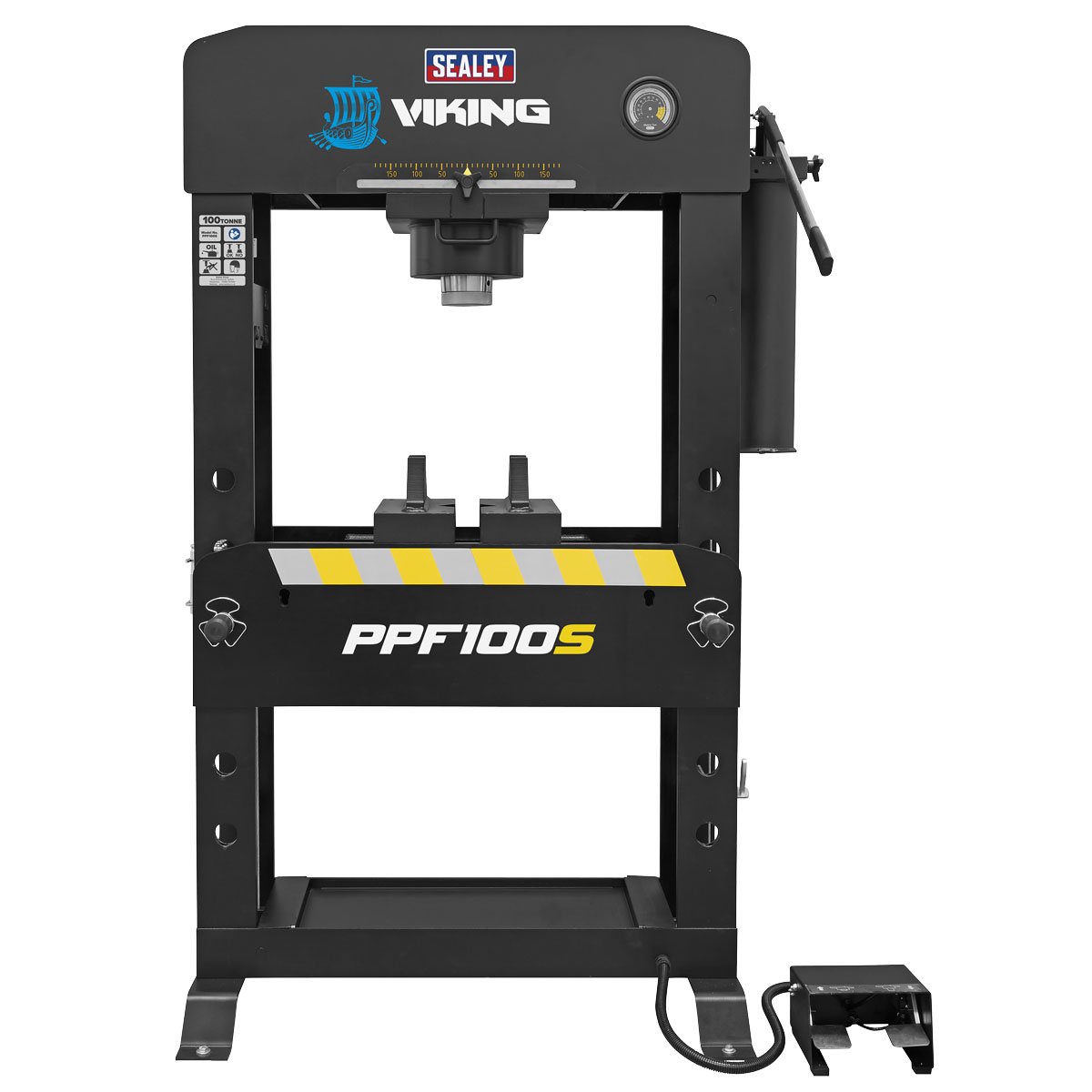

Sealey Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 100 Tonne

Description

Delivery Information

Ask a question

Instructions

Parts Diagrams

Material Safety Data Sheet

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit. Adjustable work area with removable tray. Sliding hydraulic ram assembly giving 360mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame (pins not included). Supplied with flat pressing plate/V-blocks. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Model Number: PPF100S
Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.
Adjustable work area with removable tray.

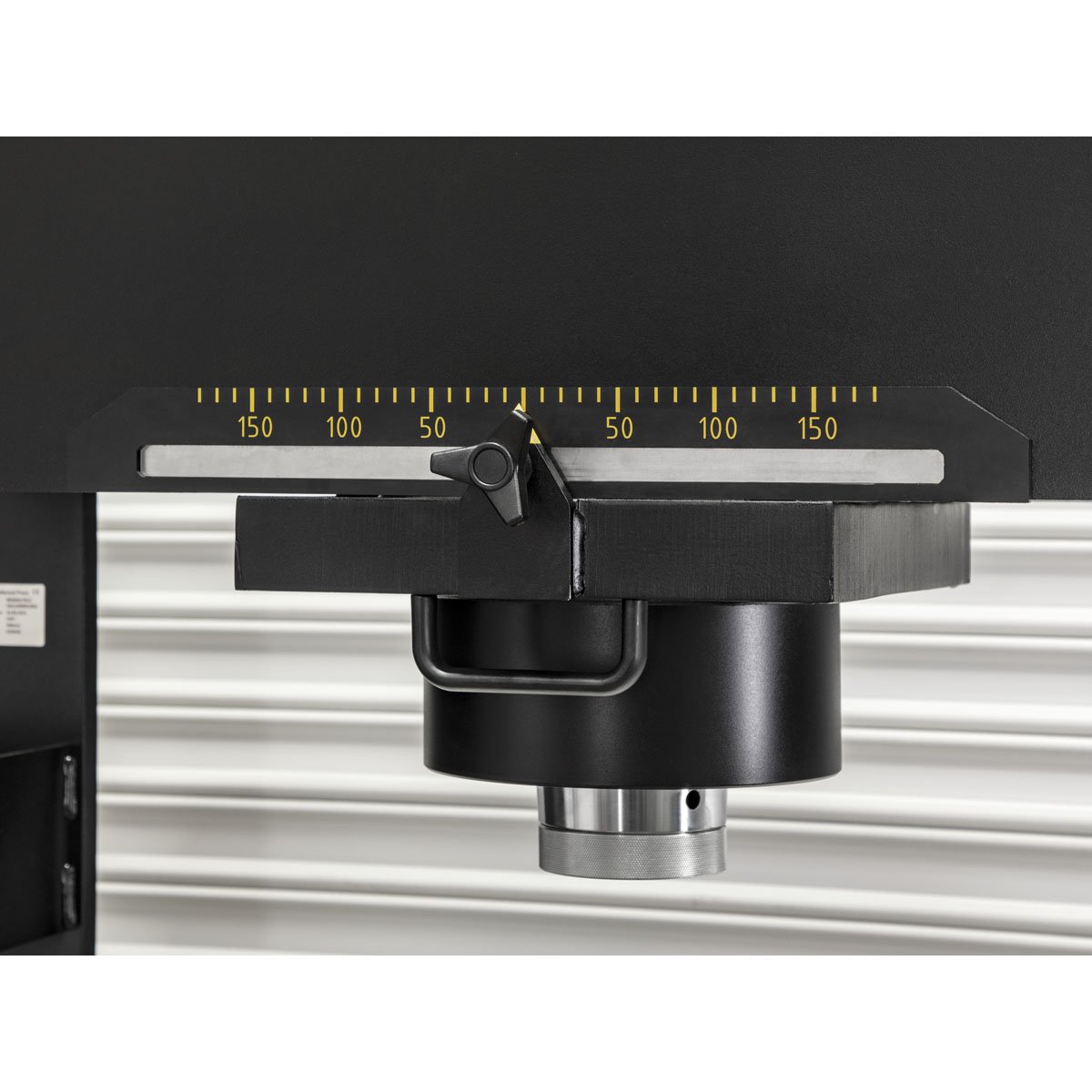

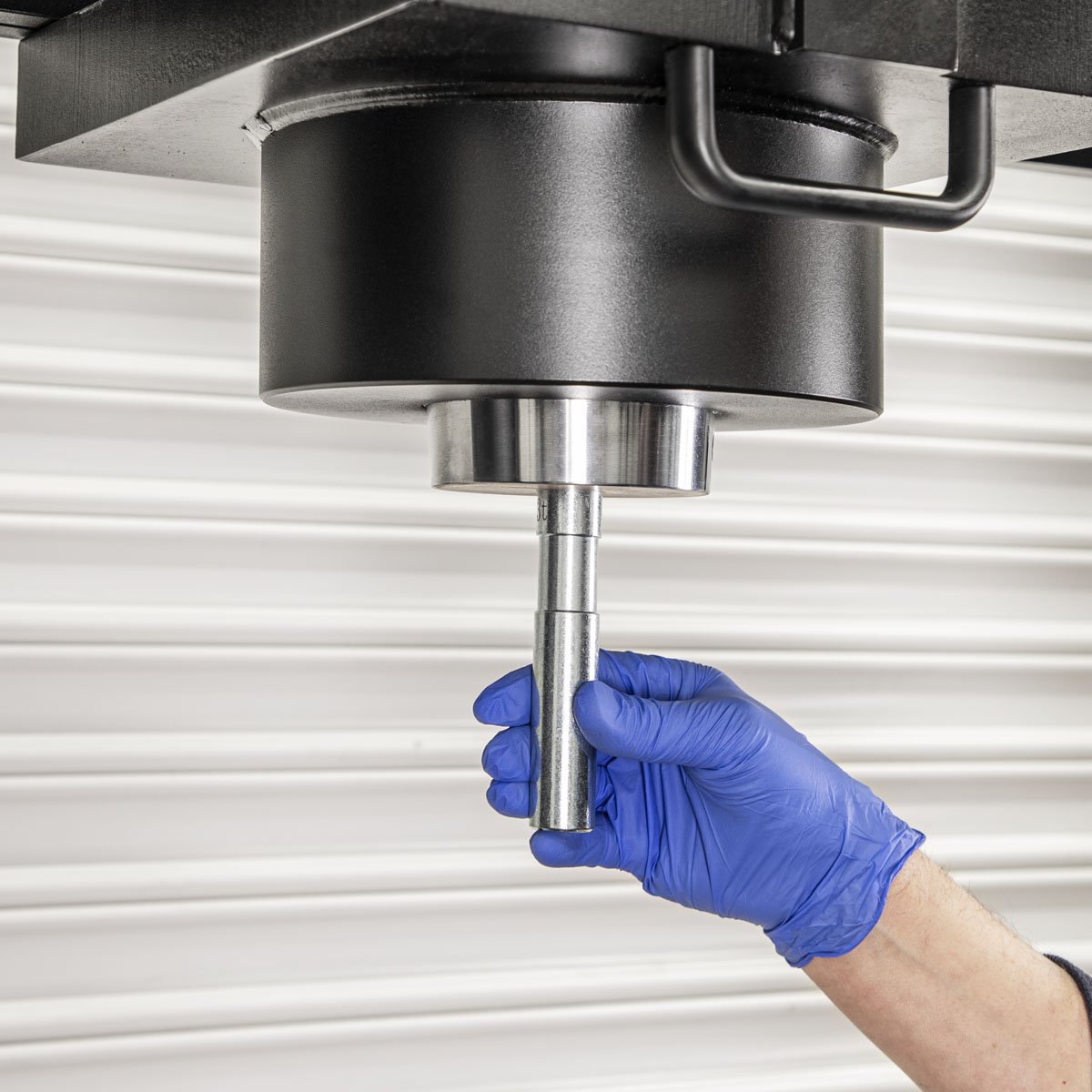

Sliding hydraulic ram assembly giving 360mm of lateral travel for off-centre pressing applications.

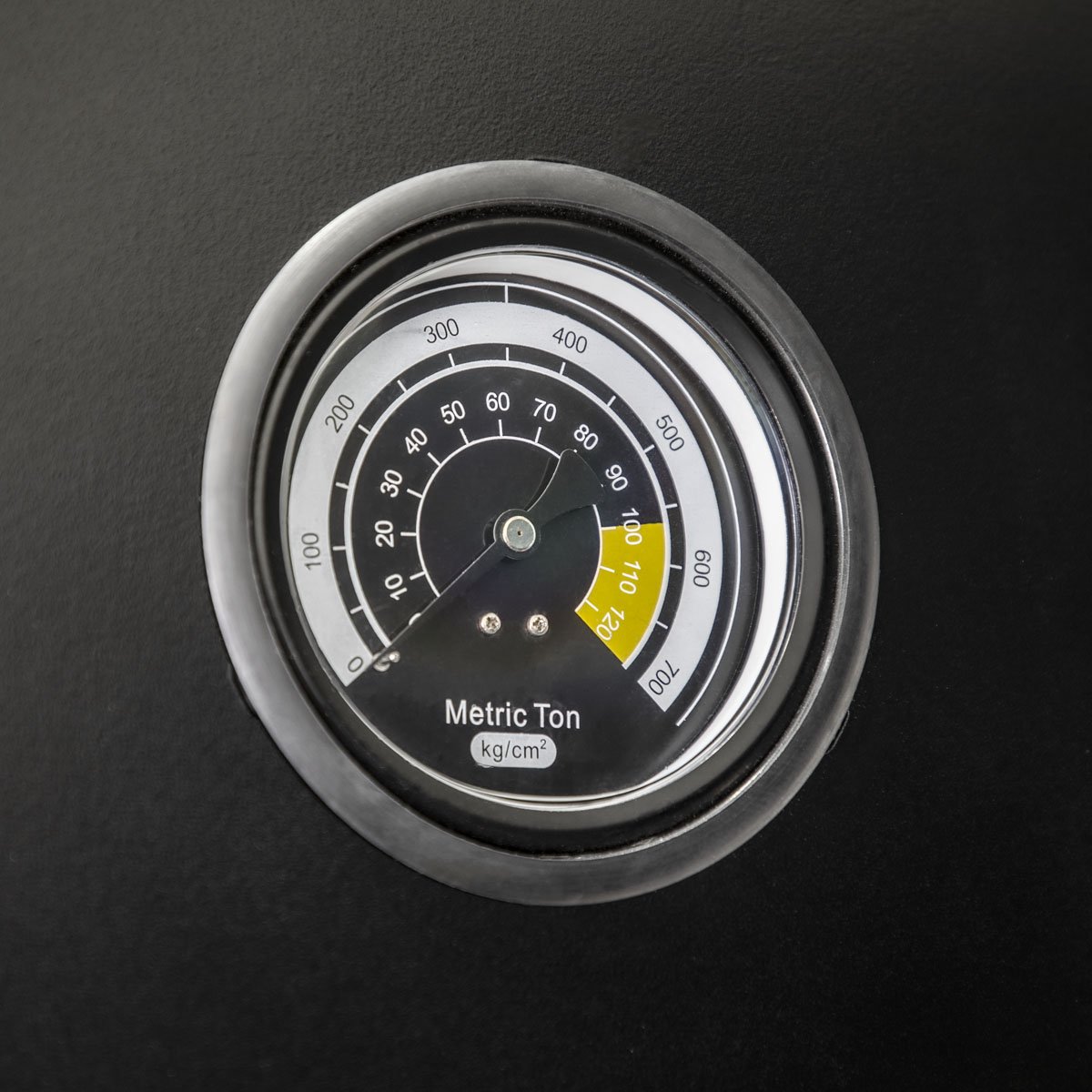

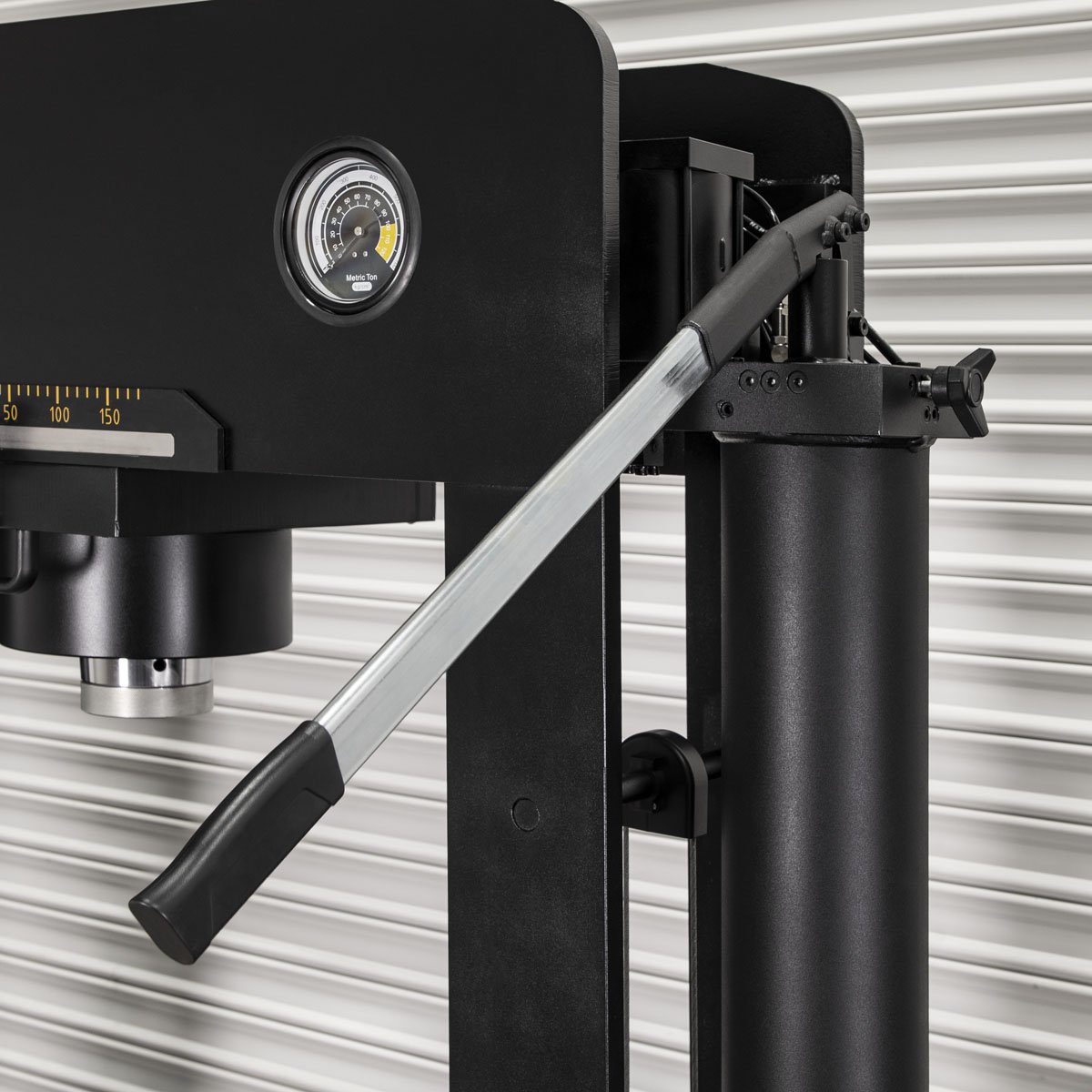

Frame head fitted with ram pressure gauge.

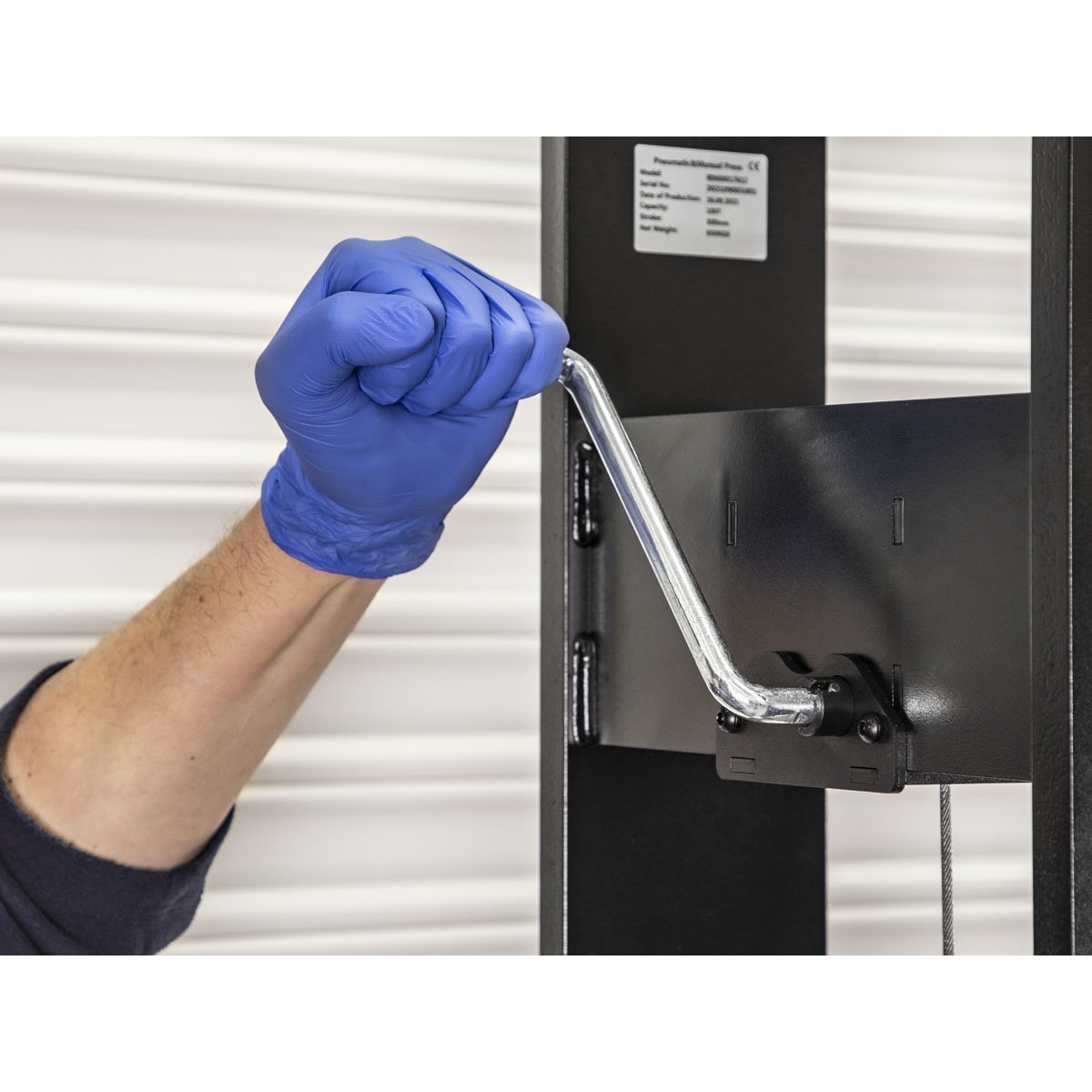

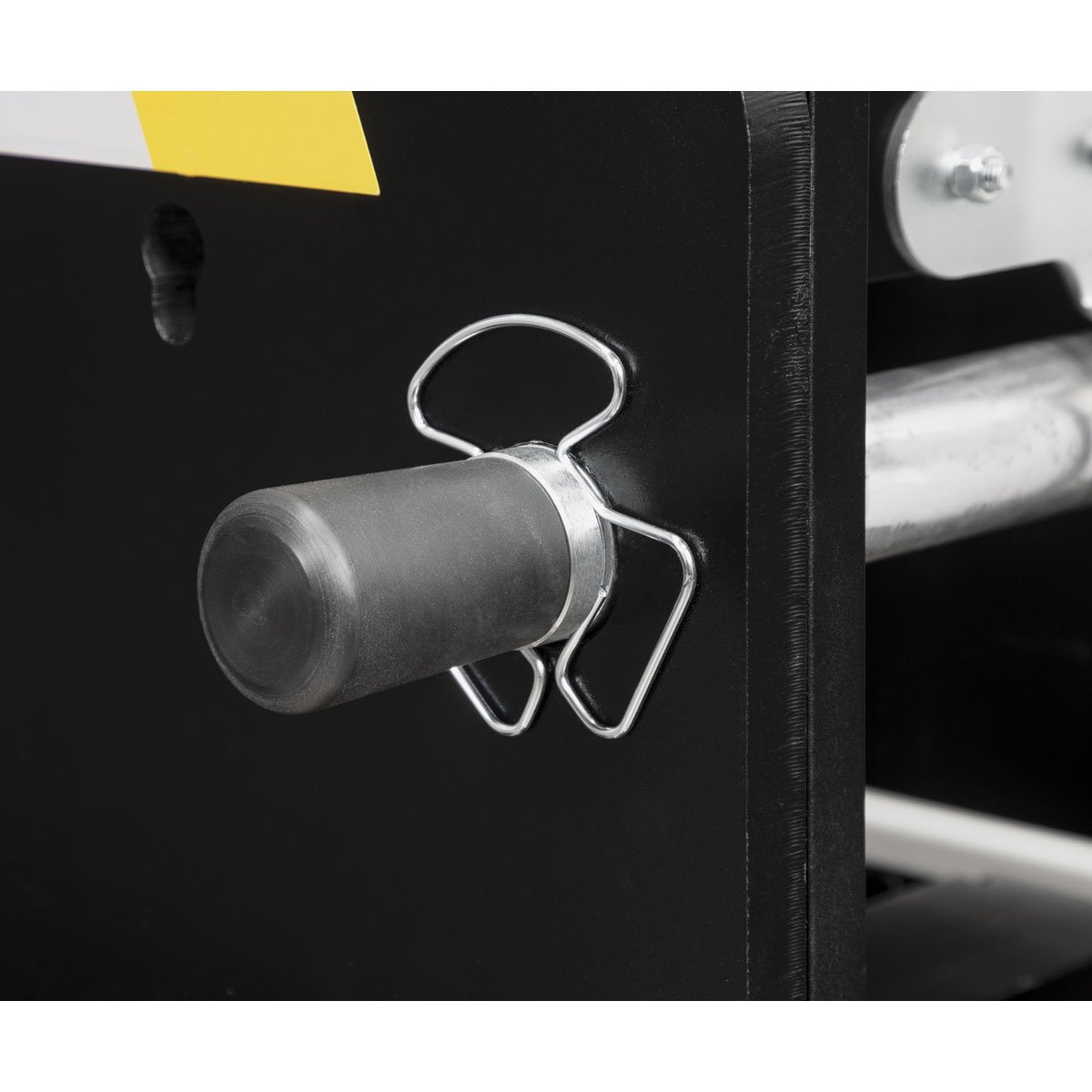

Winch assisted press table adjustment.

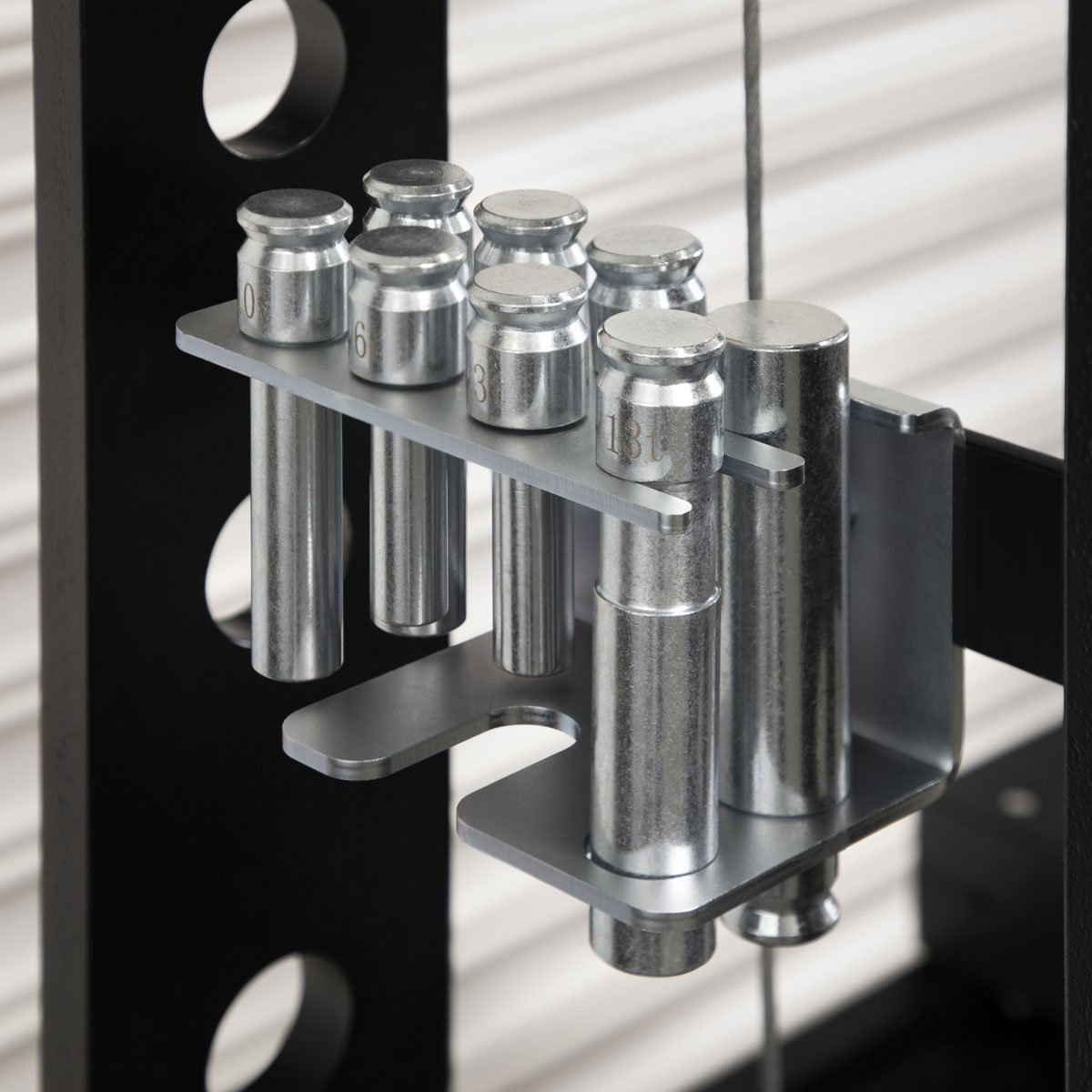

Storage for press pins included in frame (pins not included).

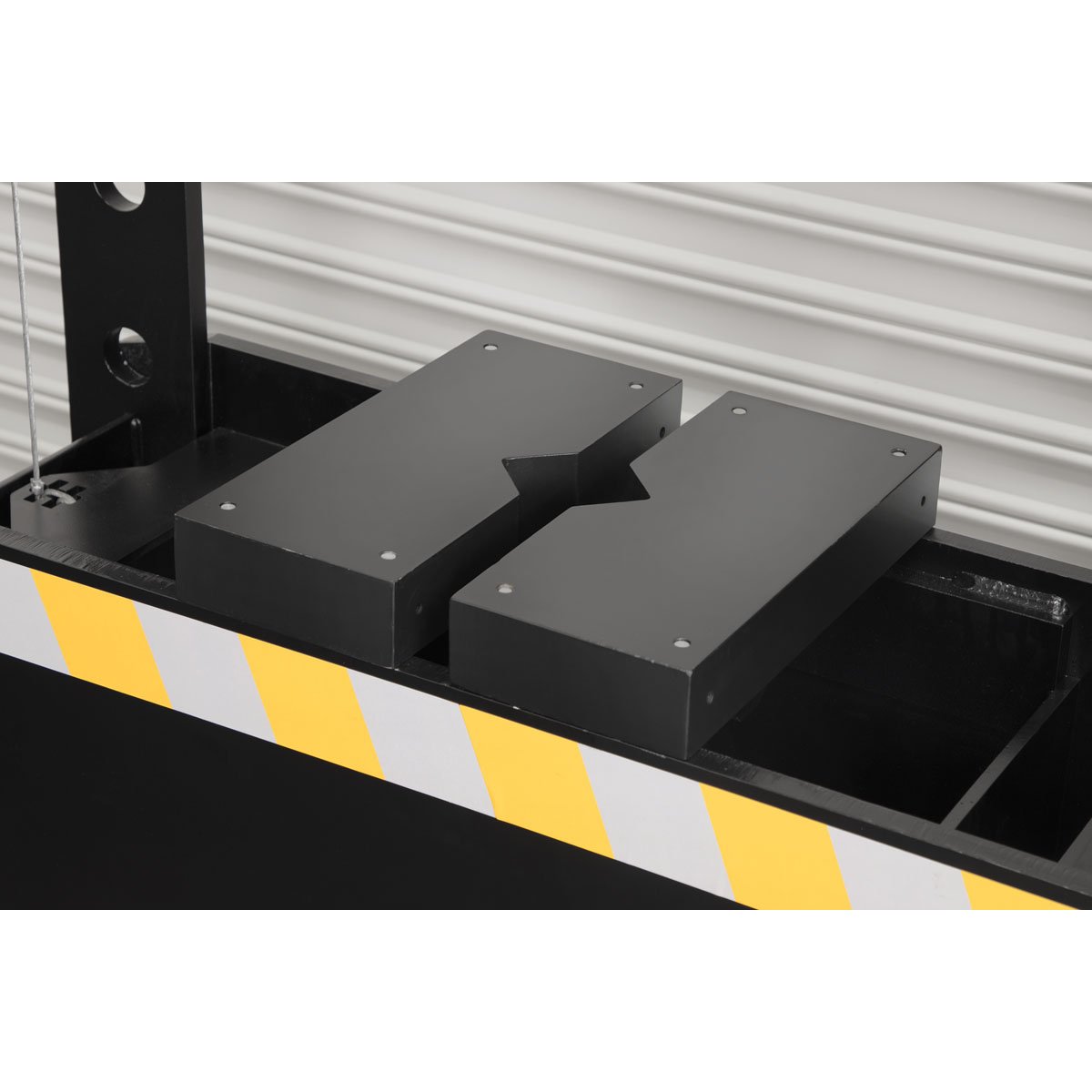

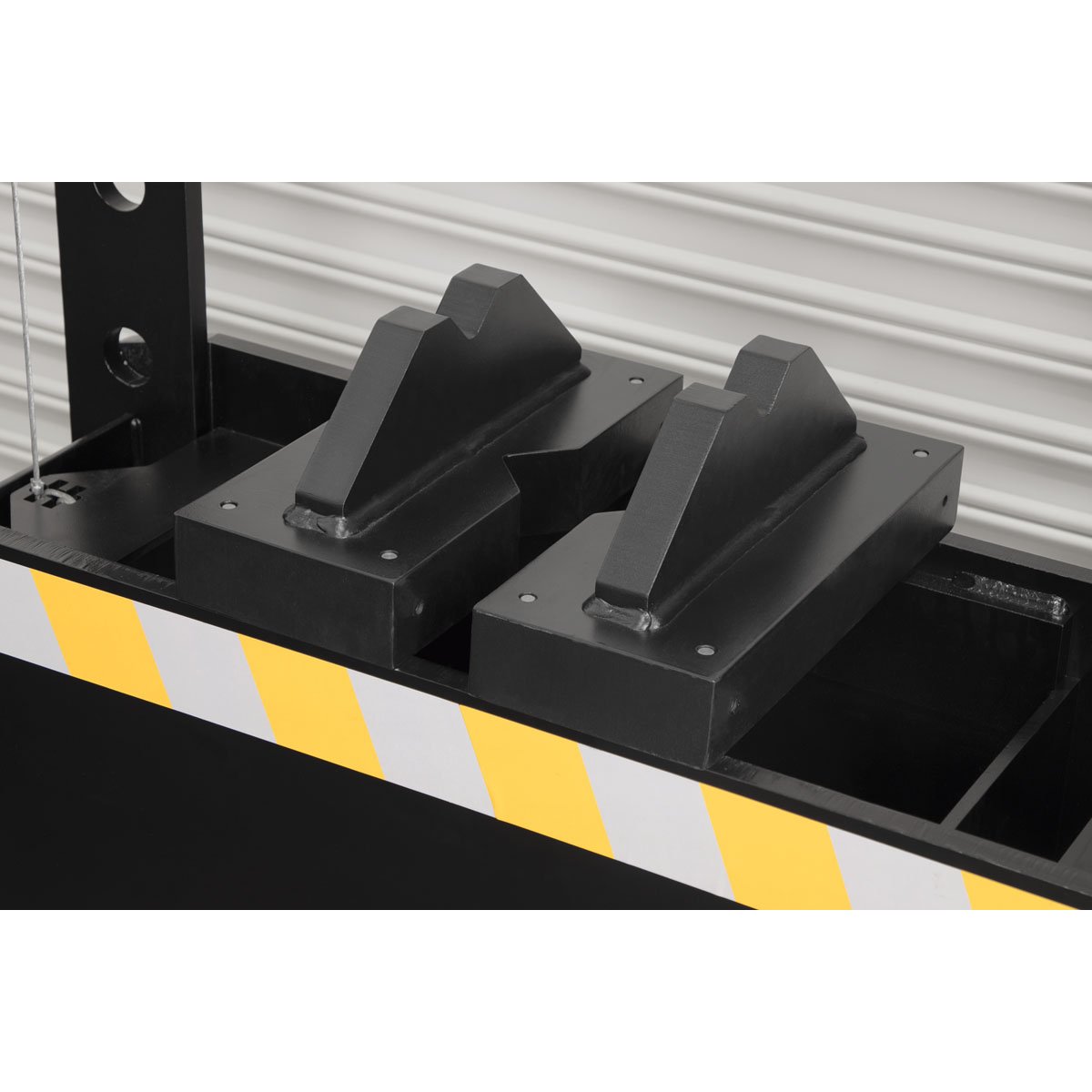

Supplied with flat pressing plate/V-blocks.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
A forklift must be available at the delivery point to unload this item.
5 Year guarantee*.
Warranty: 5 years Years
Sealey catalogue page number: 331
Variant number of the model: 001
This product may require a forklift

Specification:

Model No	PPF100S
Air Consumption:	6.5cfm
Bench or Floor Mounting:	Floor
Brand:	Viking
Capacity:	100 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	360mm

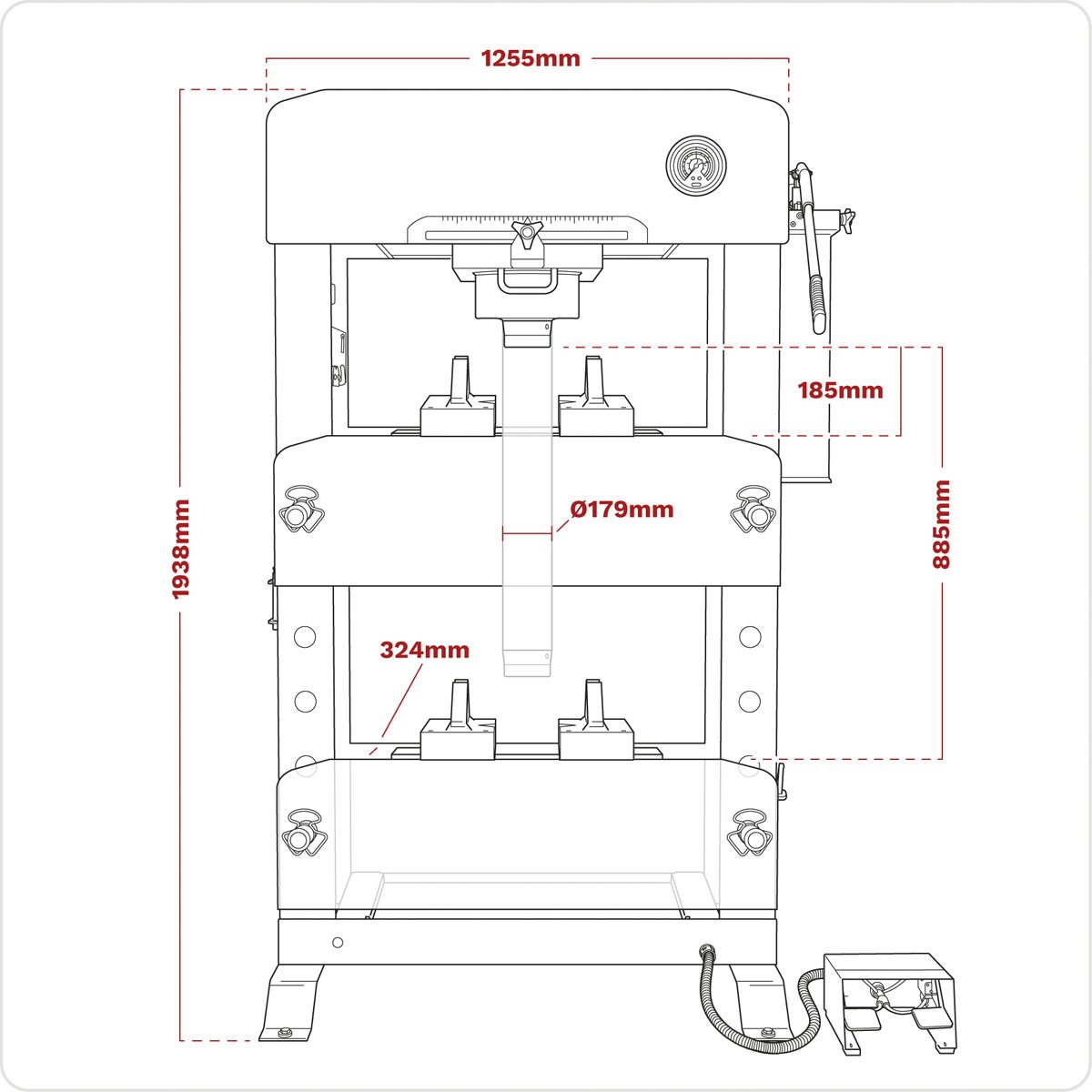

Maximum Height - Ram to Table:	885mm
Minimum Height - Ram to Table:	185mm
Nett Weight:	682kg
Operating Table Width:	850mm
Overall Height:	1938mm
Ram Diameter:	Ø179mm
Ram Stroke:	300mm
Screw Extension:	n/a
Table Aperture:	324mm
Type:	Air/Hydraulic
Working Table Depth:	364mm
Working Table Width:	1090mm
