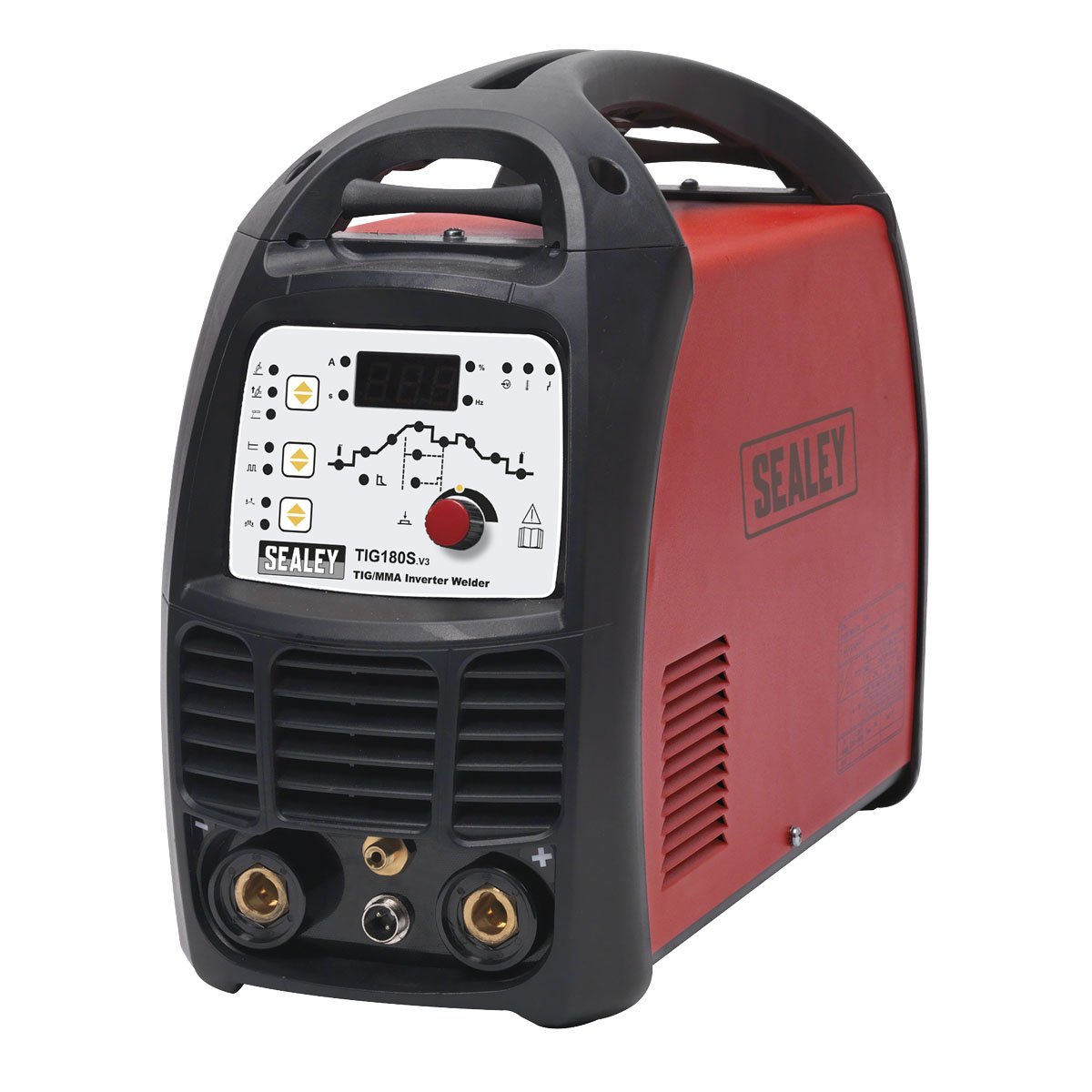

Sealey TIG/MMA Inverter Welder 180A 230V

Description

Delivery Information

Ask a question

Fan-cooled DC power supply for TIG and arc welding applications. Outer case manufactured from pressed steel with a powder coated finish for extra corrosion resistance. Digital display enables user to quickly determine which mode has been selected. Portability allows the welder to be taken to the job at hand making it ideal for the mobile technician. Features lift and high frequency starts enabling operations to start smoothly and efficiently, along with two or four touch start modes. TIG cycle features pulse TIG which includes post gas and current down-slope regulation. Supplied with TIG Accessories. Optional MMA Electrode Holder: Model No. MMA01.

Model Number: TIG180S
Fan-cooled DC power supply for TIG and arc welding applications.
Outer case manufactured from pressed steel with a powder coated finish for extra corrosion resistance.
Digital display enables user to quickly determine which mode has been selected.
Portability allows the welder to be taken to the job at hand making it ideal for the mobile technician.
Features lift and high frequency starts enabling operations to start smoothly and efficiently, along with two or four touch start modes.
TIG cycle features pulse TIG which includes post gas and current down-slope regulation.
Supplied with TIG Accessories.
Warranty: 1 year Years
Sealey catalogue page number: 747
Variant number of the model: 003

Specification:

Model No	TIG180S
Brand:	Sealey
Nett Weight:	13.5kg
Power Output:	5-180A
Duty Cycle:	20% @ 180A, 60% @ 104A, 100% @ 80A
Electrode Capacity:	Ø1.6-3.2mm
Absorbed Power:	7.6kW
Supply:	230V**
Protection:	IP21S
Weight:	13.5kg
Accessories:	Yes
Arc Accessory Kit (Optional):	MMA01
TIG Accessory Kit (Included):	TIG11S
Note:	**To achieve maximum power a 32A supply may be required.
