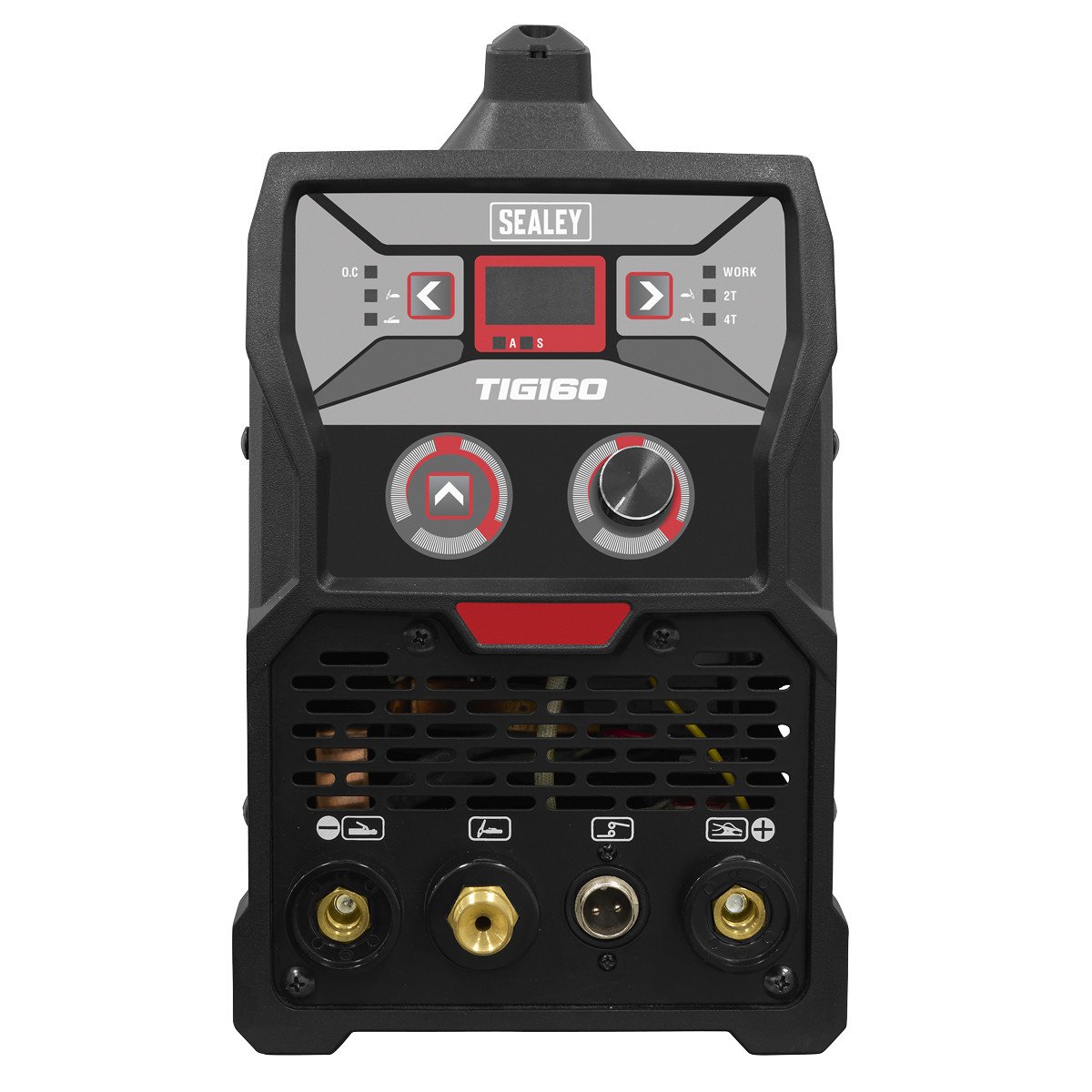

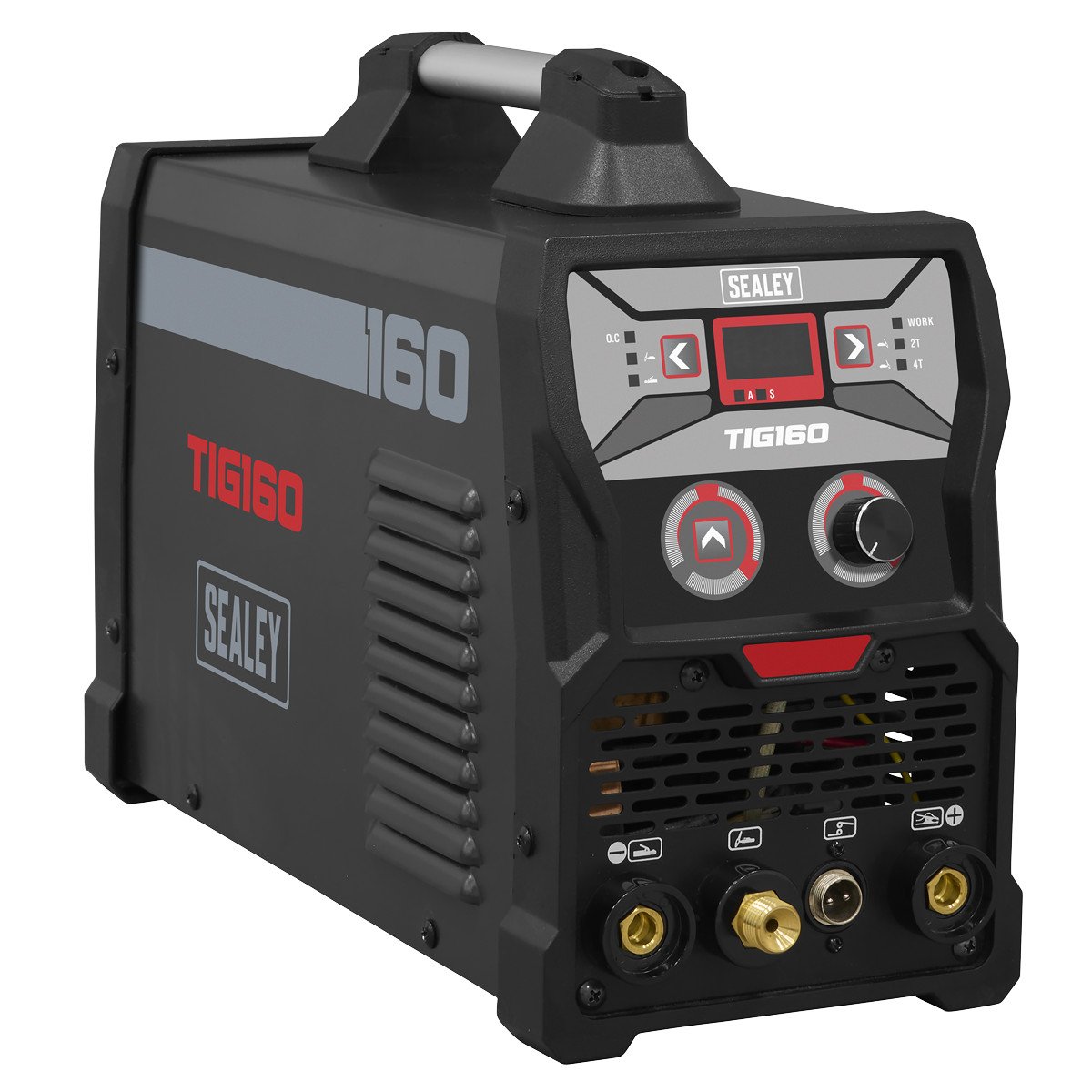

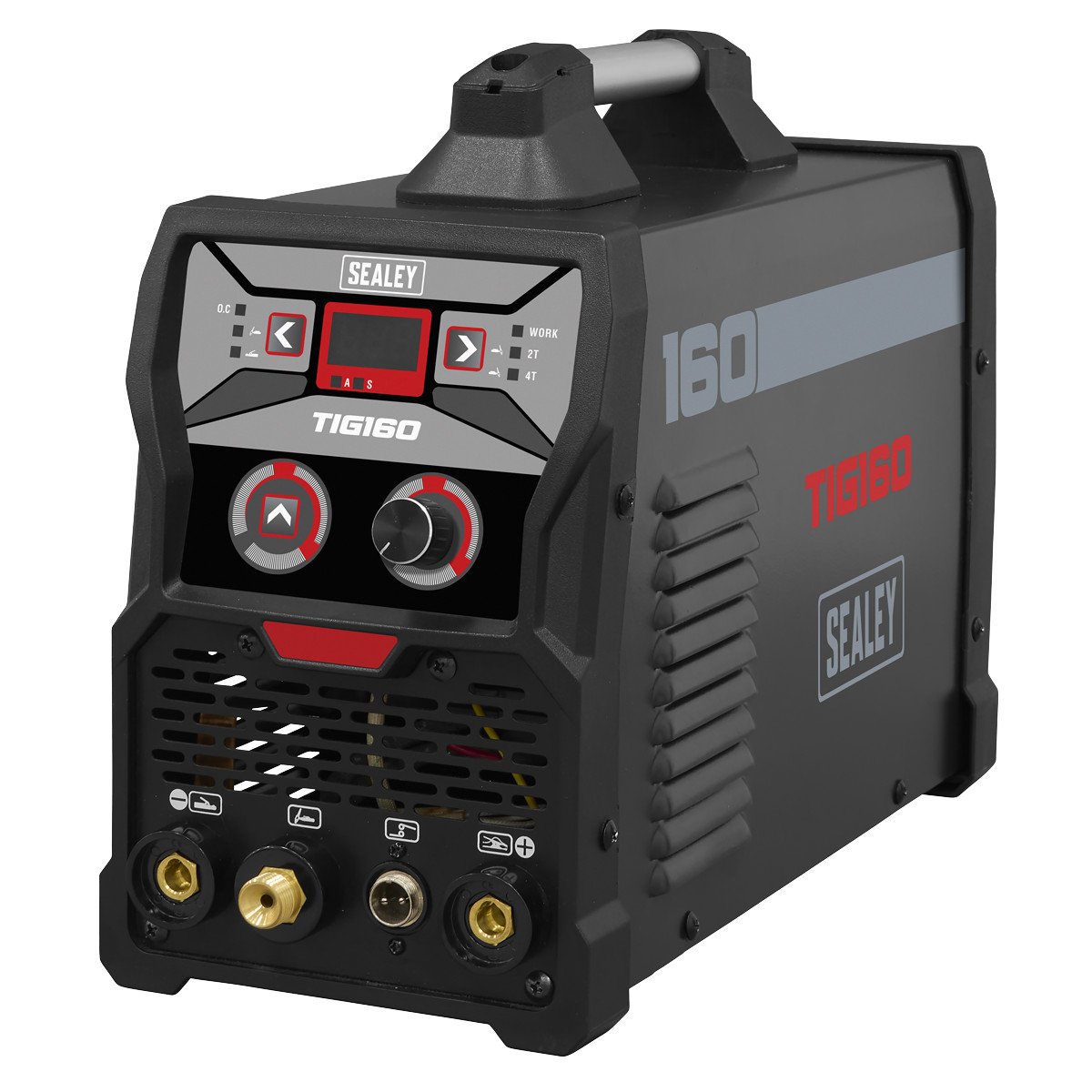

Sealey TIG/MMA Inverter Welder 160A 230V

Description

Delivery Information

Ask a question

Parts Diagrams

Instructions

Fan-cooled DC power supply for TIG and arc welding applications. Outer case manufactured from pressed steel with a powder coated finish for extra corrosion resistance. Portability allows the welder to be taken to the job at hand making it ideal for the mobile technician. Features quick release switch on the torch for control of gas, saving on consumption. Features hot start, anti-stick, forced air cooling, thermal cut-out protection. Suitable for arc welding using the lift start method. Supplied with MMA/TIG Accessories. Optional MMA Electrode Holder: Model No. MMA01.

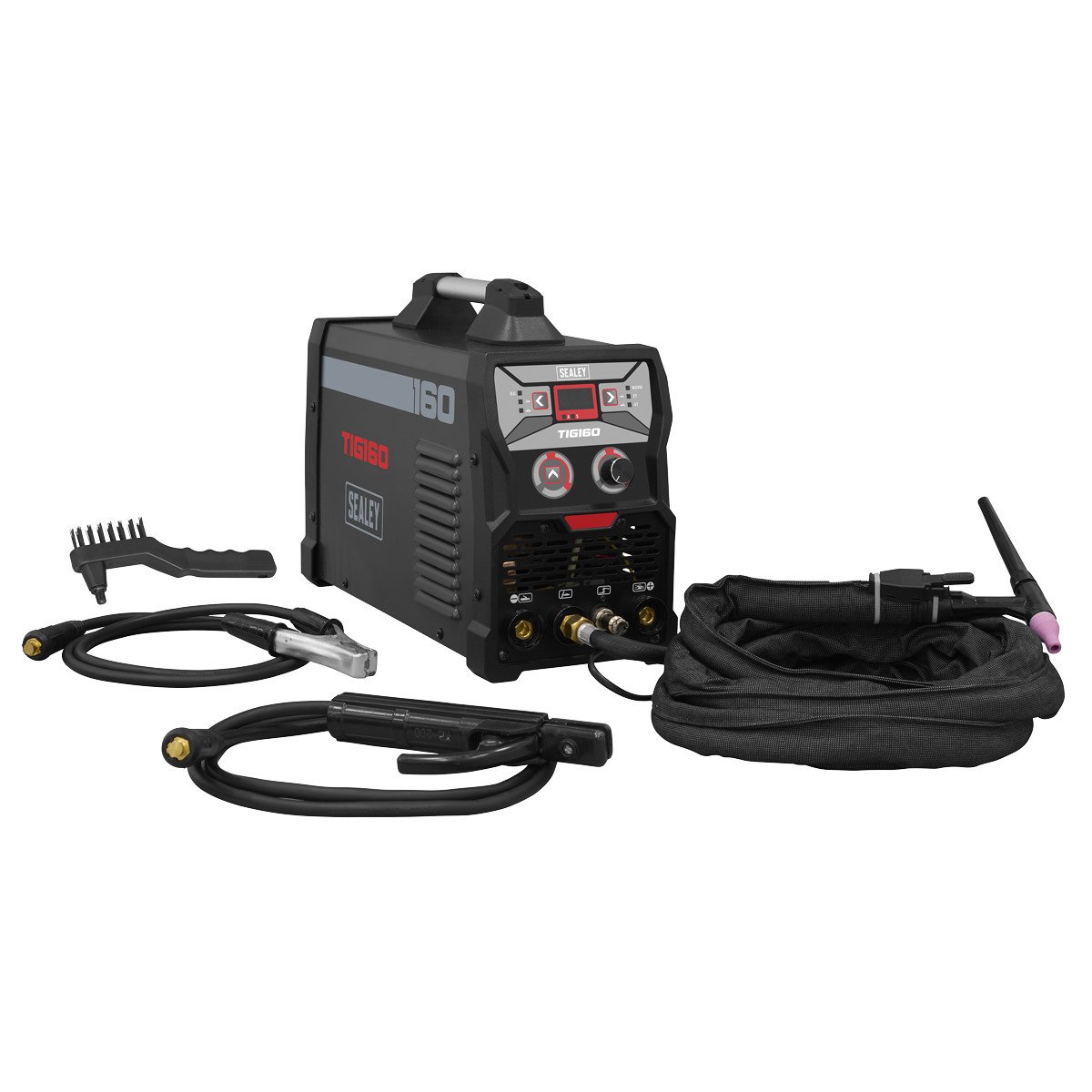

Model Number: TIG160
Fan-cooled DC power supply for TIG and arc welding applications.
Outer case manufactured from pressed steel with a powder coated finish for extra corrosion resistance.

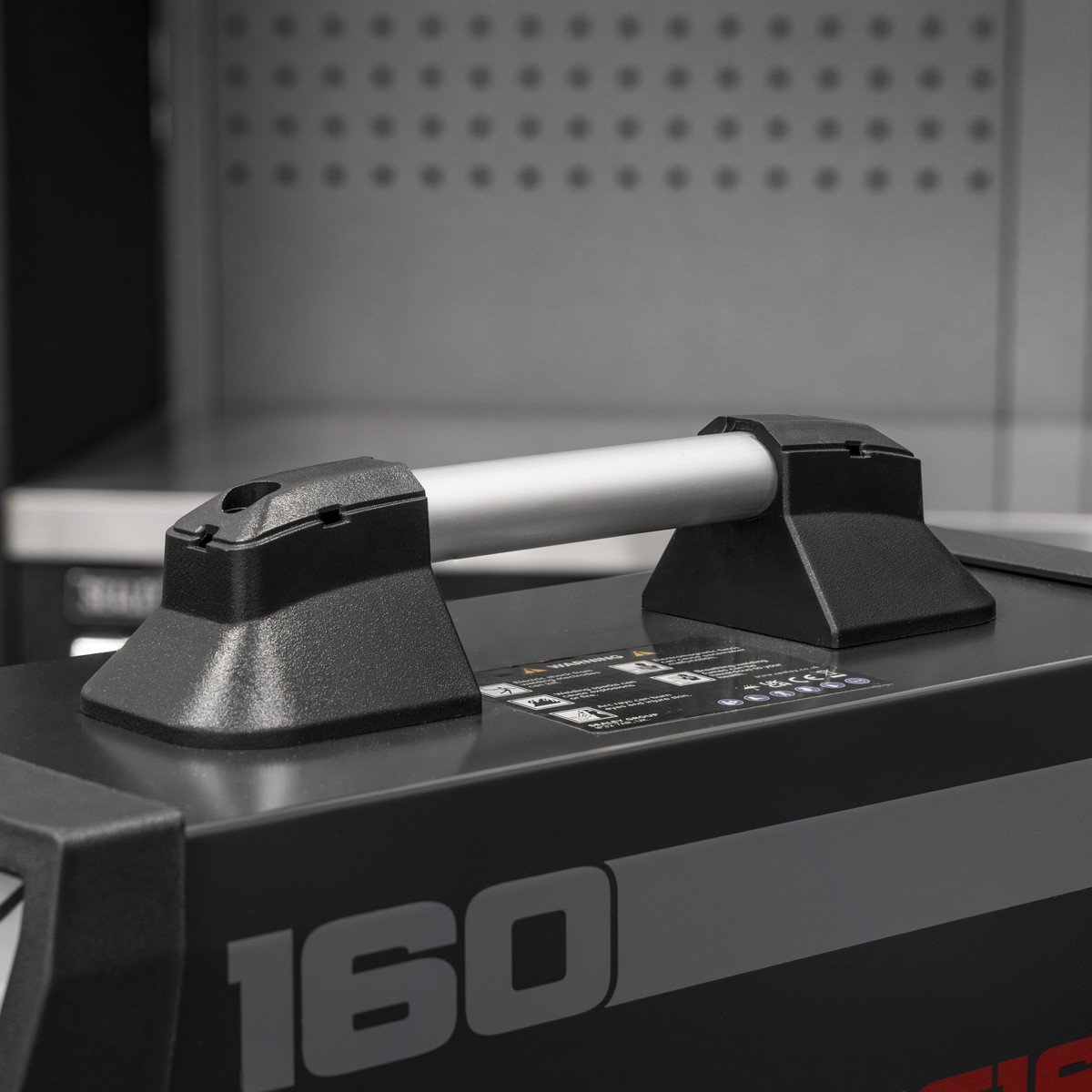

Portability allows the welder to be taken to the job at hand making it ideal for the mobile technician.

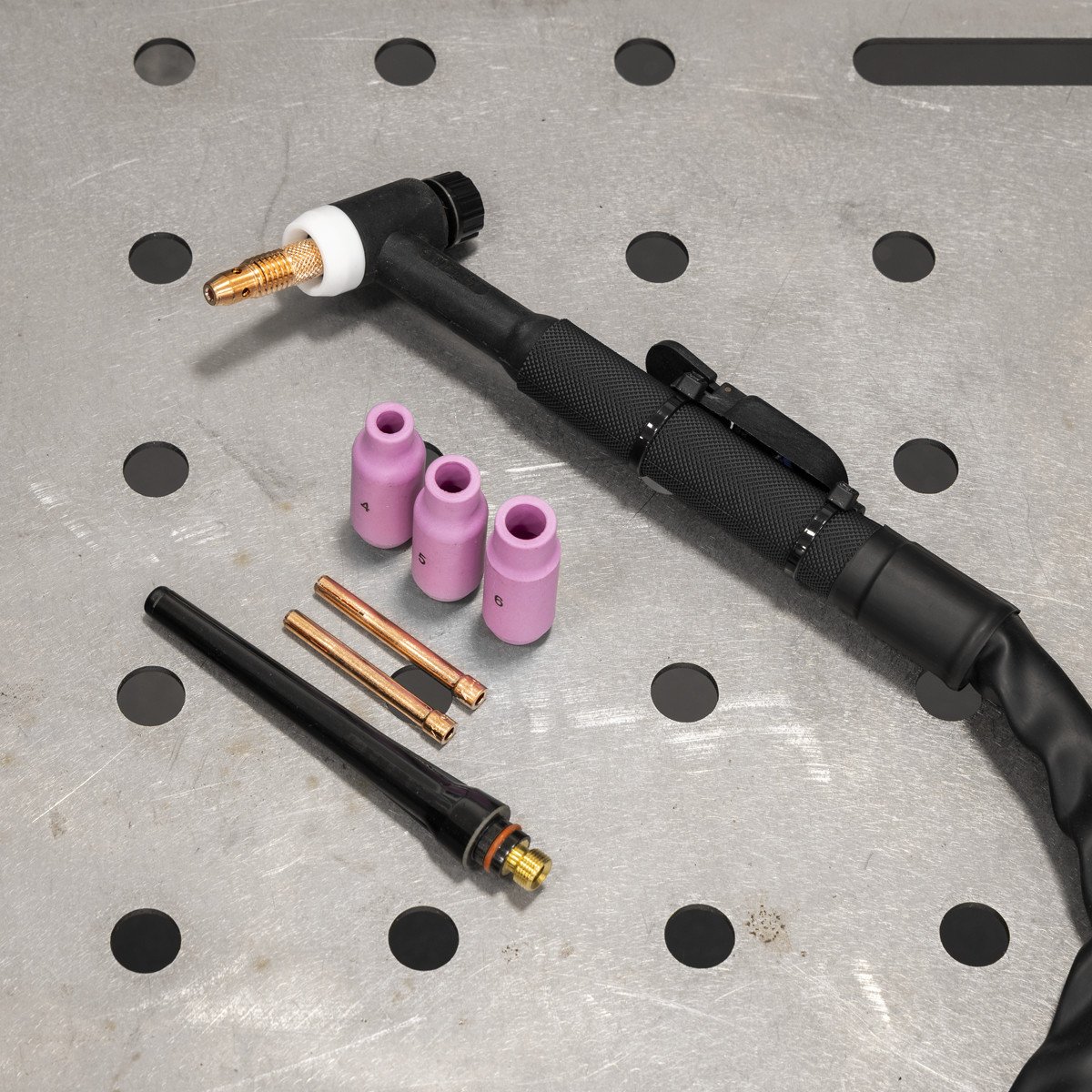

Features quick release switch on the torch for control of gas, saving on consumption.
Features hot start, anti-stick, forced air cooling, thermal cut-out protection.
Suitable for arc welding using the lift start method.

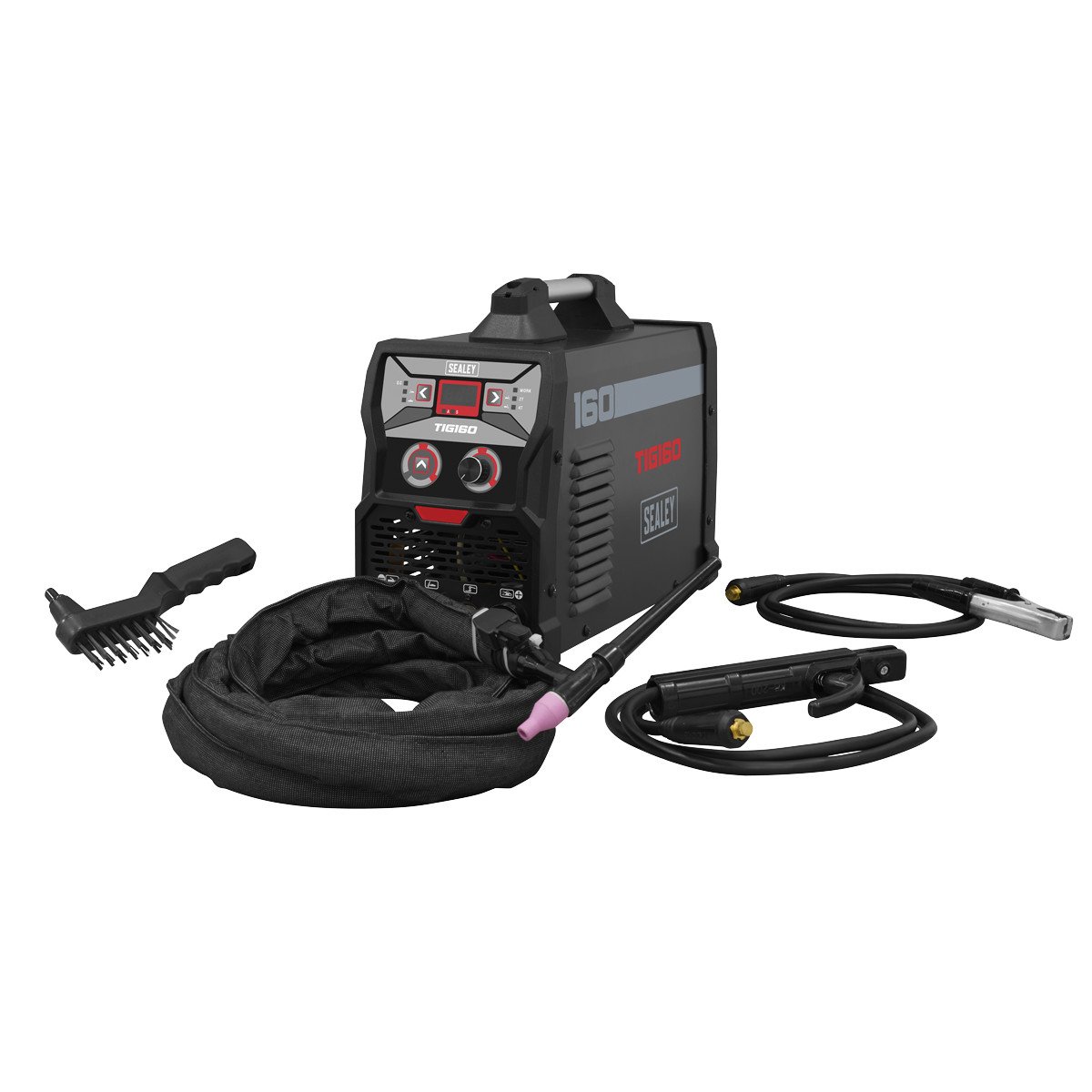

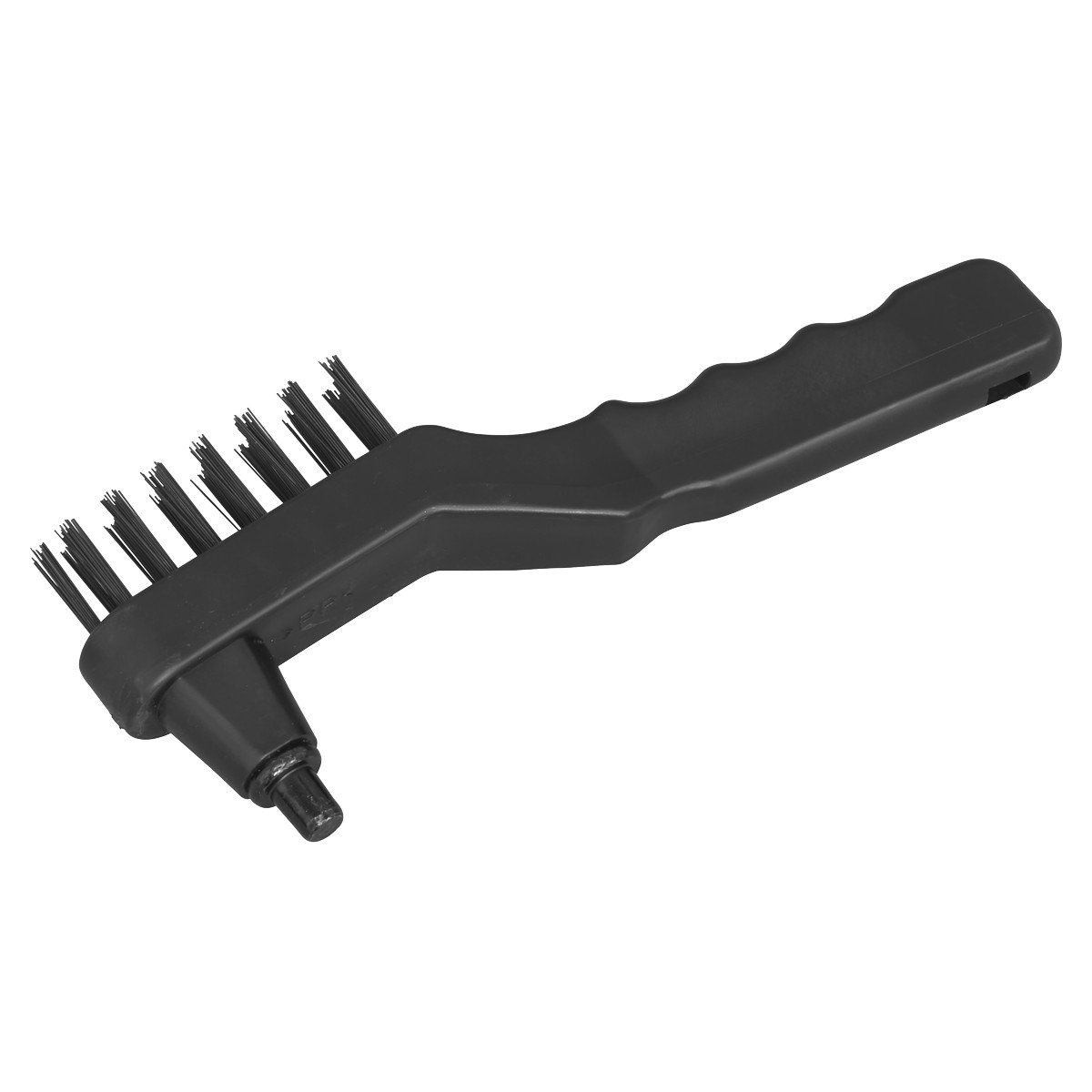

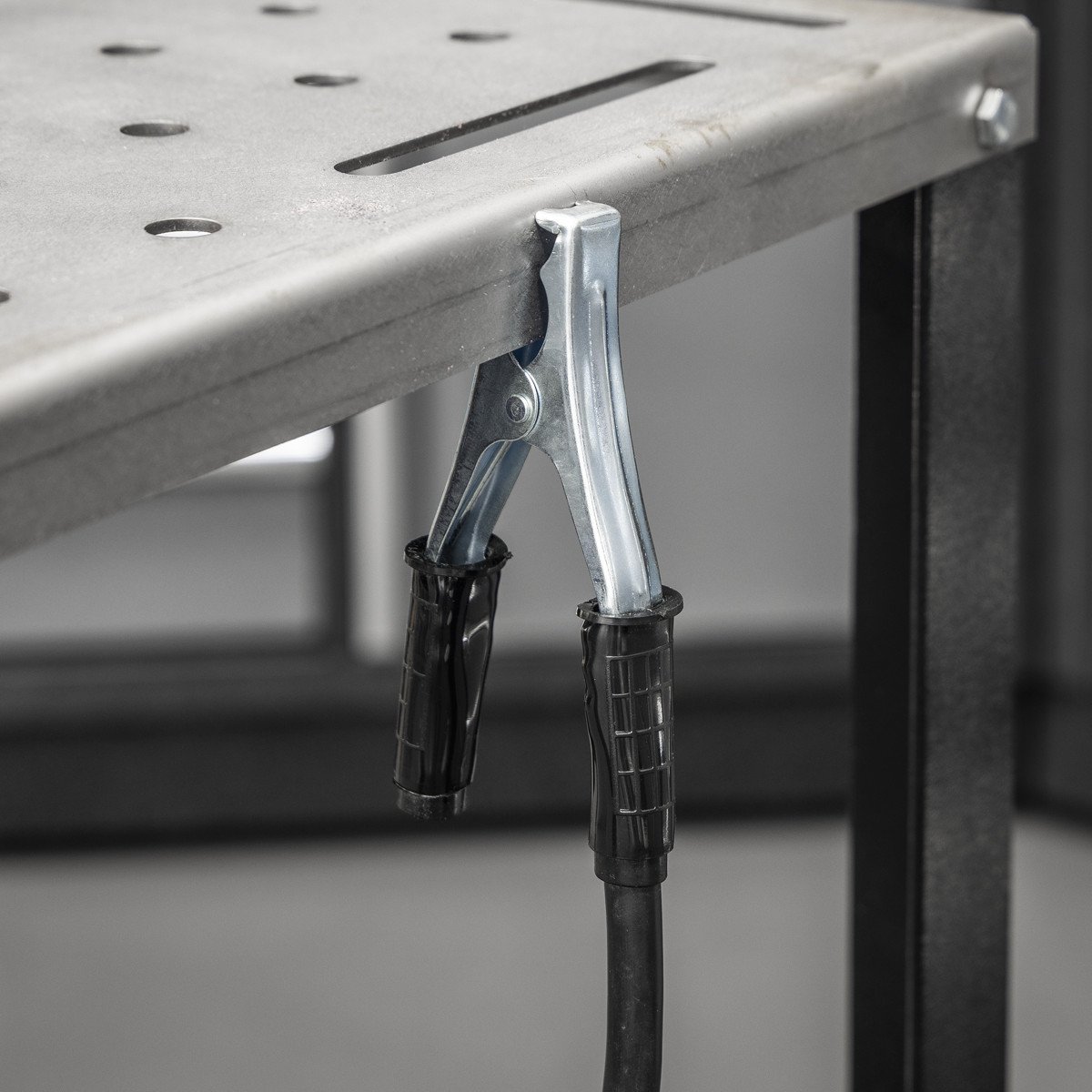

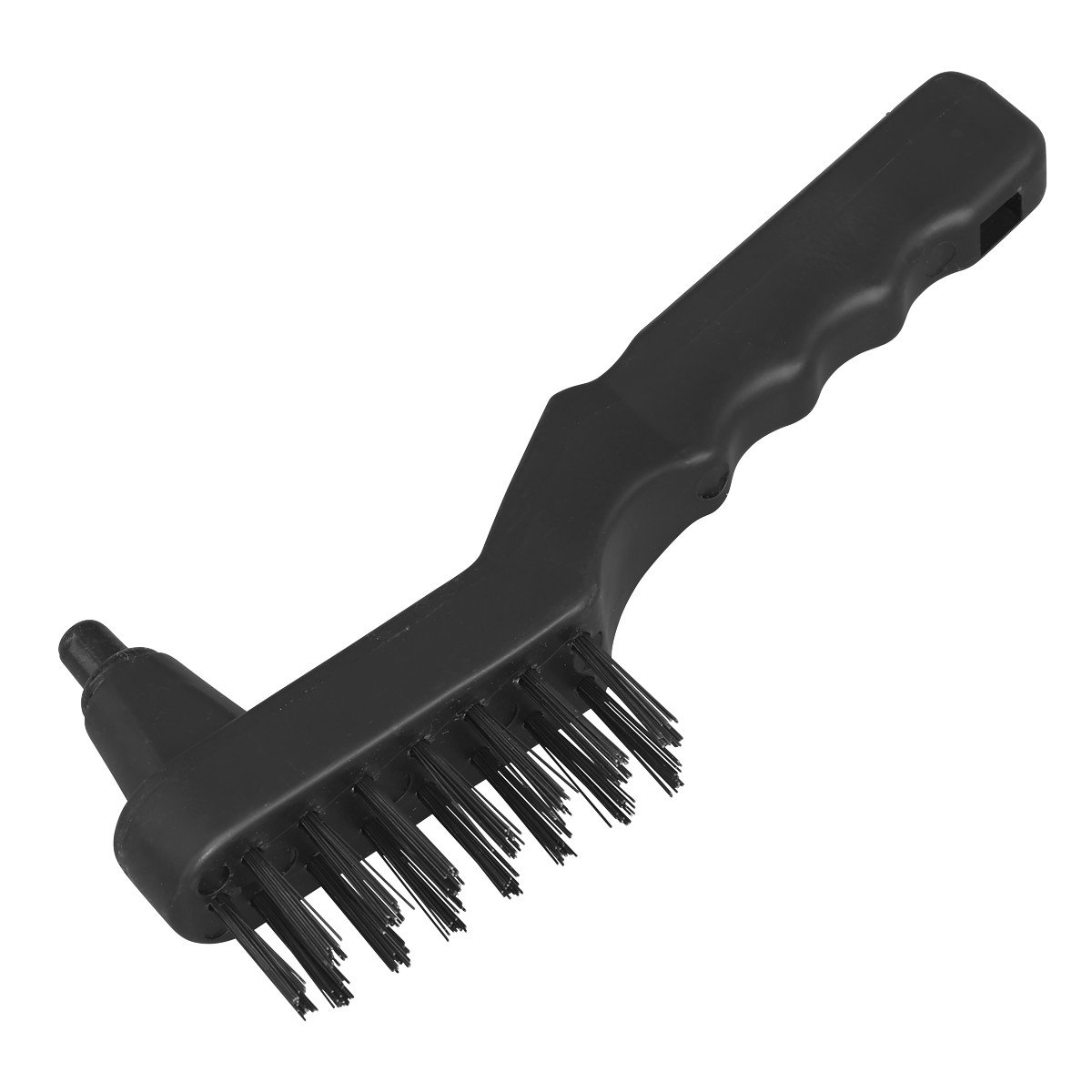

Supplied with MMA/TIG Accessories.
Duty Cycle: 20% @ 160A, 60% @ 90A, 100% @ 70A.
Weight: 5.35kg.
Optional MMA Electrode Holder: MMA01.
Warranty: 1 year Years
Sealey catalogue page number: 747
Variant number of the model: 001

Specification:

Model No	TIG160
Brand:	Sealey
Nett Weight:	8.38kg
Power Output:	20-160A
Duty Cycle:	20% @ 160A60% @ 90A100% @ 70A
Electrode Capacity:	Ø1.6-4mm
Absorbed Power:	5.1kW
Supply:	230V*
Protection:	IP21S
Weight:	8.38kg
Accessories:	Yes

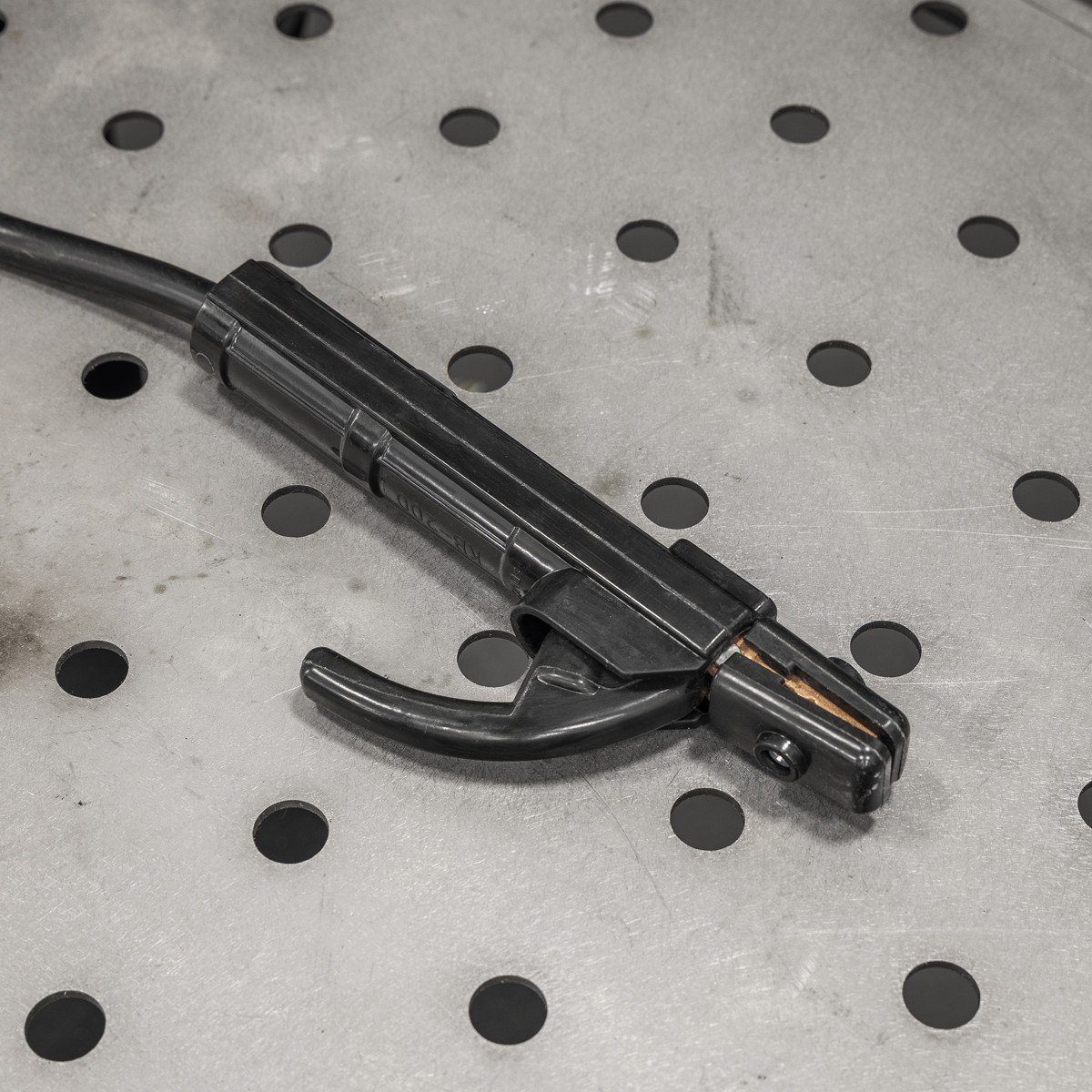

Electrode Holder (Included):	Yes
TIG Welding Torch (Included):	Yes
Note:	*To achieve maximum power a 16A supply may be required.
