Sealey TIG/MMA HF AC/DC Inverter Welder 200A 230V

Description

Delivery Information

Ask a question

Instructions

Parts Diagrams

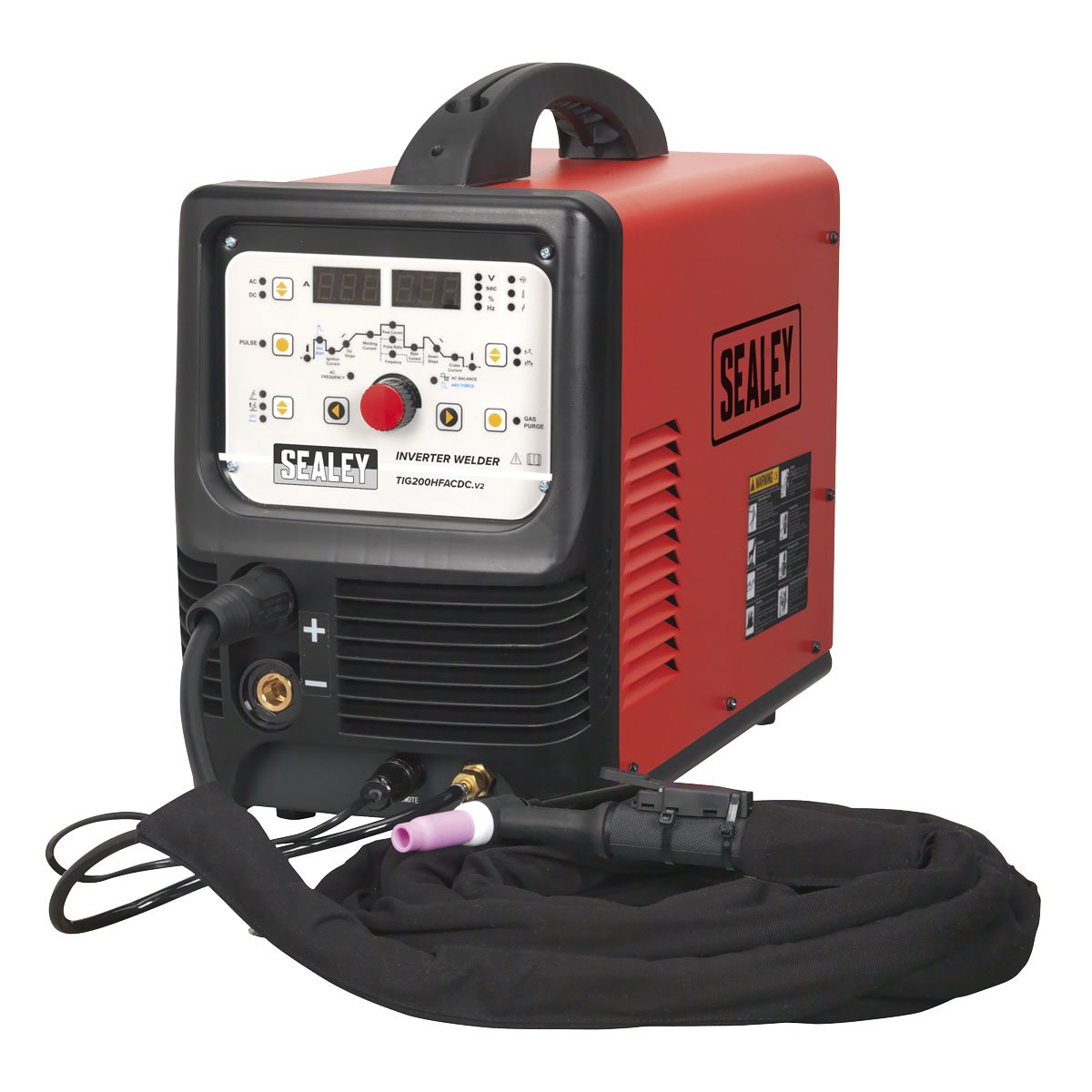

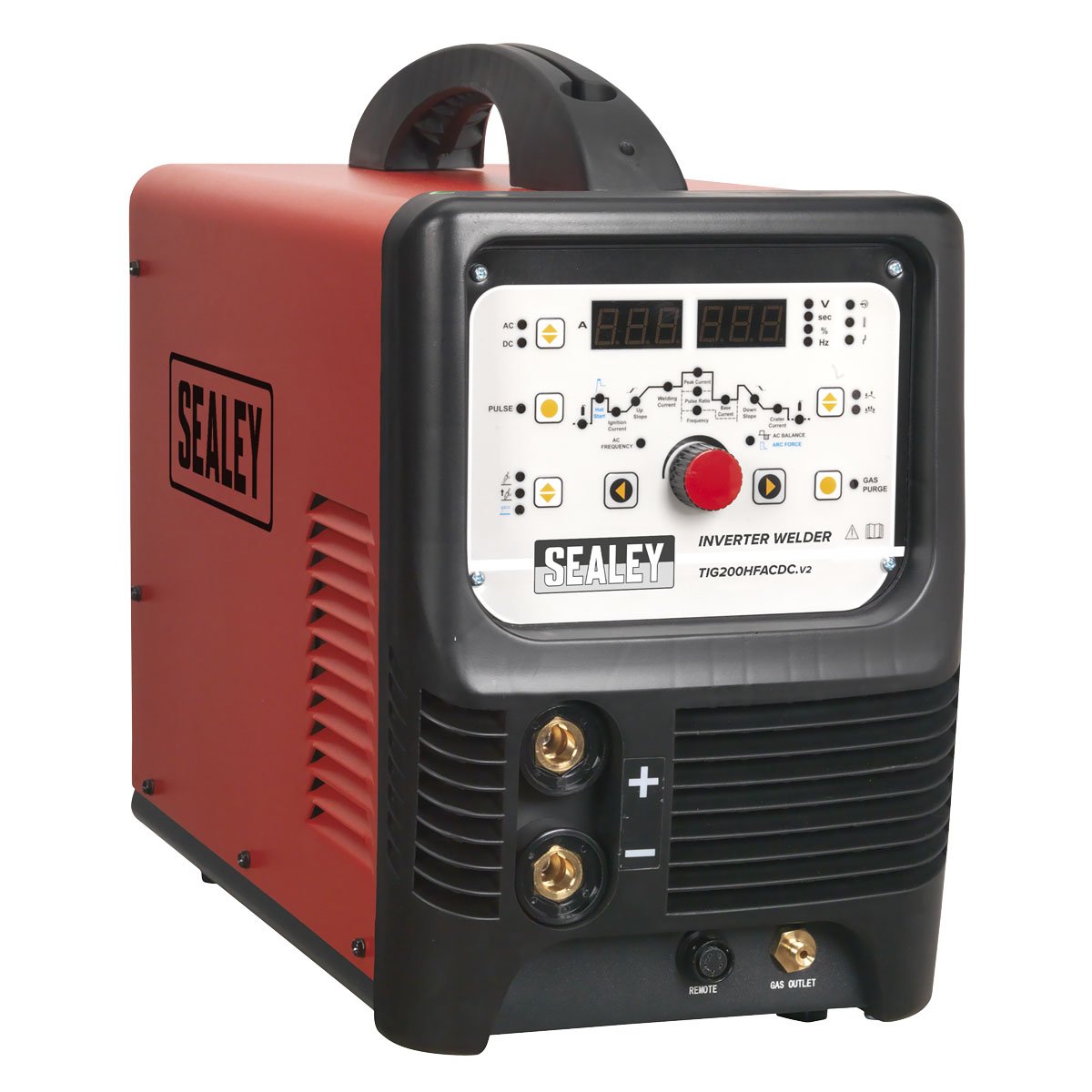

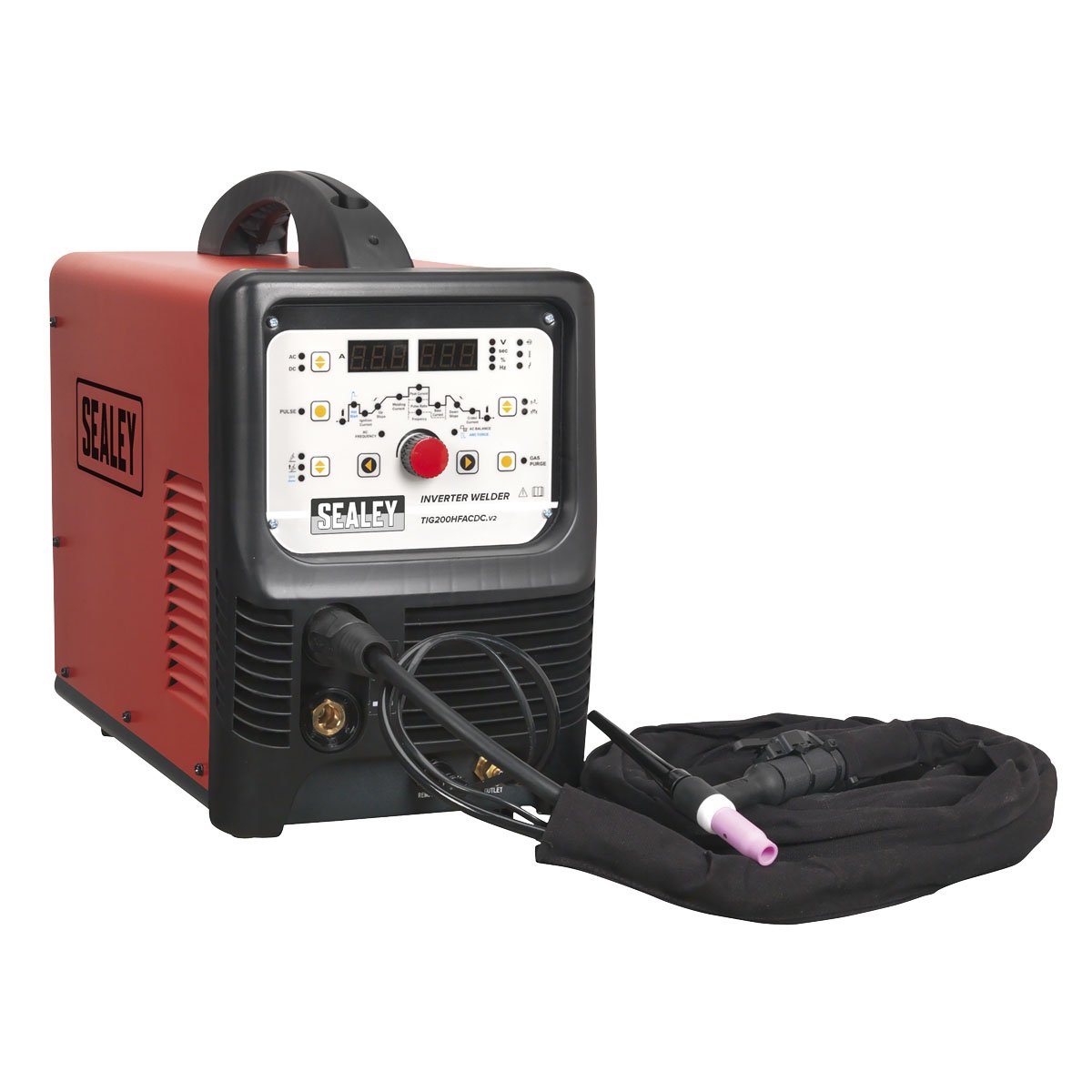

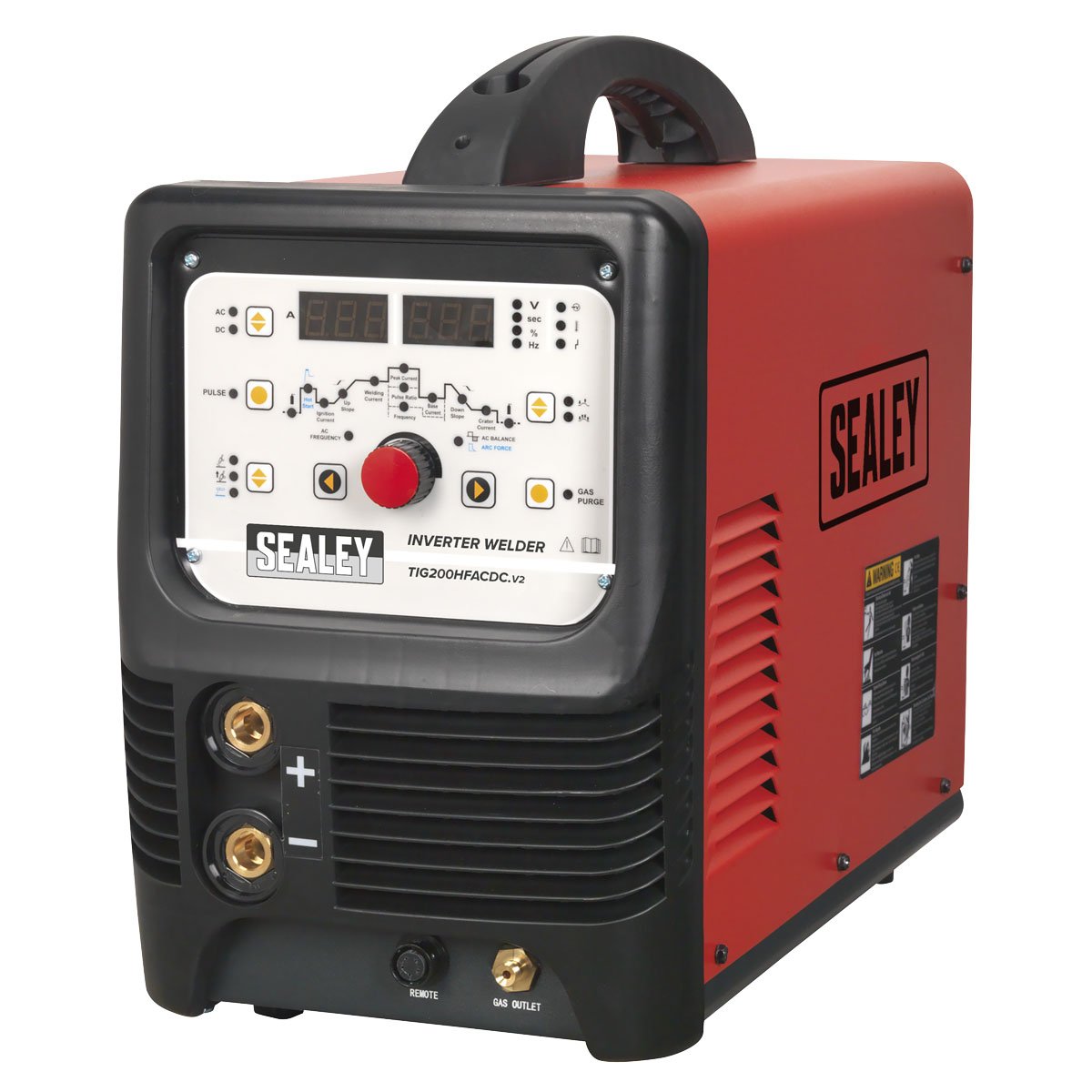

Fan-cooled AC/DC power supply for pulse TIG and MMA welding applications. Suitable for welding aluminium, magnesium, stainless steel, steel, copper, nickel and titanium. TIG cycle includes post gas and current down-slope regulation. Features regulated high frequency (HF) push-button arc that prevents having to touch the workpiece to start, keeping the tip in good condition for longer. Includes connector for foot pedal when more control is required.

Model Number: TIG200HFACDC
Fan-cooled AC/DC power supply for pulse TIG and MMA welding applications.
Suitable for welding aluminium, magnesium, stainless steel, steel, copper, nickel and titanium.
TIG cycle includes post gas and current down-slope regulation.
Features regulated high frequency (HF) push-button arc that prevents having to touch the workpiece to start, keeping the tip in good condition for longer.
Includes connector for foot pedal when more control is required. Foot pedal available as an optional accessory (Model No. TIG200HFACDCF).
Warranty: 1 year Years
Sealey catalogue page number: 747
Variant number of the model: 002

Specification:

Model No	TIG200HFACDC
Brand:	Sealey
Nett Weight:	23.5kg
Power Output:	10-200A
Duty Cycle:	100% @ 77A, 15% @ 200A
Electrode Capacity:	Ø1.6-4mm
Absorbed Power:	8kW
Supply:	230V*
Insulation Class:	H
Protection:	IP21S
Accessories:
MMA Electrode Holder (Optional):	MMA01
Foot Pedal (Optional):	TIG200HFACDCF
Note:	*to achieve maximum power a 32A supply may be required.
