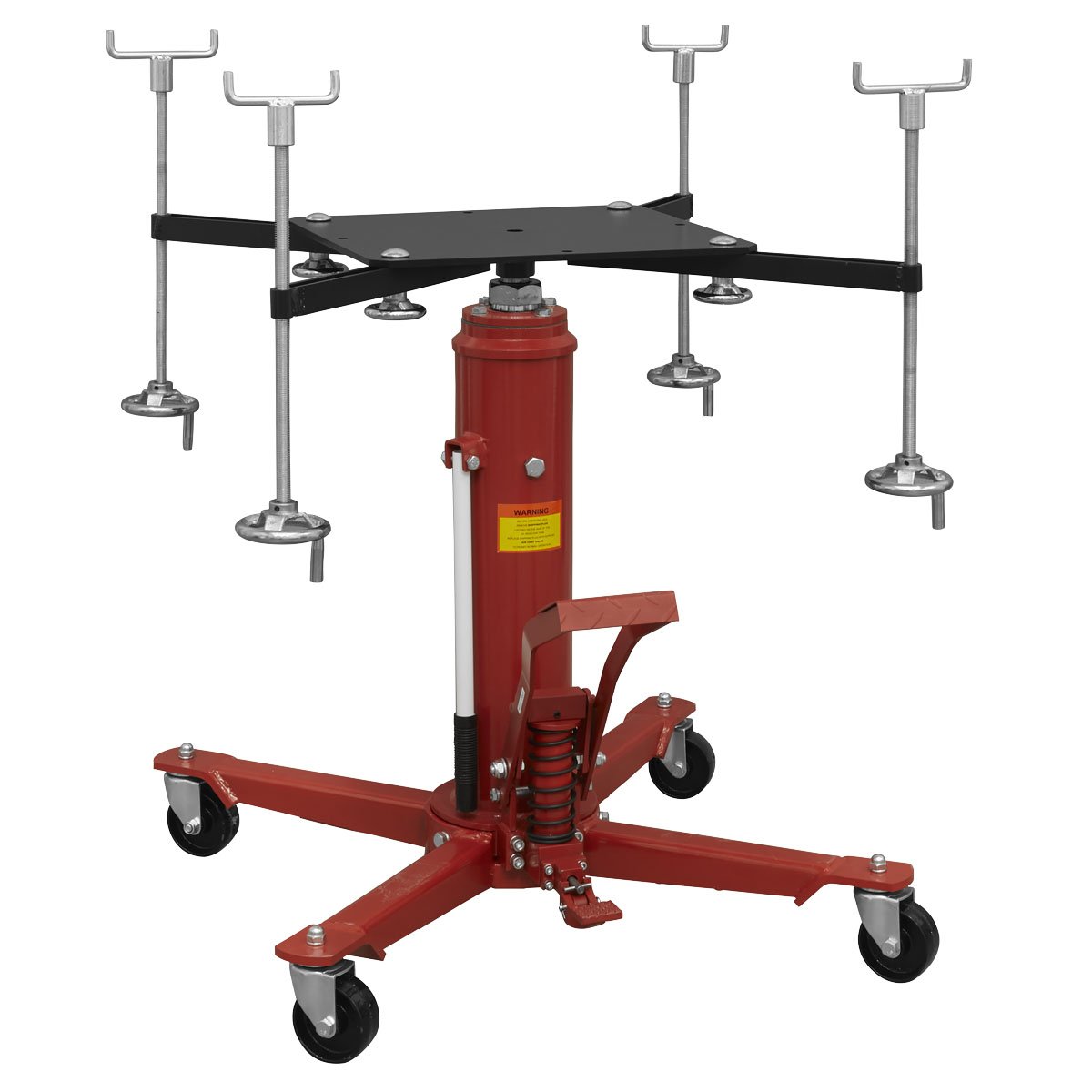

Sealey Subframe Cradle and 800kg Transmission Jack Combo

Description

Delivery Information

Ask a question

Material Safety Data Sheet

Package Includes: 800TTJ - 0.8 Tonne Vertical Telescopic Transmission Jack . SFC01 - Subframe/Engine Load Adaptor for TTJ Transmission Jacks. These items are heavy. Extra assistance must be provided at the delivery point to help safe delivery.

Model Number: SFC800COMBO

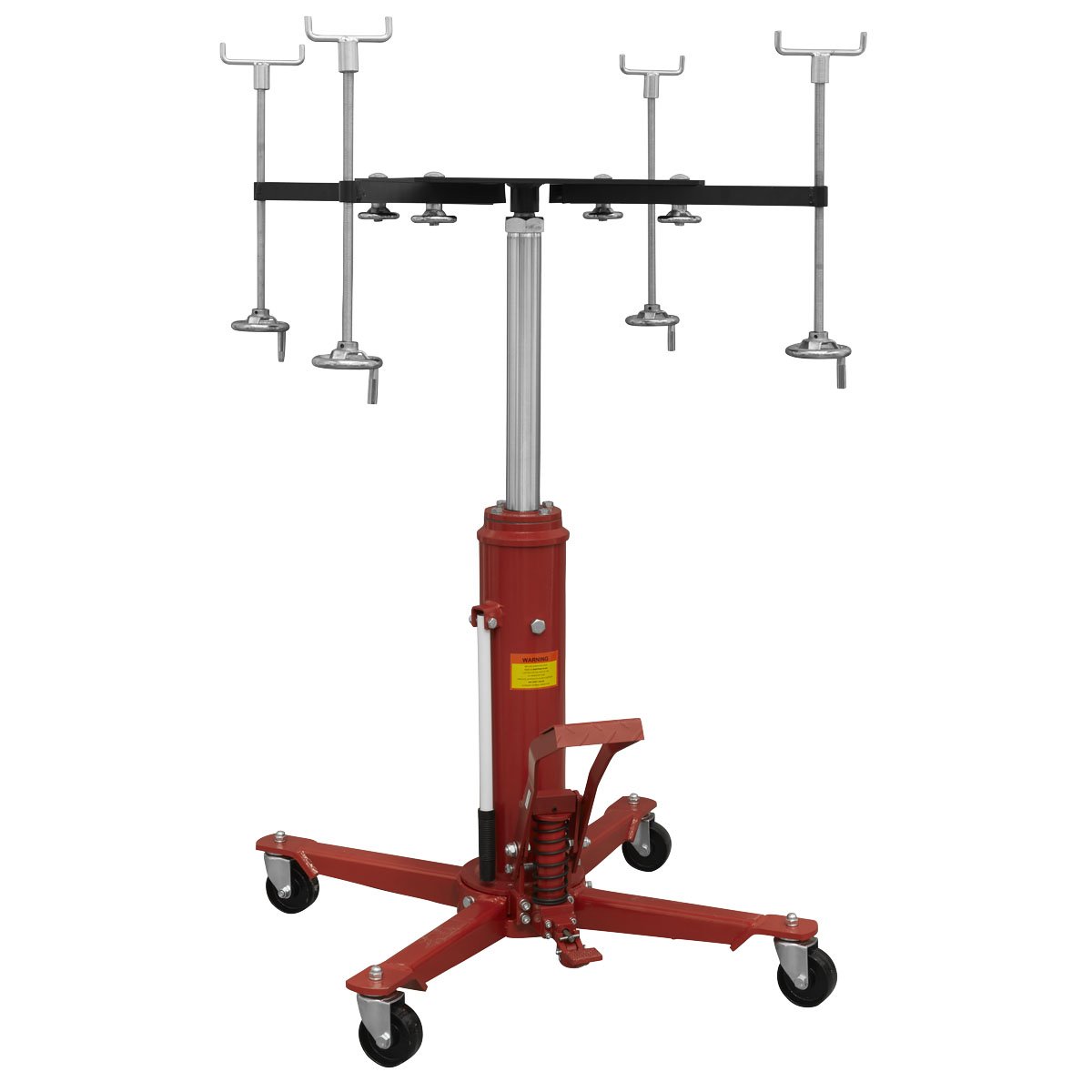

TELESCOPIC RAM - A two-stage ram reduces the clearance.
HIGH SPEED LIFT - Quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.
FOOT PEDAL OPERATION - Keeping hands free for fixings and adjustments.
SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
HIGHLY MANOEUVRABLE - Large, smooth running castors, make positioning quick and easy.

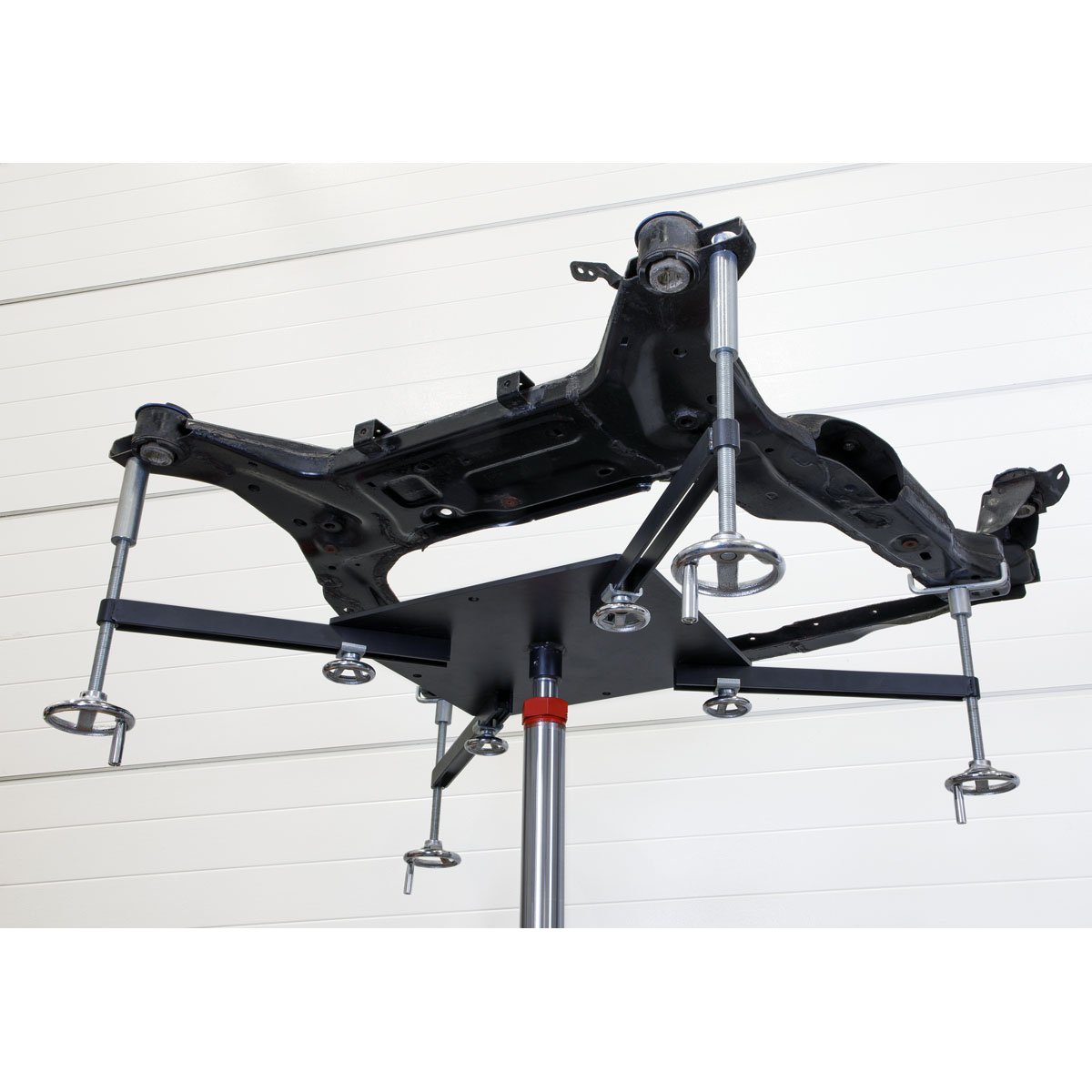

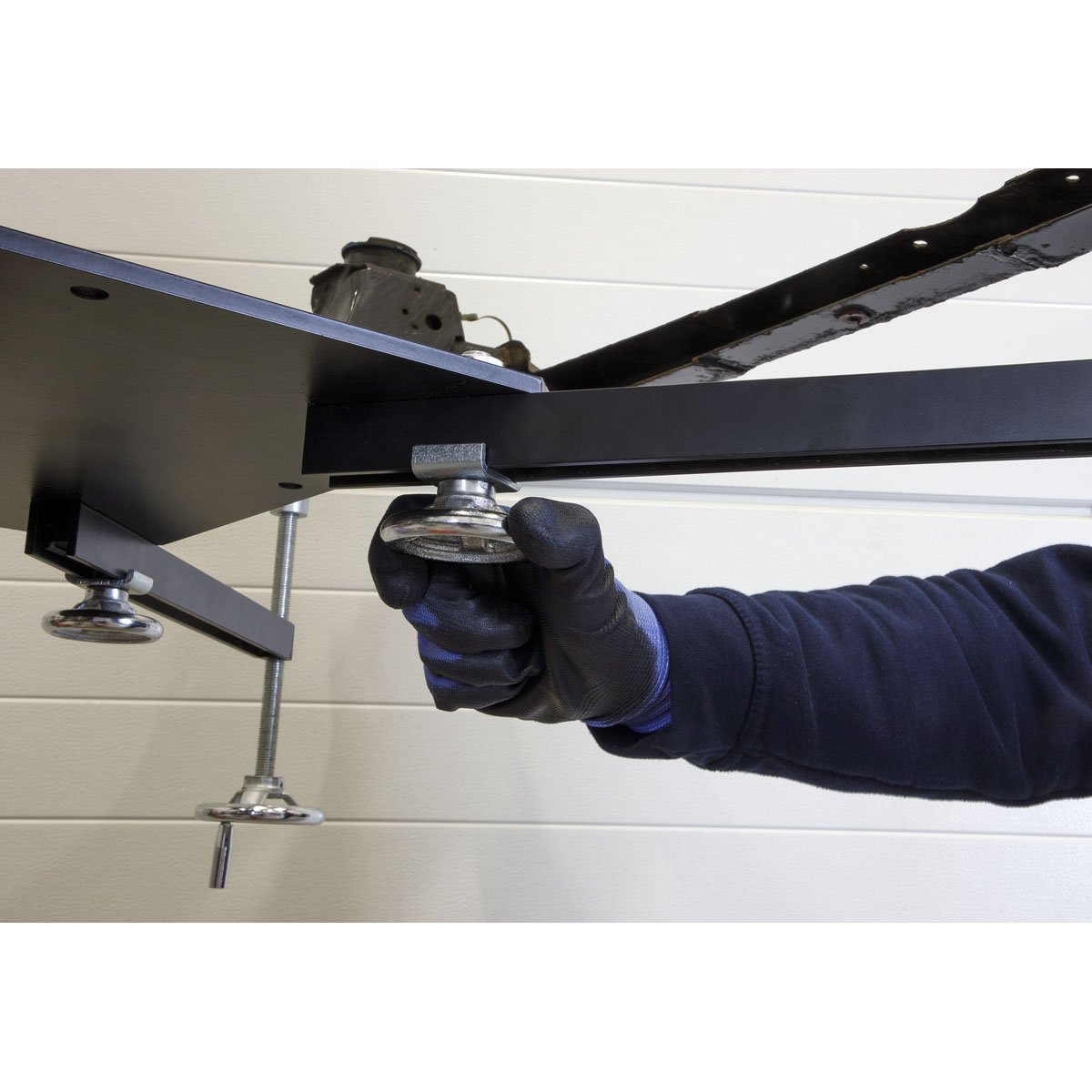

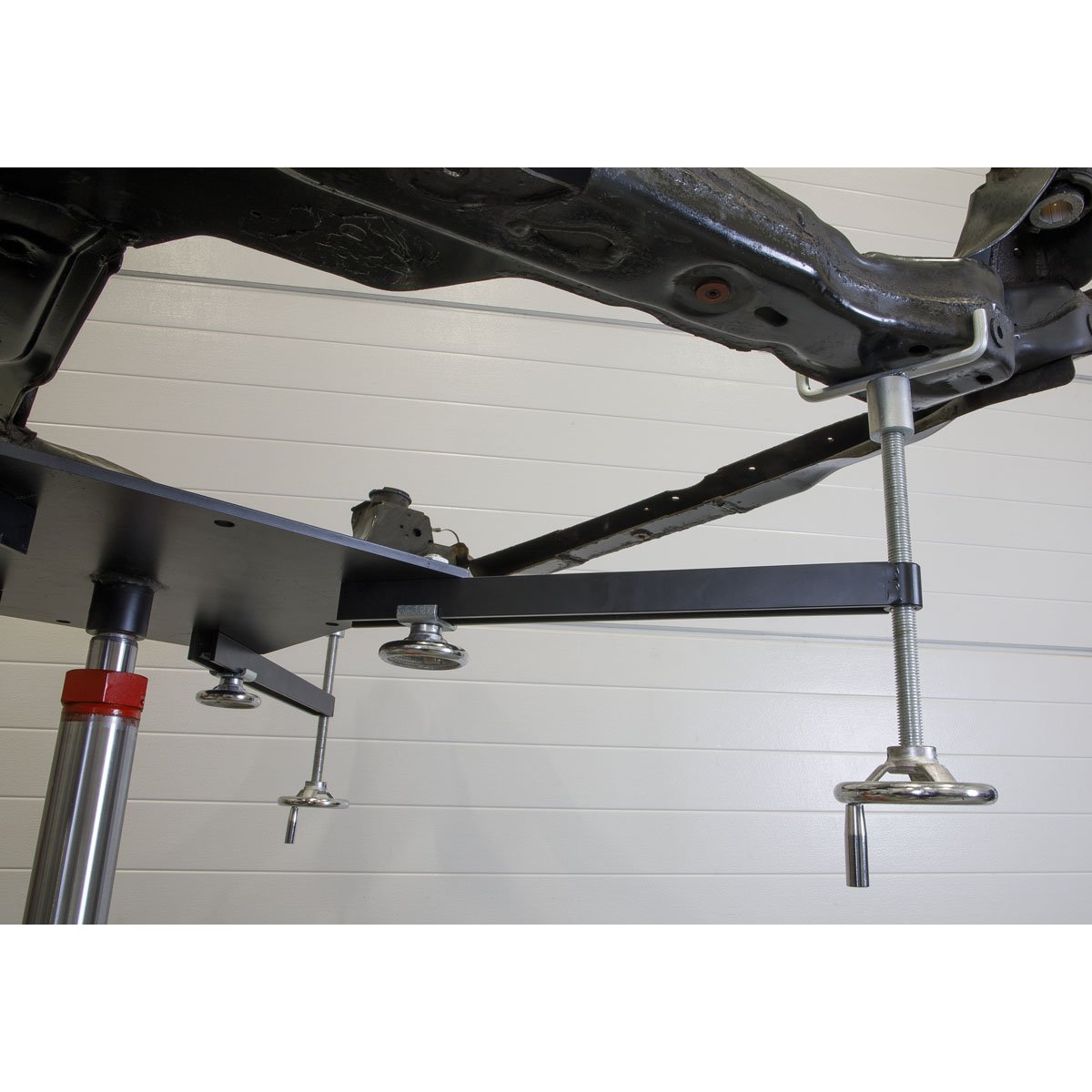

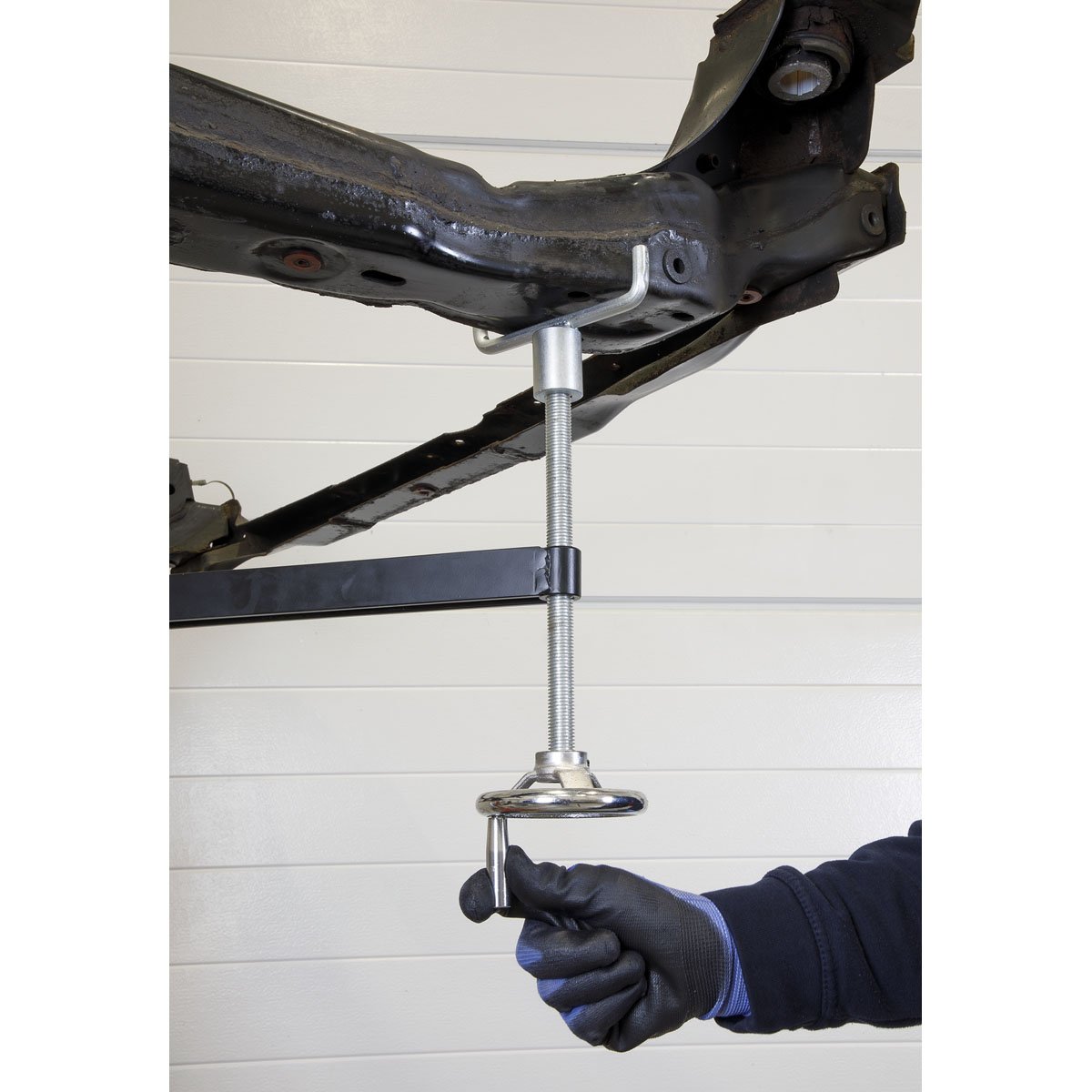

VERSATILE ADAPTOR - Fully adjustable Subframe/Engine support and supplied with various designs of fittings to suit different applications.
WILL ASSIST - In the removal and fitting of complete engine assemblies, rear axles, gearboxes, fuel tanks, exhaust systems and other awkward loads.
LABOUR SAVING DESIGN - Allows many jobs to be carried out by one person.
EASY ASSEMBLY - The adaptor can be fitted and removed from the transmission jack with ease as required.
Warranty: 1 year Years
Sealey catalogue page number: 315
Variant number of the model: 001

Specification:

Model No	SFC800COMBO
Base Size:	1046 x 1046mm
Brand:	Sealey
Capacity:	800TTJ - 800kg and SFC01 - 450kg
Fixed/Adjustable Saddle:	Adjustable

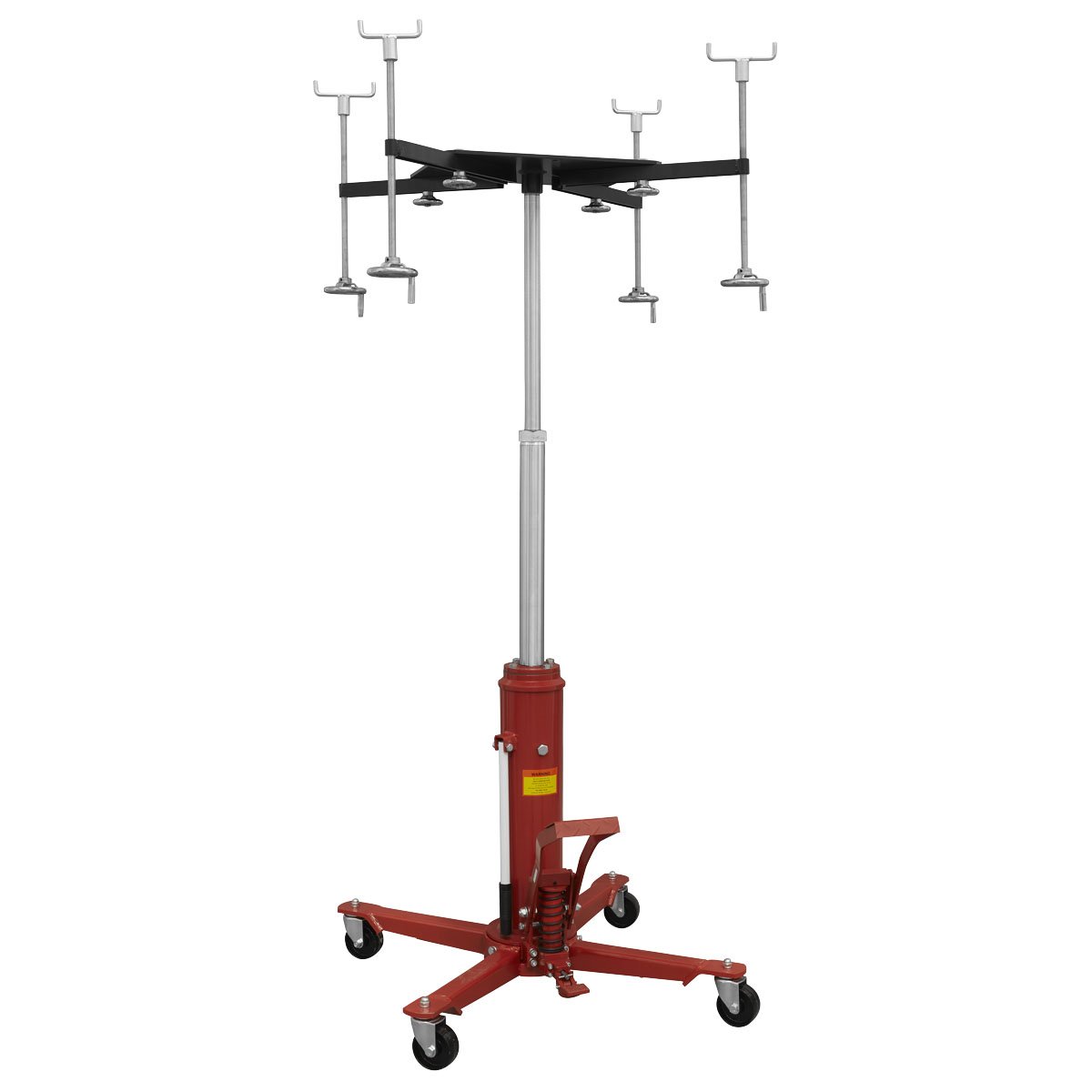

Maximum Saddle Height:	1920mm
Minimum Saddle Height:	960mm
Nett Weight:	110kg
Pump Strokes to Maximum Height:	N/A
Ram Extensions:	2
Saddle Adjustment - Left-to-Right:	N/A
Saddle Tilt - Backward:	40°
Saddle Tilt - Forward:	15°
