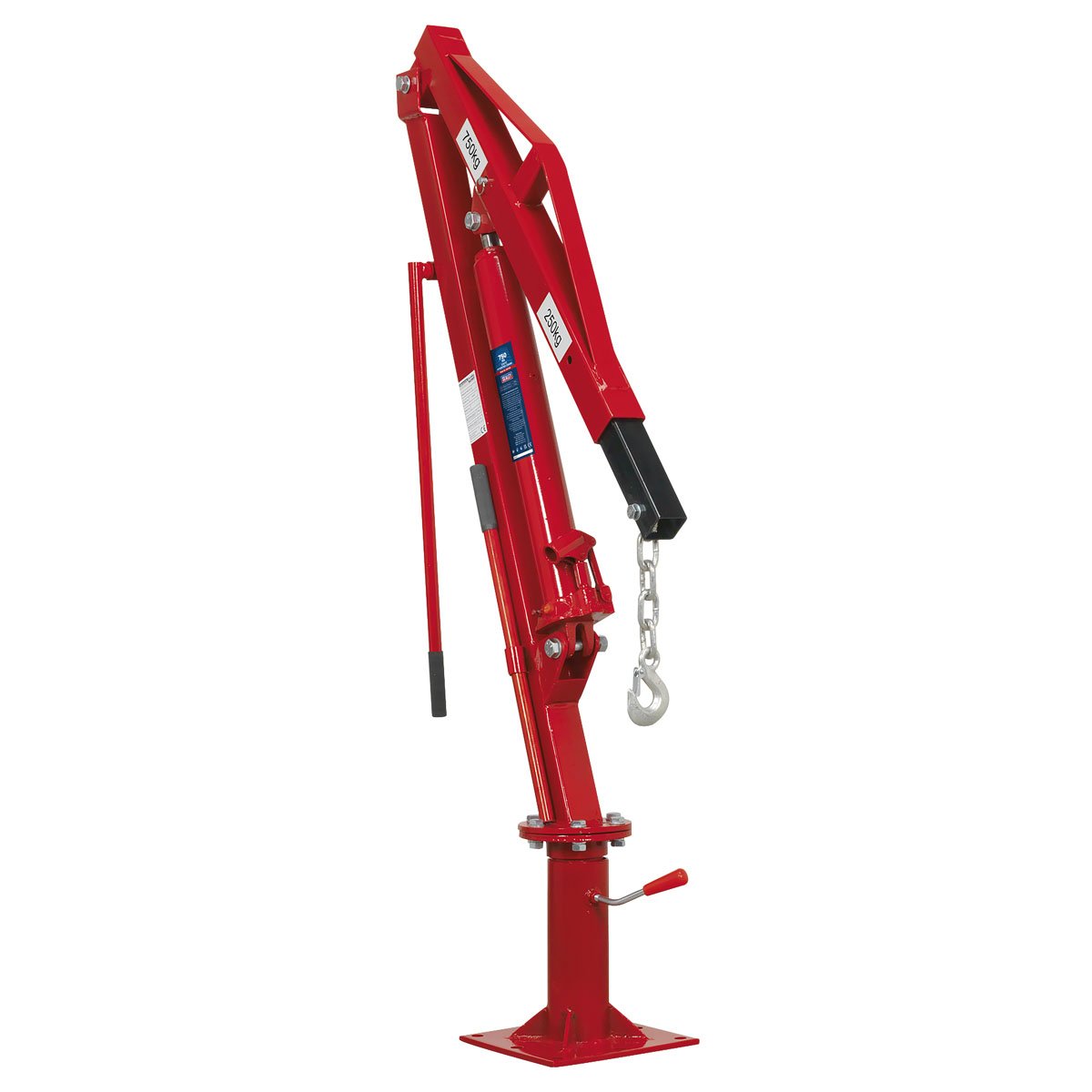

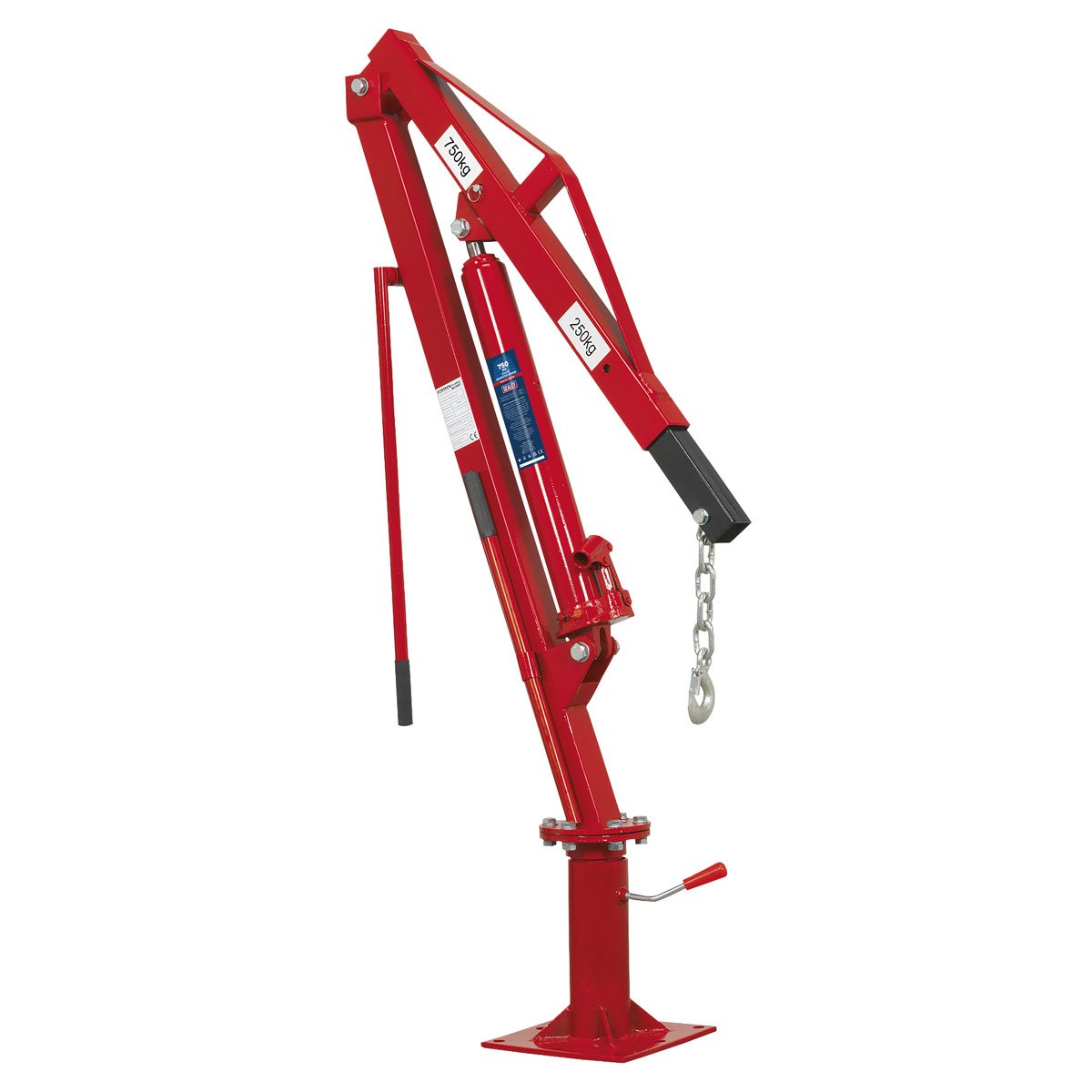

Unique 360° locking swivel base for easy rotation. Mounts easily onto any strong and stable surface including loading bays, 4x4s, flatbed trucks and trailers. Heavy-duty chain and hook with safety clip. Dead man’s control release valve allows fine adjustment for safe, controlled lowering of load.

Model Number: SSC750
Manufactured from heavy-duty steel with a powder coated finish for added corrosion resistance.
Features a unique 360� swivel base for easy rotation.
Threaded locking arm allows the crane to be locked in place when not in use.

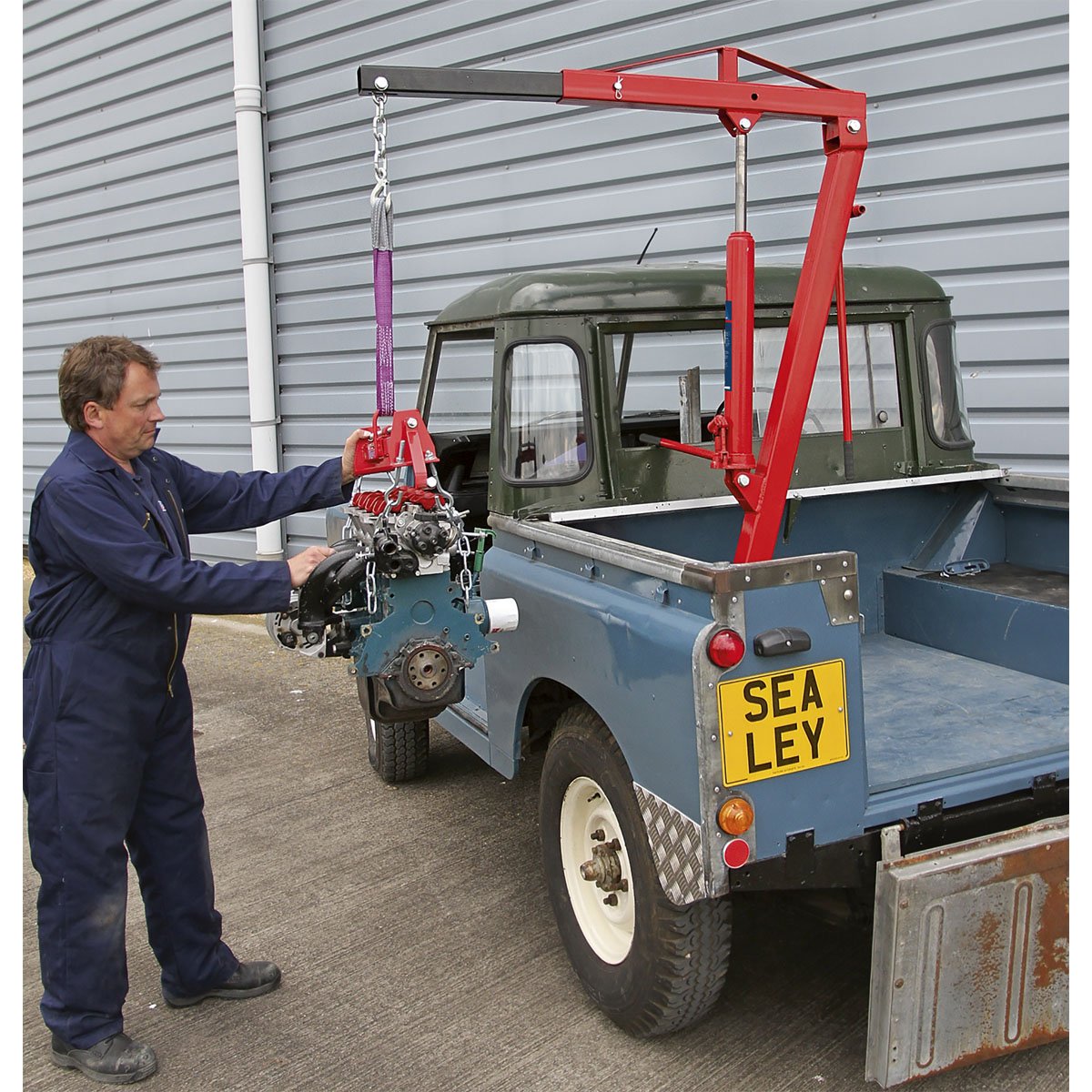

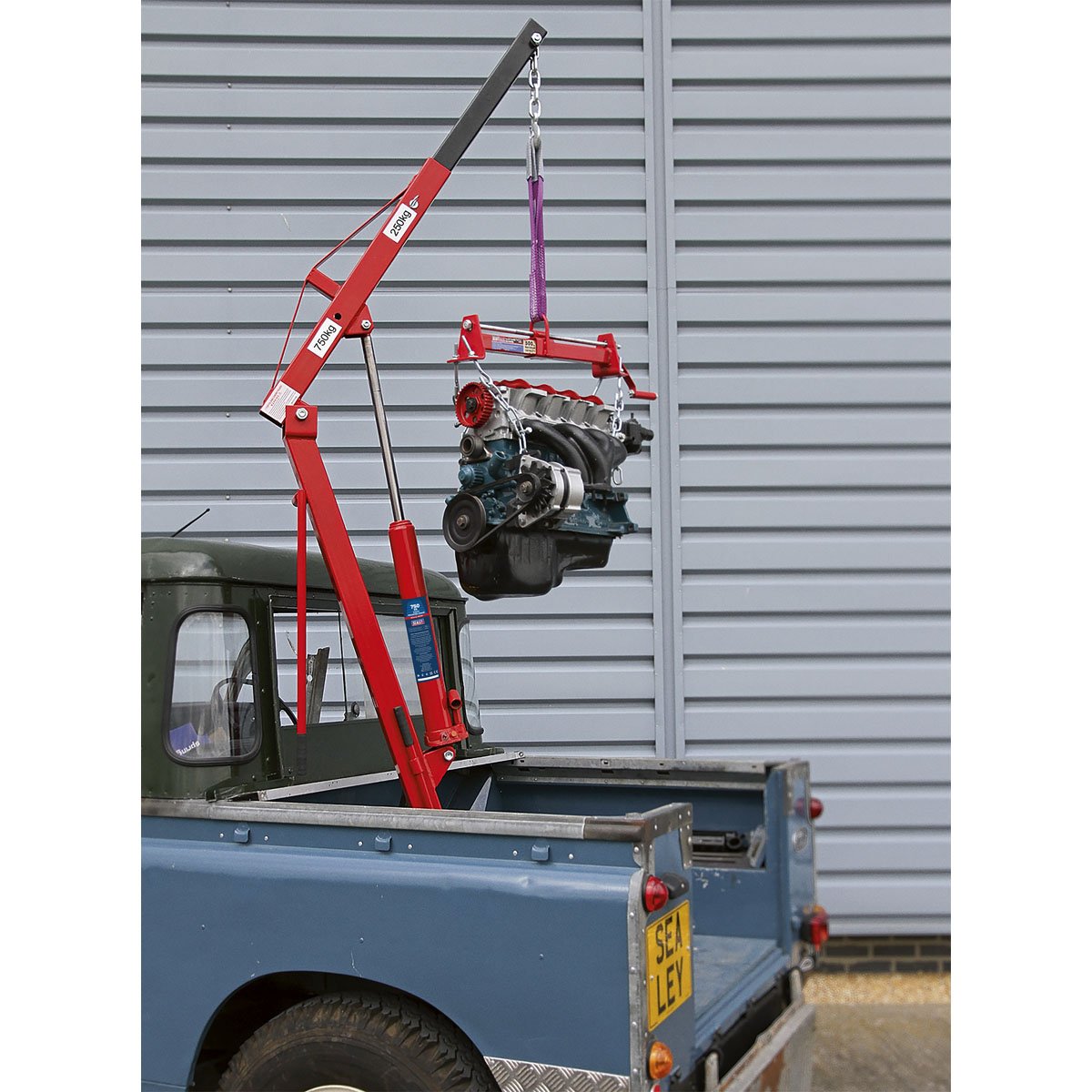

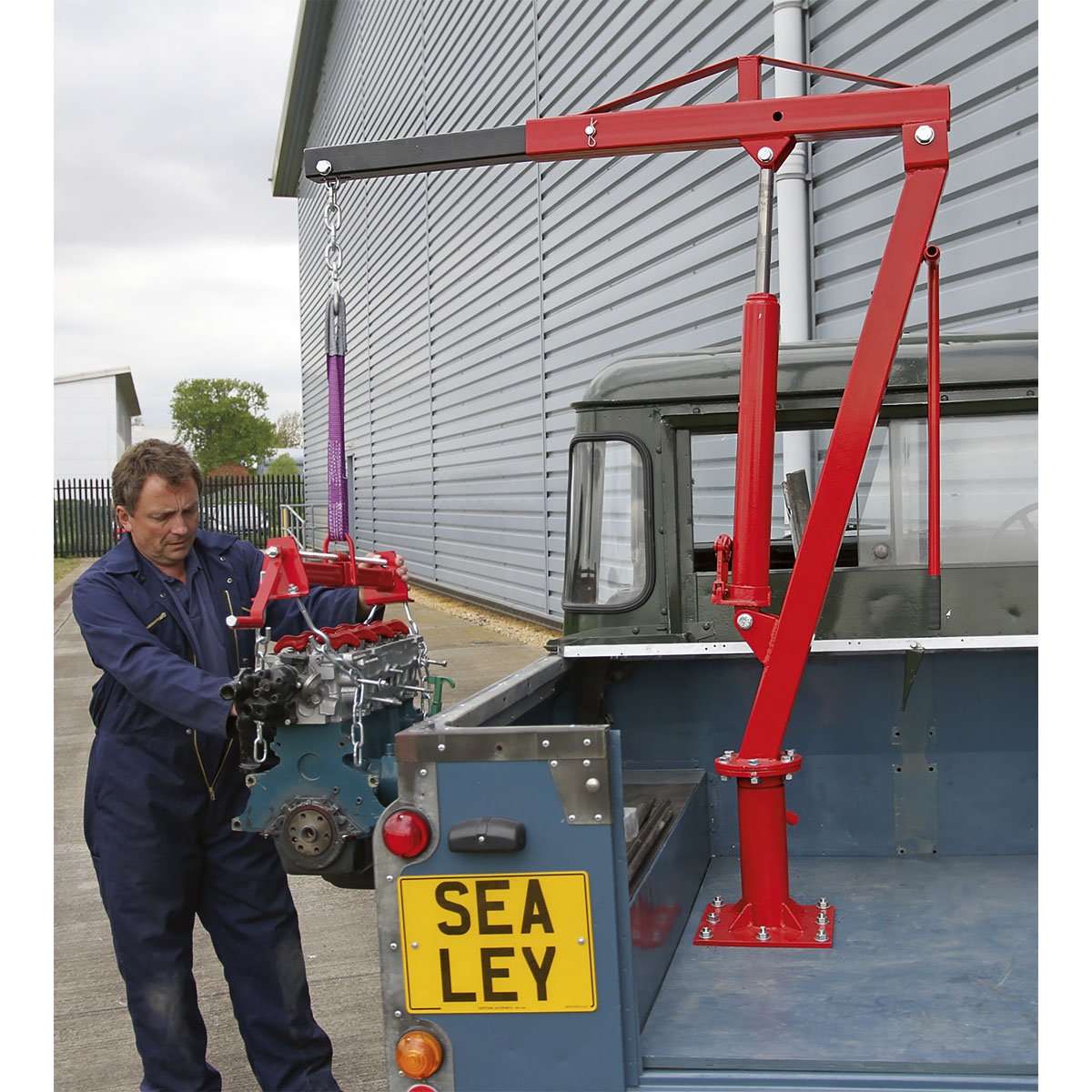

Mounts easily onto any strong and stable surface including loading bays, 4x4s, flatbed trucks and trailers.

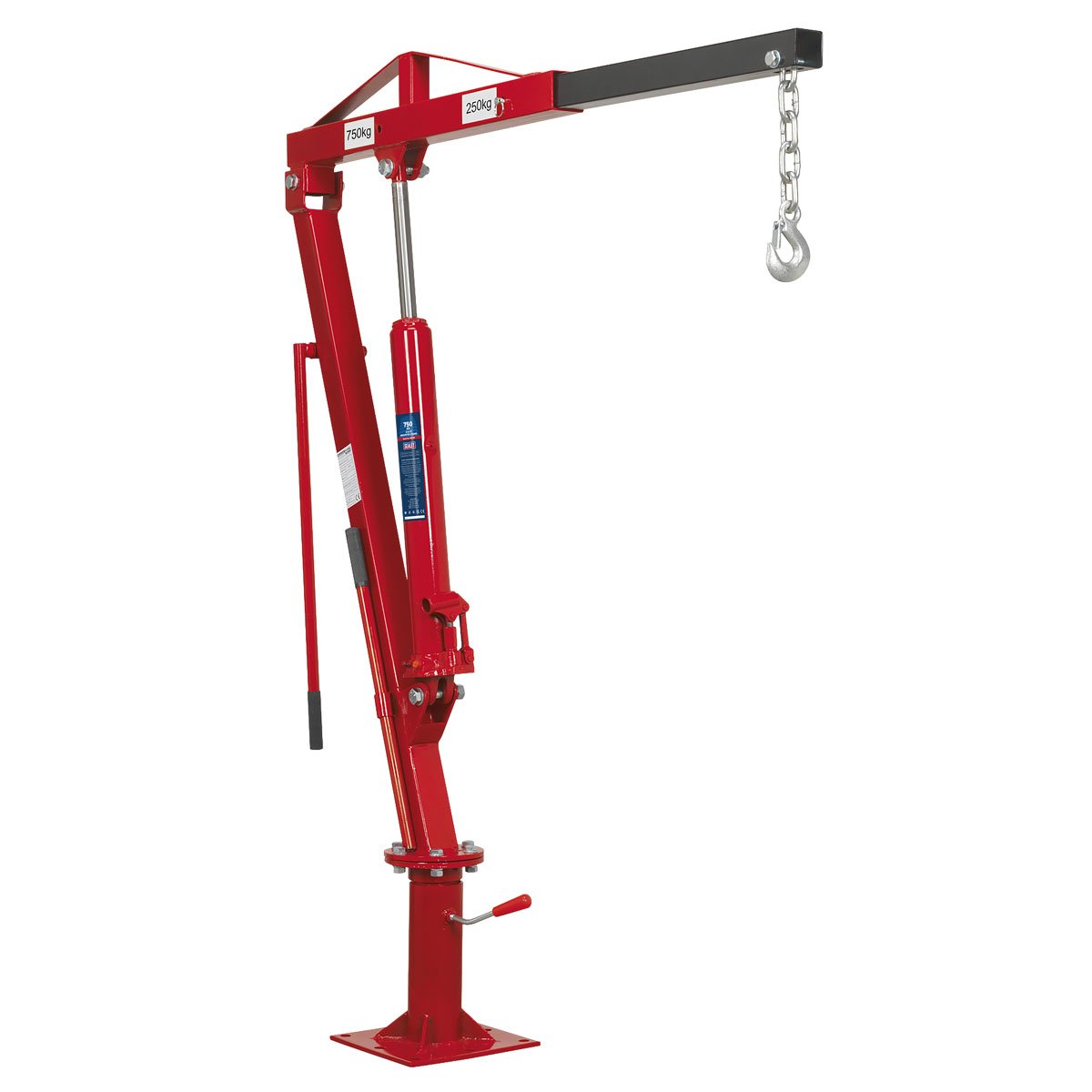

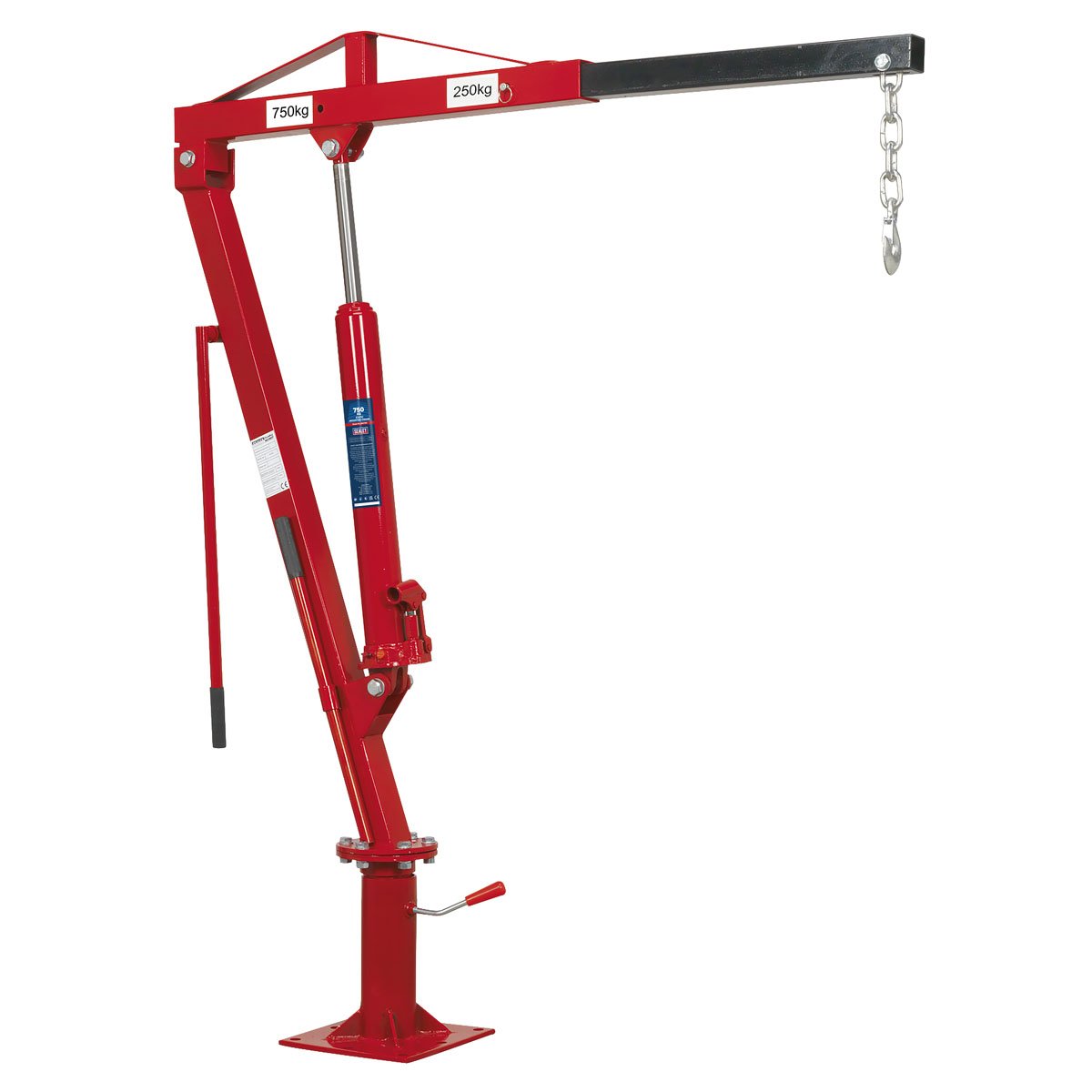

Robust lifting ram enables a maximum capacity of 750kg when the lifting boom is retracted and 250kg when fully extended.
Includes heavy-duty chain and hook.
Hook features safety clip to help prevent load sling from slipping.
Warranty: 1 year Years
Sealey catalogue page number: 316
Variant number of the model: 001

Specification:

Model No	SSC750
Brand:	Sealey
Height Jib Down:	1530mm
Height Legs Folded:	n/a
Height of Frame:	n/a
Length Legs Extended:	n/a
Length of Jib Position 1:	825mm
Length of Jib Position 2:	1180mm
Length of Jib Position 3:	n/a
Length of Jib Position 4:	n/a
Length of Jib Position 5:	n/a
Length:	n/a
Lifting Capacity in Position 1:	750kg
Lifting Capacity in Position 2:	250kg
Lifting Capacity in Position 3:	n/a
Lifting Capacity in Position 4:	n/a
Lifting Capacity in Position 5:	n/a
Max. Lift Ht at Jib Position 1:	2060mm
Max. Lift Ht at Jib Position 2:	2350mm
Max. Lift Ht at Jib Position 3:	n/a
Max. Lift Ht at Jib Position 4:	n/a
Max. Lift Ht at Jib Position 5:	n/a
Nett Weight:	49kg
Rear Width:	n/a
Width Front Frame:	n/a
Width Inside Front Frame:	n/a
