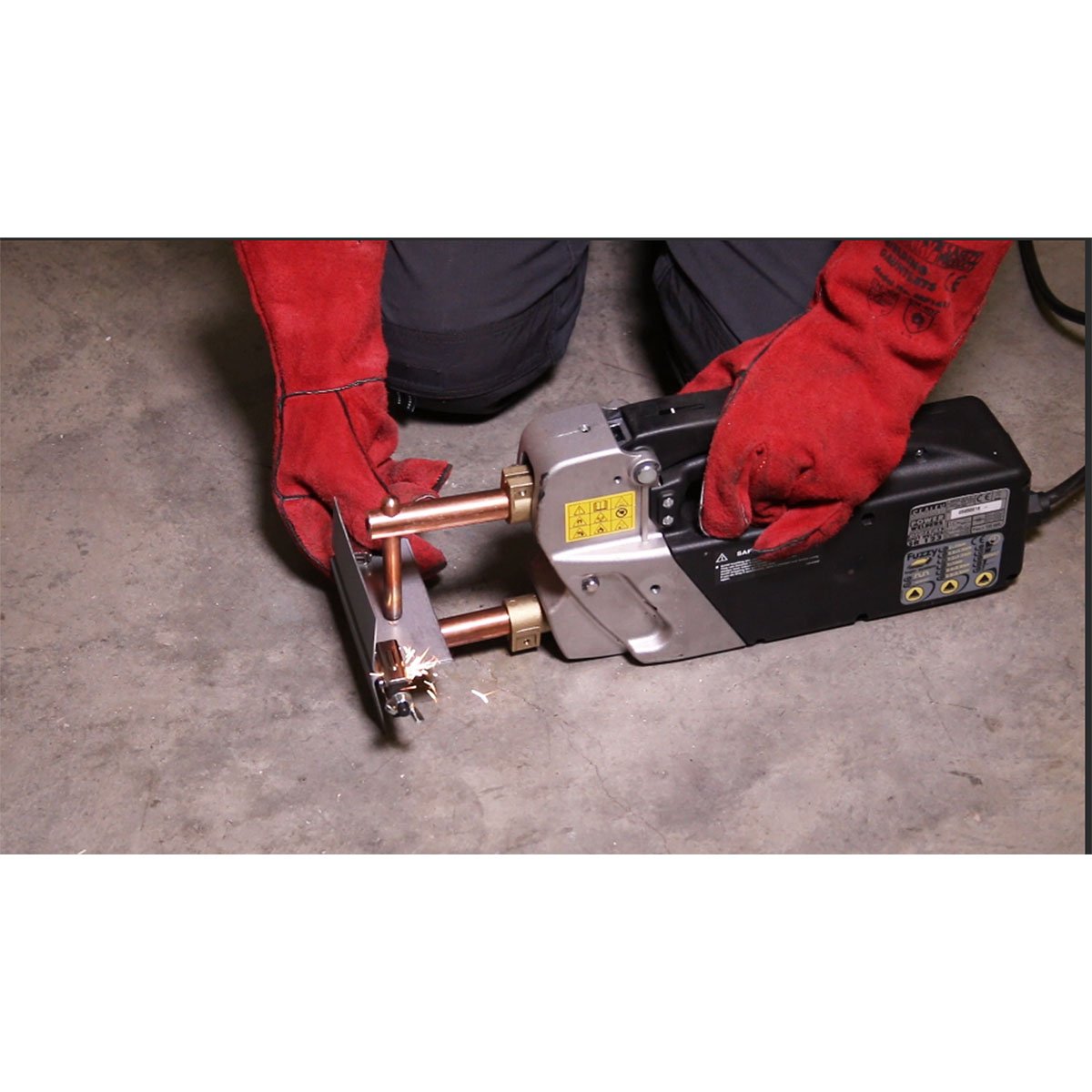

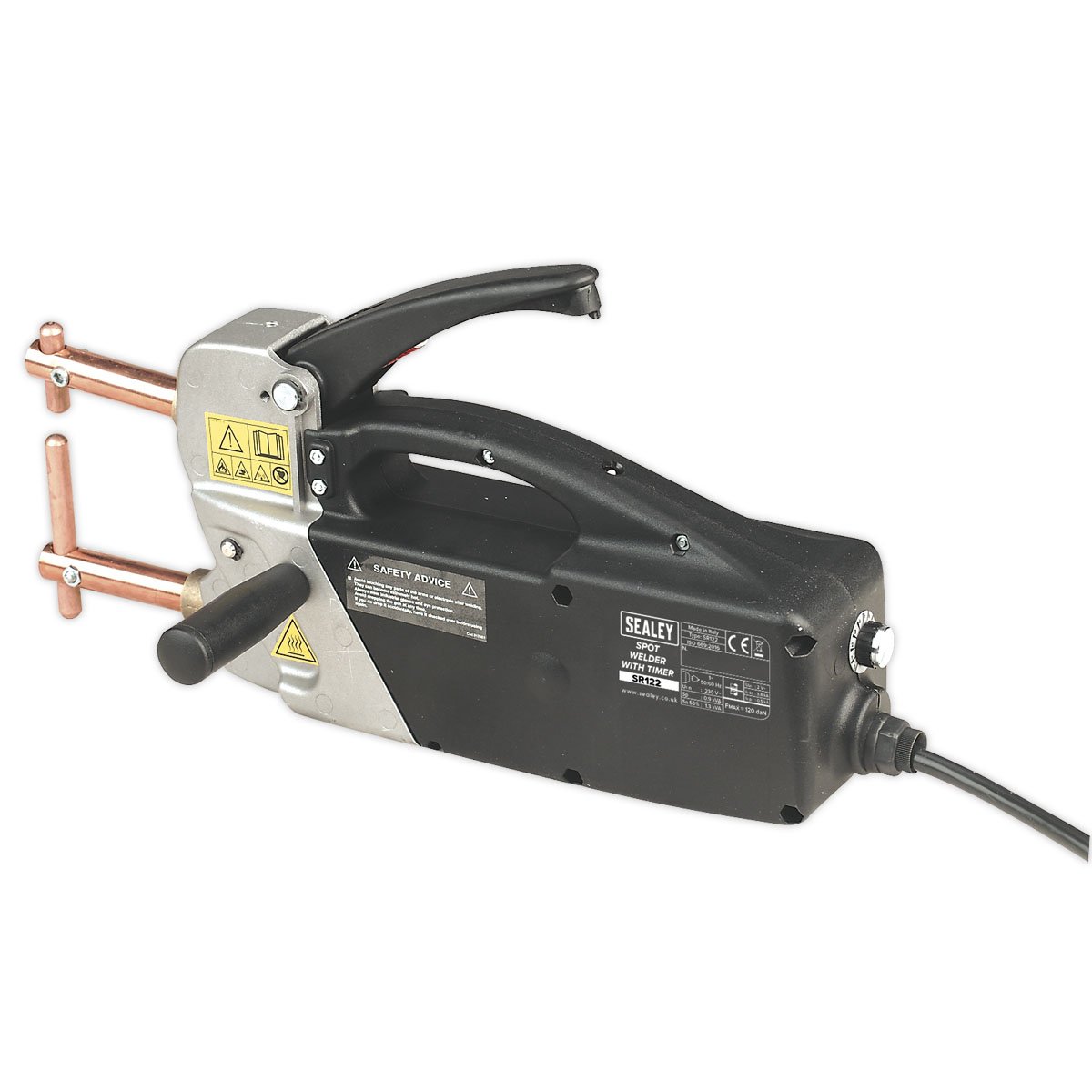

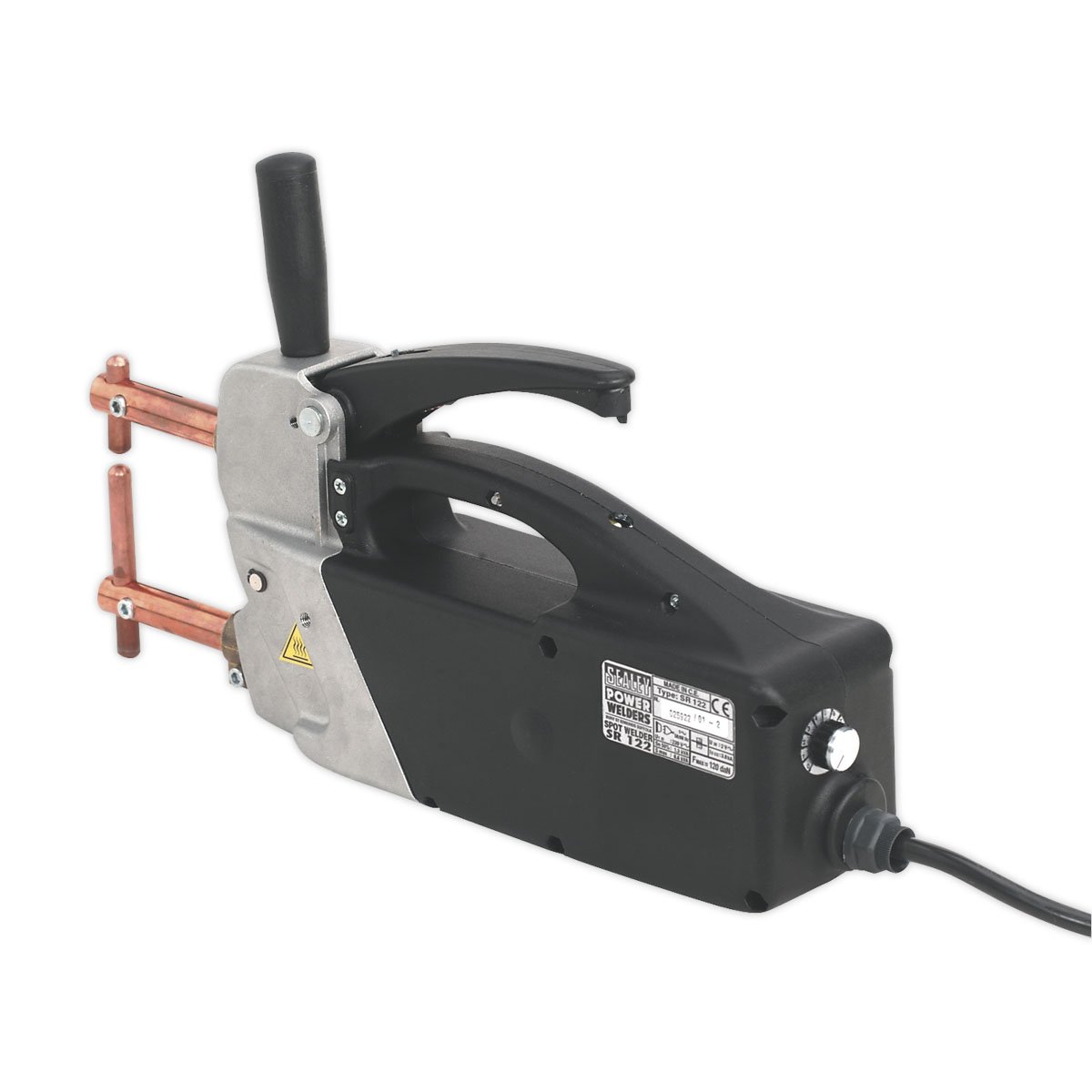

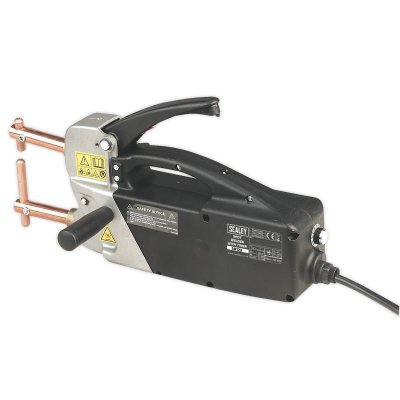

Semi-automatic spot welder. Composite casing and handle reduce heat transfer for operator comfort. Die-cast aluminium head and chassis reduces overall weight for improved handling. Integral synchronous timer enables adjustable spot time of between 0.1 and 1.2 seconds. Fully adjustable jaw pressure from 40kg to 120kg enables close control of weld quality. Supplied with 120mm welding arms, electrodes and side handle.

Model Number: SR122
Semi-automatic spot welder.
Composite casing and handle reduce heat transfer for operator comfort.
Die-cast aluminium head and chassis reduces overall weight for improved handling.
Integral synchronous timer enables adjustable spot time of between 0.1 and 1.2 seconds.
Fully adjustable jaw pressure from 40kg to 120kg enables close control of weld quality.
Supply: 230V-16A (Plug not included).
Supplied with 120mm welding arms, electrodes and side handle.
Made in Europe.
Warranty: 1 year Years
Sealey catalogue page number: 752
Variant number of the model: 001

Specification:

Model No	SR122
Brand:	Sealey
Nett Weight:	10.5kg
Supply:	230V
Capacity:	1 + 1mm
Maximum Absorbed Power:	6kW
Mains Fuse:	16A
Welding Current (Maximum):	3800A
Duty Cycle:	1.5%
Insulation Class:	B
Weight:	10.5kg
