Sealey Air Operated Oil Dispensing System with 10m Retractable Hose Reel

Description

Delivery Information

Ask a question

Parts Diagrams

Material Safety Data Sheet

Instructions

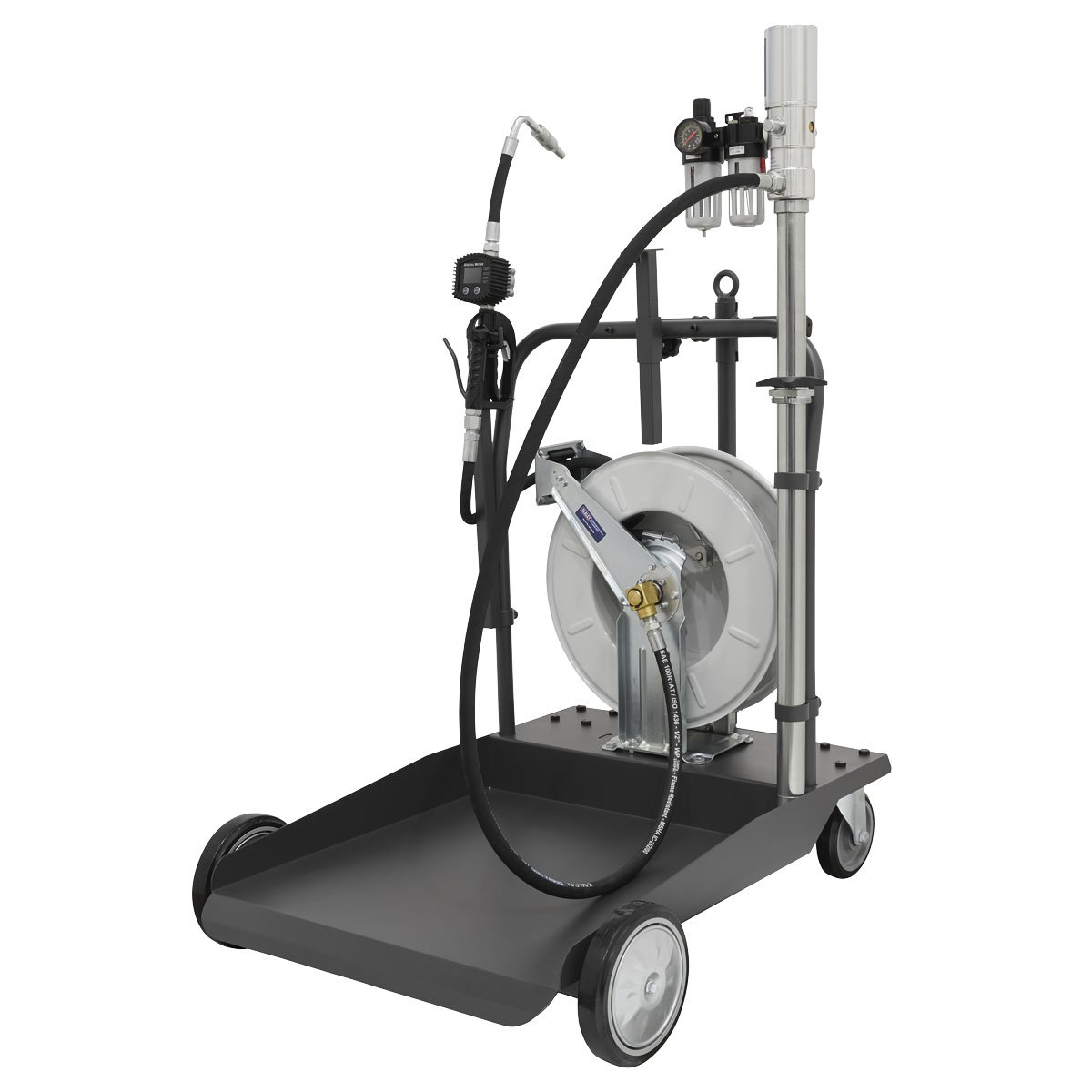

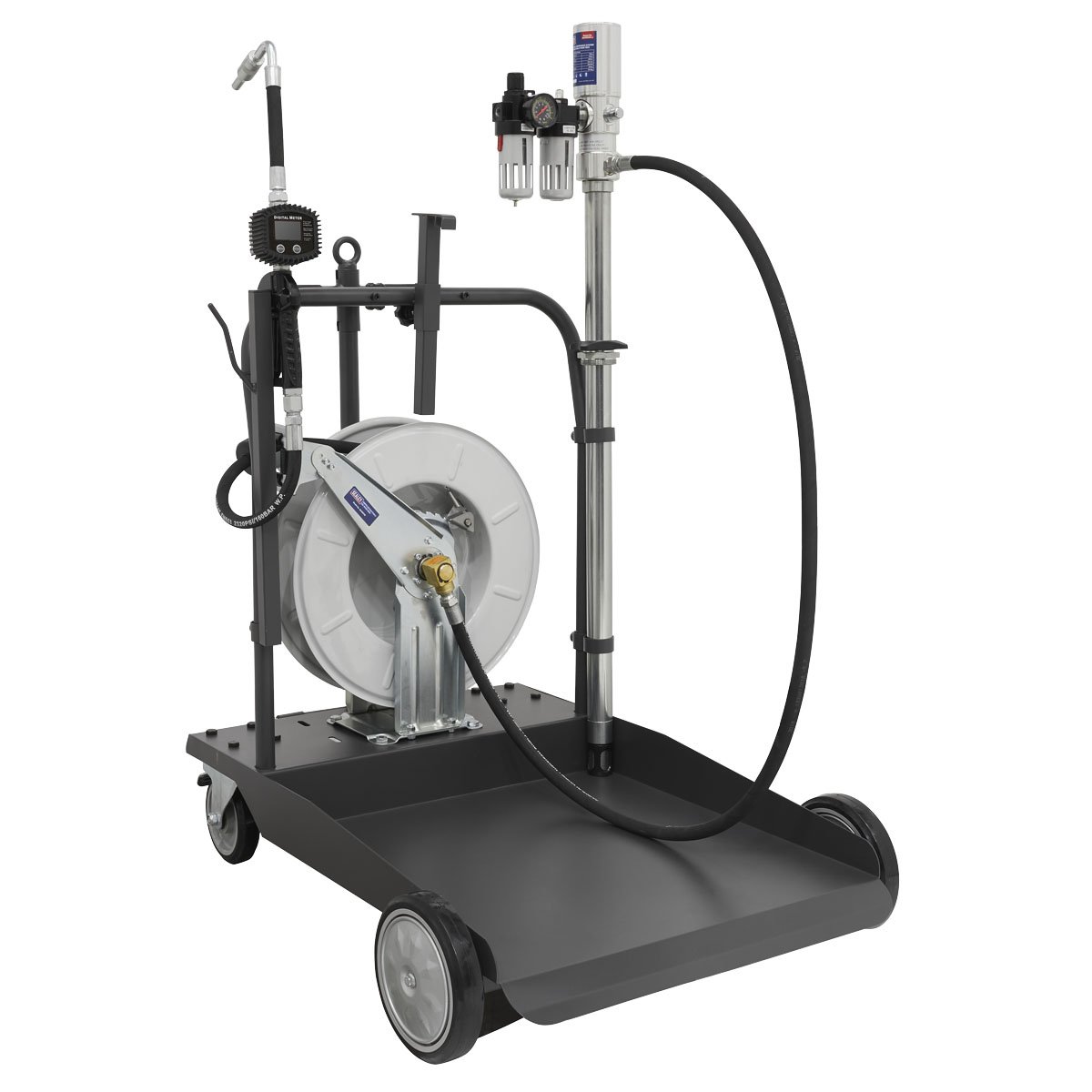

Mobile oil dispensing unit with air operated 3:1 double acting pump for barrels or tanks with 2"BSP fittings. Pump is supplied with air management system connected to a 940mm rigid suction probe with non-return valve. Features trolley, 10m retractable hose reel (Model No. AK4567D supplied) and digital oil meter (Model No. AK4565D supplied). Suitable for use with 205L drums and engine, hydraulic, synthetic, gear and transmission oils up to SAE150.

Model Number: AK4562D
Mobile oil dispensing unit with air operated 3:1 double acting pump for barrels or tanks with 2"BSP fittings.
Pump is supplied with air management system connected to a 940mm rigid suction probe with non-return valve.

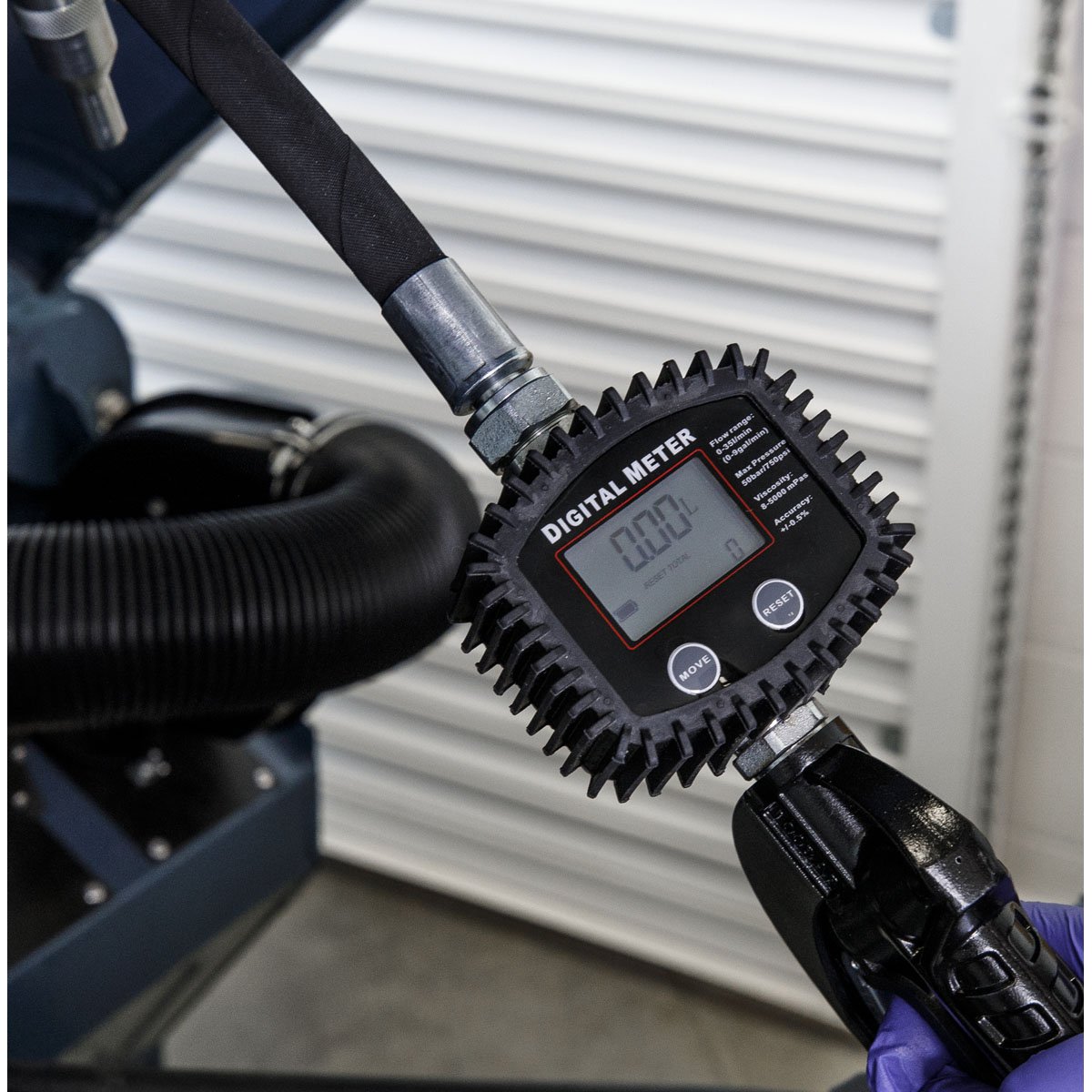

Features trolley, 10m retractable hose reel (Model No. AK4567D supplied) and digital oil meter (Model No. AK4565D supplied).
Suitable for use with 205L drums and engine, hydraulic, synthetic, gear and transmission oils up to SAE150.
Warranty: 1 year Years
Sealey catalogue page number: 664
Variant number of the model: 002

Specification:

Model No	AK4562D
Brand:	Sealey
Maximum Air Pressure:	115psi
Maximum Flow Rate:	12L/min
Maximum Output Pressure:	350psi
Maximum Trolley Capacity:	220kg
Maximum Viscosity:	SAE150
Nett Weight:	59.40kg
Outlet Size:	1/2"BSP
Pump Ratio:	3:1
Recommended Air Pressure:	70psi
