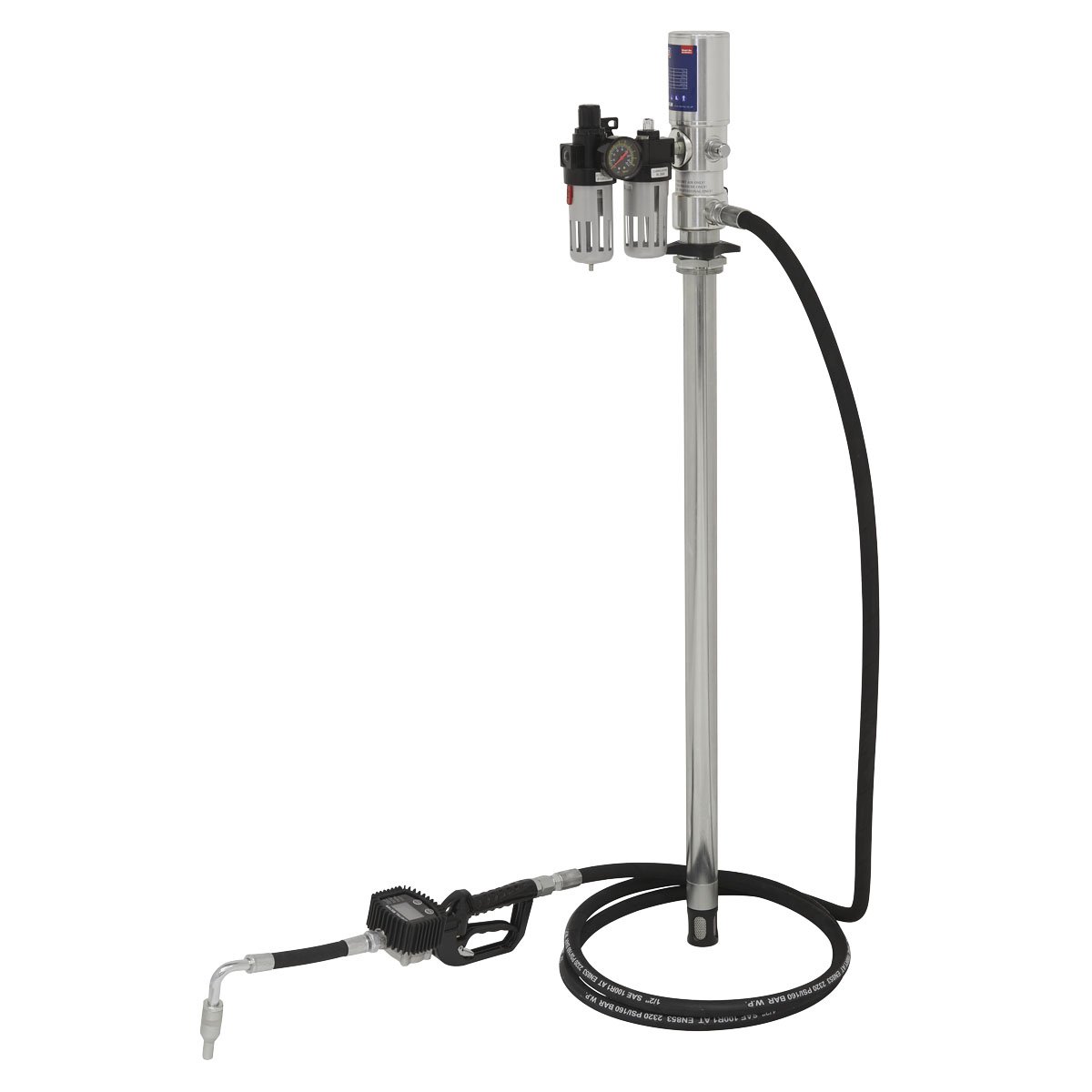

Air operated 3:1 double acting pump for barrels or tanks with 2"BSP fittings. Pump is supplied with air management system and connected to a 940mm rigid suction probe with non-return valve. Features hose for attachment to digital oil meter (Model No. AK4565D supplied) or to optional retractable hose reel (Model No. AK4567D). Suitable for use with engine, hydraulic, synthetic, gear and transmission oils up to SAE150.

Model Number: AK4560D
Air operated 3:1 double acting pump for barrels or tanks with 2"BSP fittings.

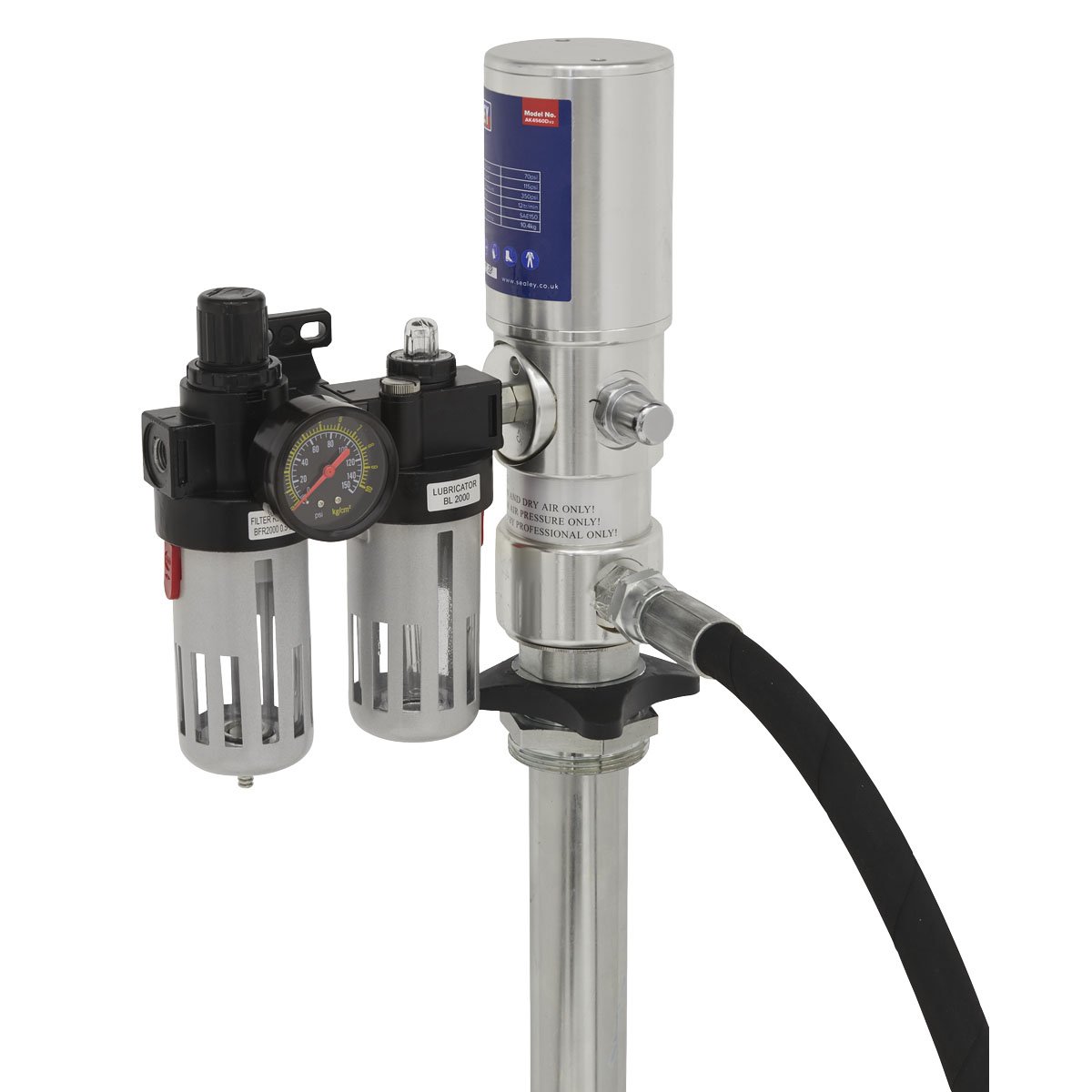

Pump is supplied with air management system and connected to a 940mm rigid suction probe with non-return valve.
Features hose for attachment to digital oil meter (Model No. AK4565D supplied) or to optional retractable hose reel (Model No. AK4567D).
Suitable for use with engine, hydraulic, synthetic, gear and transmission oils up to SAE150.
Warranty: 1 year Years
Sealey catalogue page number: 664
Variant number of the model: 002

Specification:

Model No	AK4560D
Brand:	Sealey
Maximum Air Pressure:	115psi
Maximum Flow Rate:	12L/min
Maximum Output Pressure:	350psi
Maximum Viscosity:	SAE150
Nett Weight:	10.49kg
Outlet Size:	1/2"BSP
Pump Ratio:	3:1
Recommended Air Pressure:	70psi
