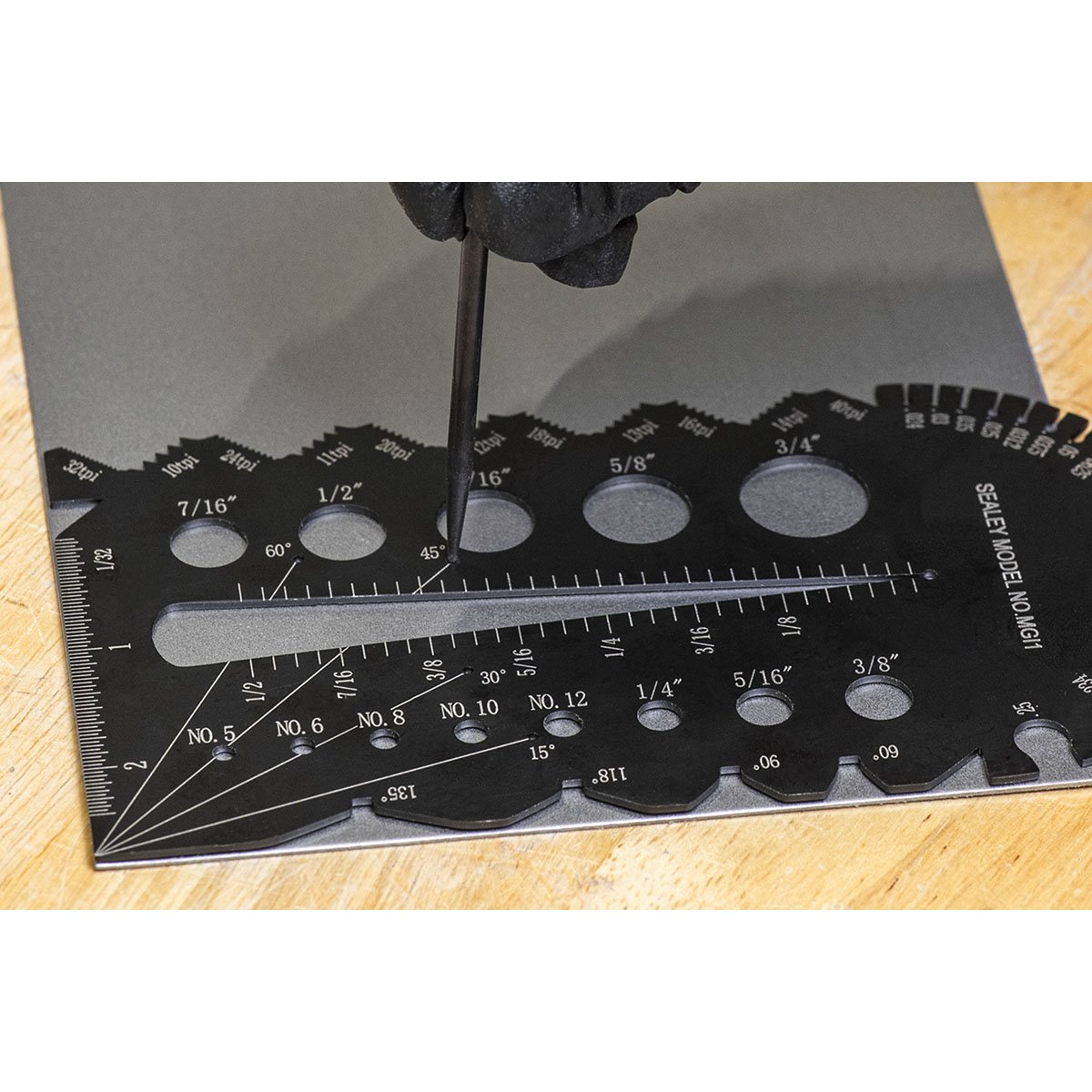

Stainless steel multifunction thread/pitch identification gauge. Easily identify the size of bolt, drill bit or tap that is required. Check the thickness of washers and diameter of electric wire. Use as a set square and ruler.

Model Number: MGI1

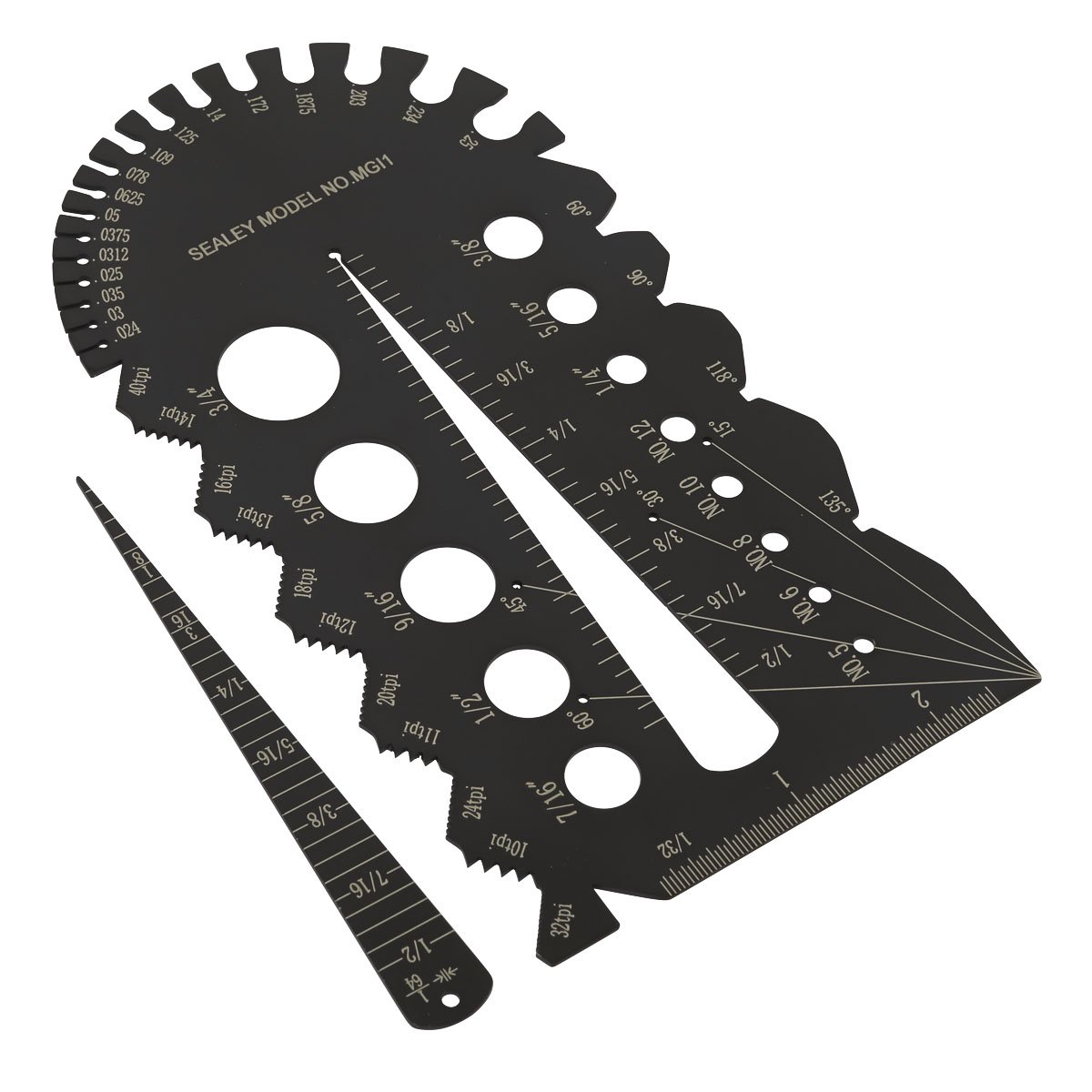

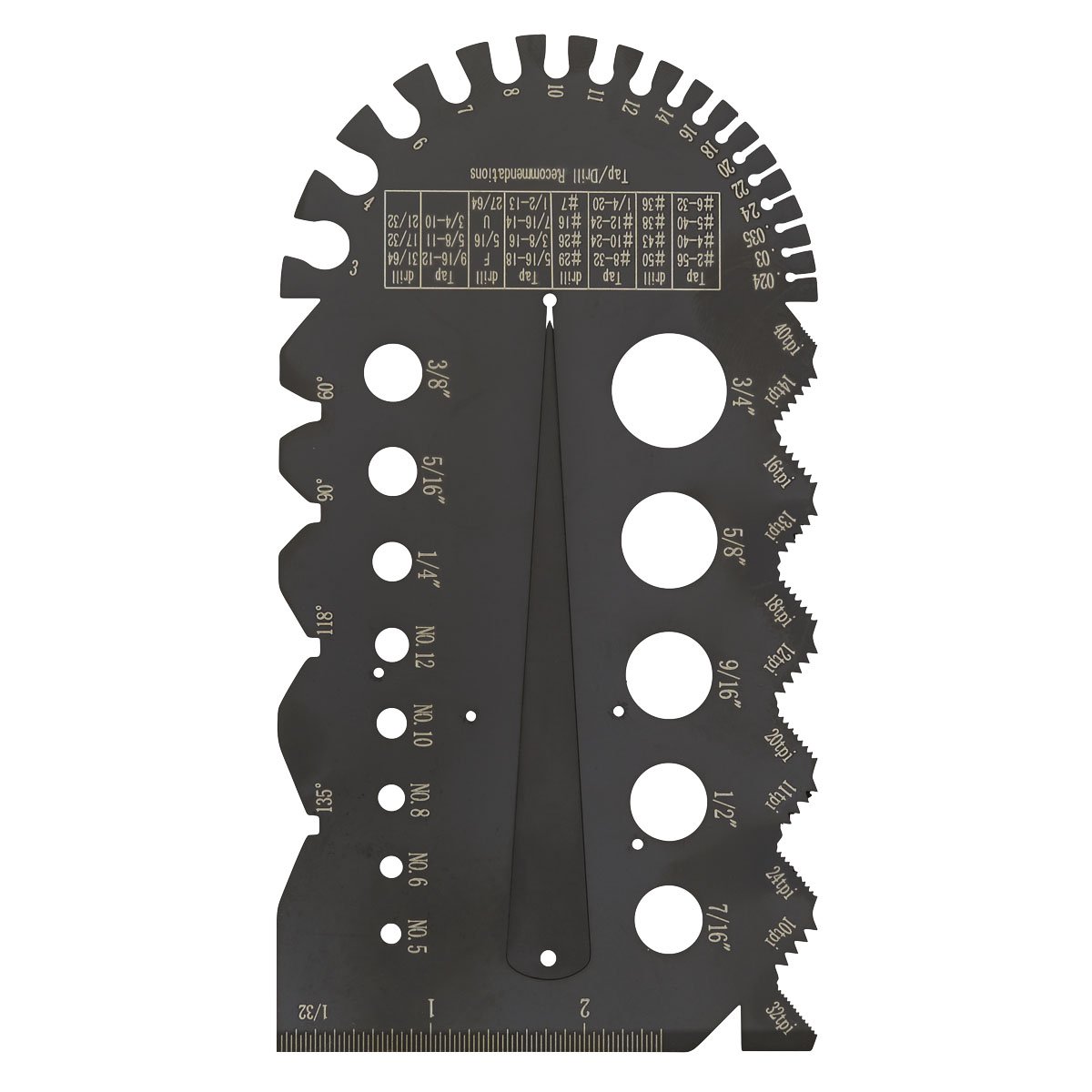

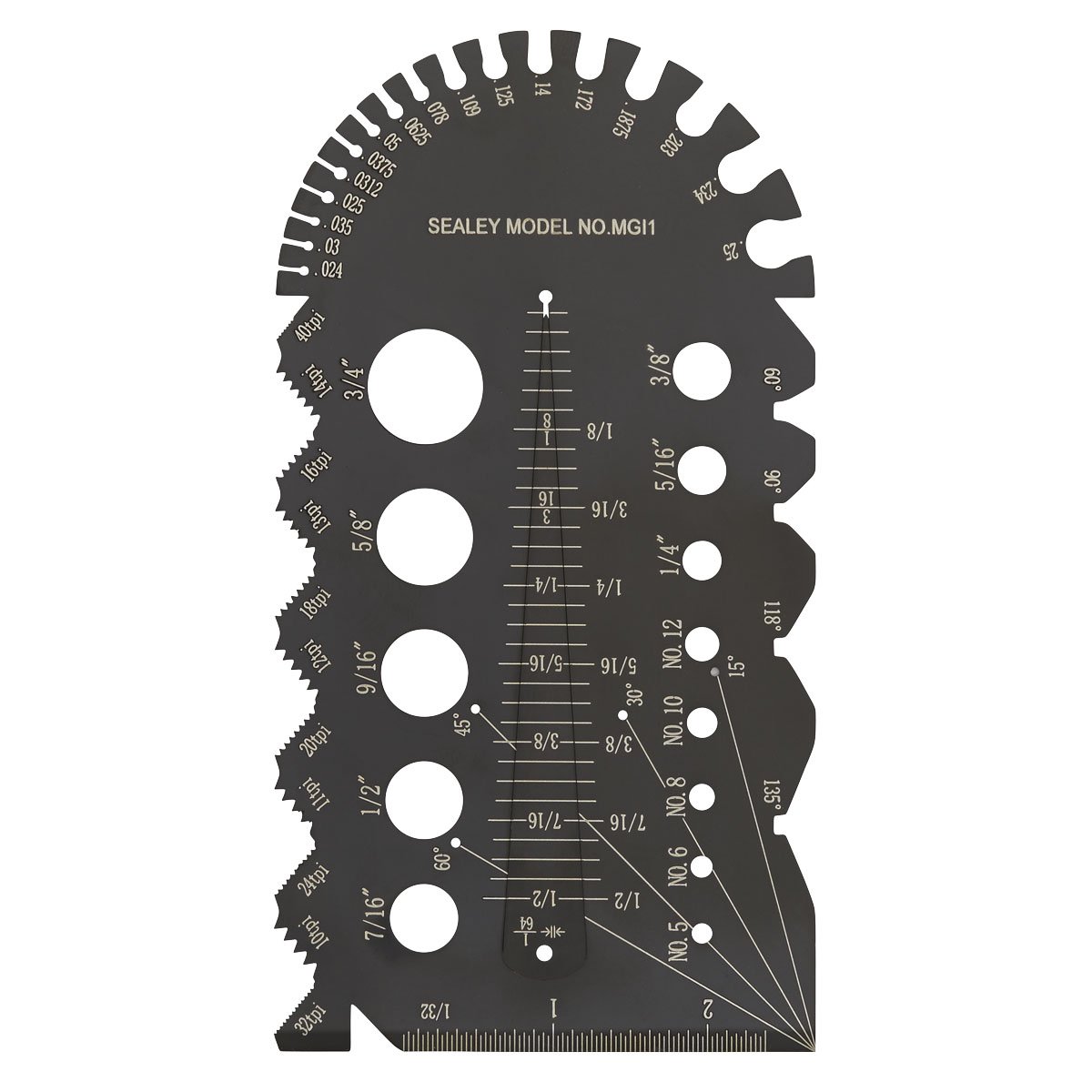

Stainless steel Imperial multifunction thread/pitch identification gauge.

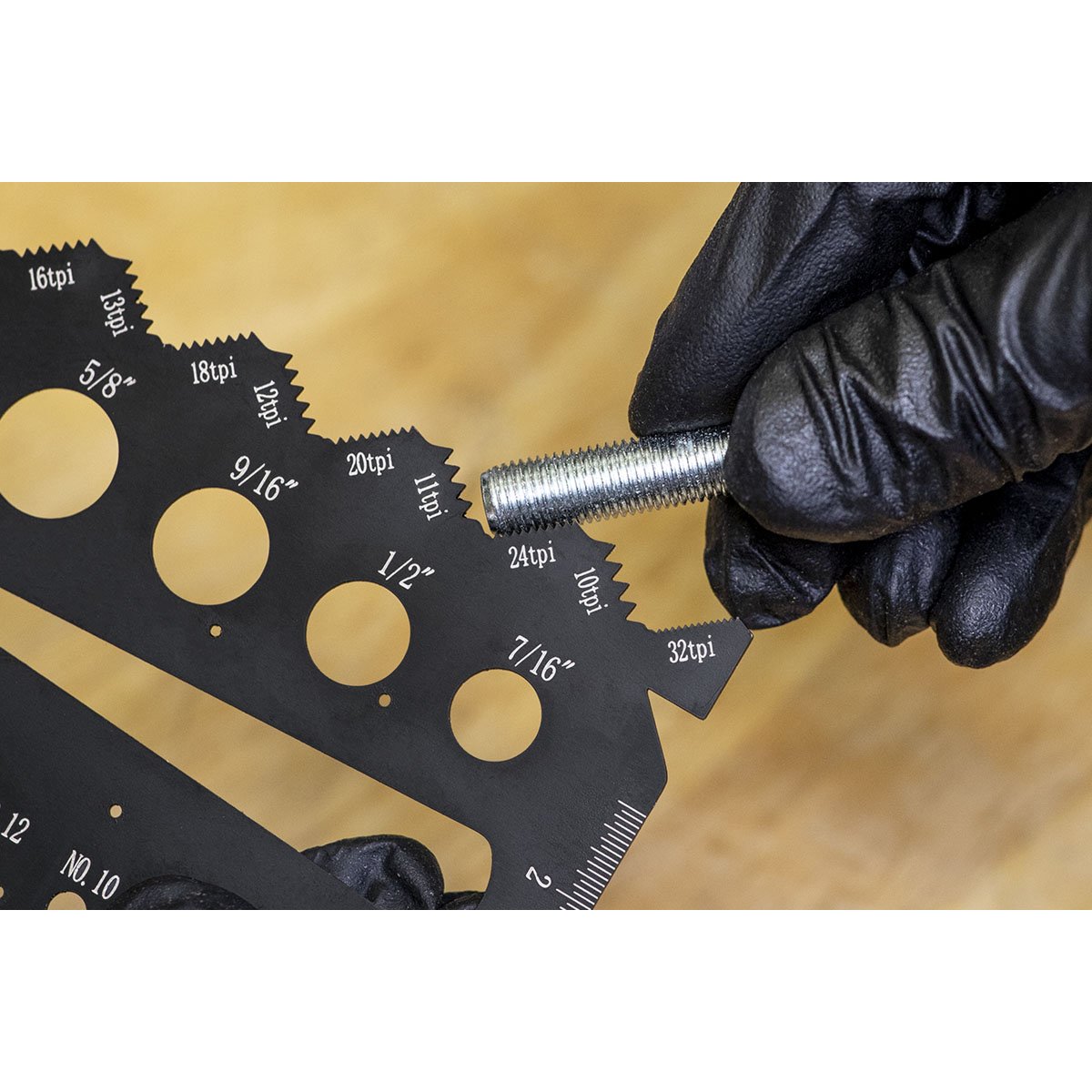

Pitches: 10, 11, 12, 13, 14, 16, 18, 20, 24, 32, 40 (tpi).

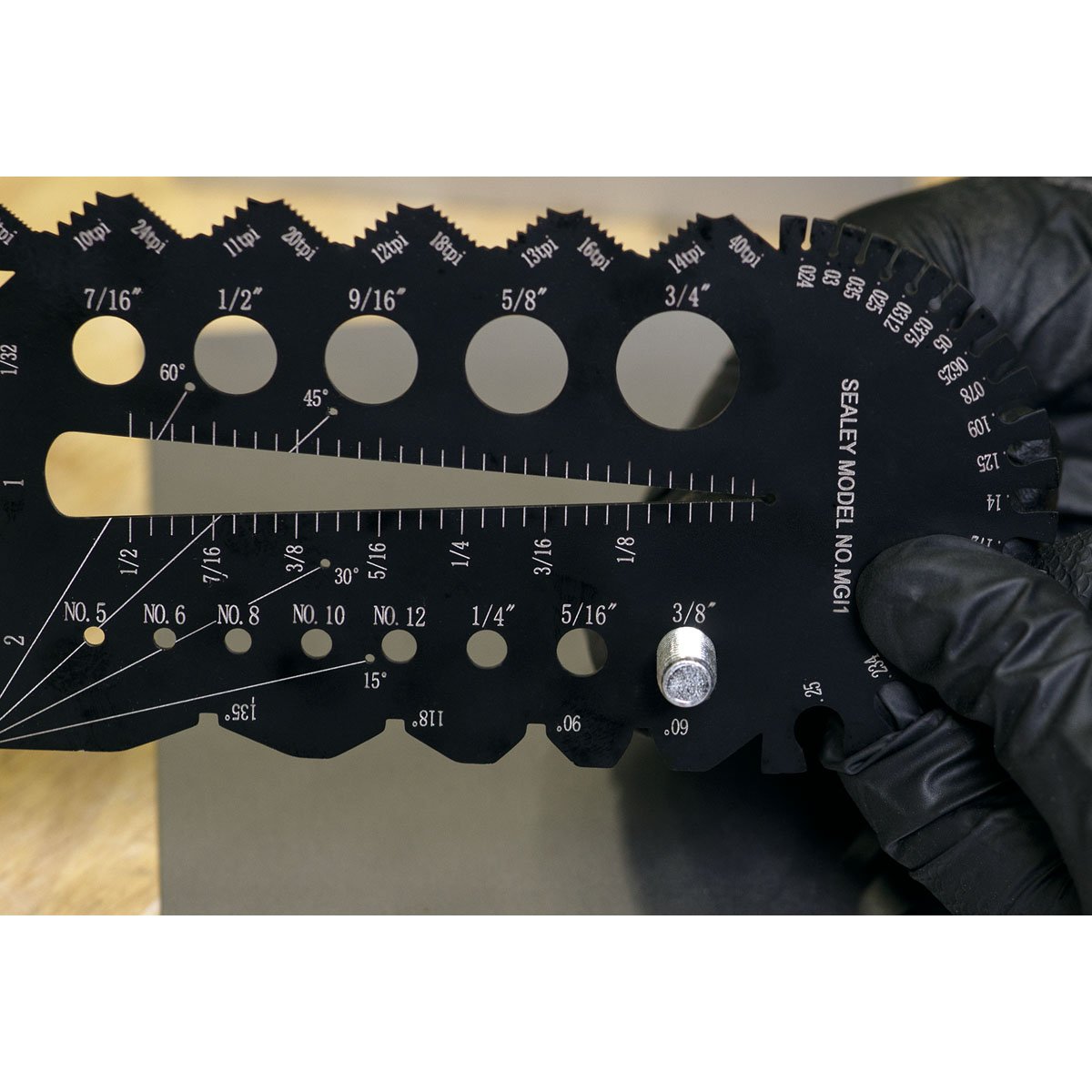

Bolt Screw Diameters: No.5, No.6, No.8, No.10, No.12, 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4".

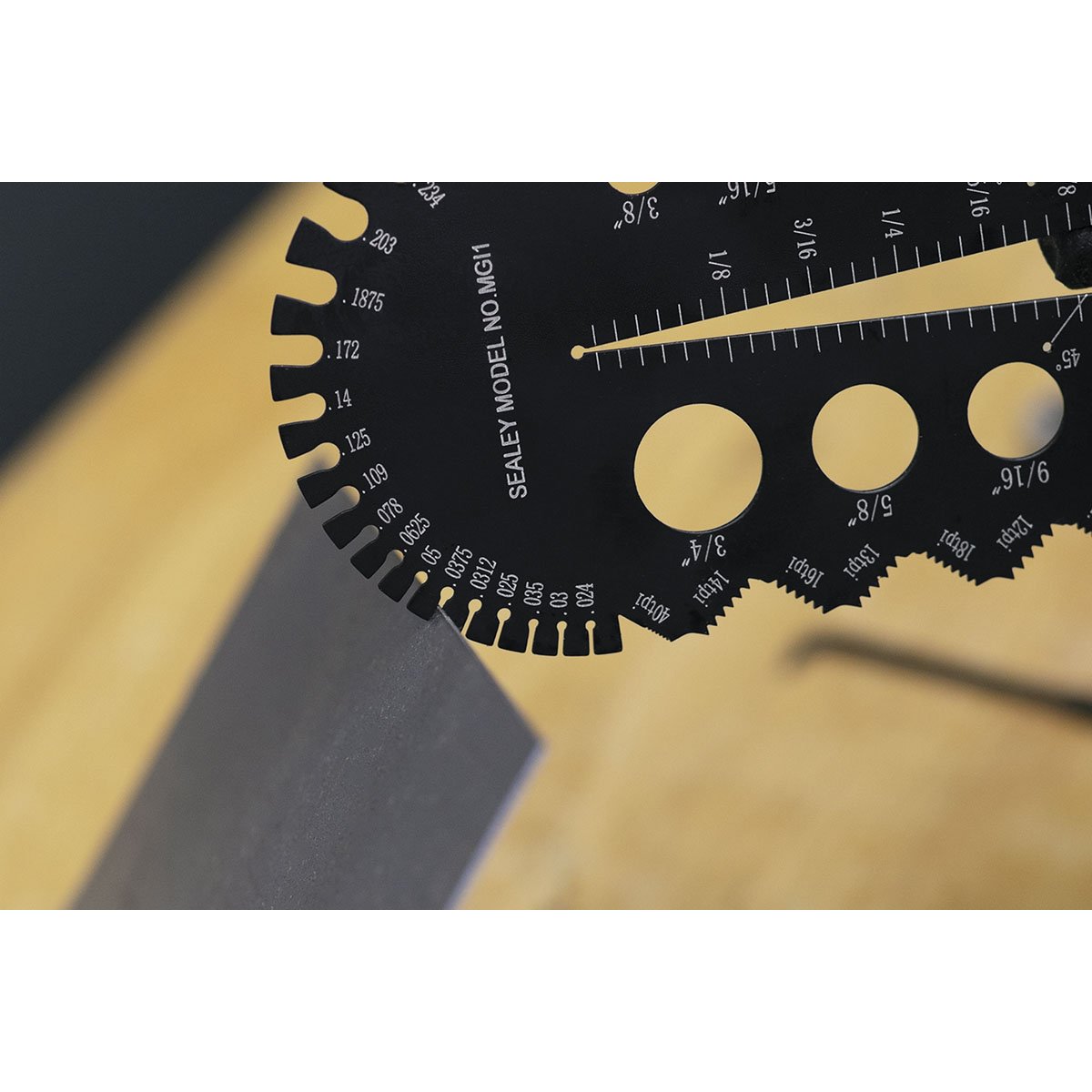

Wire Gauge: 0.024", 0.03", 0.035", 0.025", 0.0312", 0.0375", 0.05", 0.0625", 0.078", 0.109", 0.125", 0.14", 0.172", 0.1875", 0.203", 0.234", 0.25".

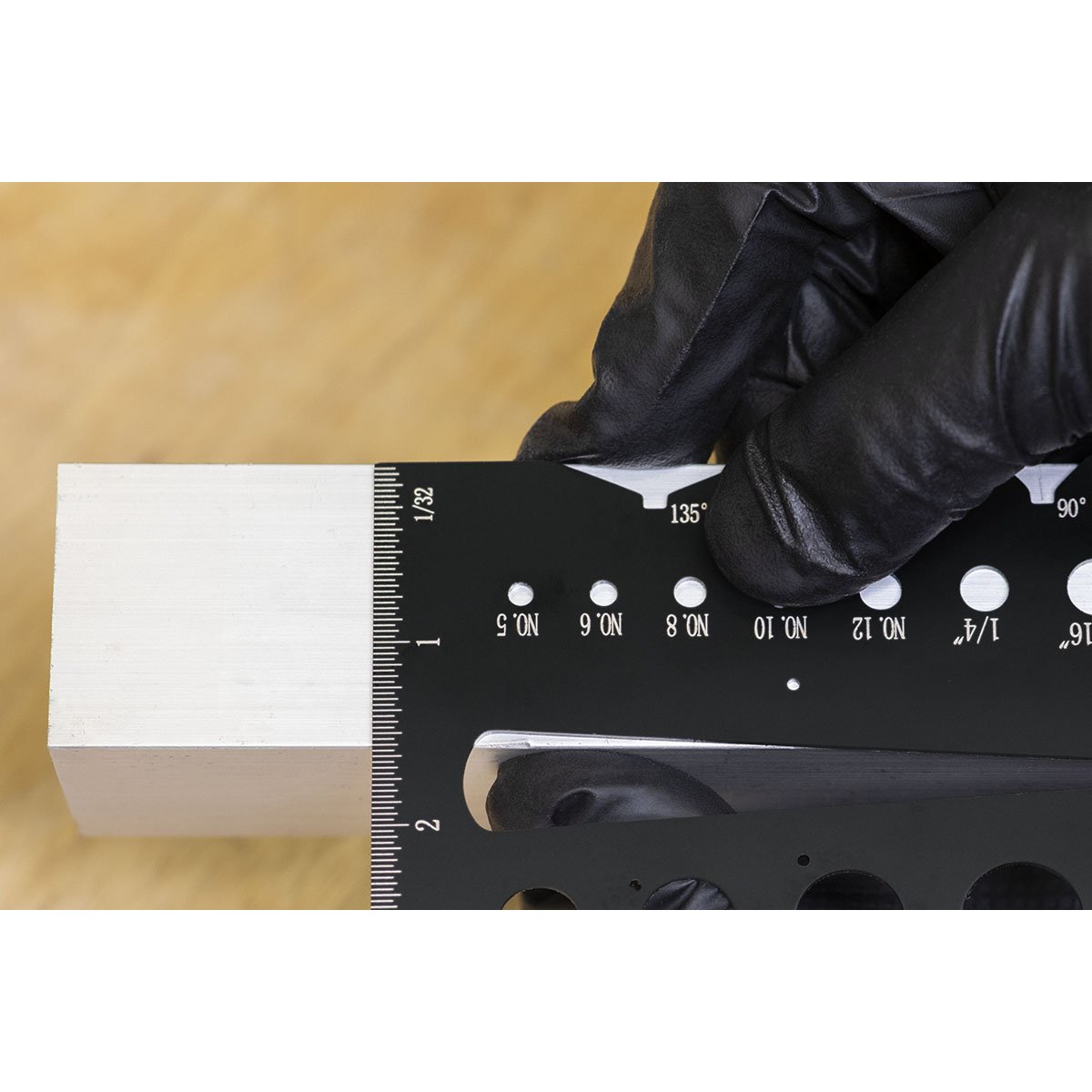

Square: 15�, 30�, 45�, 60�, 90�.
Drill Point Angle: 60�, 90�, 118�, 135�.

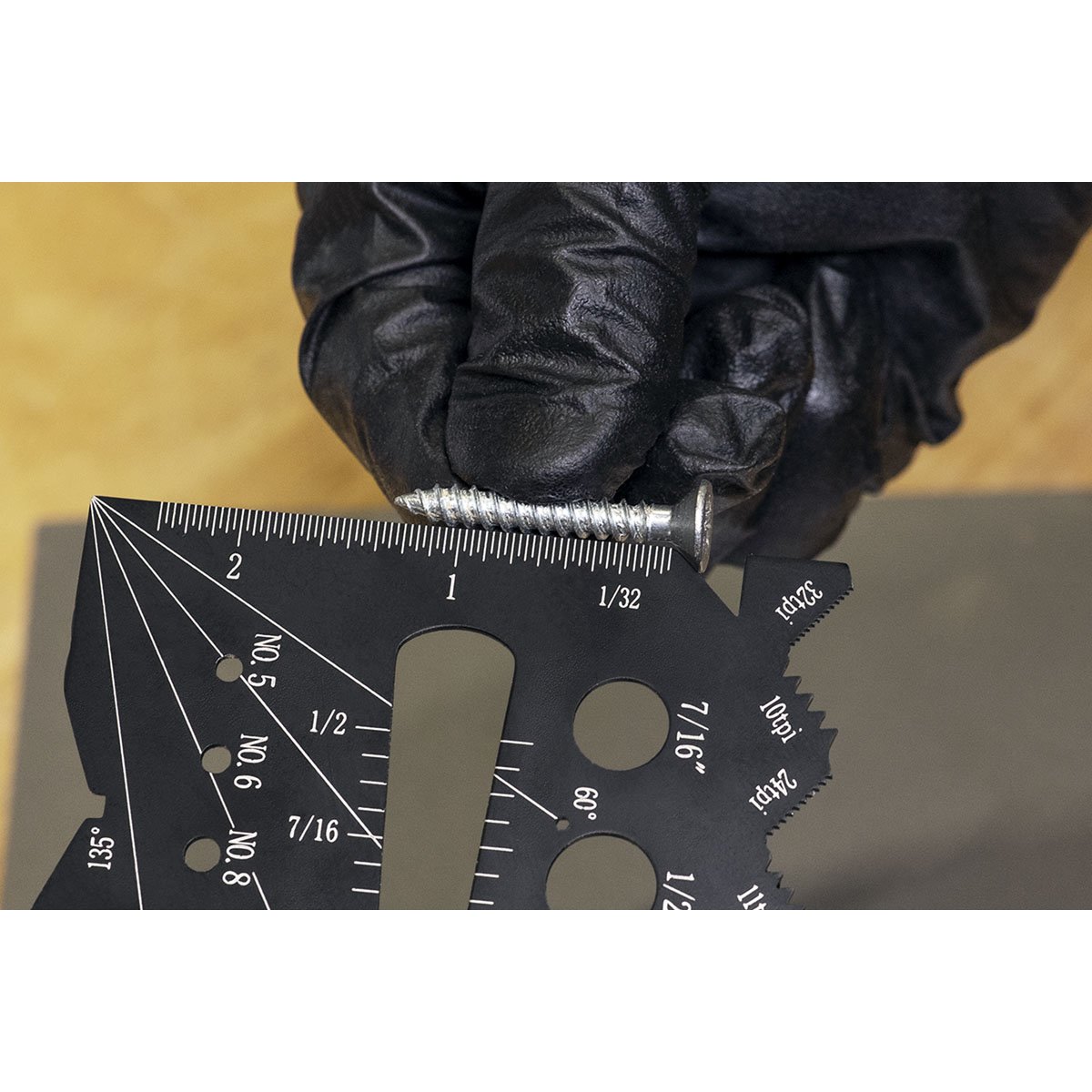

Bolt screw length: 0-2-3/8"

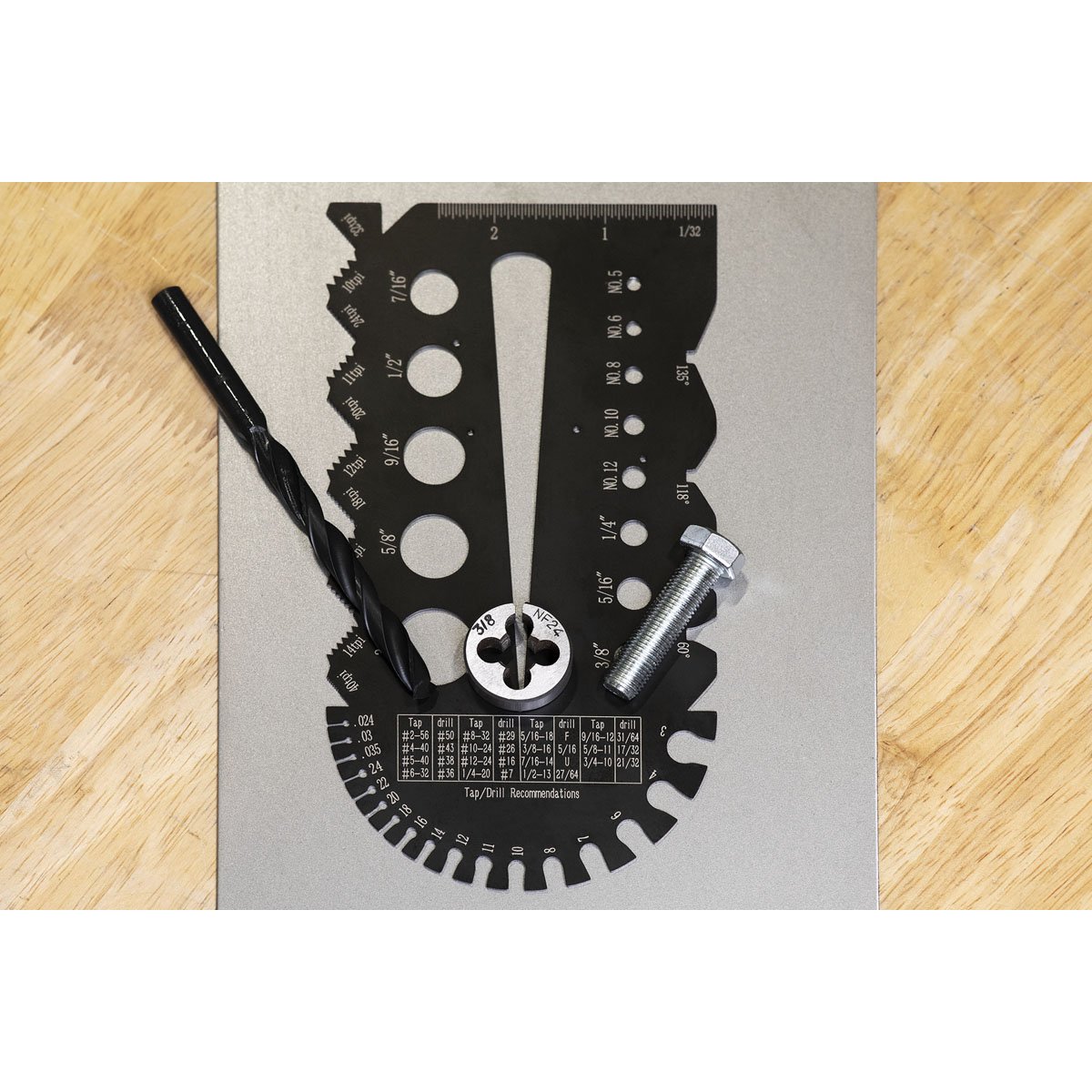

Tap/Drill Recommendation: #2-3/4"

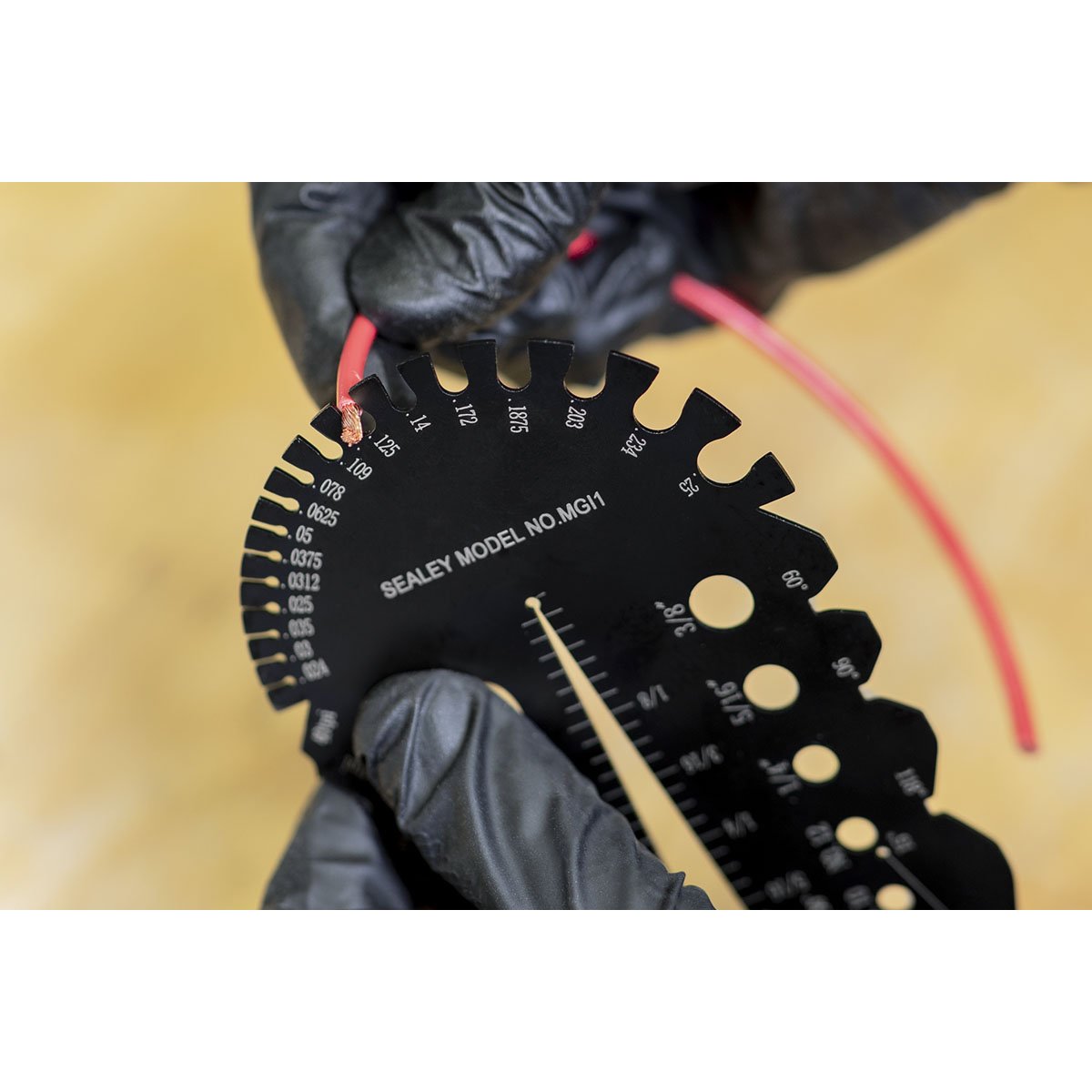

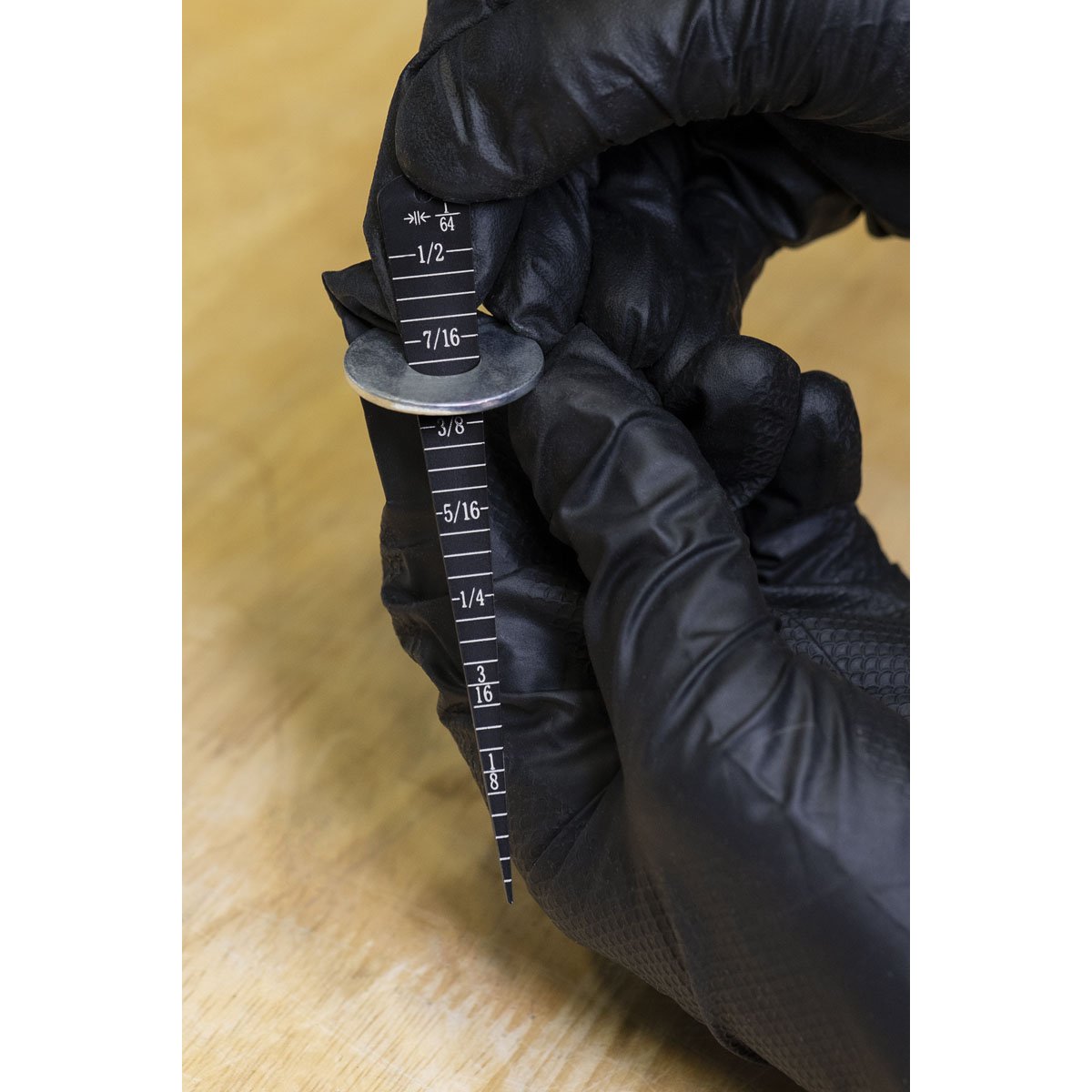

Check the thickness of washers and diameter of electric wire.
Warranty: 1 year Years
Sealey catalogue page number: 1231
Variant number of the model: 001

Specification:

Model No	MGI1
Brand:	Sealey
Nett Weight:	137.5g
Bolt Screw Diameters:	No.5, No.6, No.8, No.10, No.12, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 3/4”
Bolt Screw Length:	0-2-3/8"
Drill Point Angle:	60°, 90°, 118°, 135°
Pitches:	10, 11, 12, 13, 14, 16, 18, 20, 24, 32, 40 (tpi)
Square:	15°, 30°, 45°, 60°, 90°
Tap/Drill Recommendation:	#2-3/4"
Wire Gauge:	0.024", 0.03", 0.035", 0.025", 0.0312", 0.0375", 0.05", 0.0625", 0.078", 0.109", 0.125", 0.14", 0.172", 0.1875", 0.203", 0.234", 0.25"
