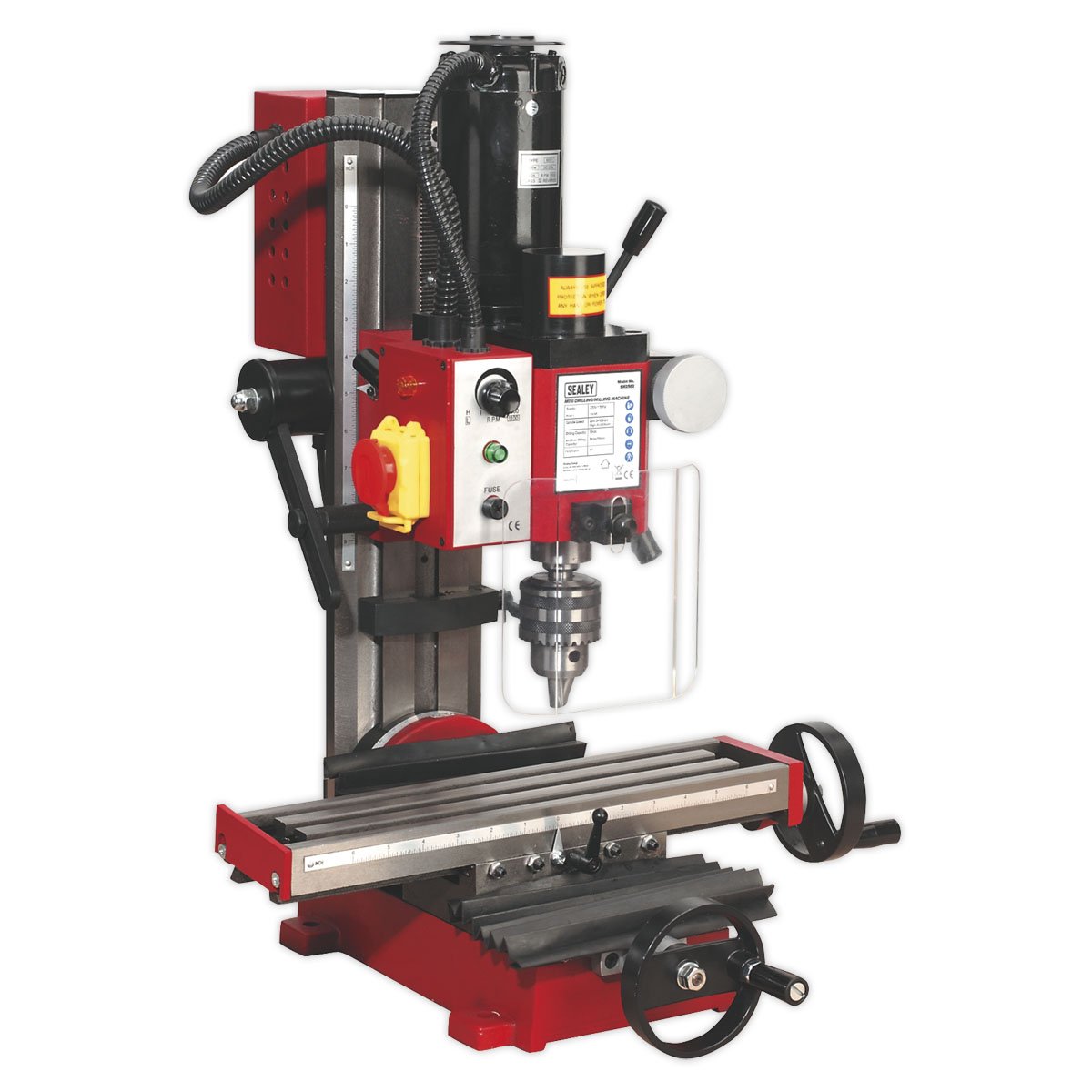

Bench mounting mini drilling/milling machine with the flexibility to handle most materials. Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical. Supplied with 13mm chuck accessory kit for adjusting and setting. An optional stand is available, order Model No. SM3002ST.

Model Number: SM2502
Bench mounting mini drilling/milling machine with the flexibility to handle most materials.
Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales.

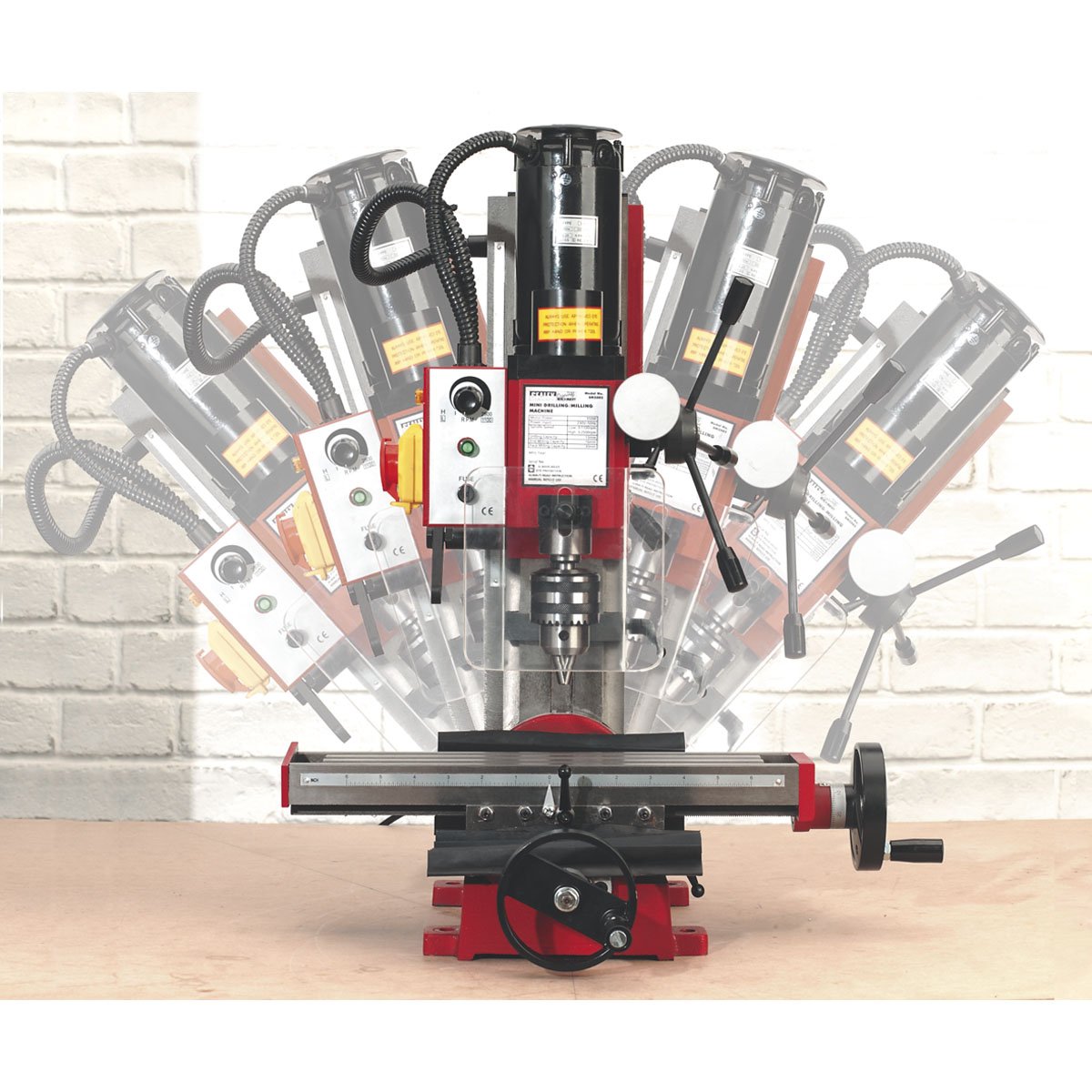

The machine also incorporates a tilting column which allows drilling/milling of workpiece at �45� from vertical.
Supplied with 13mm chuck accessory kit for adjusting and setting.
An optional stand is available, order Model No. SM3002ST.
A comprehensive range of accessories also available.
Warranty: 1 year Years
Sealey catalogue page number: 1197
Variant number of the model: 001

Specification:

Model No	SM2502
Brand:	Sealey
Cross Axis:	100mm
Drilling Capacity (Chuck Size):	13mm
End Mill Capacity:	16mm
Face Mill Capacity:	30mm
Headstock Travel:	180mm
Longitudinal Axis:	220mm
Motor Power:	350W
Nett Weight:	68kg
Spindle Nose Taper:	MT3
Spindle Speed - High Range:	0-2500rpm
Spindle Speed - Low Range:	0-1100rpm
Spindle Tilt Angle:	±45°
Supply:	230V
T-Slot:	12mm
