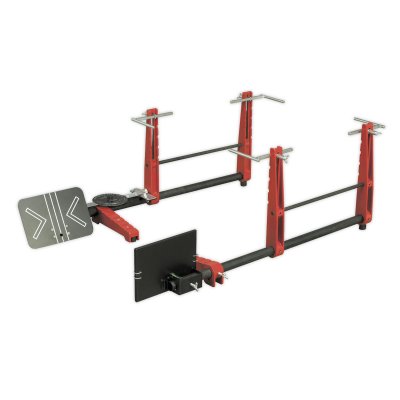

Sealey Laser Wheel Alignment Gauge

Description

Delivery Information

Ask a question

Optical system uses low radiation laser beam to indicate toe-in or toe-out. Single leg configuration and reversible contact probes allow on-ramp use. Works on most cars and light commercials with rim diameters from 200mm(8") to 600mm(23.5"). Powered by 2 x AA batteries (not included) and includes operating instructions.

Model Number: GA50
Optical system uses low radiation laser beam to indicate toe-in or toe-out.
Single leg configuration and reversible contact probes allow on-ramp use.
Works on most cars and light commercials with rim diameters from 200mm(8") to 600mm(23.5").
Powered by 2 x AA batteries and includes operating instructions.
Warranty: 1 year Years
Sealey catalogue page number: 569
Variant number of the model: 003

Specification:

Model No	GA50
Brand:	Sealey
Nett Weight:	14.93kg
Wheel Rim Capacities:	8" - 24" Rim Diameter
Measuring Range:	+/- 2deg
Laser Beam Height:	Under 50mm
Laser:	Class II, 1.0 Milliwat, Wavelength 620-680nm
Battery:	2 x type AA 1.4 Volts
Estimated Battery Life:	6-12 Months, Dependent on Use
Switch:	Momentary Operator Pressure (Power off when not depressed)
