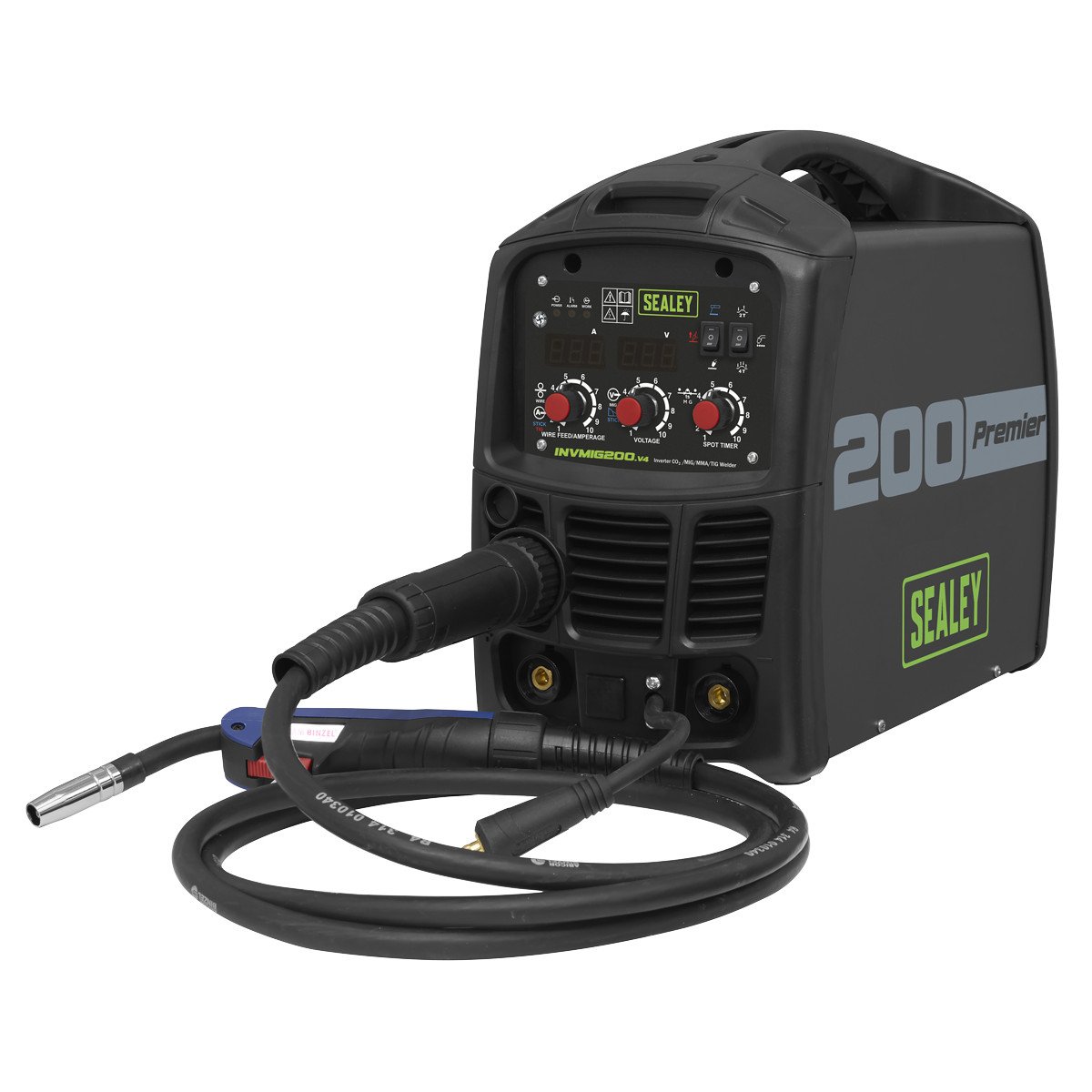

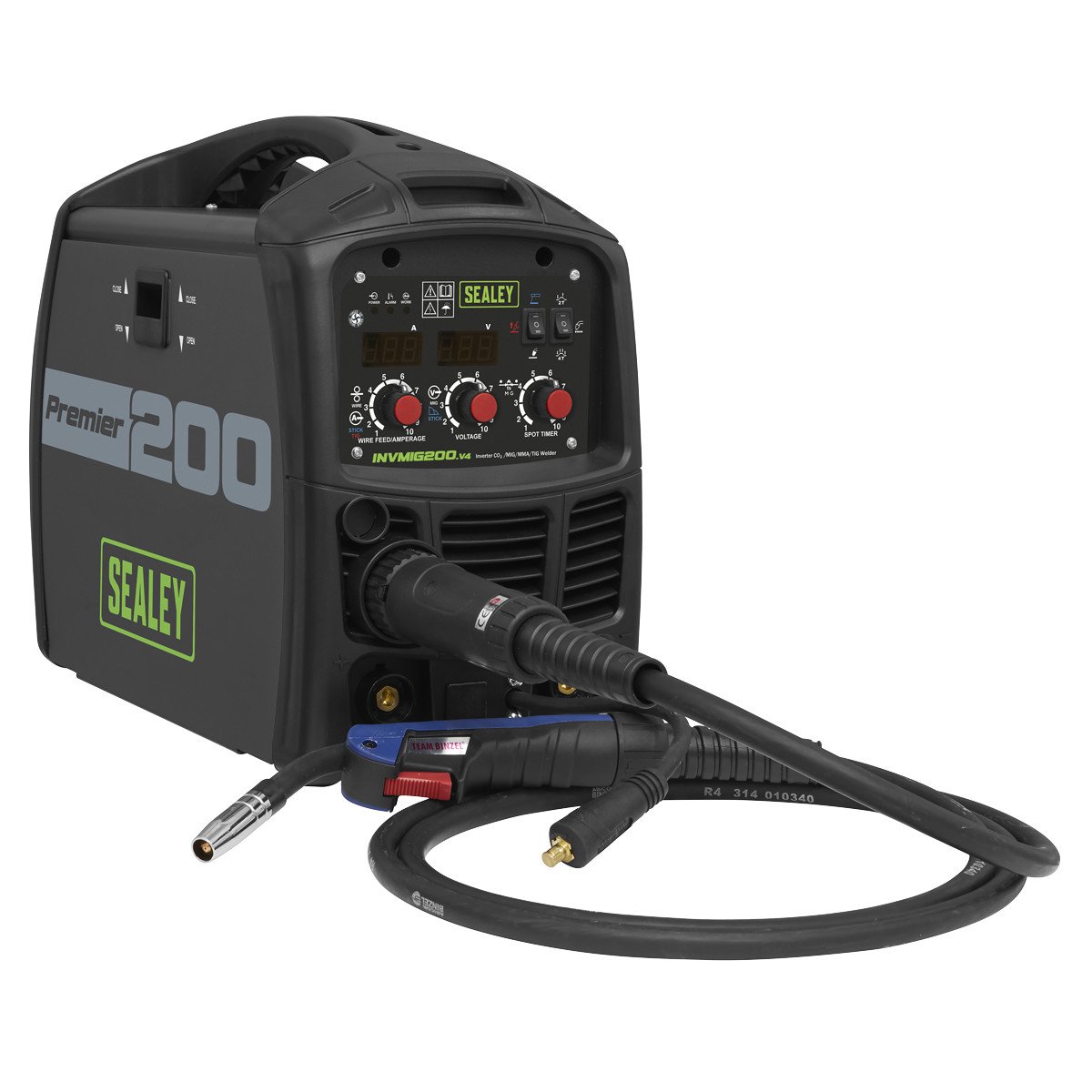

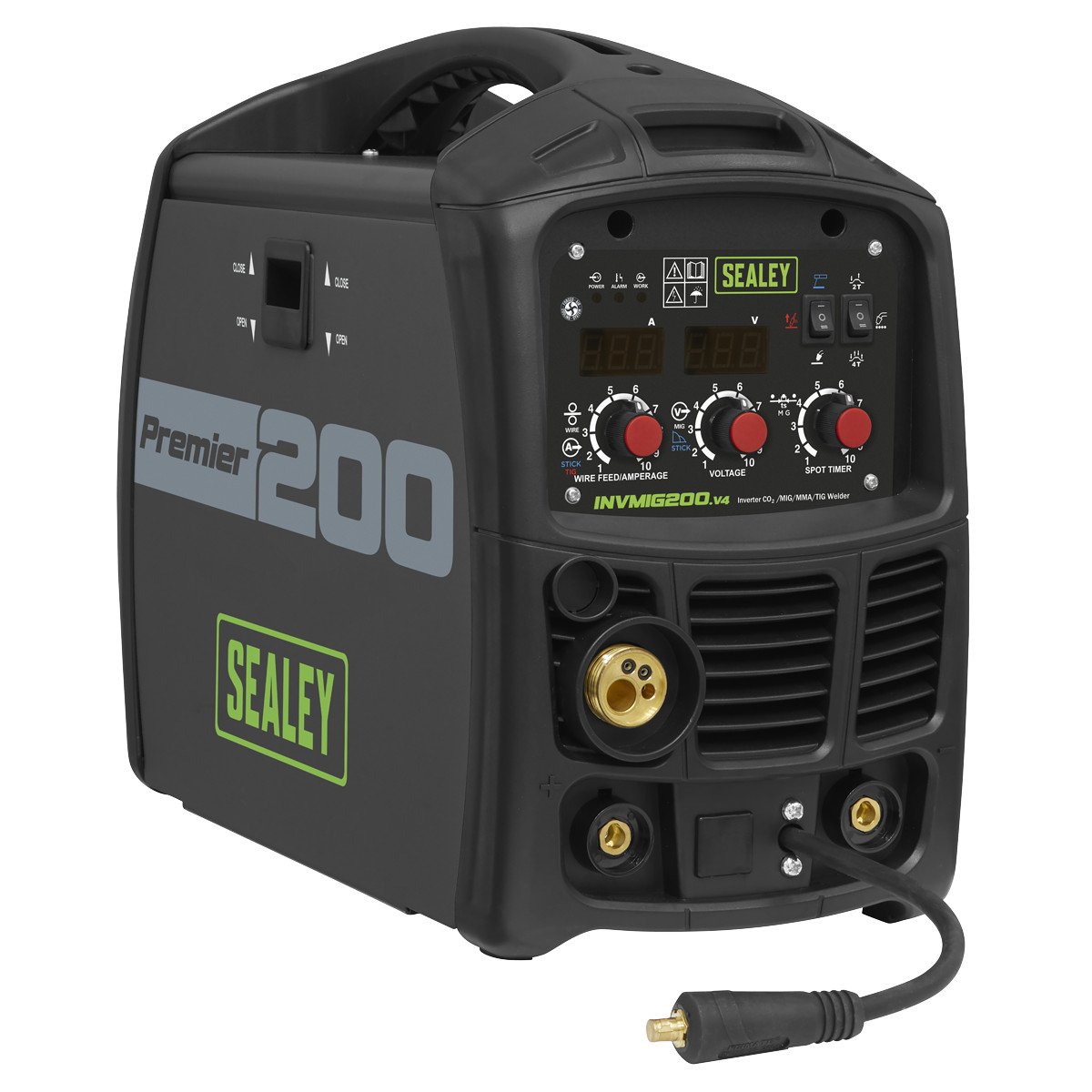

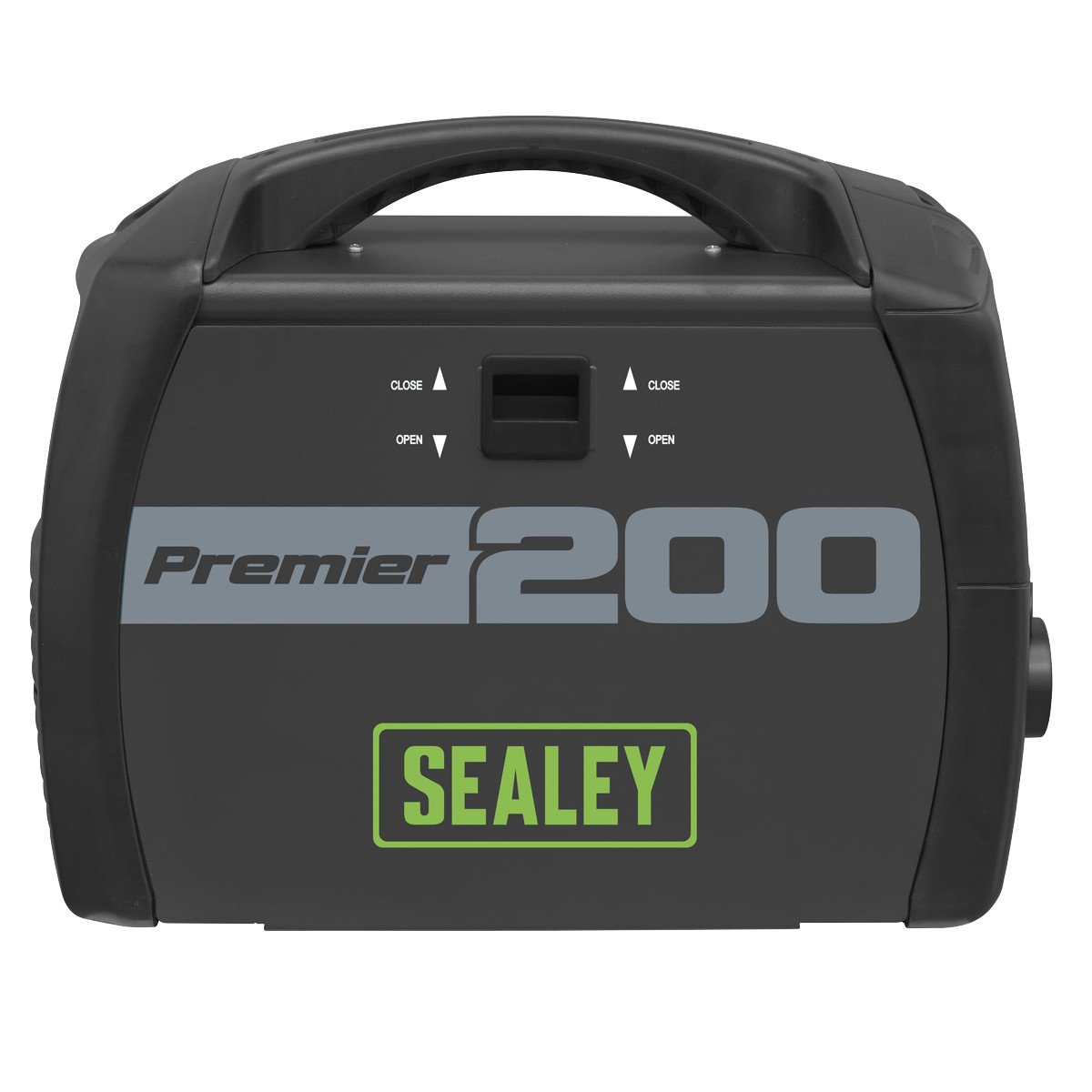

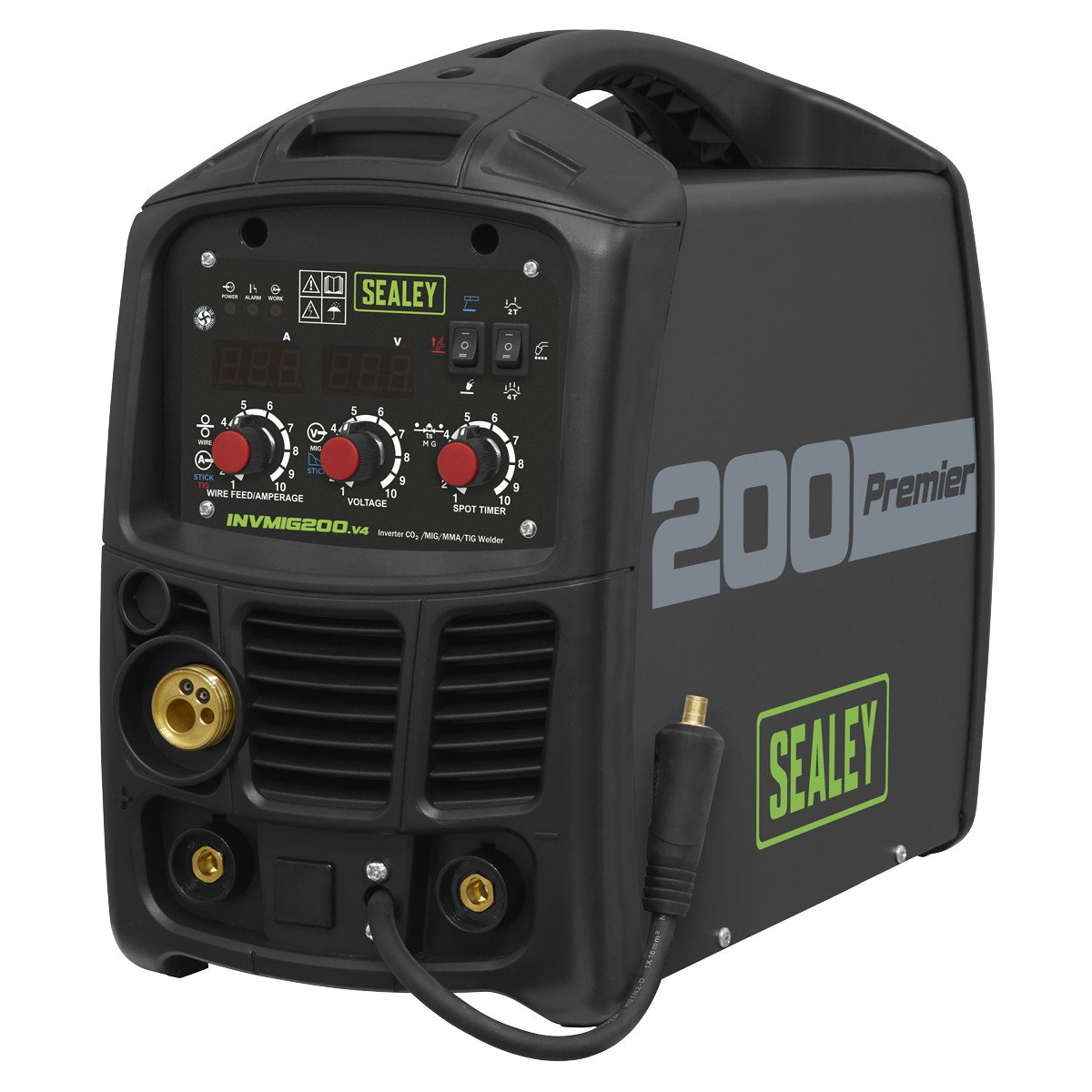

Sealey Premier MIG, TIG & MMA Inverter Welder 200A

Description

Delivery Information

Ask a question

Parts Diagrams

Instructions

Fan cooled DC power supply for MIG and TIG, suitable to weld steel, stainless steel, copper, nickel, titanium and their alloys. Also suitable for MMA/ARC welding with a variety of rods including rutile, basic and stainless from Ø1.6mm to Ø4mm. Switch between MIG, TIG* and MMA* welding modes (*optional extra torches required). Automatic thermal overload protection. Self-explanatory pictogram for each dial and switch. Wire feed speed control. Allows change of polarity of welding torch depending on MIG or flux-cored welding. Supplied with 3m MIG torch, 3m 16mm² earth cable, both with 10-25 quick connectors., 3m gas hose and regulator. Contact Tips: 0.6, 0.8 (x2), 0.9, 1mm. 0.2kg 0.8mm flux cored wire.

Model Number: INVMIG200
Fan cooled DC power supply for MIG and TIG, suitable to weld steel, stainless steel, copper, nickel, titanium and their alloys.
Also suitable for MMA/ARC welding with a variety of rods including rutile, basic and stainless from �1.6mm to �4mm.
Switch between MIG, TIG* and MMA* welding modes (*optional extra torches required).
Automatic thermal overload protection.

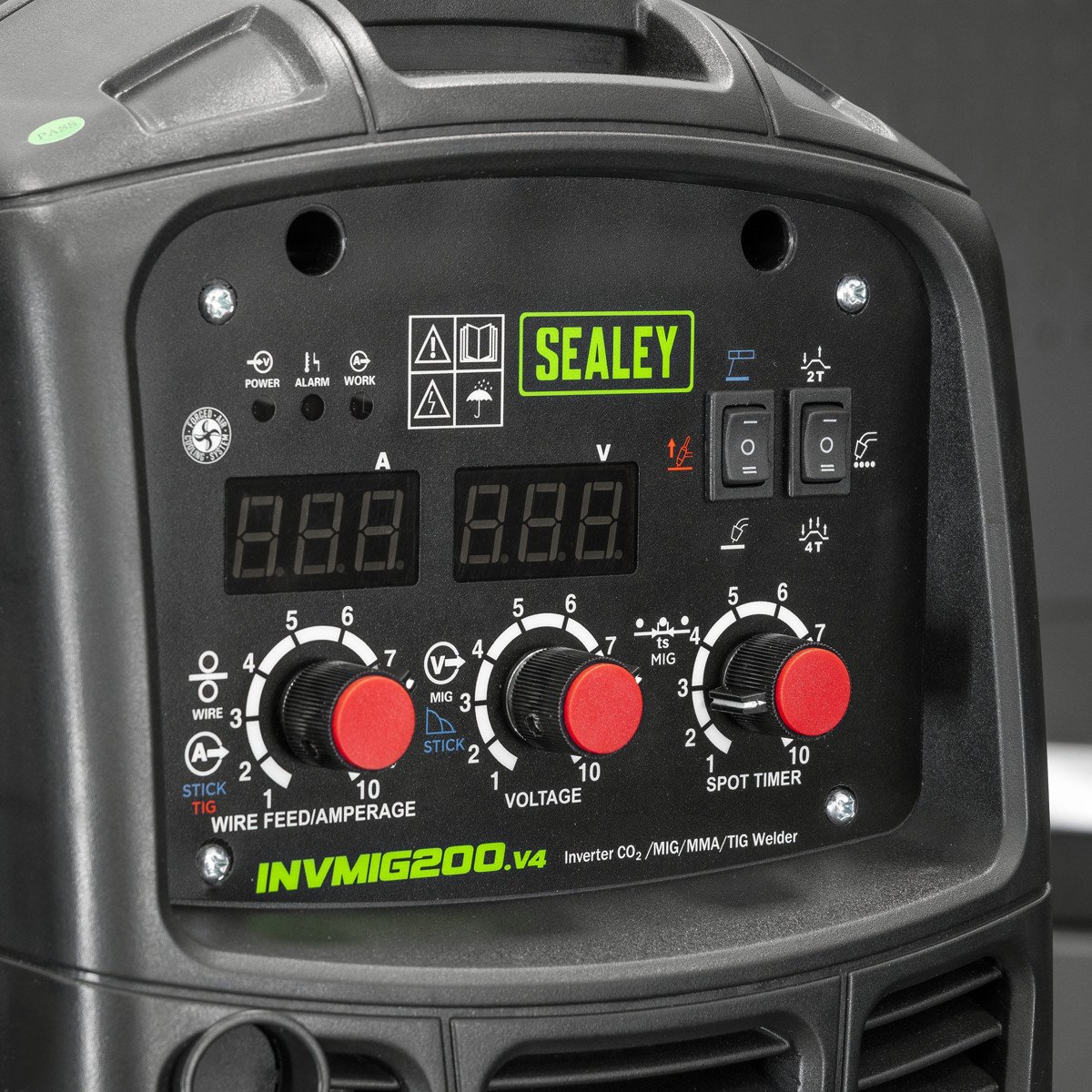

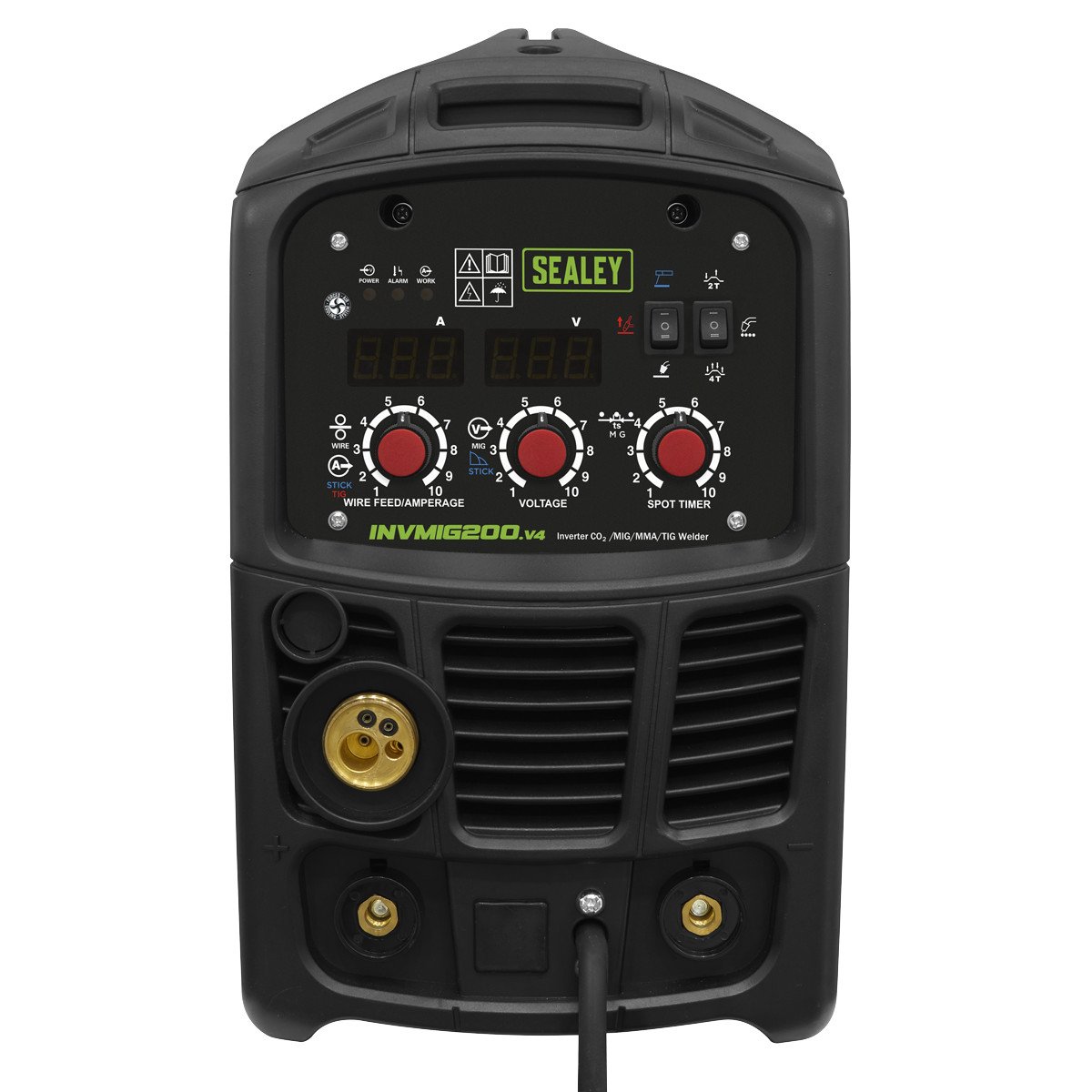

Self-explanatory pictogram for each dial and switch.

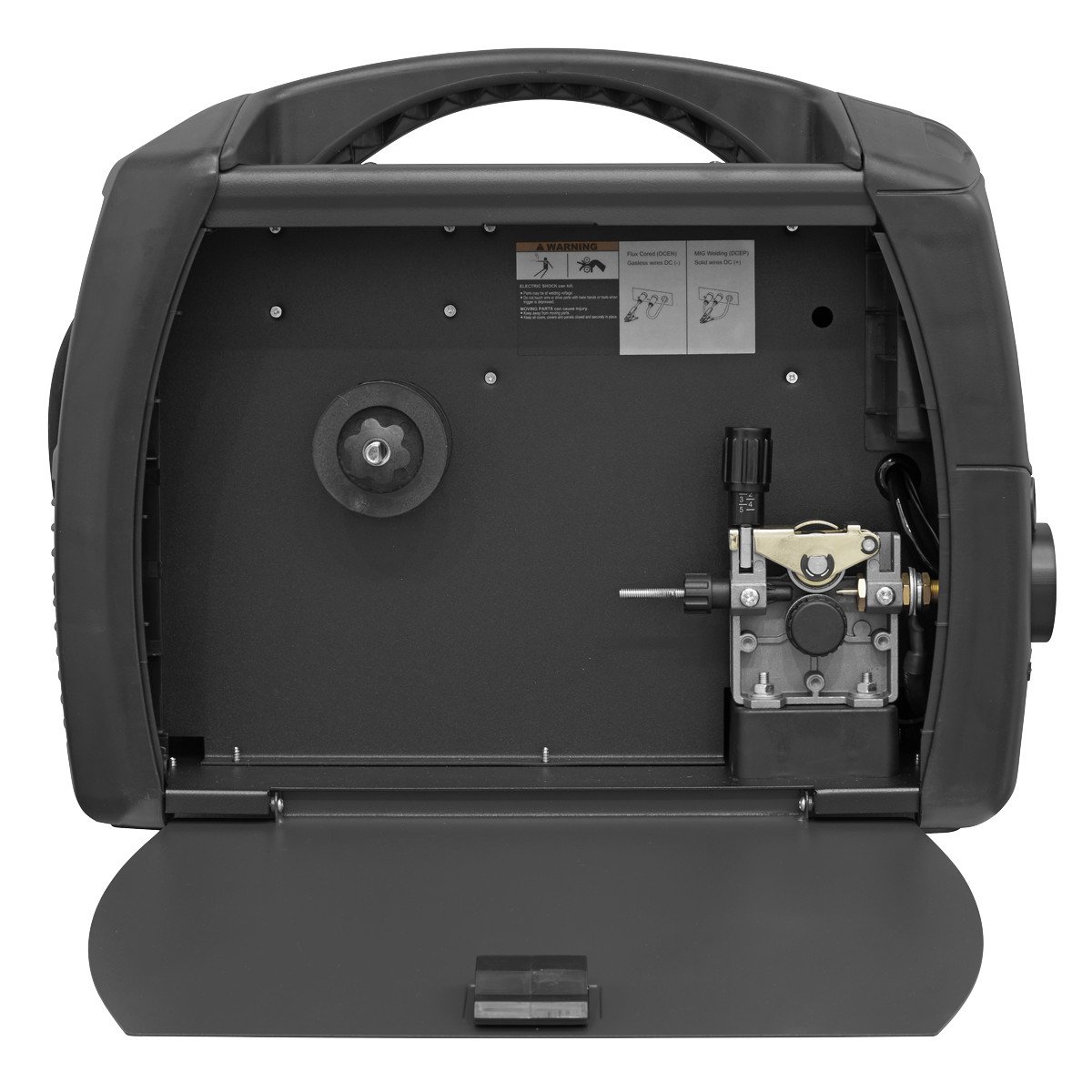

Wire feed speed control.
Allows change of polarity of welding torch depending on MIG or flux-cored welding.
Supplied with 3m MIG torch, 3m 16mm� earth cable, both with 10-25 quick connectors., 3m gas hose and regulator.
Contact Tips: 0.6, 0.8 (x2), 0.9, 1mm.
0.2kg 0.8mm flux cored wire.
3 Year guarantee*.
Warranty: 3 years Years
Sealey catalogue page number: 749
Variant number of the model: 003

Specification:

Model No	INVMIG200
Brand:	Premier
Nett Weight:	15Kg
Welding Current:	30A - 200A
Duty Cycle:
MIG:	100% @ 77A, 60% @ 100A, 15% @ 200A
TIG	100% @ 77A, 60% @ 100A, 15% @ 200A
MMA	100% @ 66A, 60% @ 85A, 15% @ 170A

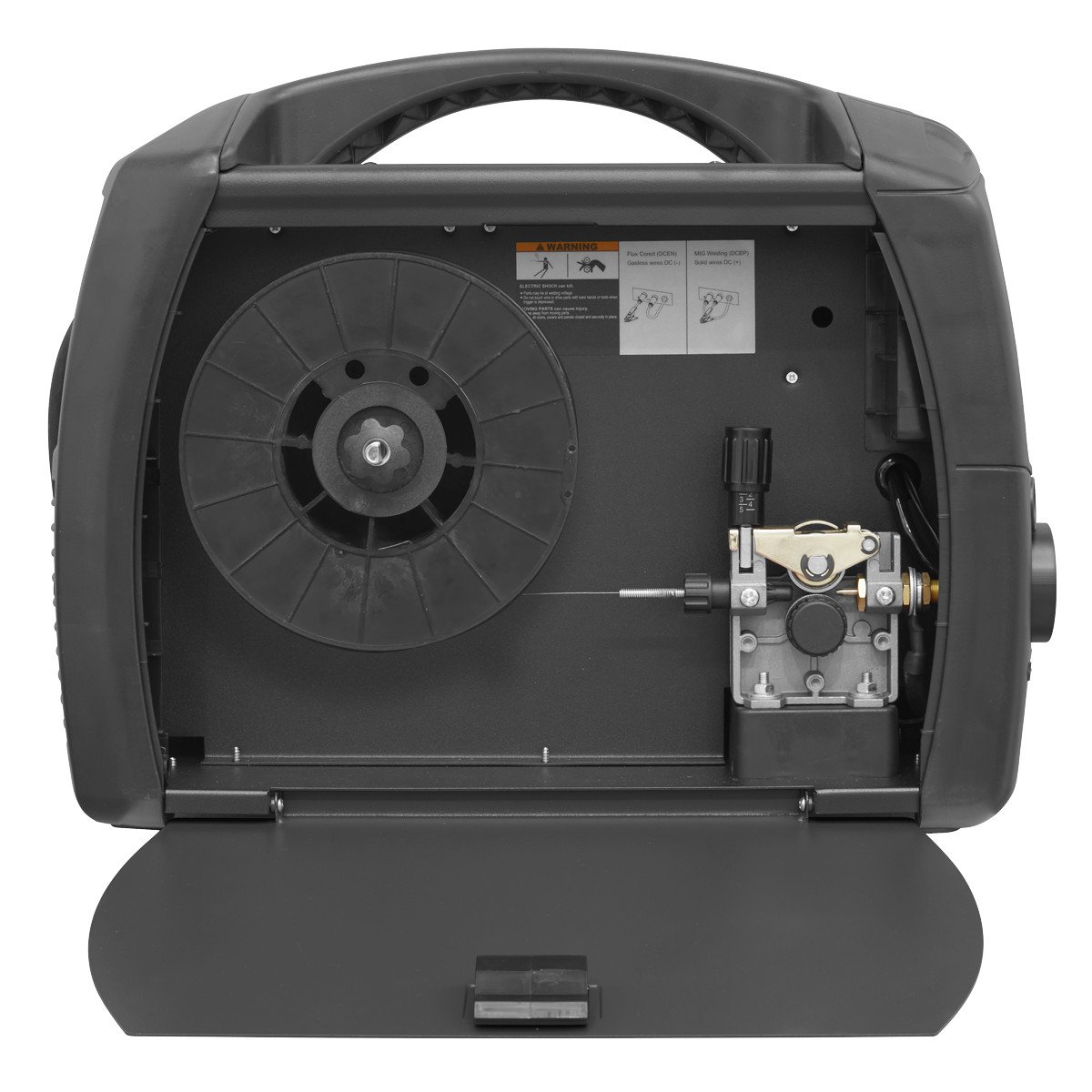

Wire Capacity:	5Kg
Electrode Capacity:	Ø1.6-4mm

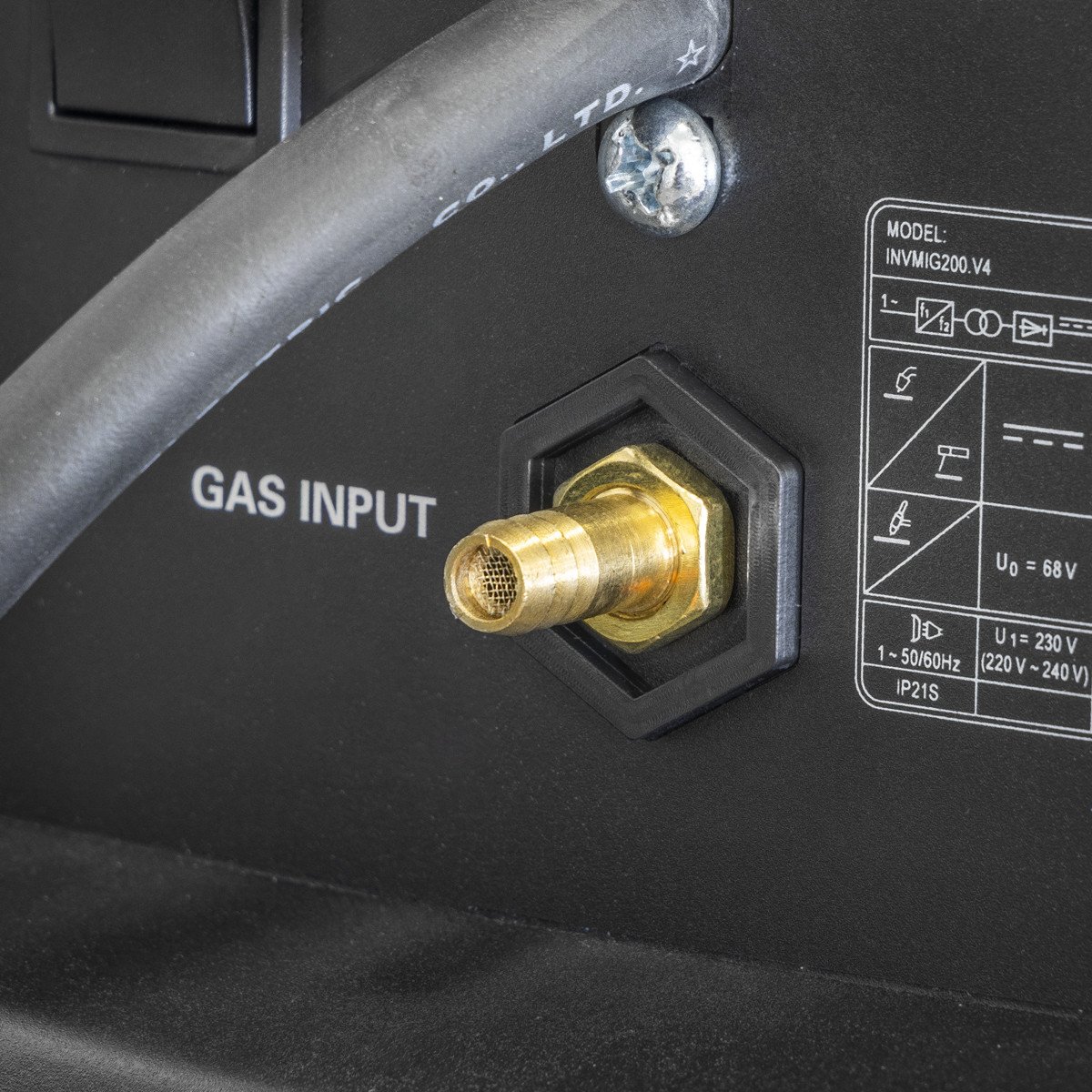

Gas Type:	CO2, Argon, CO2/Argon Mix
Supply:	230V**
Protection:	IP21S

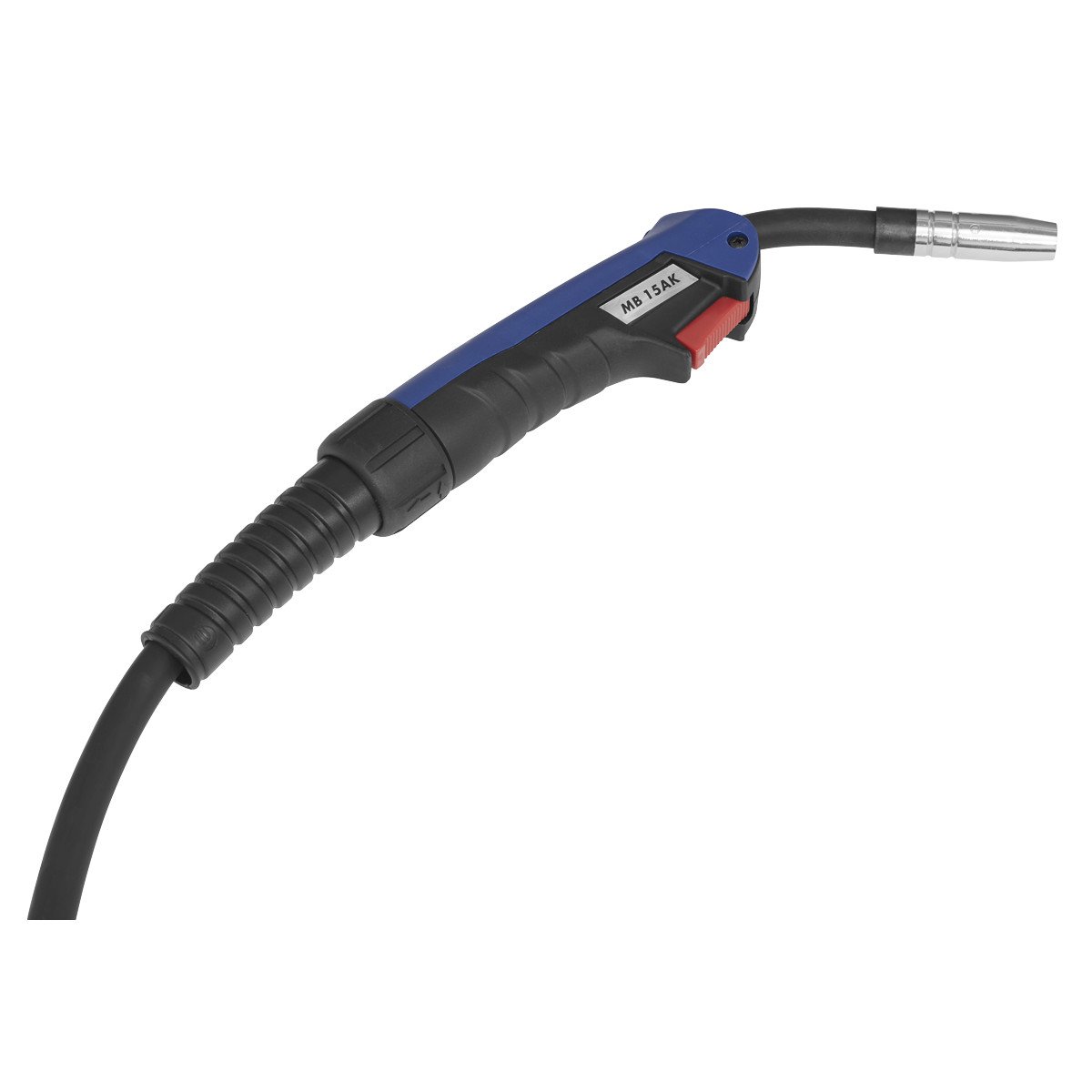

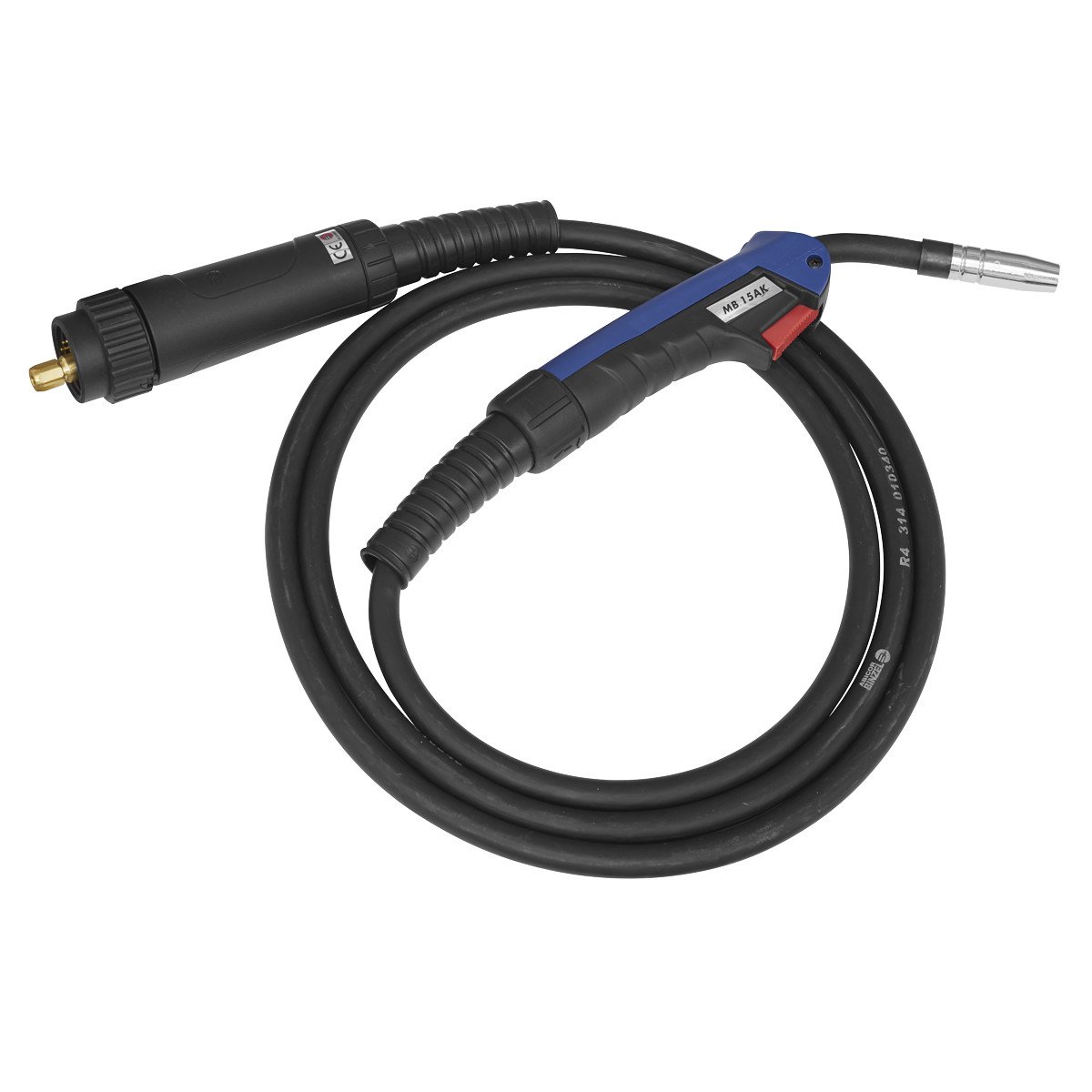

MIG Torch:	Euro Non-Live BINZEL® MB15*
MMA Accessory Kit (Optional):	MMA01
TIG Accessory Kit (Optional):	TIG10S
Note:	Included as standard, *To achieve maximum power a 32A supply may be required.
