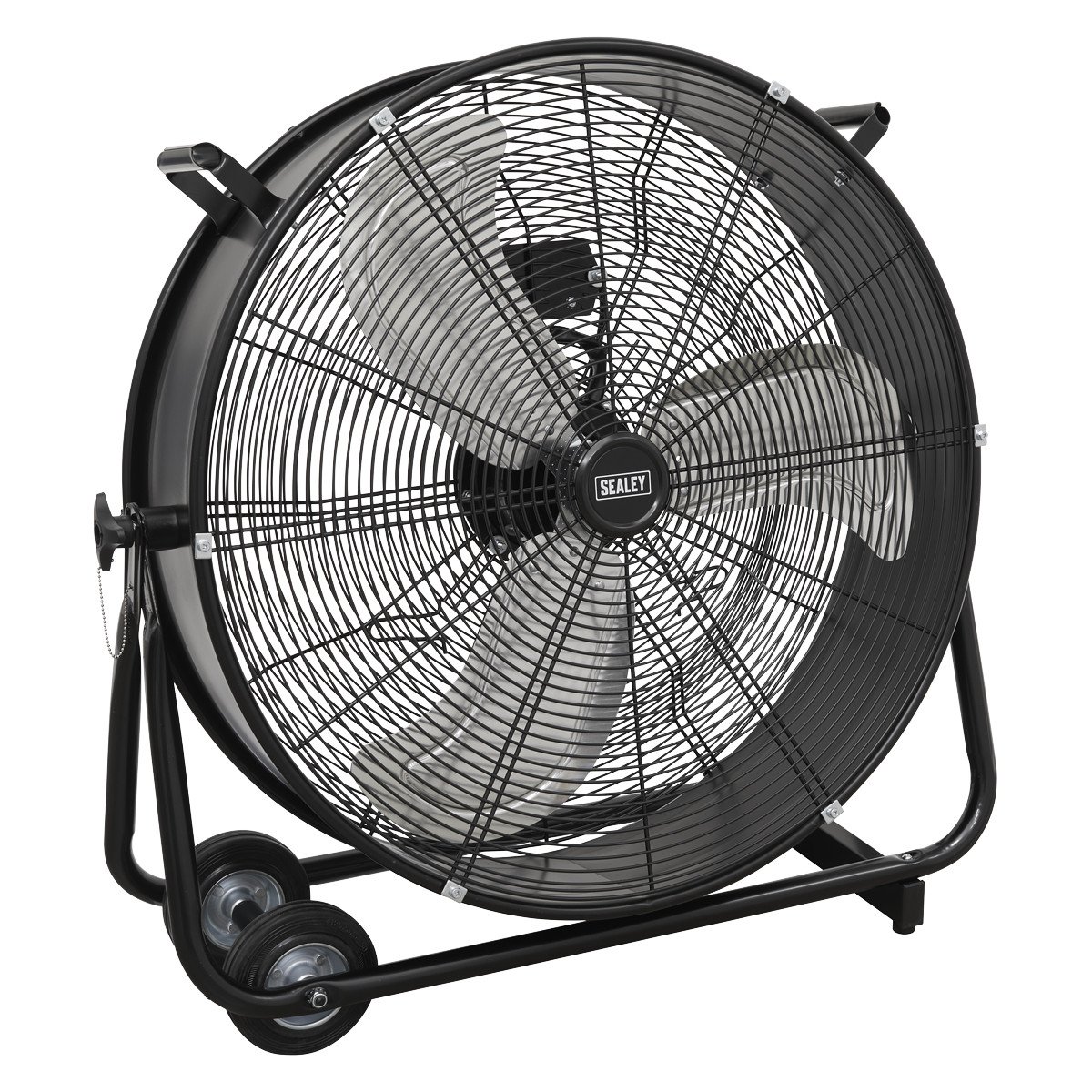

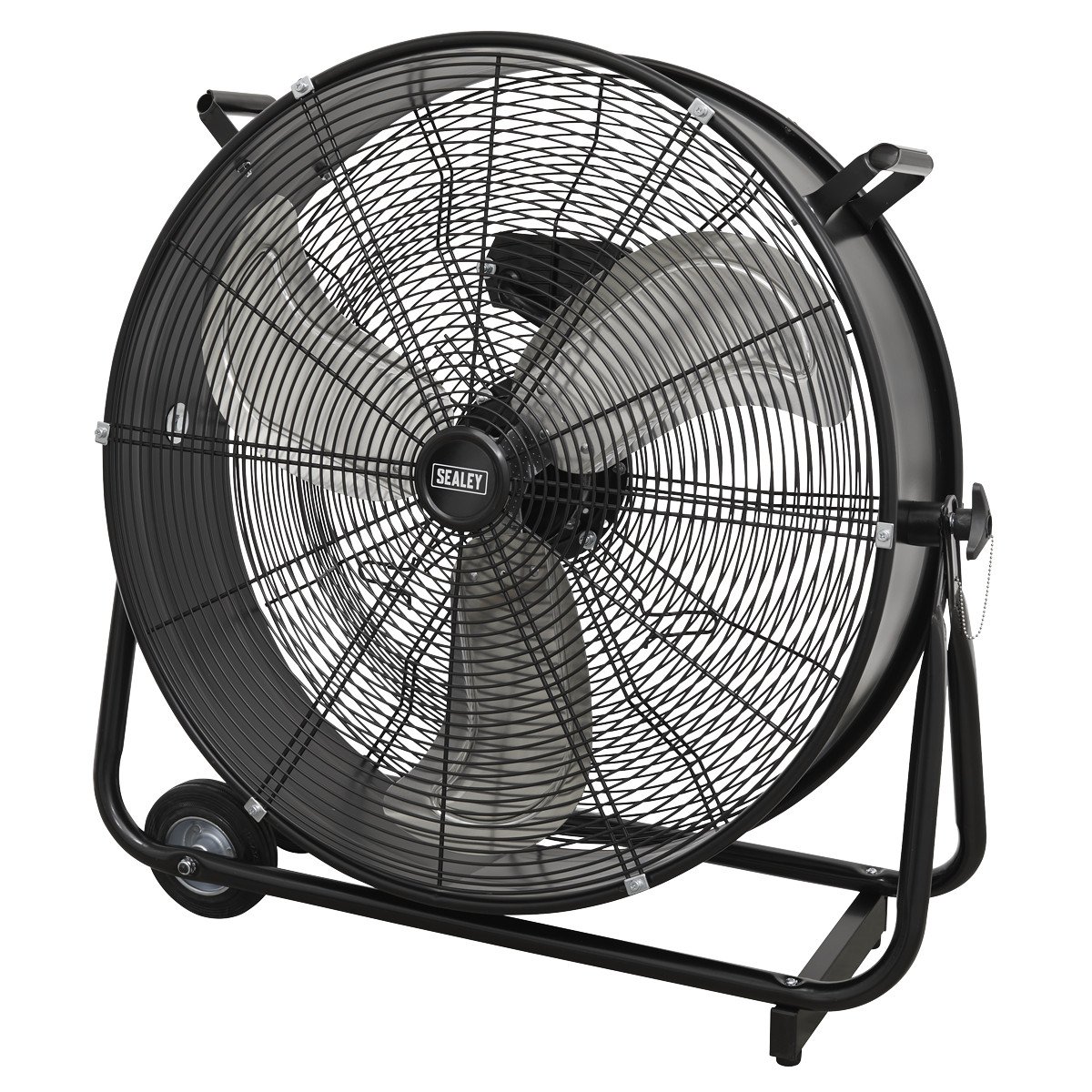

High velocity industrial 2-speed drum fan suitable for movement of huge volumes of air. Robust unit with heavy-duty gauge steel casing, guard and frame. Handle, wheels and tilt function cradle stand allow control of airflow where it is needed. Carefully balanced and fully guarded blades provide safe operation. Fitted with 3-pin plug. Suitable for use in industrial, commercial, agricultural, automotive workshop and showroom applications.

Model Number: HVD24
High velocity industrial 2-speed drum fan suitable for movement of huge volumes of air.
Robust unit with heavy-duty gauge steel casing, guard and frame.

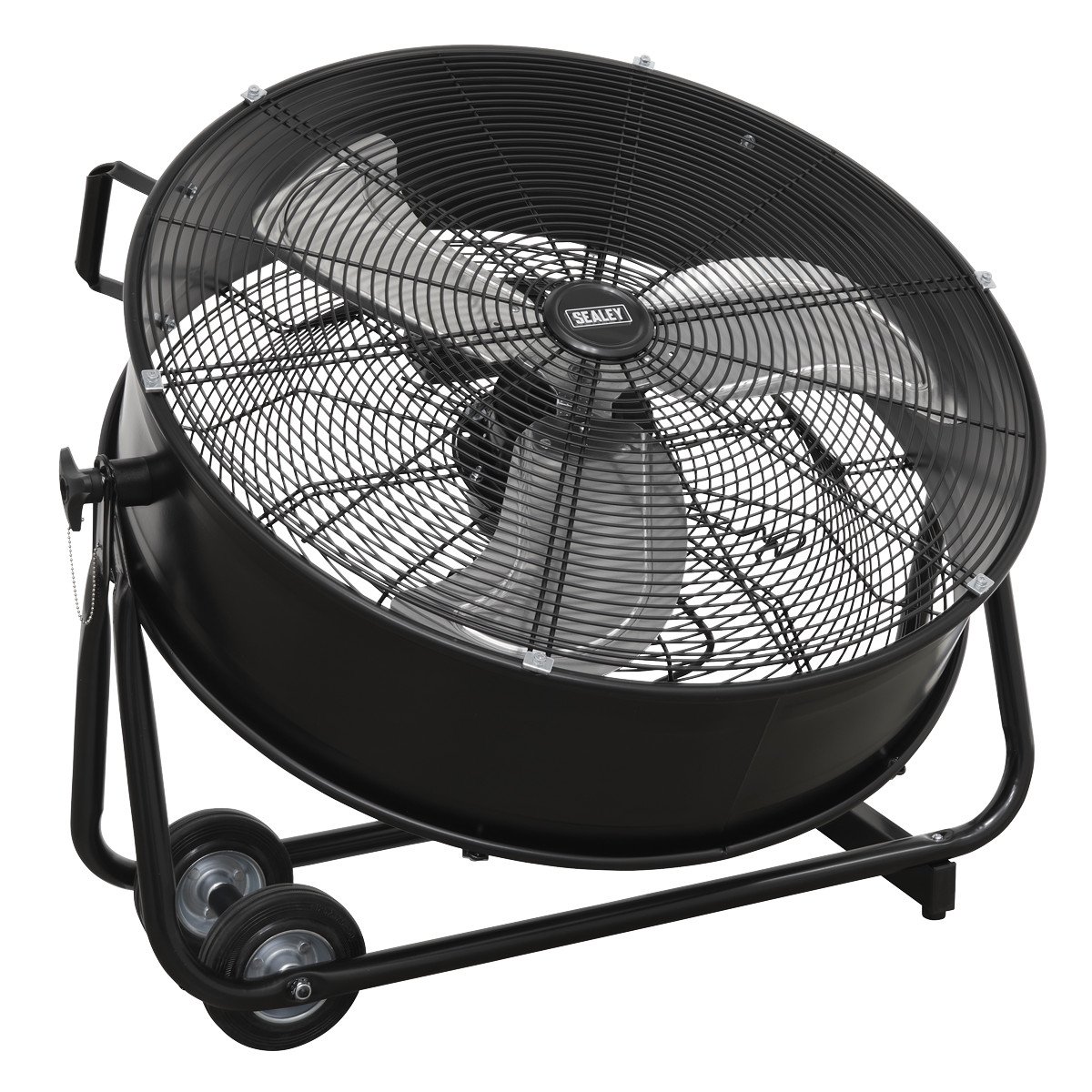

Handle, wheels and tilt function cradle stand allow control of airflow where it is needed.
Carefully balanced and fully guarded blades provide safe operation.
Fitted with 3-pin plug.
Suitable for use in industrial, commercial, agricultural, automotive workshop and showroom applications.
Maximum Airflow: 155.3m�/min(5484cfm).
Warranty: 1 year Years
Sealey catalogue page number: 1274
Variant number of the model: 003

Specification:

Model No	HVD24
Brand:	Sealey
Current:	0.52A
Fan Diameter:	Ø610mm(24")
Maximum Airflow:	155.3m³/min(5484cfm)
Nett Weight:	14.50kg
Power:	116.32W
Service value (SV):	1.34(m³/min)/W
Standby power consumption (PSB):	0W
Fan sound power level (LWA):	84dB(A)
Maximum Air Velocity (c):	3.66m/sec
Speed Range:	1350-1450rpm
Speeds:	2
Supply:	230V
