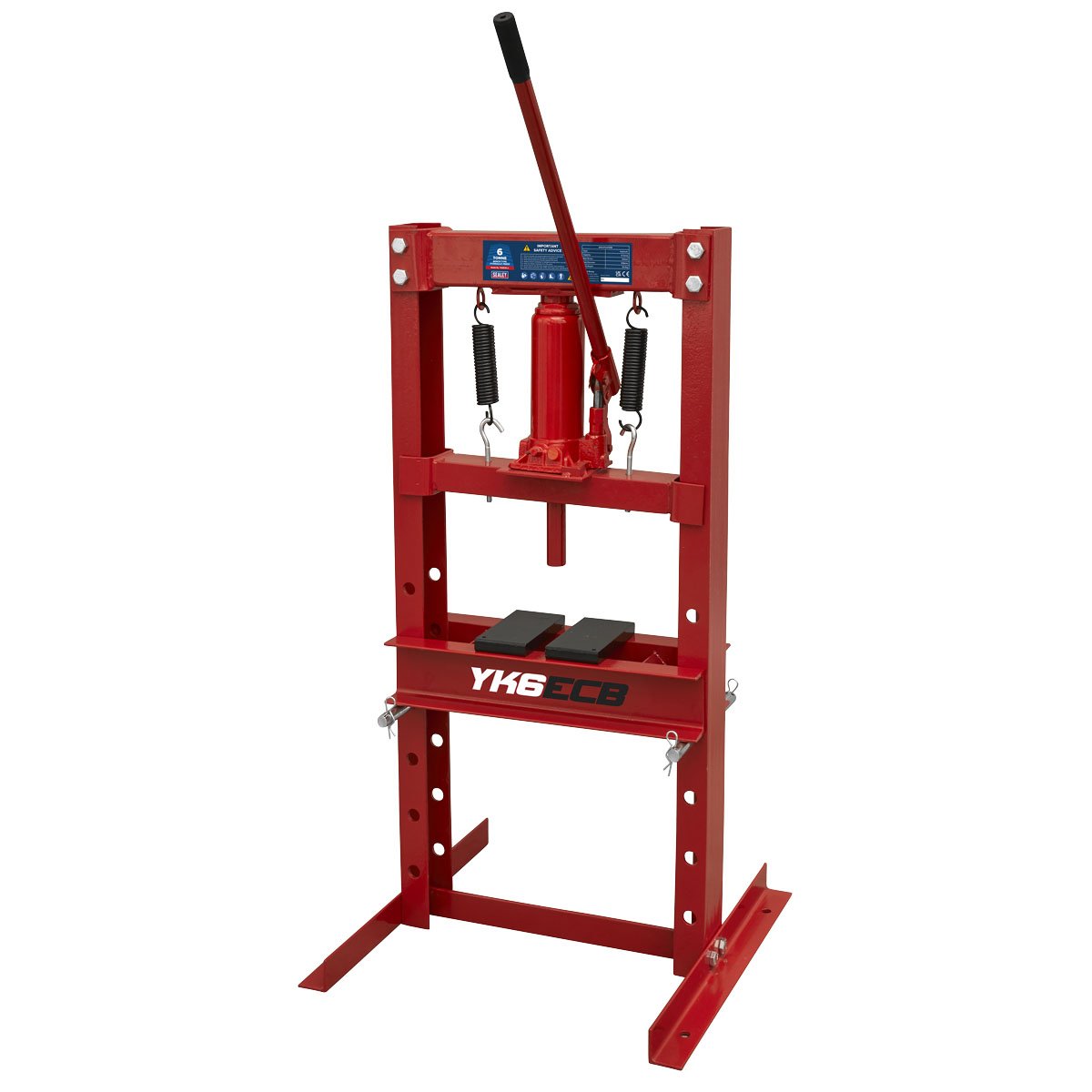

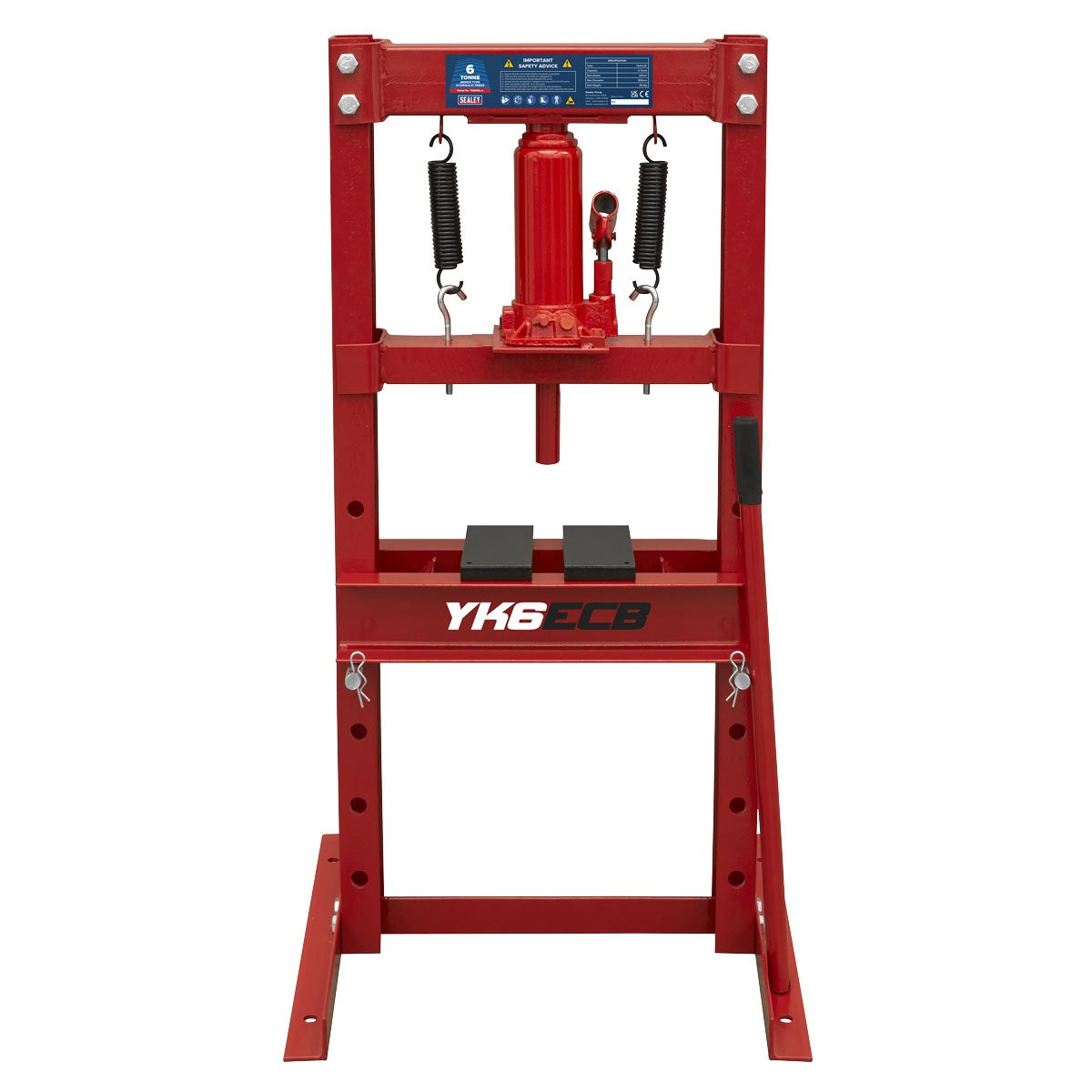

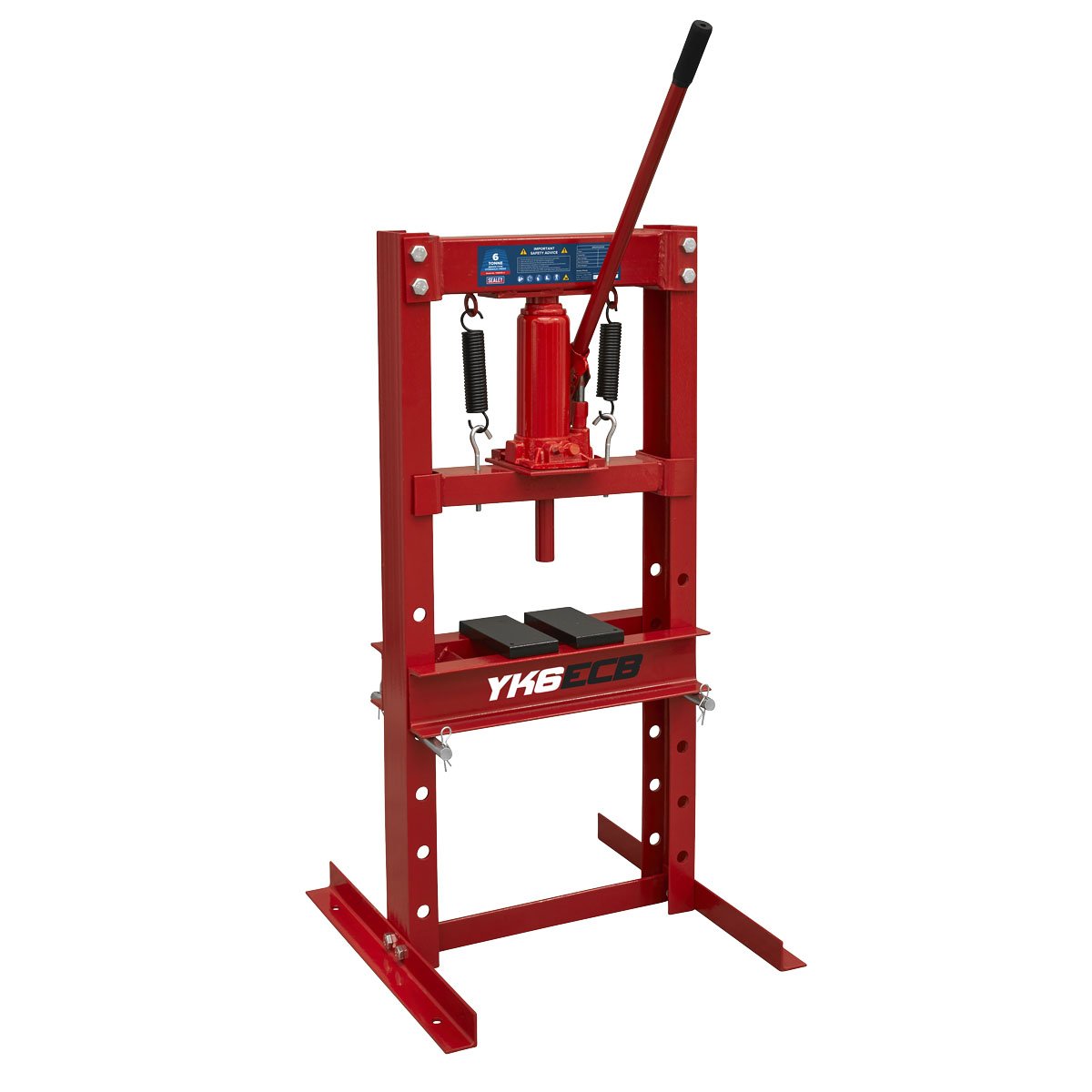

Made from high quality steel with a powder coated paint finish, preventing corrosion for years to come. Adjustable table height relocation of two pins allows the table to be set at your optimum working height. Designed to remove and install bushings, bearings, ball joints, universal joints, pulleys and gears. Includes two arbor plates, assisting alignment and strengthening the press point position.

Model Number: YK6ECB
SOLID STEEL CONSTRUCTION - Made from high quality steel, with a powder coated paint finish, preventing corrosion for years to come.
ADJUSTABLE TABLE - Simple relocation of two pins allows the table to be set at your optimum working height.
MULTI FUNCTIONAL - Designed to remove and install bushings, bearings, ball joints, universal joints, pulleys and gears.
TWO ARBOR PLATES INCLUDED - Assisting alignment, and strengthening the press point position.
Warranty: 1 year Years
Sealey catalogue page number: 326
Variant number of the model: 004

Specification:

Model No	YK6ECB
Bench or Floor Mounting:	Bench
Brand:	Sealey
Capacity:	6 Tonne
Gauge Included:	No
Lateral Ram Travel:	N/A
Maximum Height - Ram to Table:	300mm
Minimum Height - Ram to Table:	-202mm
Nett Weight:	36kg
Operating Table Width:	345mm
Overall Height:	920mm
Ram Diameter:	Ø32mm
Ram Stroke:	127mm
Screw Extension:	70mm
Table Aperture:	80mm
Working Table Depth:	165mm
Working Table Width:	420mm
