Sealey Hydraulic Press 30 Tonne Floor Type

Description

Delivery Information

Ask a question

Parts Diagrams

Instructions

Material Safety Data Sheet

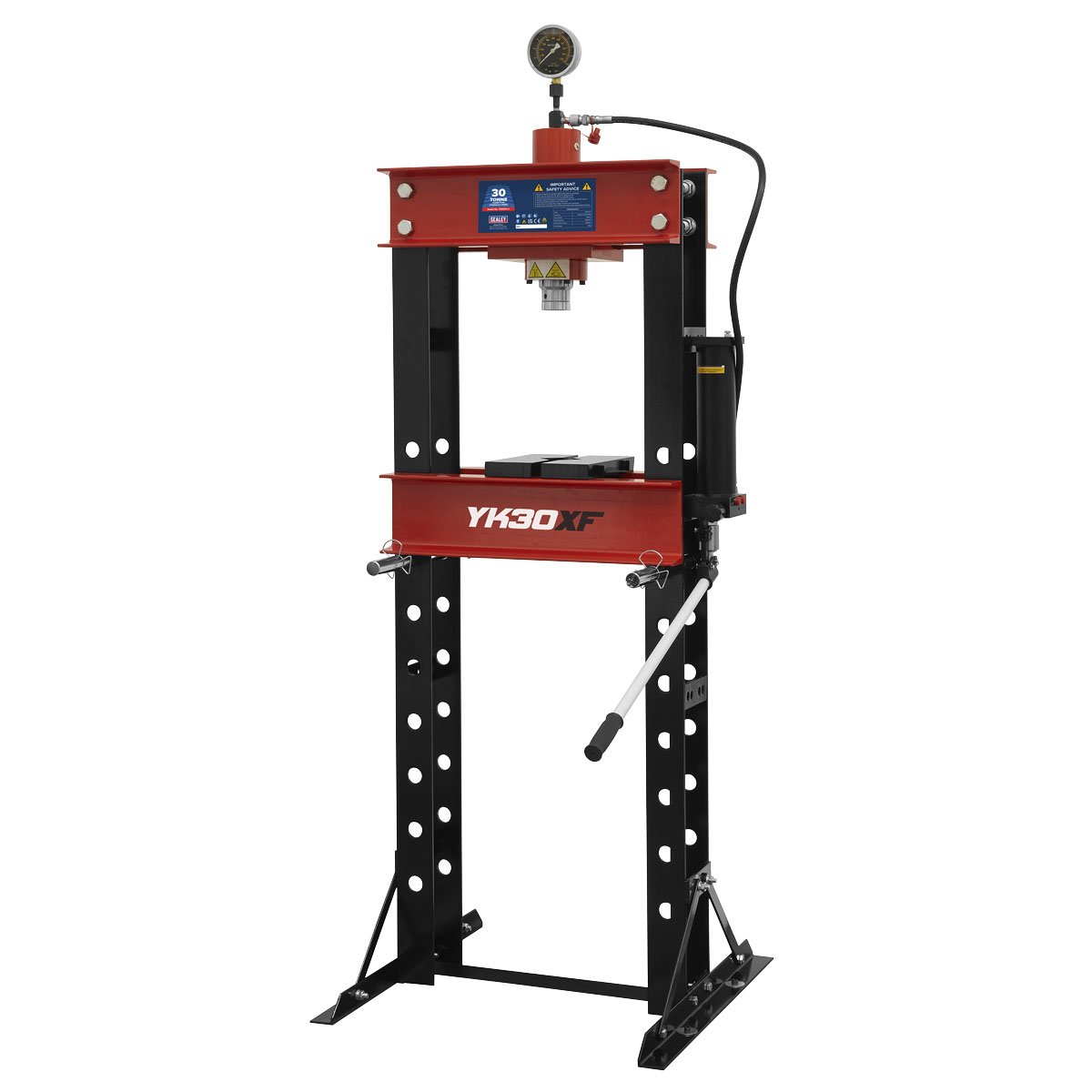

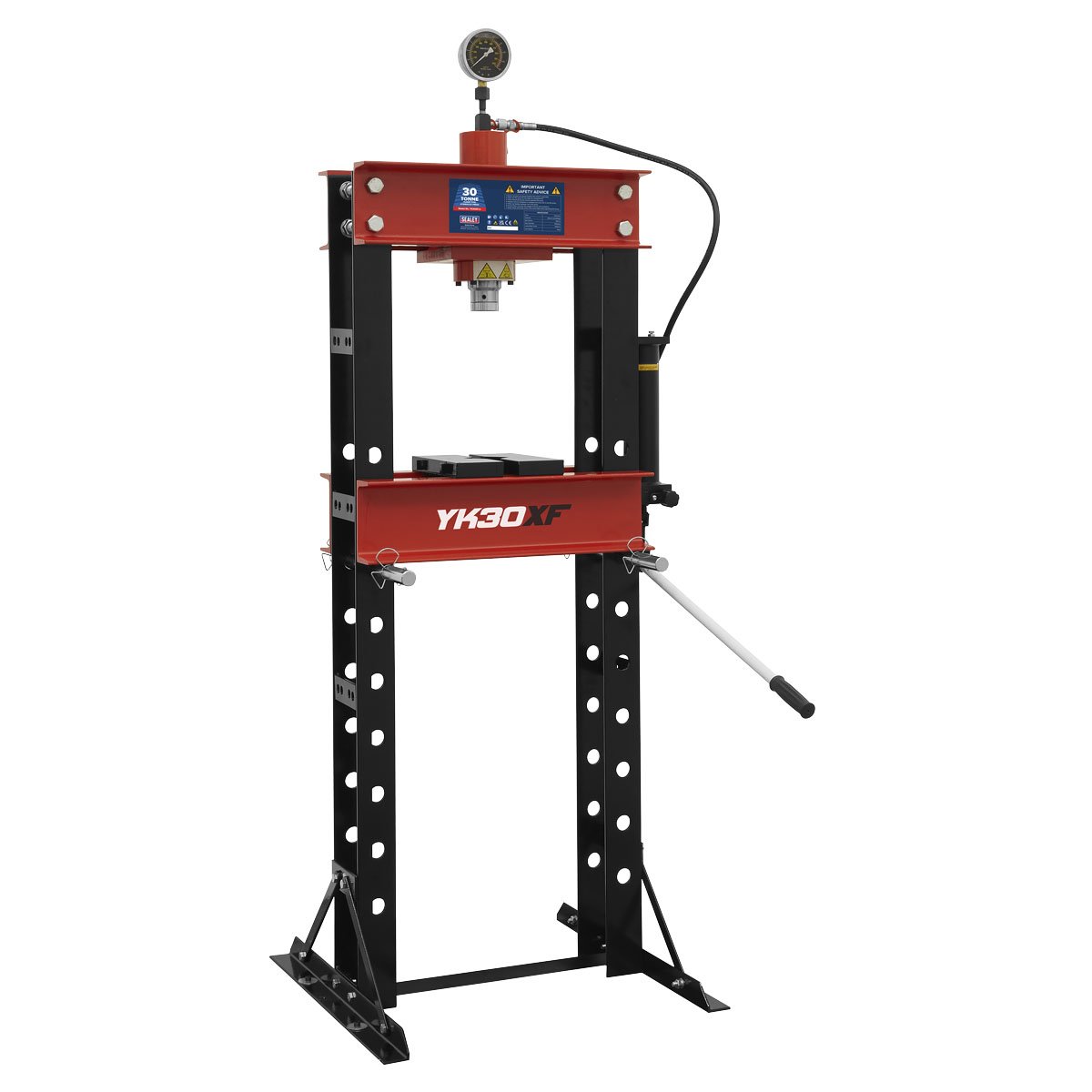

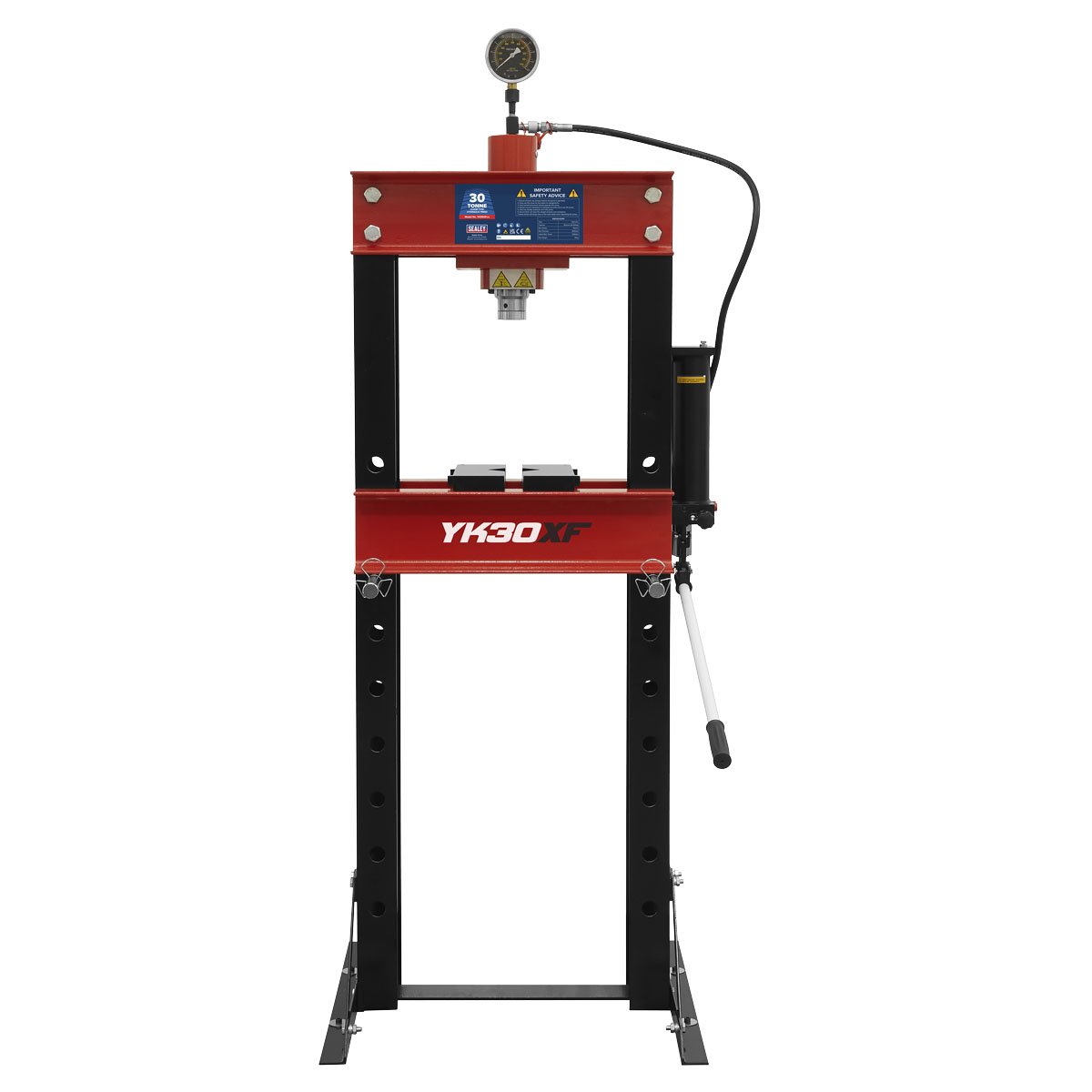

Steel frame construction with side mounted hydraulic pump unit. Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications. Includes flat pressing plate/V-blocks. Fitted with ram pressure gauge.

Model Number: YK30XF
Steel frame construction with side mounted hydraulic pump unit.
Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
Includes flat pressing plate/V-blocks.
Fitted with ram pressure gauge.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Warranty: 1 year Years
Sealey catalogue page number: 327
Variant number of the model: 003

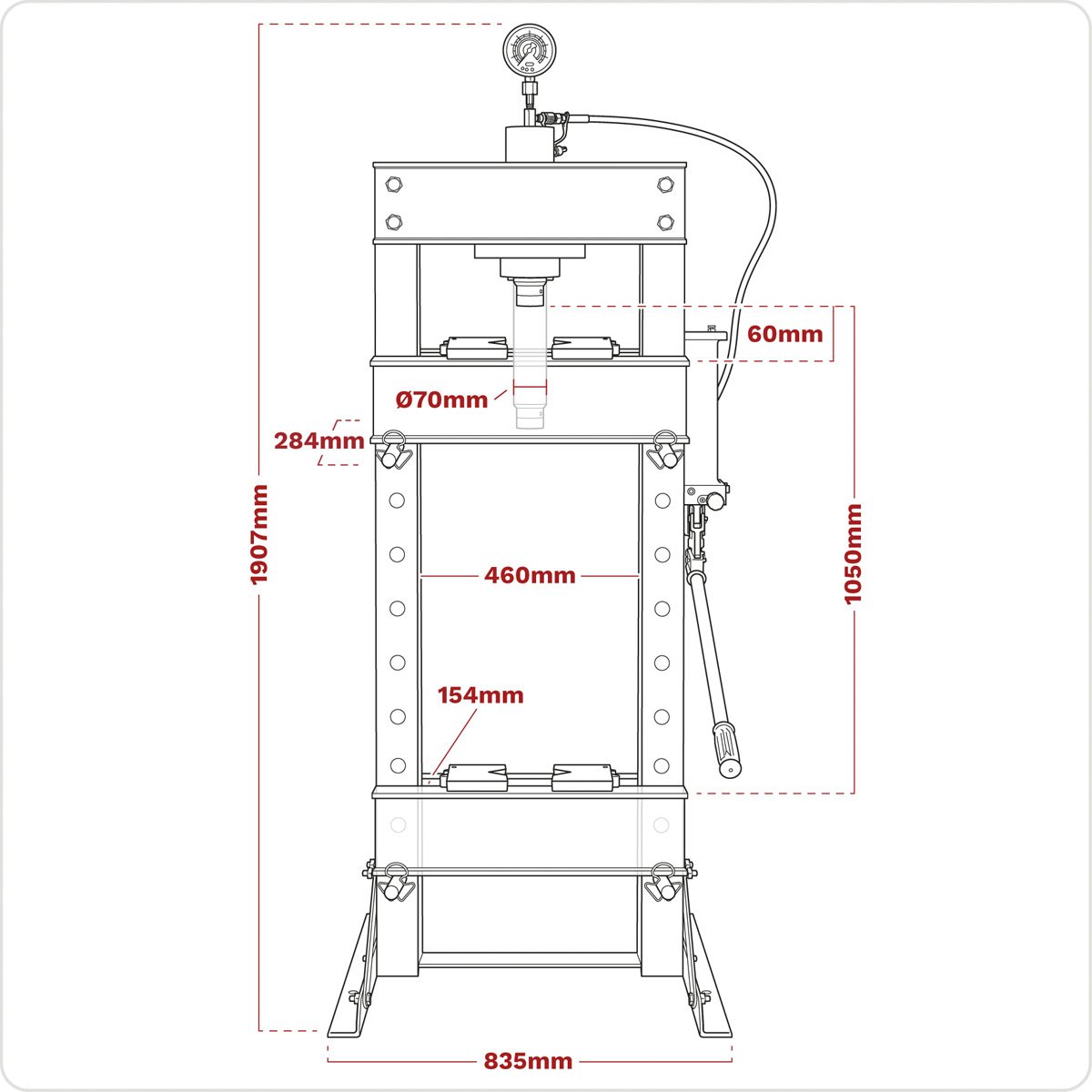

Specification:

Model No	YK30XF
Bench or Floor Mounting:	Floor
Brand:	Sealey
Capacity:	30 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	200mm
Maximum Height - Ram to Table:	1050mm
Minimum Height - Ram to Table:	60mm
Nett Weight:	141.5kg
Optional Accessories:	YKPP8 - Press Pin Set
Overall Height:	1907mm
Overall Width:	835mm
Ram Diameter:	Ø70mm
Ram Stroke:	150mm
Table Aperture:	154mm
Type:	Hydraulic
Working Table Depth:	284mm
Working Table Width:	460mm
