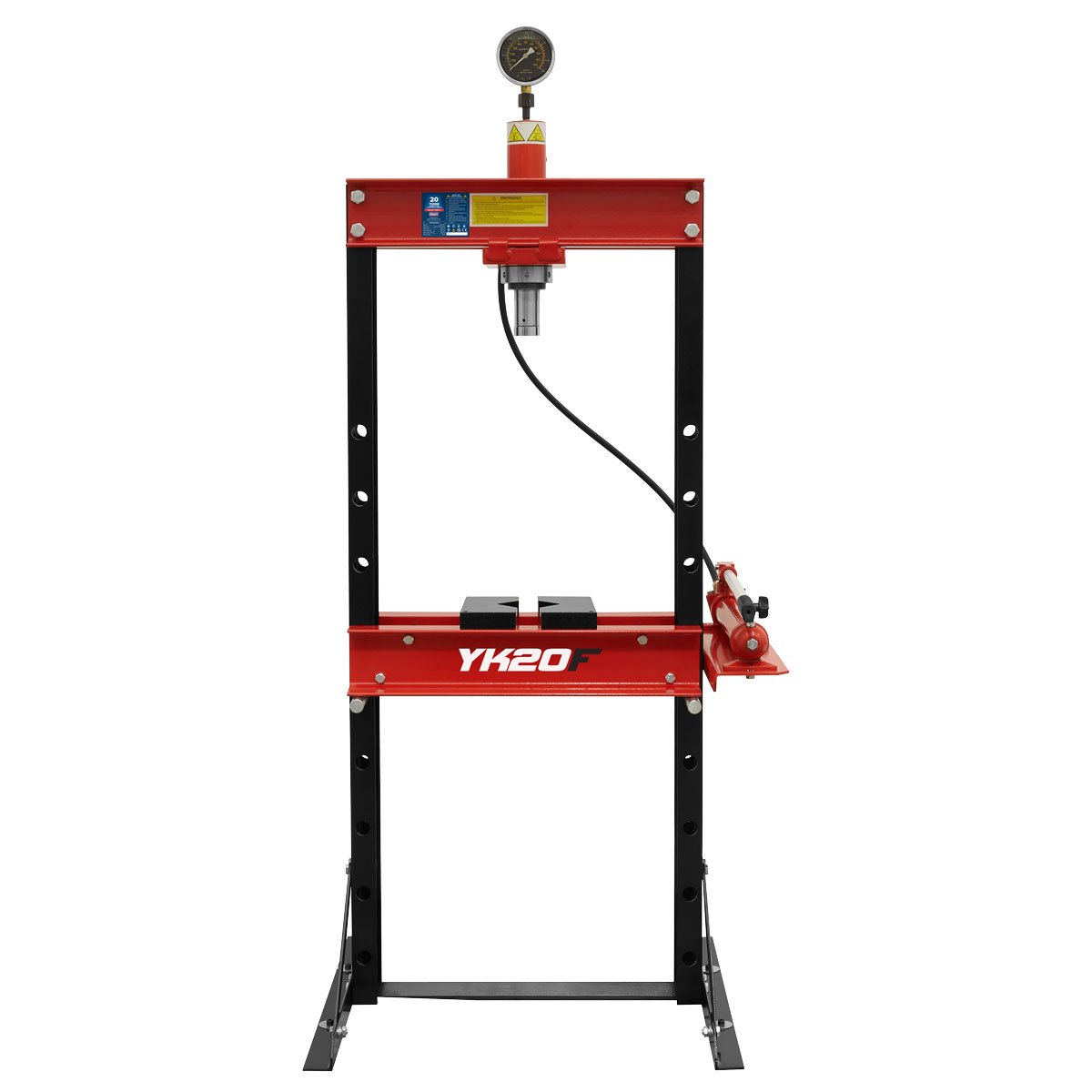

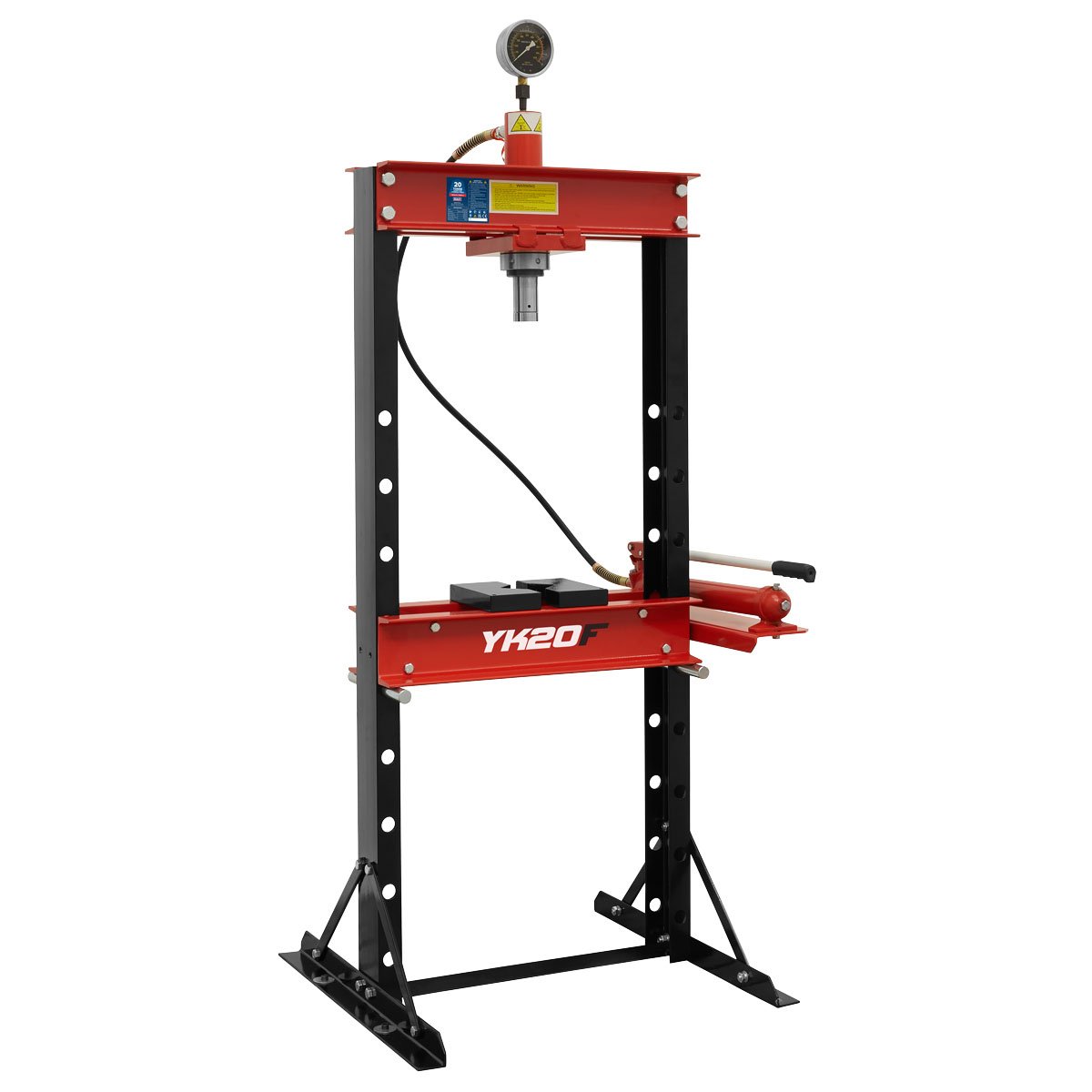

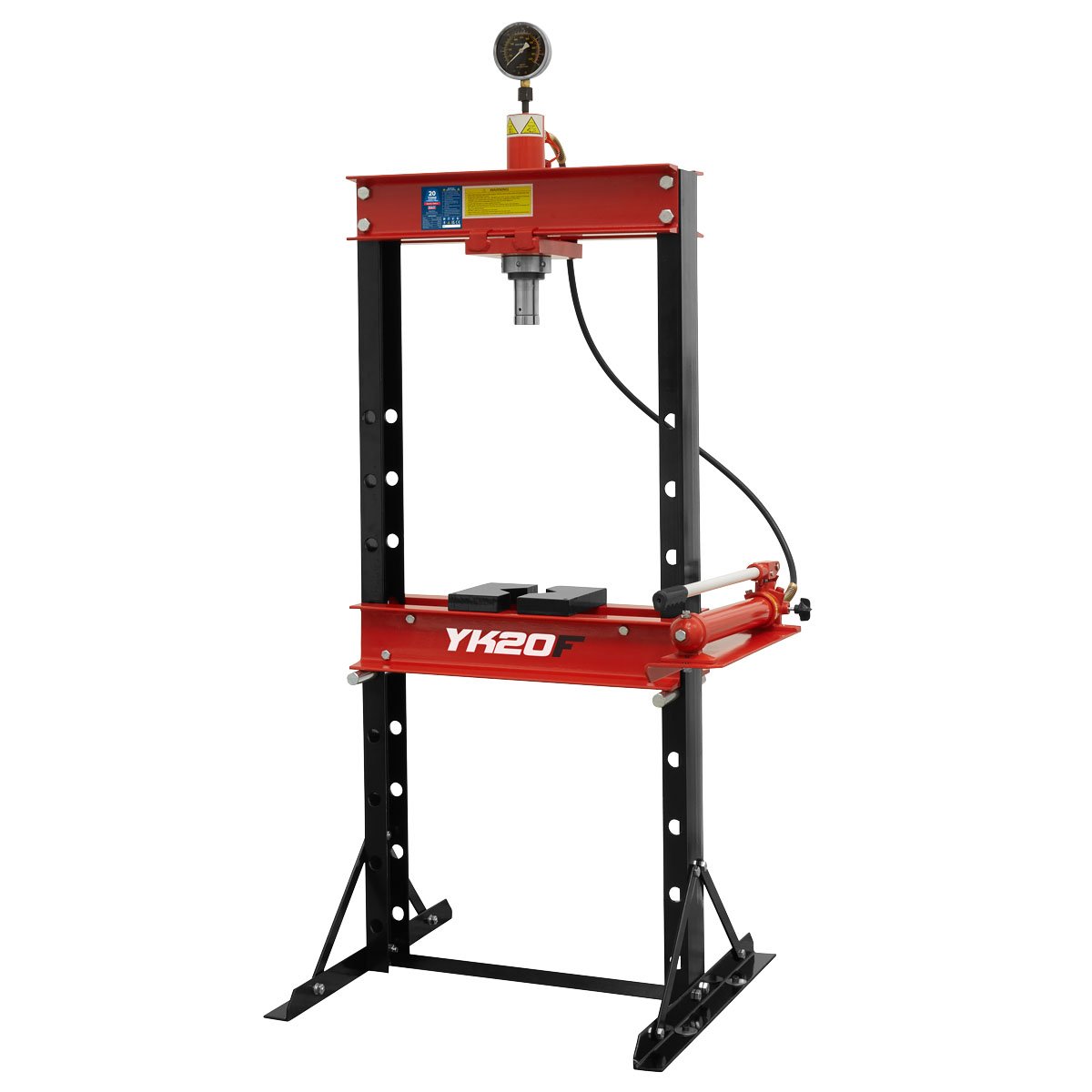

Sealey Hydraulic Floor Type Press 20 Tonne

Description

Delivery Information

Ask a question

Instructions

Material Safety Data Sheet

Parts Diagrams

Suitable for use by the serious enthusiast and professional alike. Made from a high quality steel with a powder coated paint finish to help corrosion resistance. Supplied in KD form. Detachable pump and ram allowing hydraulics to be used for other purposes when press is not in use. Supplied with gauge.

Model Number: YK20F
Steel frame construction with side mounted hydraulic pump unit.
Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications.
Fitted with ram pressure gauge.
Supplied with flat pressing plate/V-blocks.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Warranty: 1 year Years
Sealey catalogue page number: 327
Variant number of the model: 005

Specification:

Model No	YK20F
Bench or Floor Mounting:	Floor Mounted
Brand:	Sealey
Capacity:	20 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	403mm
Maximum Height - Ram to Table:	1018mm
Minimum Height - Ram to Table:	58mm
Nett Weight:	92.5kg
Operating Table Width:	545mm
Optional Accessories:	YKPP8 - Press Pin Set
Overall Height:	1796mm
Ram Diameter:	Ø48mm
Ram Stroke:	185mm
Table Aperture:	100mm
Type:	Hydraulic
