Sealey Hydraulic Floor Type Press 12 Tonne

Description

Delivery Information

Ask a question

Material Safety Data Sheet

Parts Diagrams

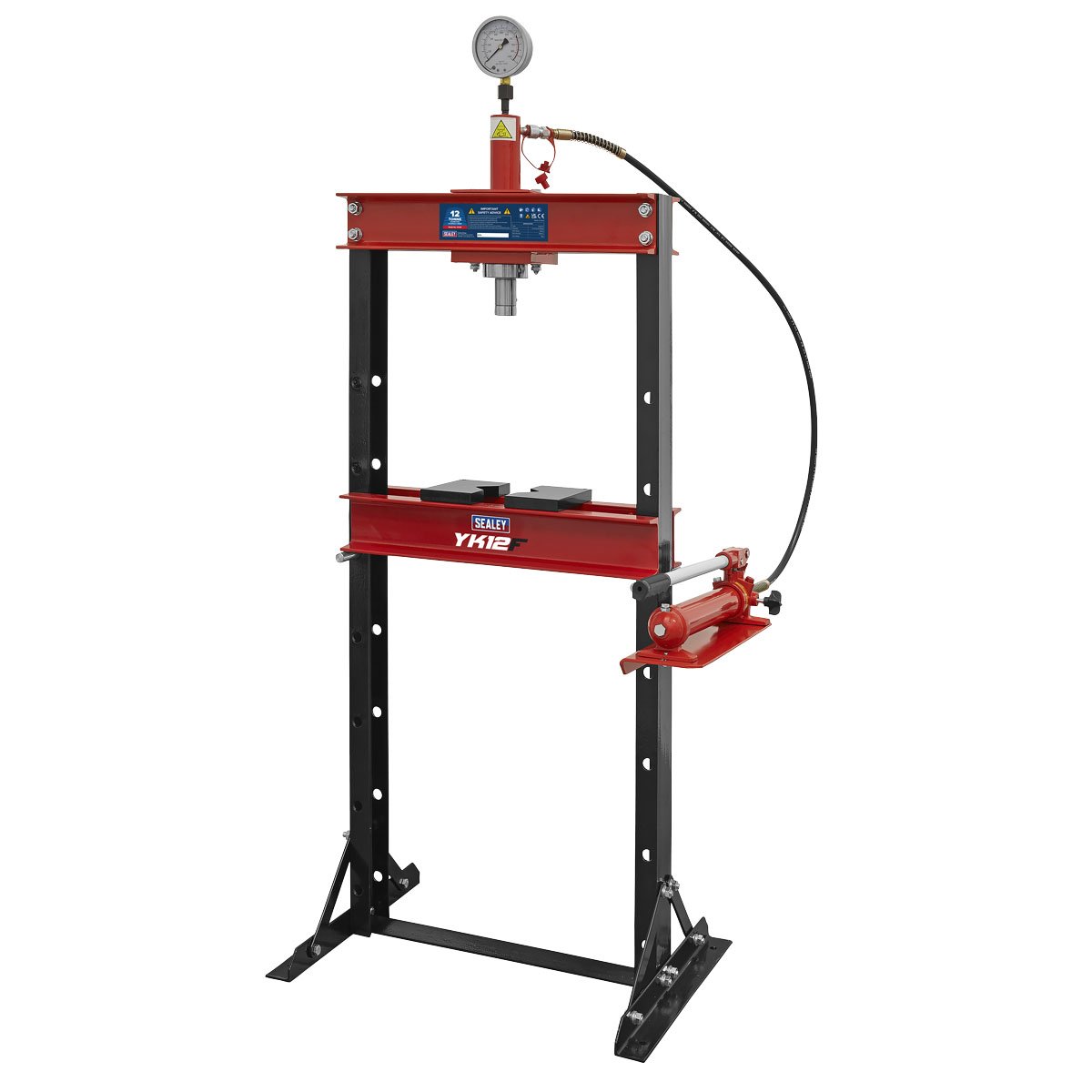

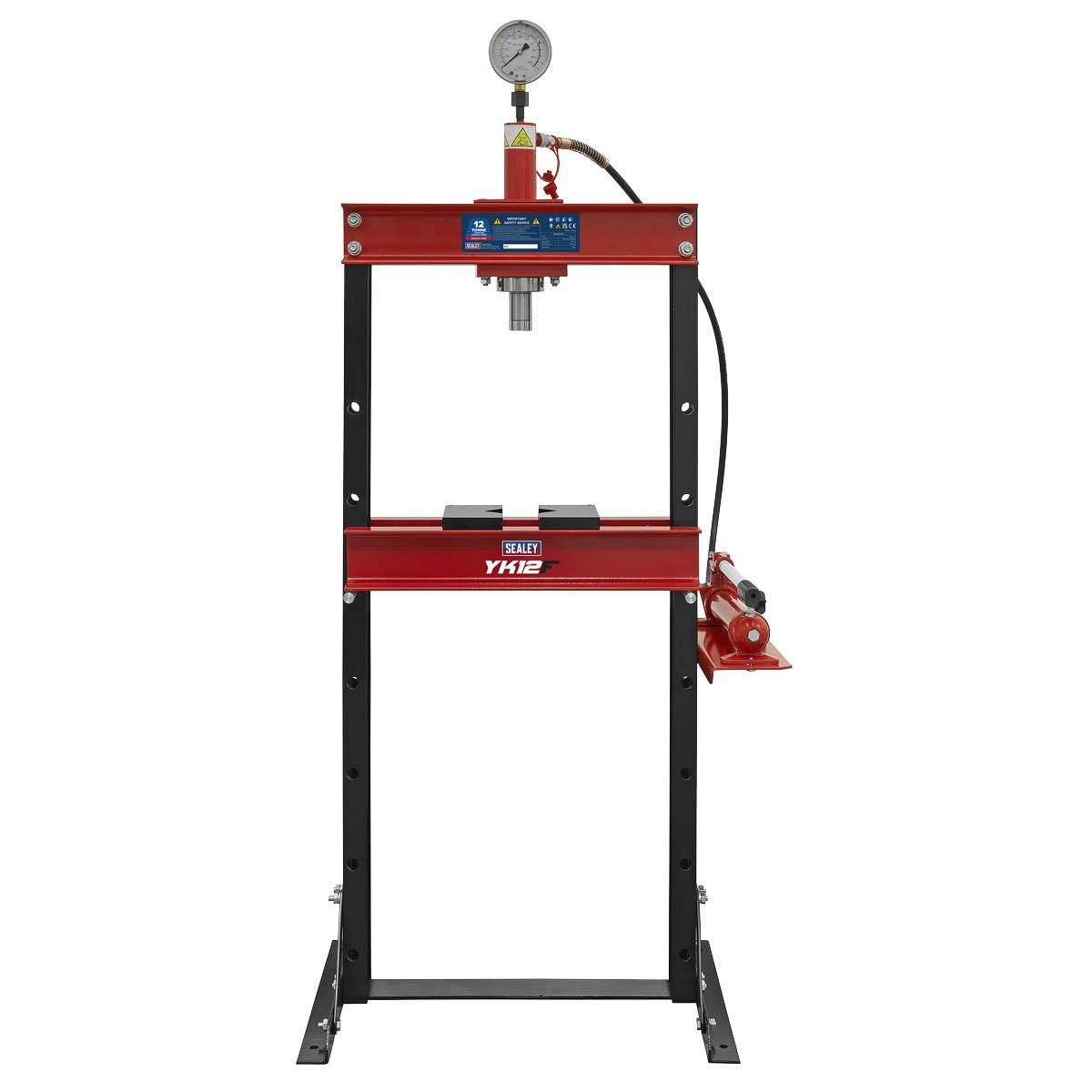

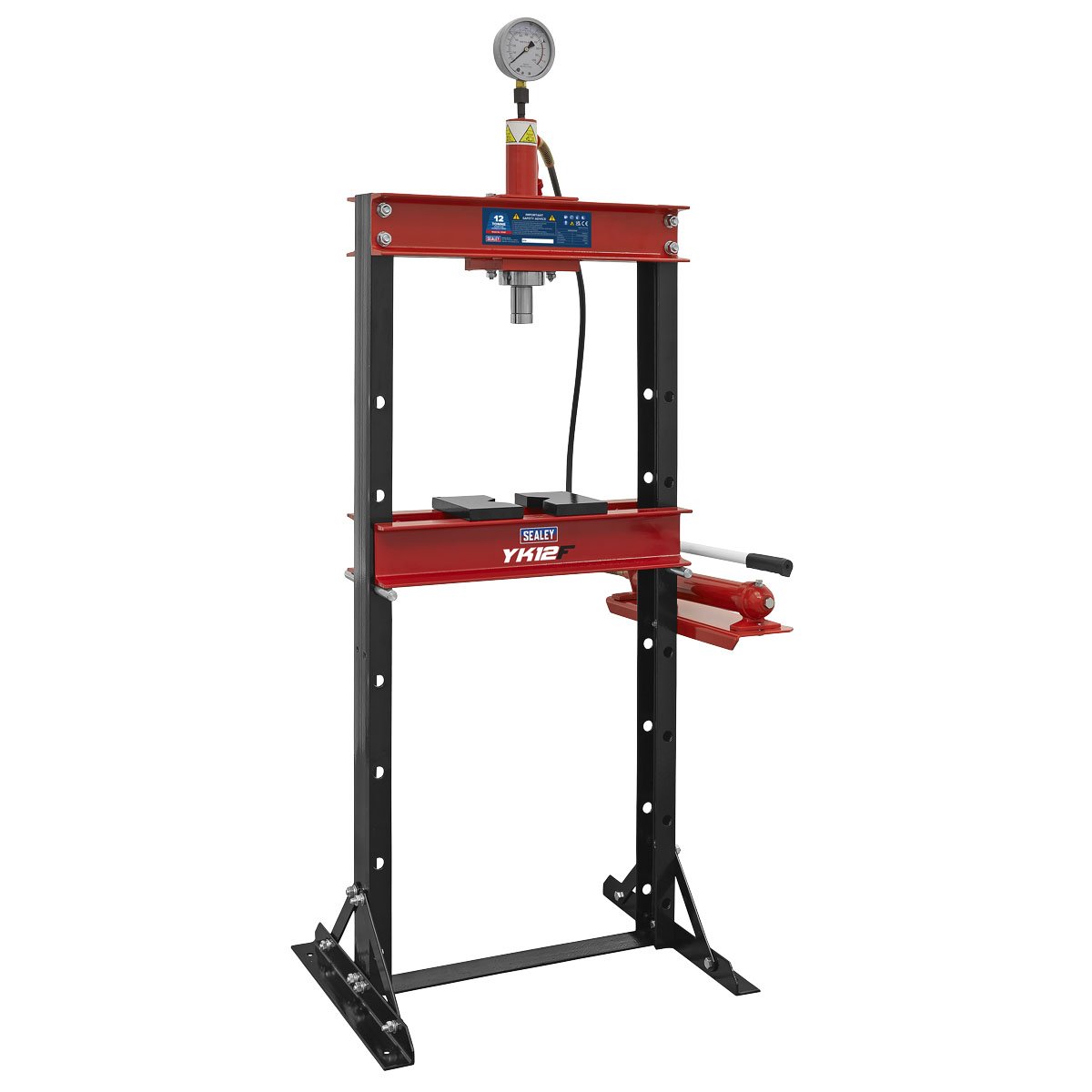

Made from high quality steel with a powder coated paint finish to help corrosion resistance. Detachable pump and ram allowing hydraulics to be used for other purposes when press is not in use. Includes two table plates. Supplied with gauge.

Model Number: YK12F
SOLID FRAME/TABLE - Made from high quality steel with a powder coated paint finish to help corrosion resistance.
DETACHABLE PUMP AND RAM - Allowing hydraulics to be used for other purposes when press is not in use.

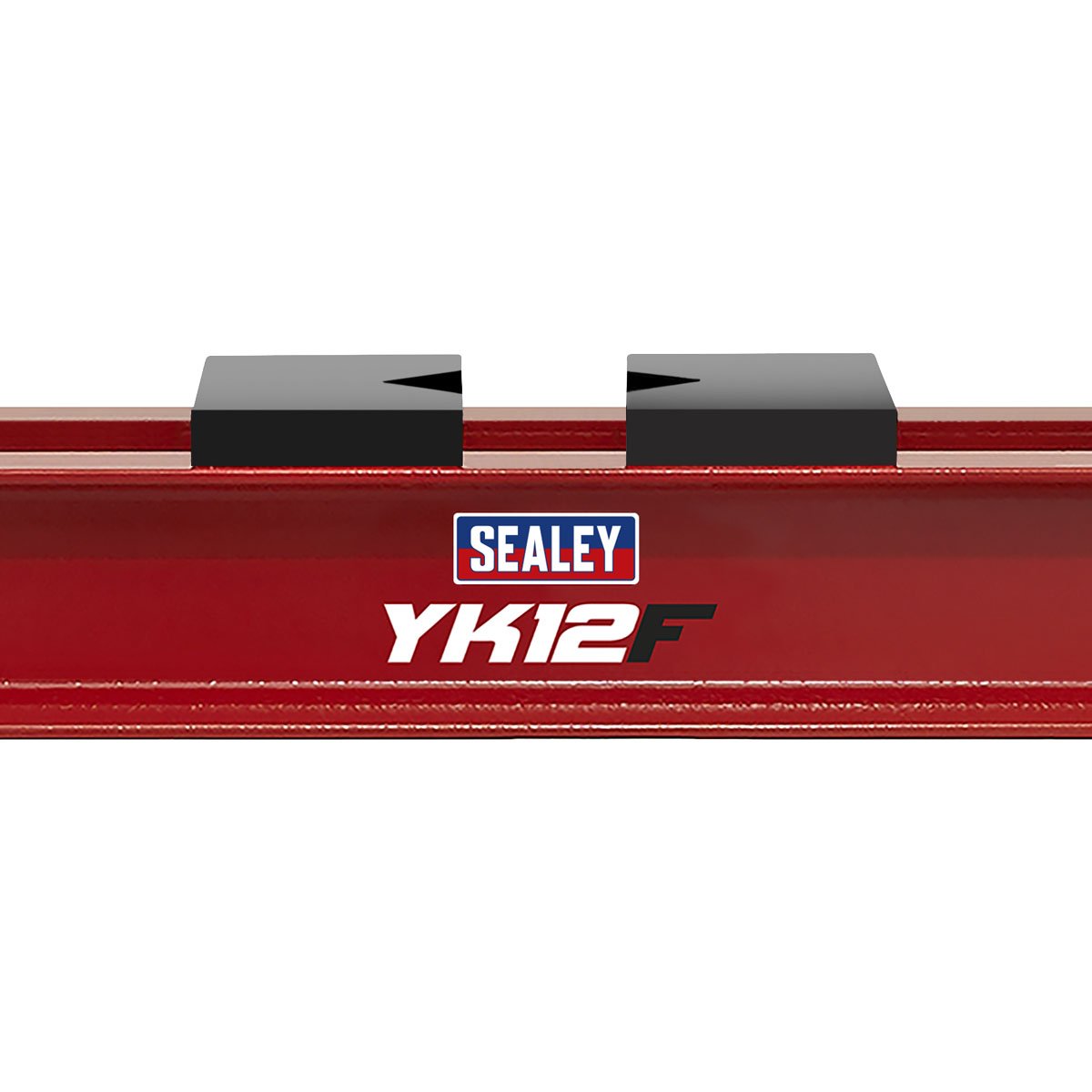

INCLUDES - Two table plates.

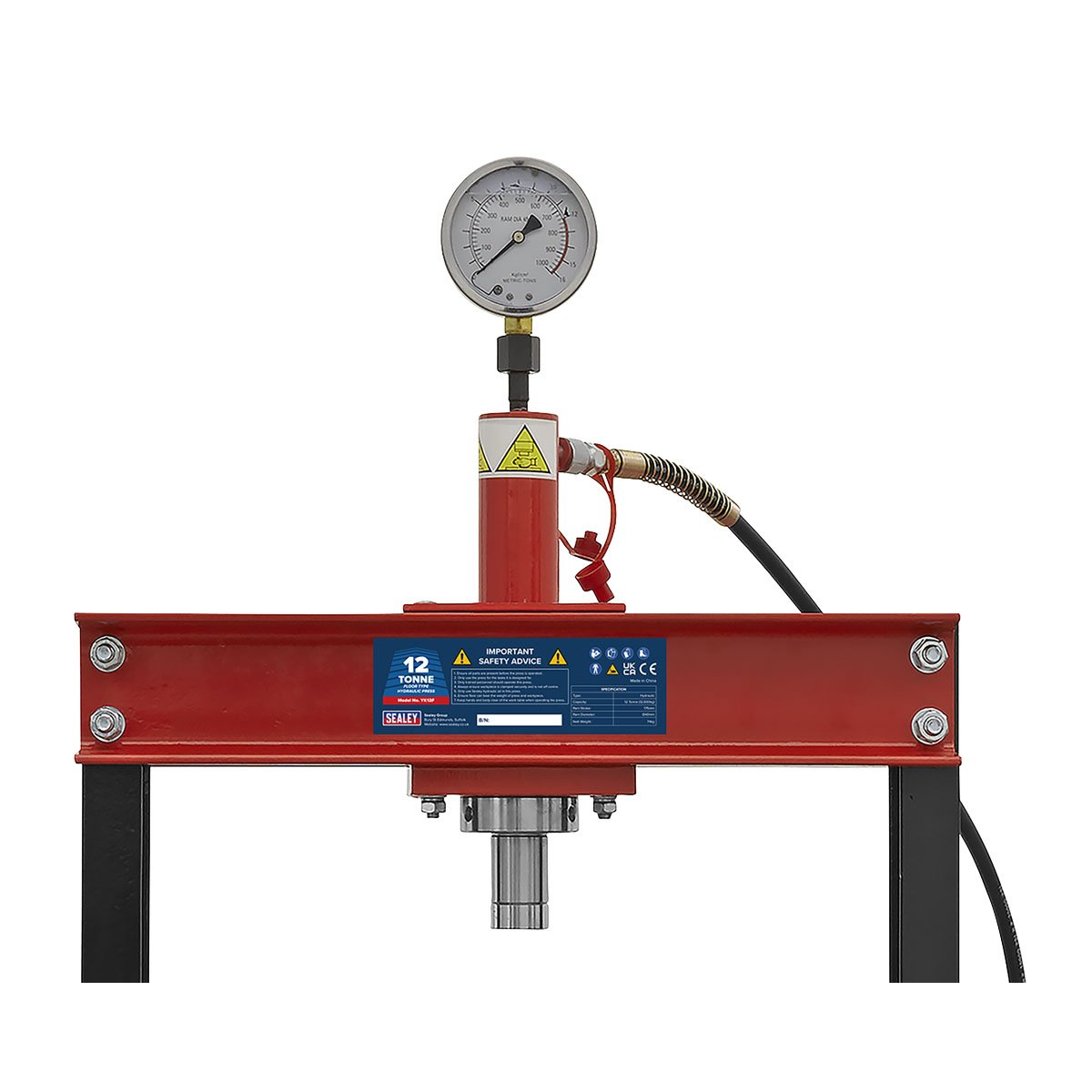

SUPPLIED - With gauge.
Warranty: 1 year Years
Sealey catalogue page number: 327
Variant number of the model: 001

Specification:

Model No	YK12F
Bench or Floor Mounting:	Floor
Brand:	Sealey
Capacity:	12 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	305mm
Maximum Height - Ram to Table:	800mm
Minimum Height - Ram to Table:	80mm
Nett Weight:	74kg
Operating Table Width:	455mm
Optional Accessories:	n/a
Overall Height:	1657mm
Ram Diameter:	Ø40mm
Ram Stroke:	175mm
Screw Extension:	n/a
Table Aperture:	84mm
Type:	Hydraulic
Working Table Depth:	180mm
Working Table Width:	540mm
