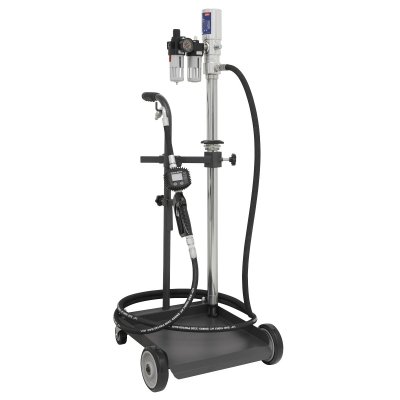

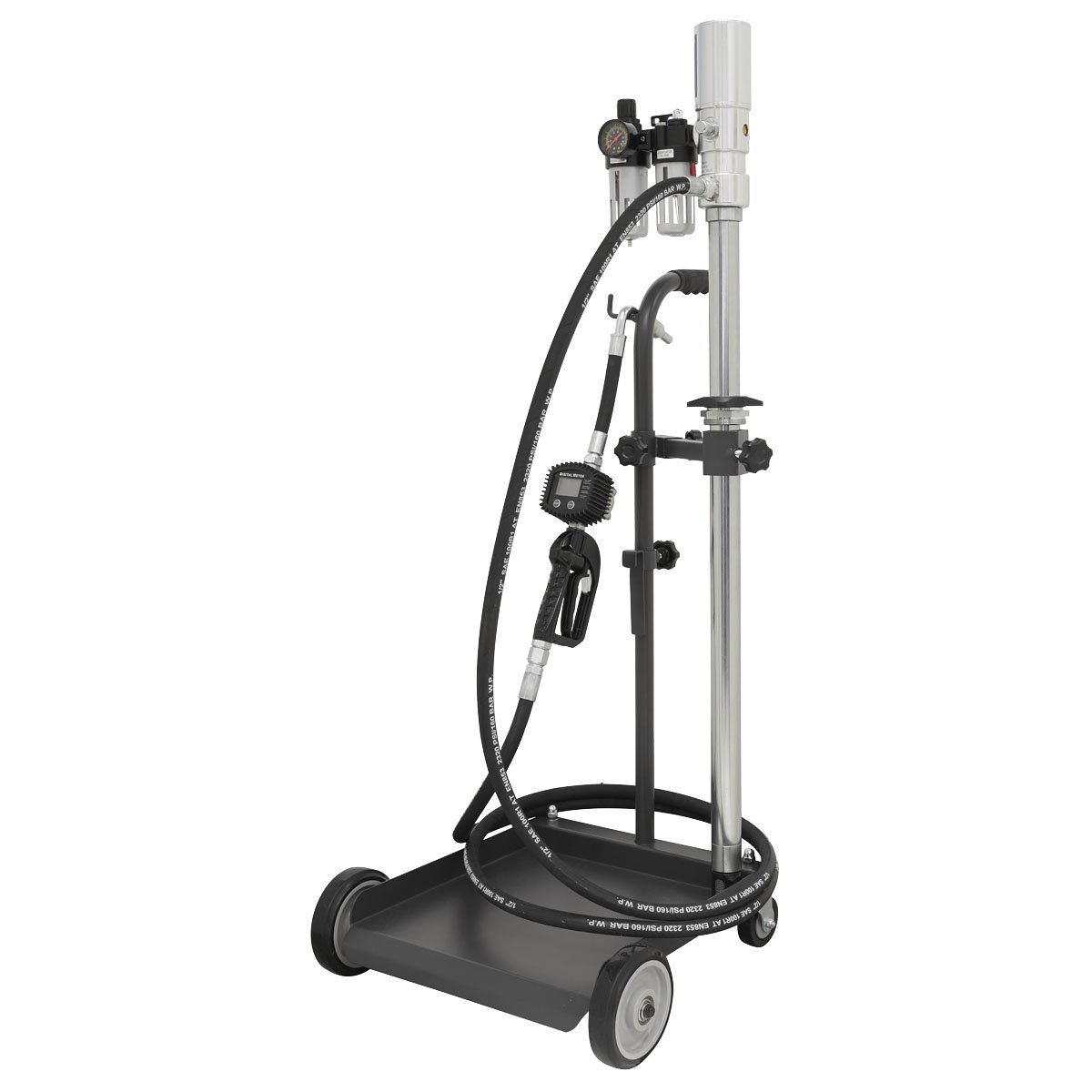

Mobile oil dispensing unit with air operated 3:1 double acting pump for gear oil with 2"BSP fittings. Pump is supplied with air management system and connected to a 730mm rigid suction probe with non-return valve. Features 4m hose and digital oil meter (Model No. AK4565D supplied). Also suitable for use with engine, hydraulic, synthetic, gear and transmission oils up to SAE150 in containers up to 50kg.

Model Number: AK4563D
Mobile oil dispensing unit with air operated 3:1 double acting pump for gear oil with 2"BSP fittings.
Pump is supplied with air management system and connected to a 730mm rigid suction probe with non-return valve.
Features 4m hose and digital oil meter (Model No. AK4565D supplied).
Also suitable for use with engine, hydraulic, synthetic, gear and transmission oils up to SAE150 in containers up to 50kg.
Warranty: 1 year Years
Sealey catalogue page number: 664
Variant number of the model: 002

Specification:

Model No	AK4563D
Brand:	Sealey
Maximum Air Pressure:	115psi
Maximum Flow Rate:	12L/min
Maximum Output Pressure:	350psi
Maximum Trolley Capacity:	50kg
Maximum Viscosity:	SAE150
Nett Weight:	18.45kg
Outlet Size:	1/2"BSP
Pump Ratio:	3:1
Recommended Air Pressure:	70psi
