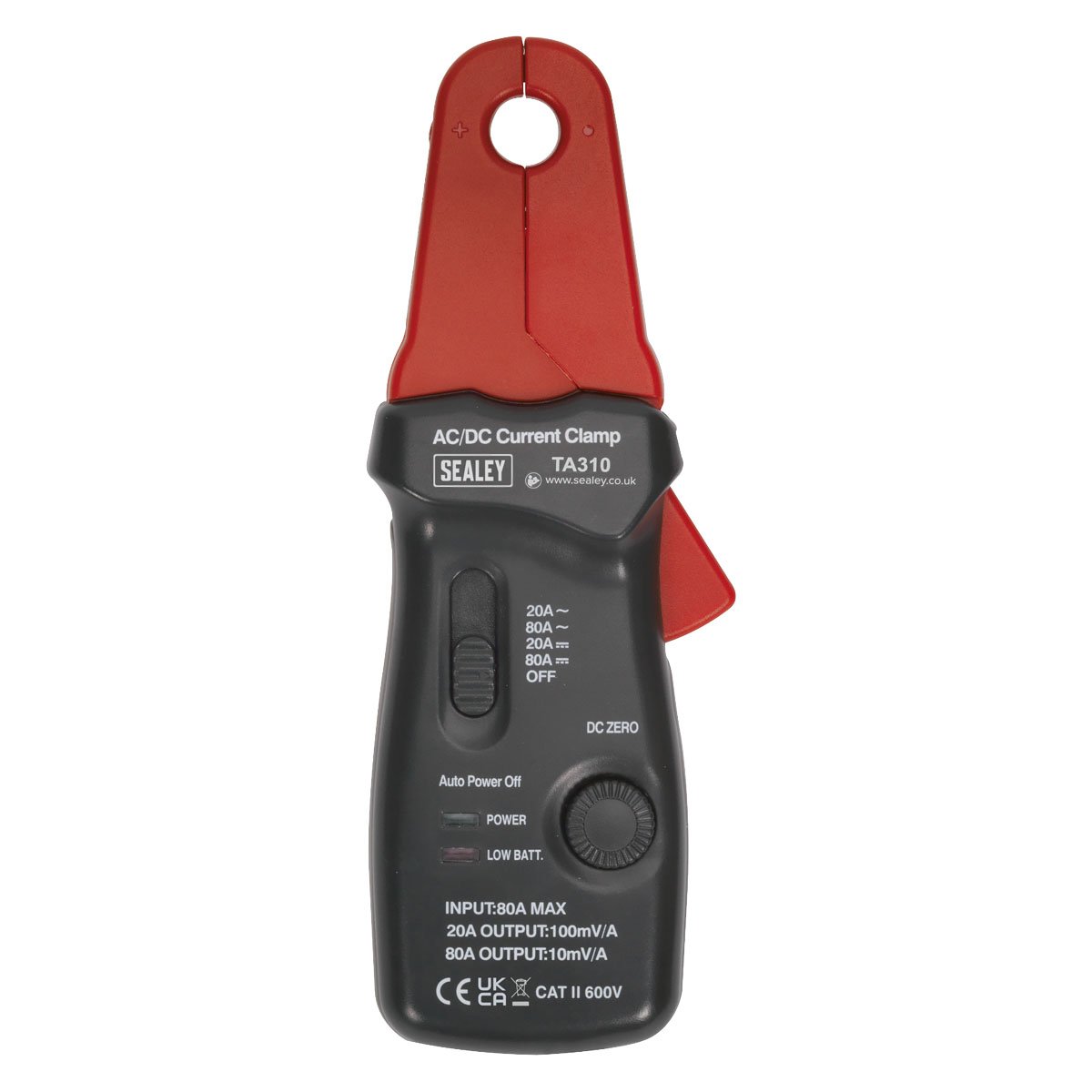

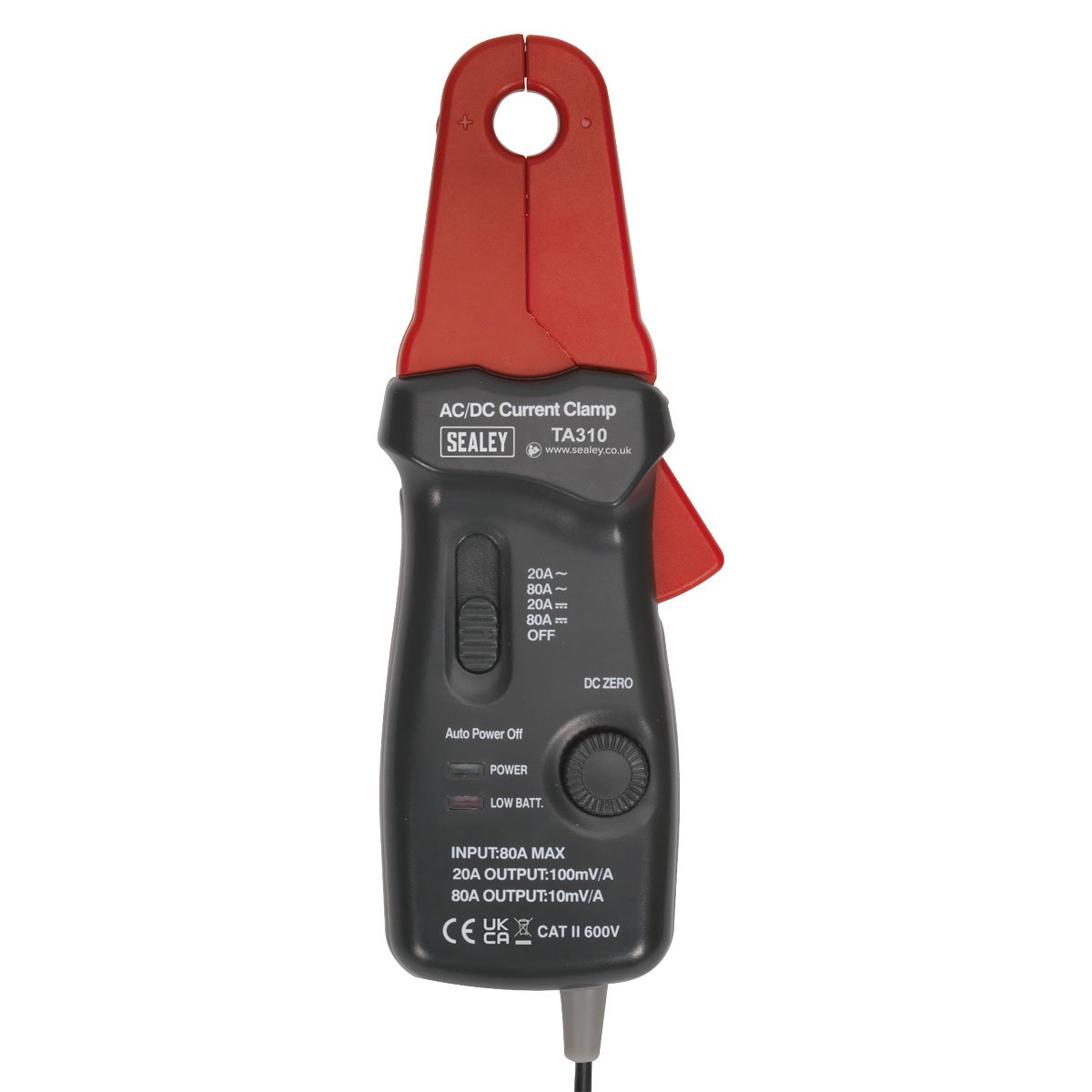

Sealey Current Clamp AC/DC 20A/80A 12mm

Description

Delivery Information

Ask a question

Instructions

Material Safety Data Sheet

Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current, without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor.

Model Number: TA310
Designed for use with a standard multimeter and measures current draw from vehicle components in situ.
Suitable for measuring both AC and DC current, without breaking into the circuit, with a 20A and 80A setting for accurate measurement.
Features a �12mm clamp ideal for testing individual wires.

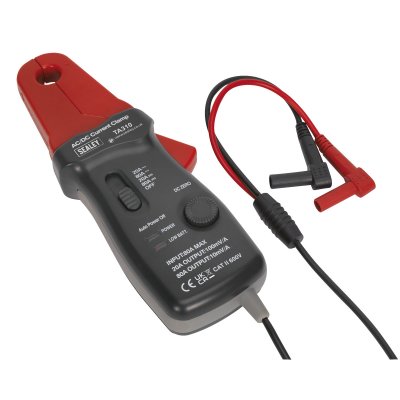

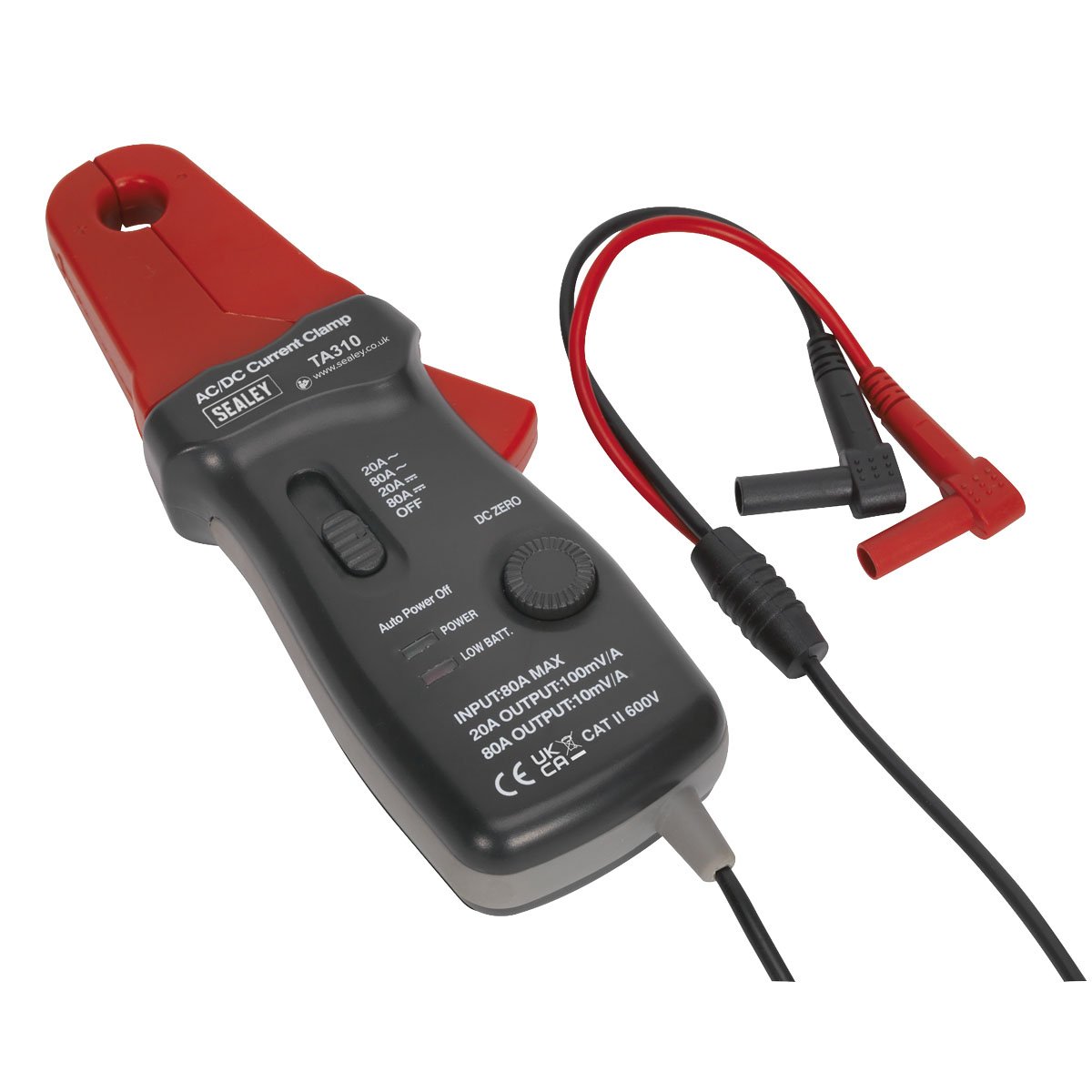

Fitted with 4mm banana connectors and supplied in storage pouch.
Powered by 9V battery (supplied).
Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
Warranty: 1 year Years
Sealey catalogue page number: 460
Variant number of the model: 001

Specification:

Model No	TA310
Brand:	Sealey
Nett Weight:	0.31kg
TA310 Captured Conductor Size:	Ø8mm maximum
Low Battery Indicator:	LED red
Operating Temperature:	0°C to 50°C.
Storage Temperature:	-15°C to 50°C.
Battery Type:	9V DC
Typical Battery Life:	80hrs (alkaline)
Weight:	240g
TA310 Dimensions (H x W x D):	190mm x 70mm x 38mm
Output Connection:	Banana plugs (red & black)
20A (output: 100mV/A=1mV/10mA):	<2A use DC or rms AC for 200mV range of the multimeter,>2A use DC or rms AC for 2V range of the multimeter.
80A (output: 10mV/A):	DC or rms AC for 200mV range of the multimeter.
