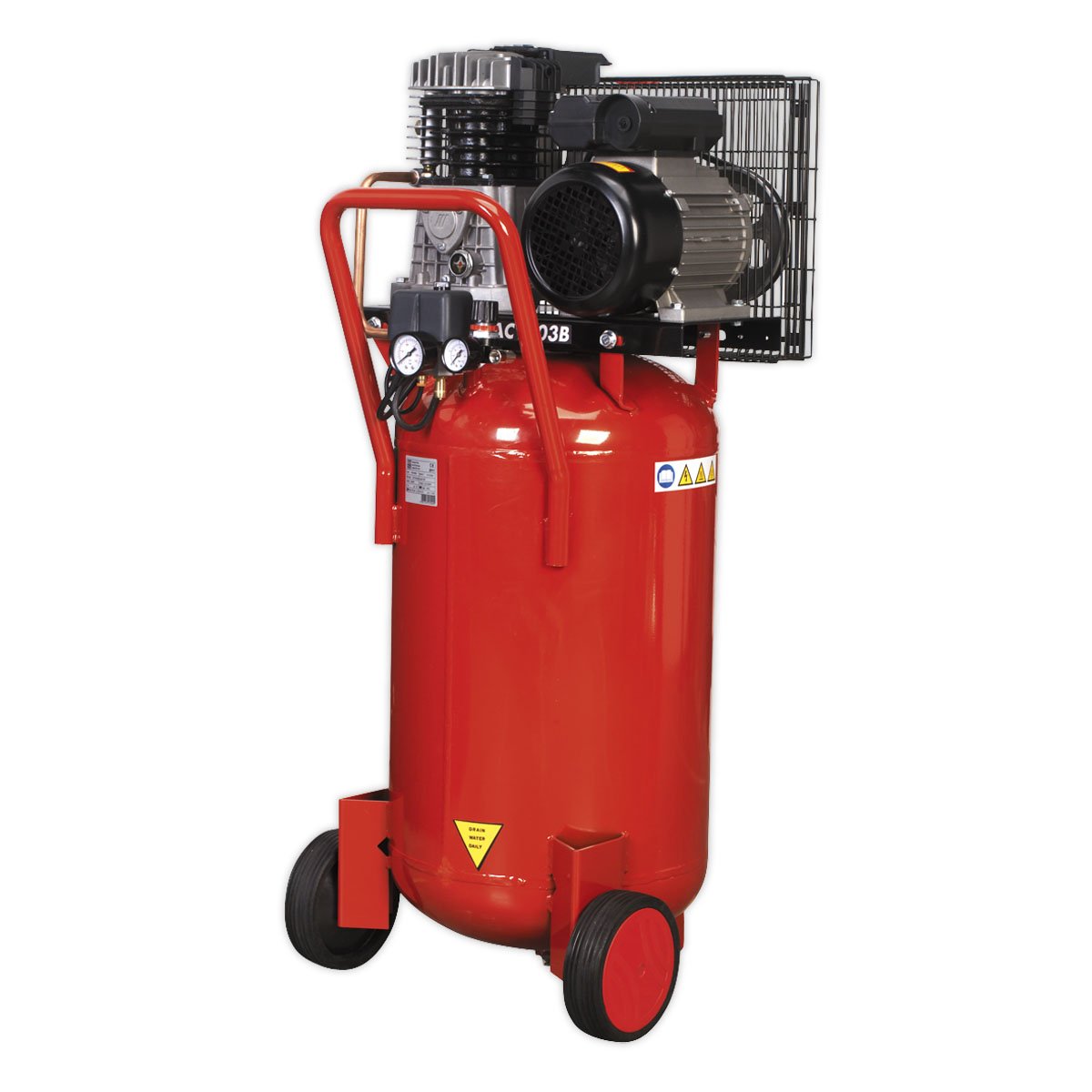

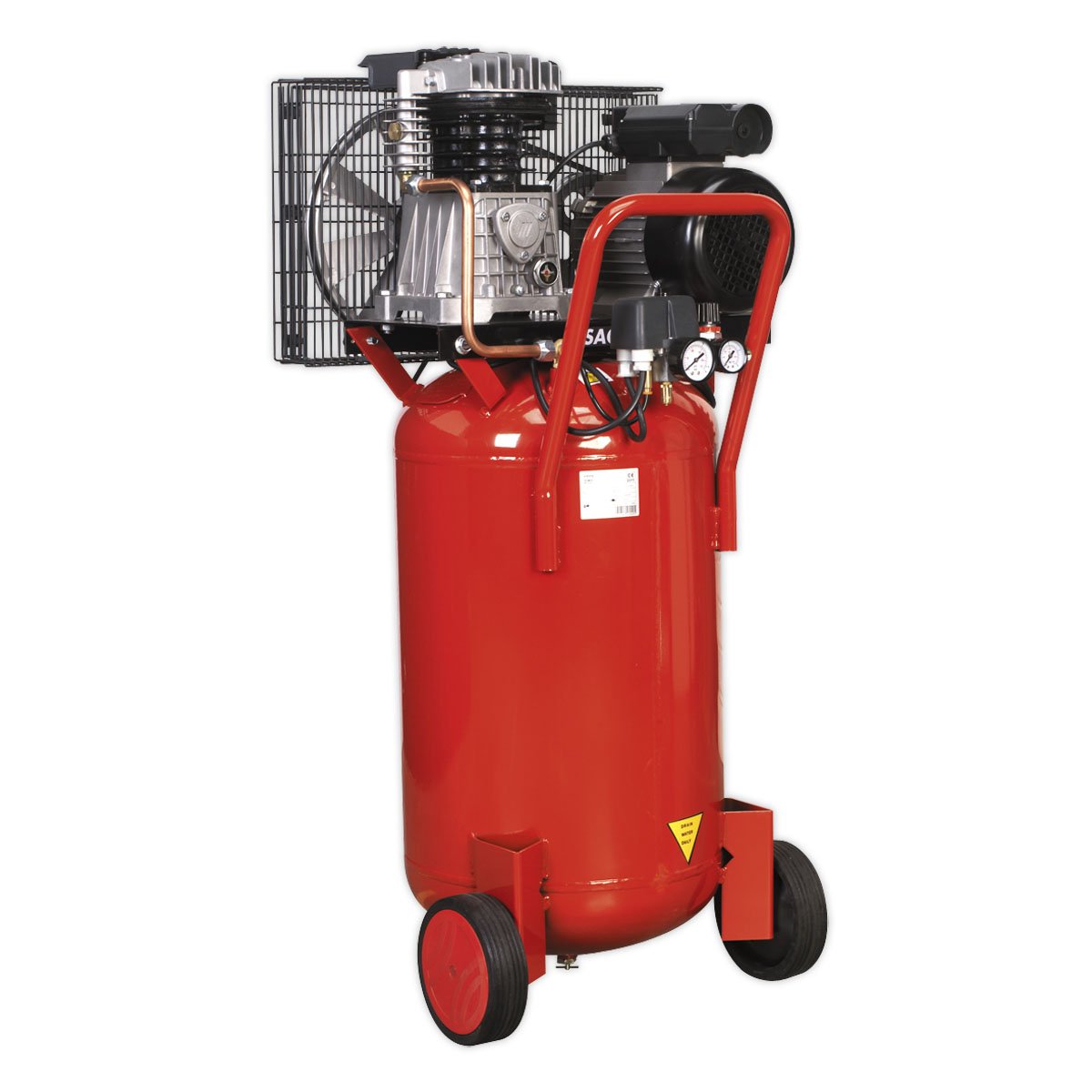

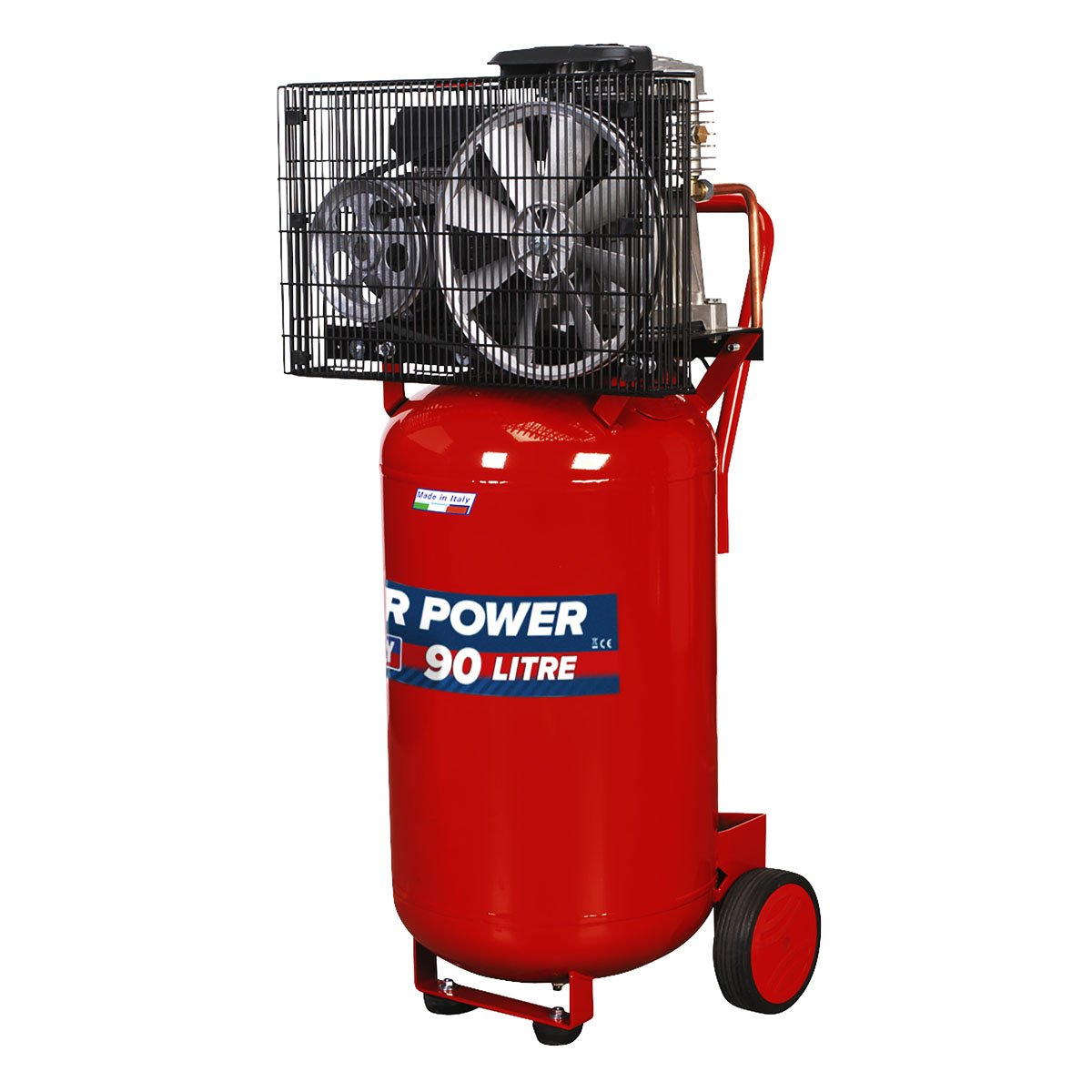

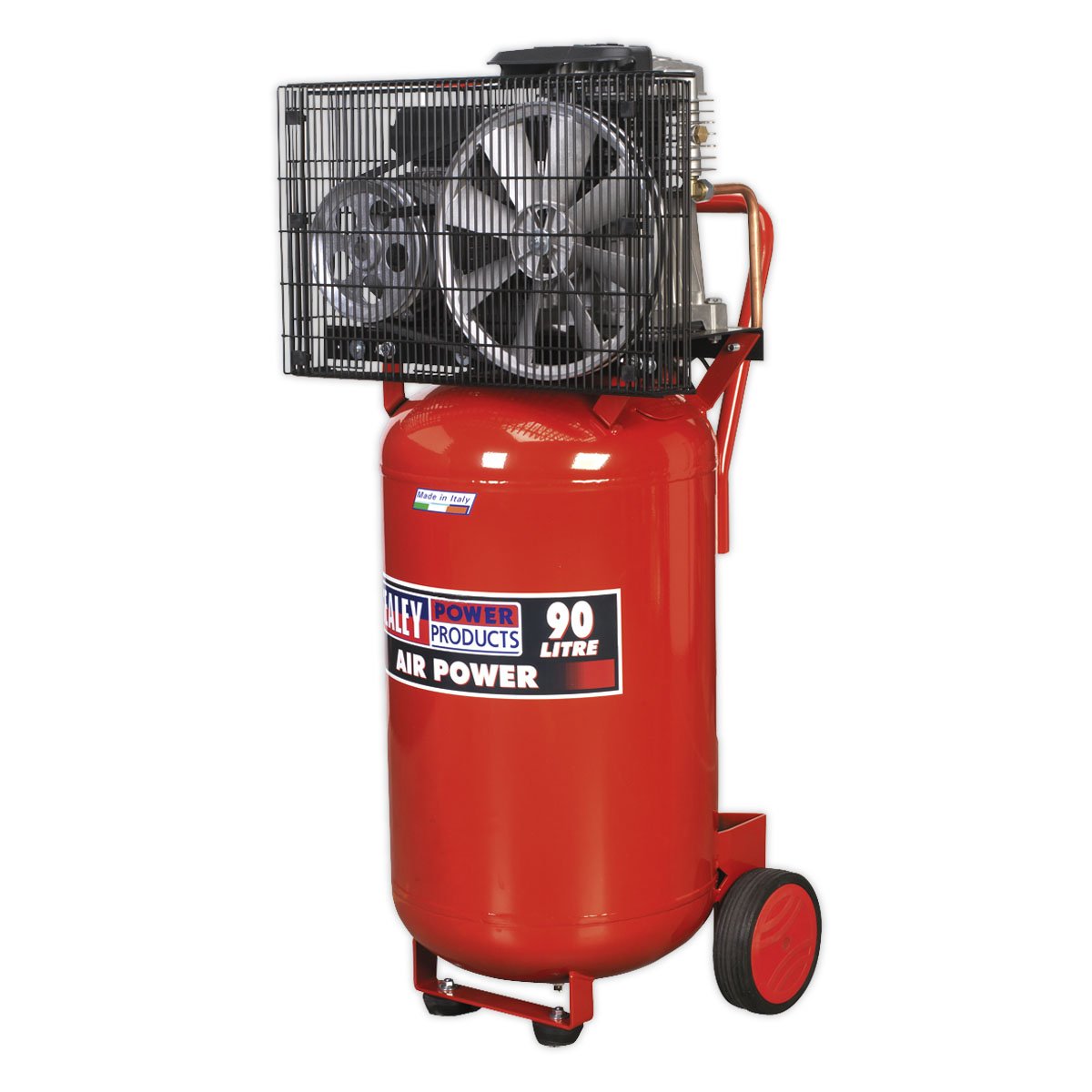

Sealey 90L Belt Drive Vertical Compressor 3hp

Description

Delivery Information

Ask a question

Material Safety Data Sheet

Instructions

Parts Diagrams

Suitable for the professional workshop fitted with a genuine 3hp motor. Vertical tank saves space without compromising on performance. Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guard protects belt and flywheel that is designed to force air over the pump to aid cooling.

Model Number: SAC1903B

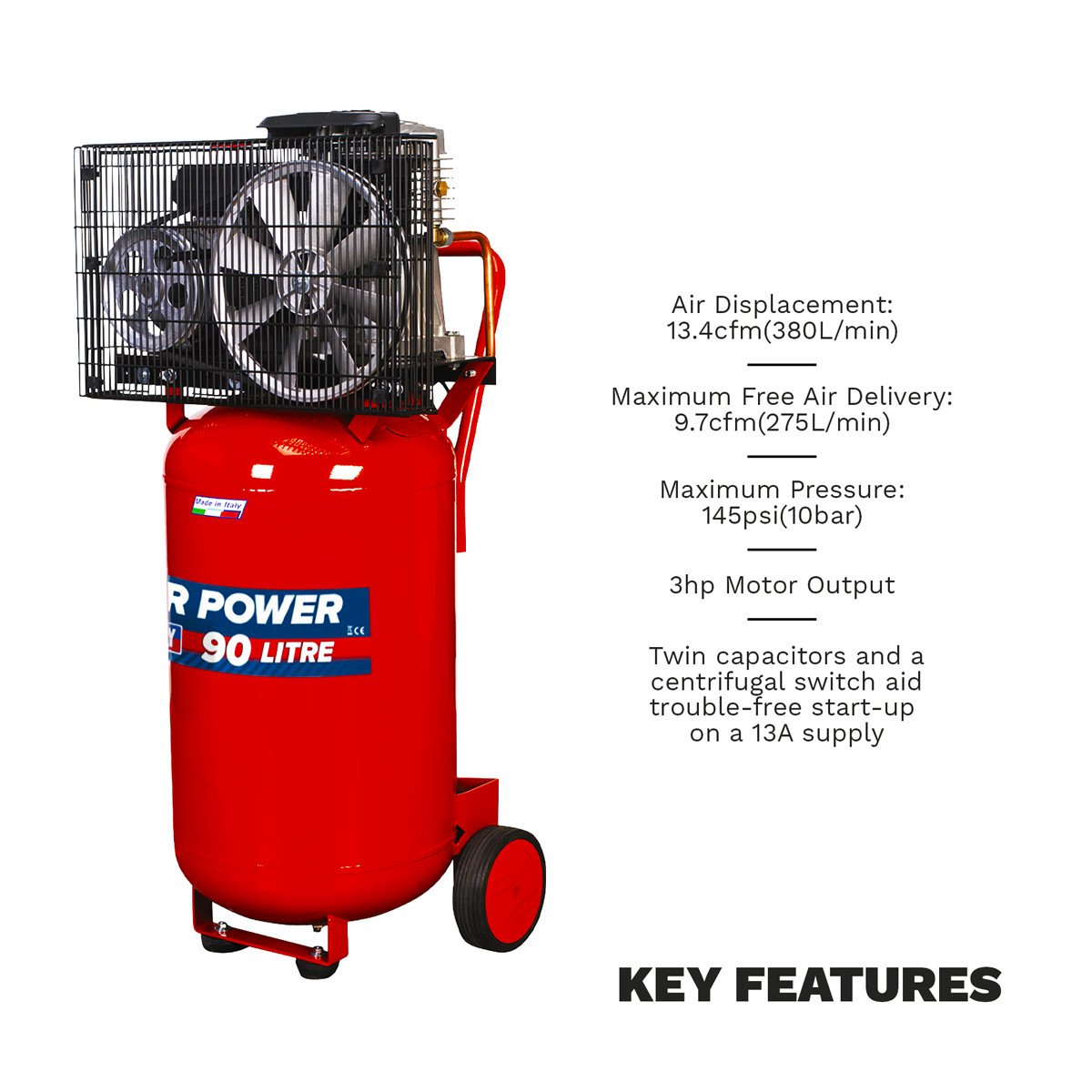

Air Displacement: 13.4cfm(380L/min).
Maximum Free Air Delivery: 9.7cfm(275L/min).
Maximum Pressure: 145psi(10bar).
Suitable for the professional workshop these units are fitted with a genuine 3hp motor.

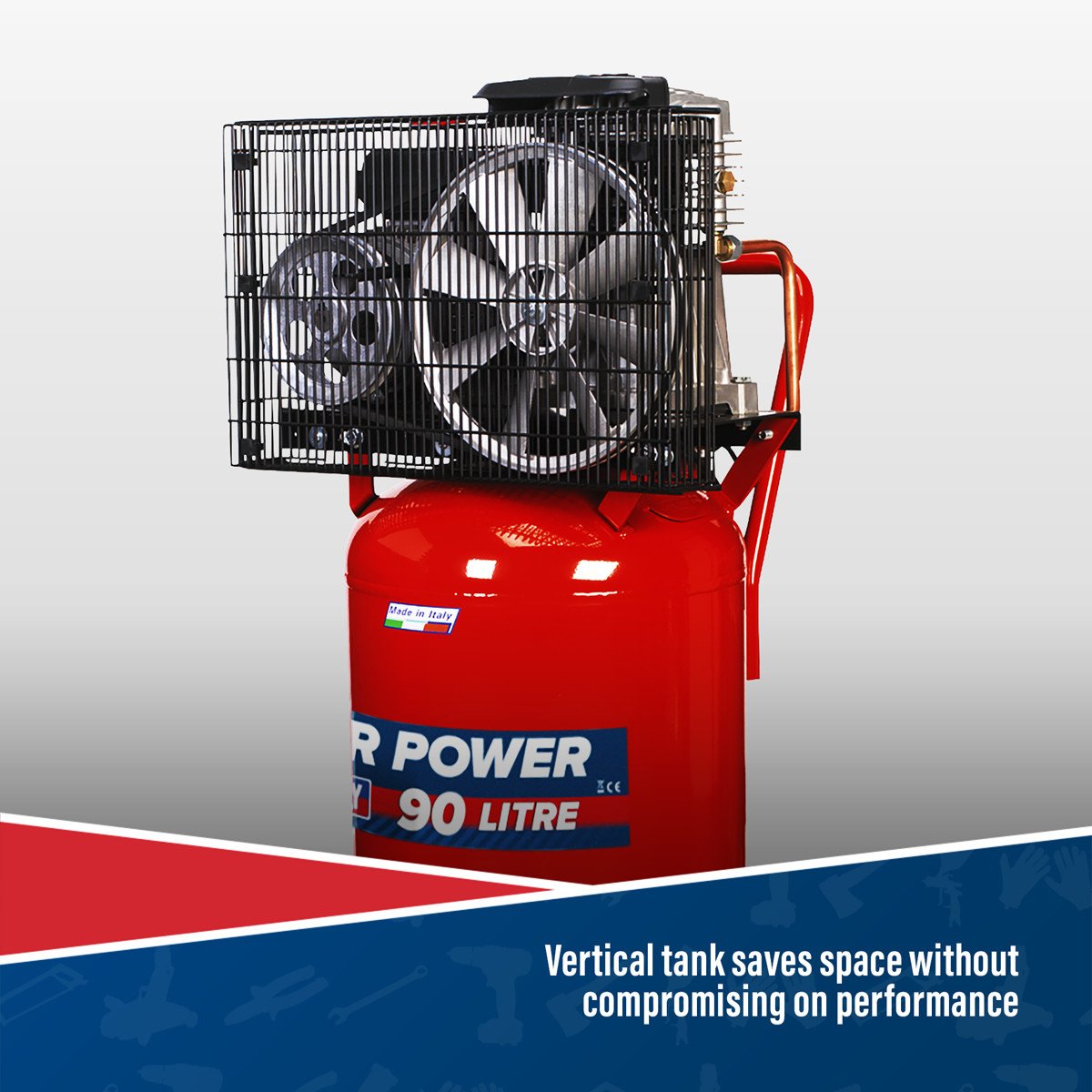

Vertical tank saves space without compromising on performance.
Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply.

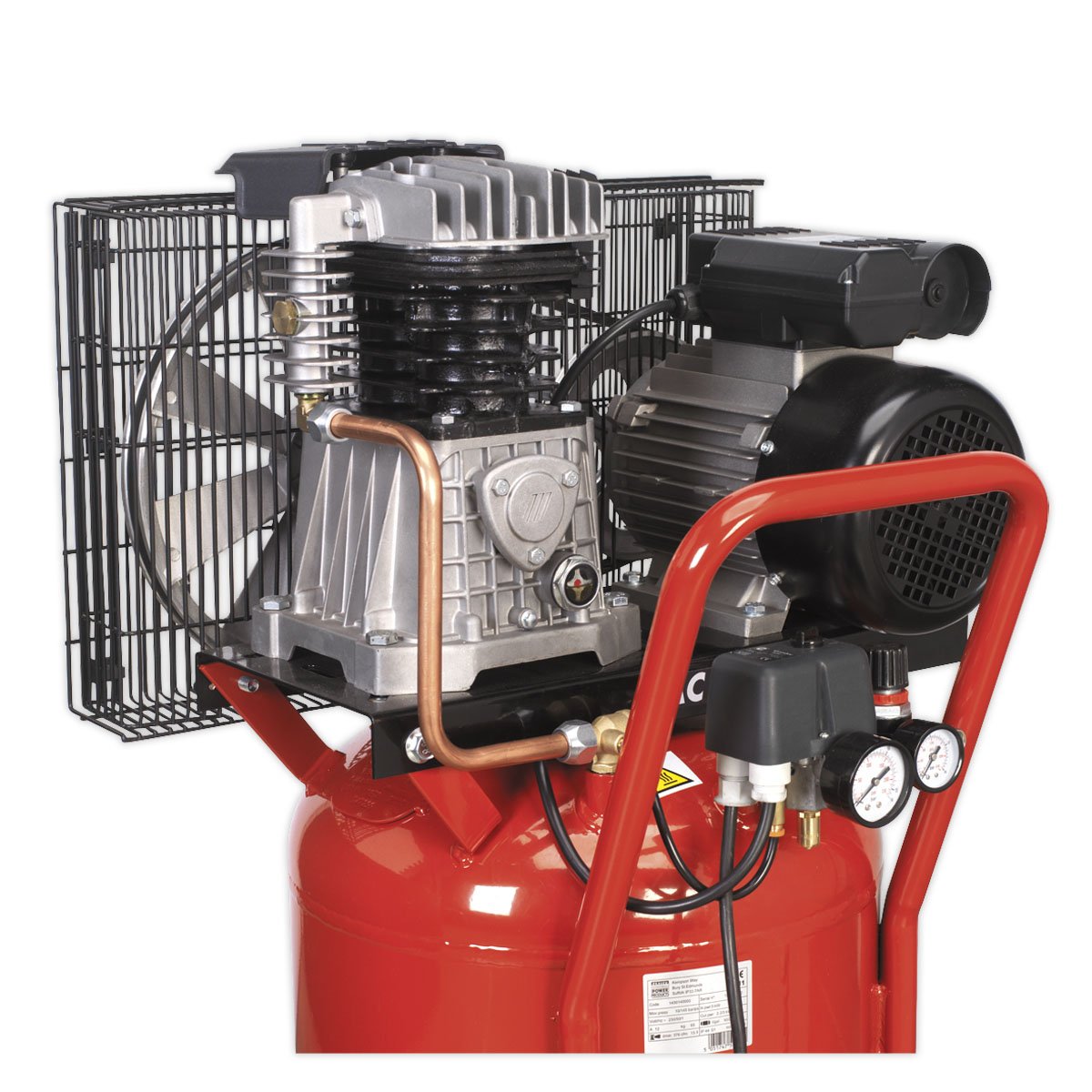

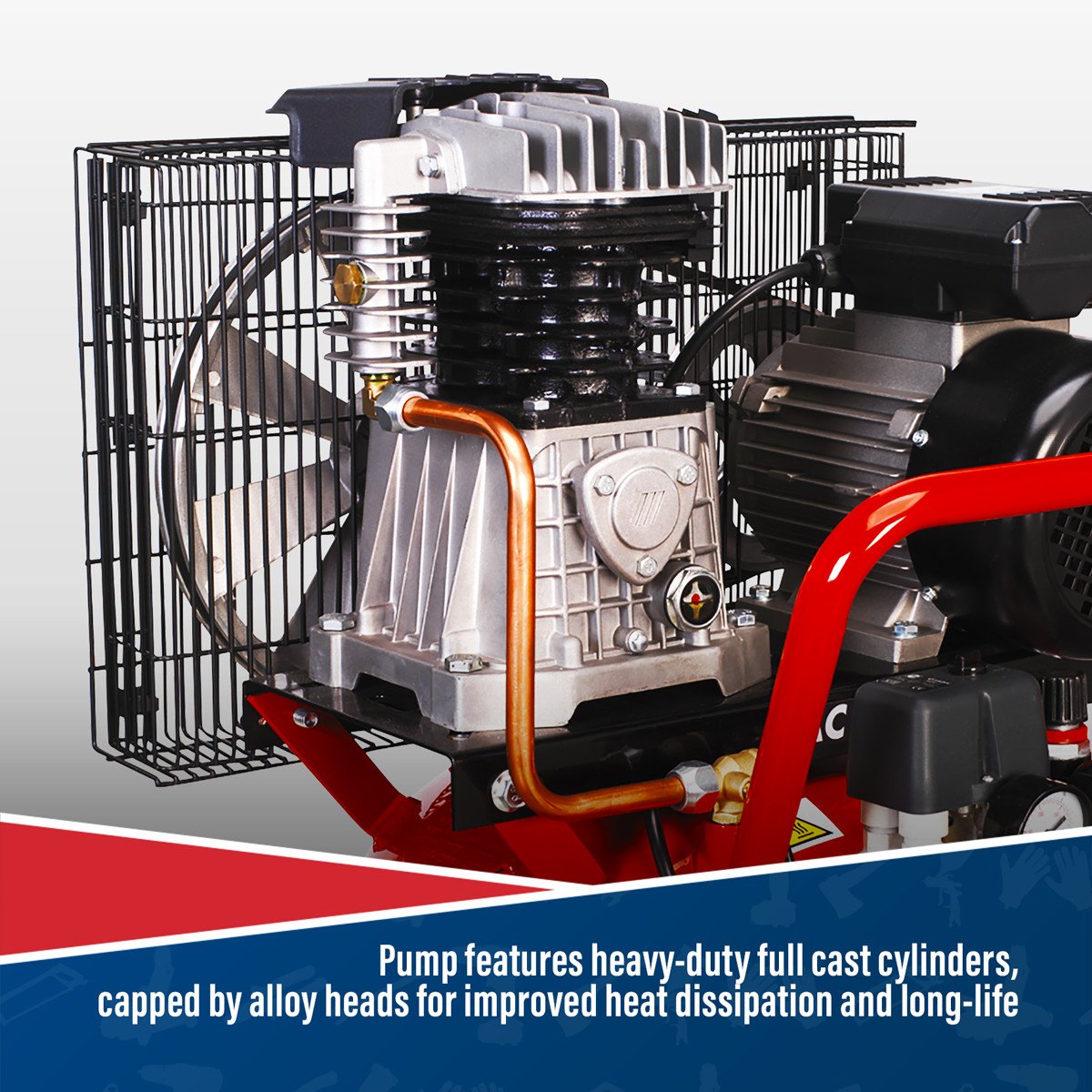

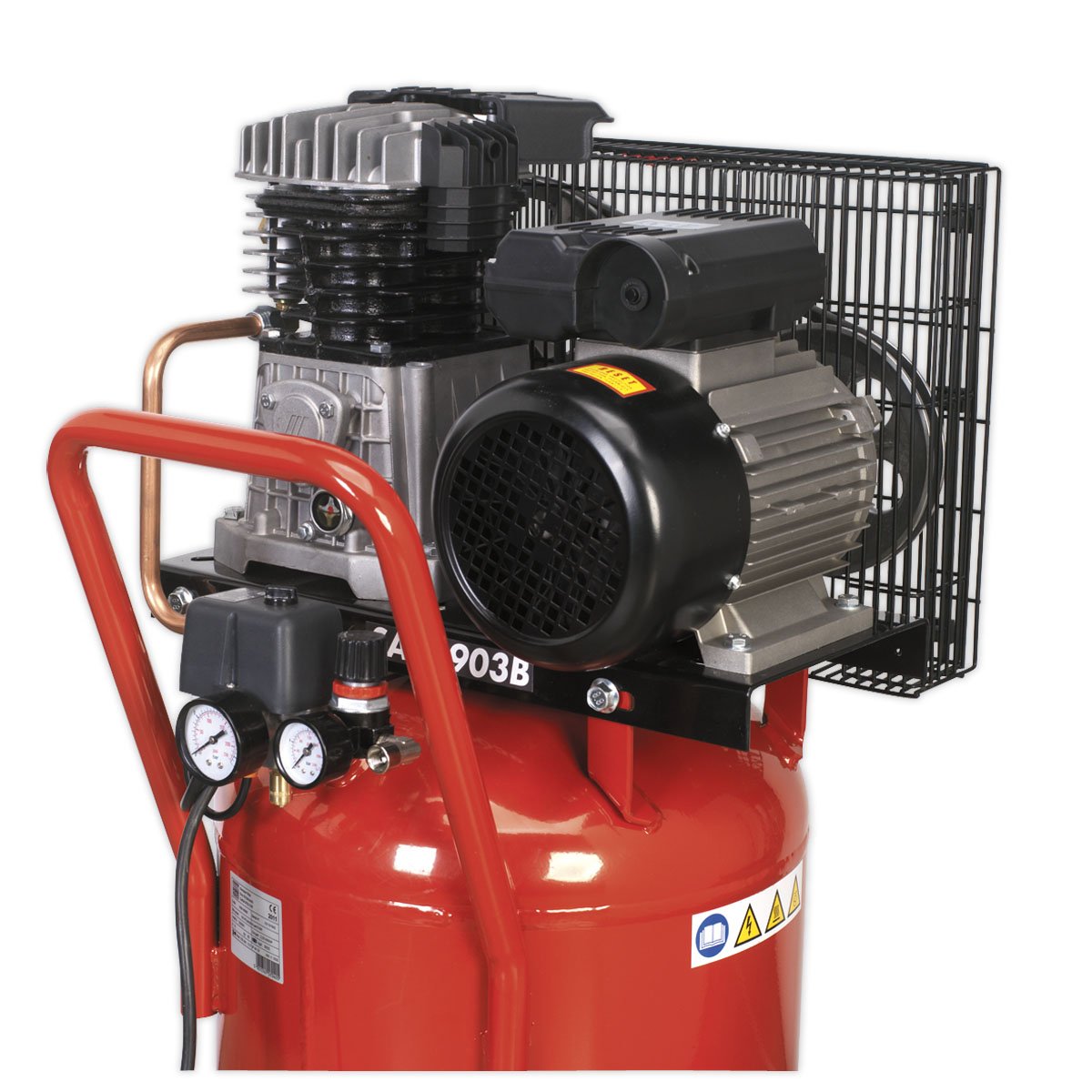

Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

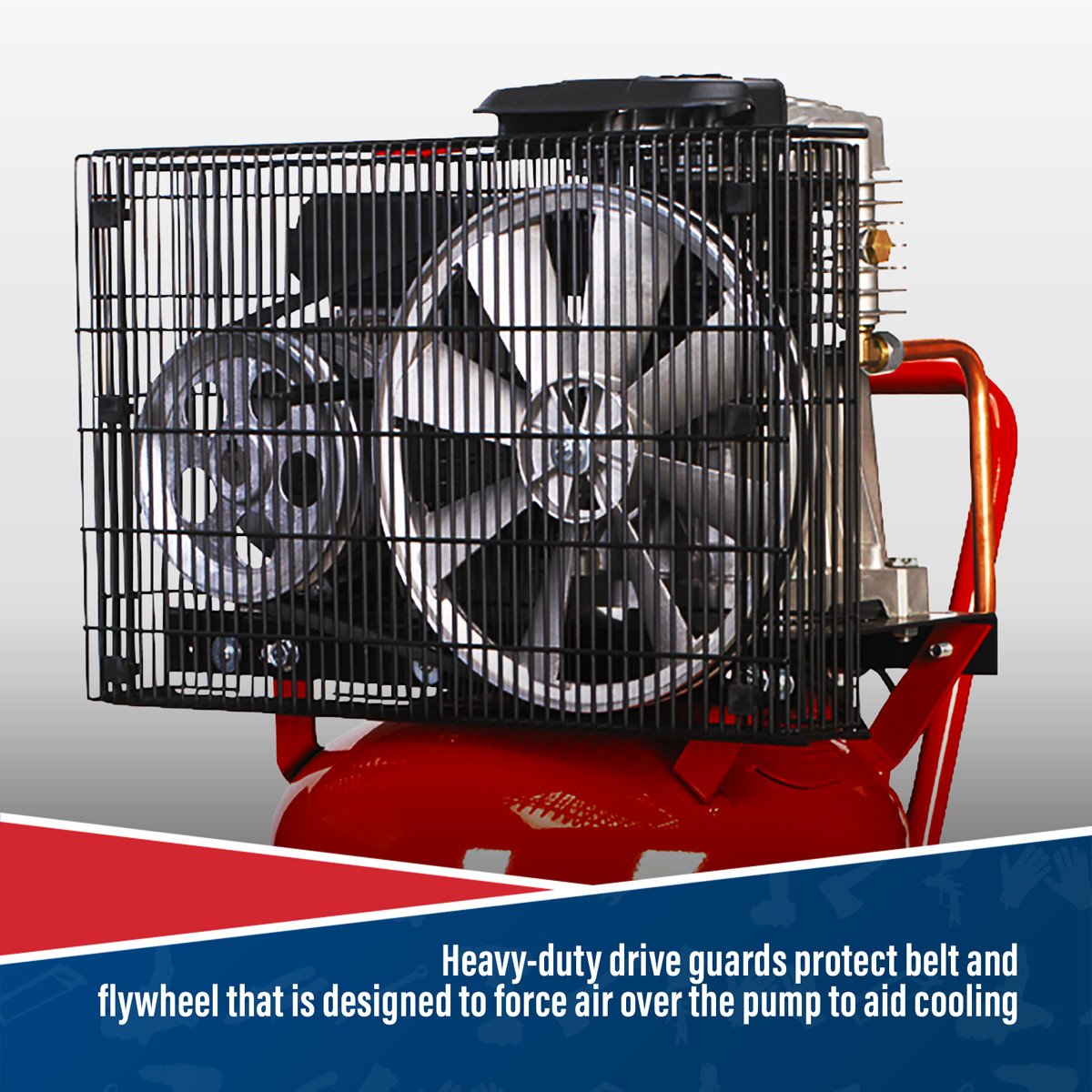

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Warranty: 1 year Years
Sealey catalogue page number: 775
Variant number of the model: 001

Specification:

Model No	SAC1903B
Air Displacement cfm(L/min):	13.4(380)
Brand:	Sealey
Maximum Free Air Delivery cfm(L/min):	9.7(275)
Maximum Pressure:	145psi(10bar)
Minimum Rated Supply:	13A
Motor Output:	3hp
Nett Weight:	65kg
Oil Capacity:	0.45L
Outlet:	Quick Release Coupling
Phase:	1ph
Receiver Capacity:	90L
Size (W x D x H):	525 x 495 x 1130mm
Speed:	1636rpm
Supply:	230V/13A
