Sealey ATV/Quad Recovery Winch 2040kg (4500lb) Line Pull 12V

Description

Delivery Information

Ask a question

Parts Diagrams

Instructions

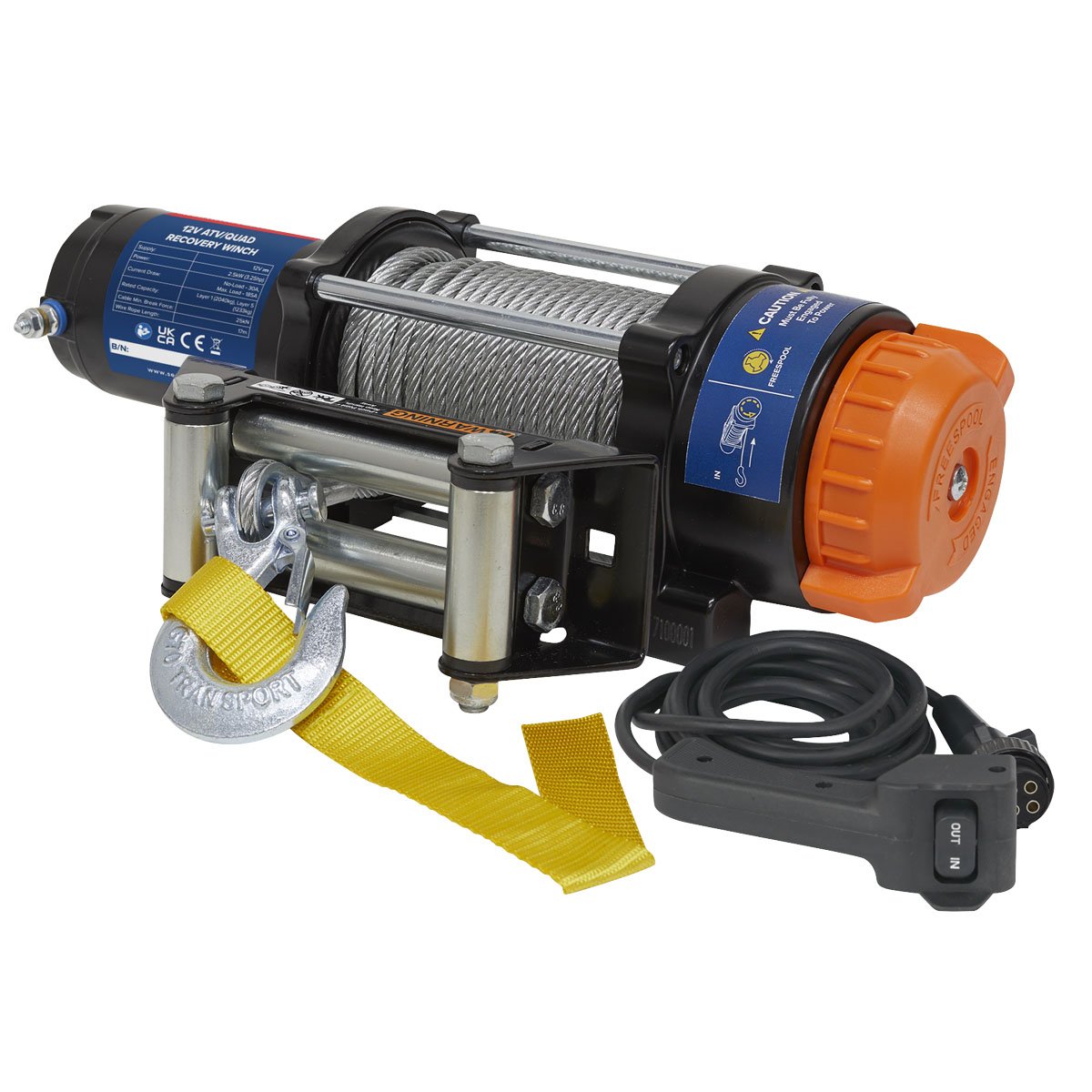

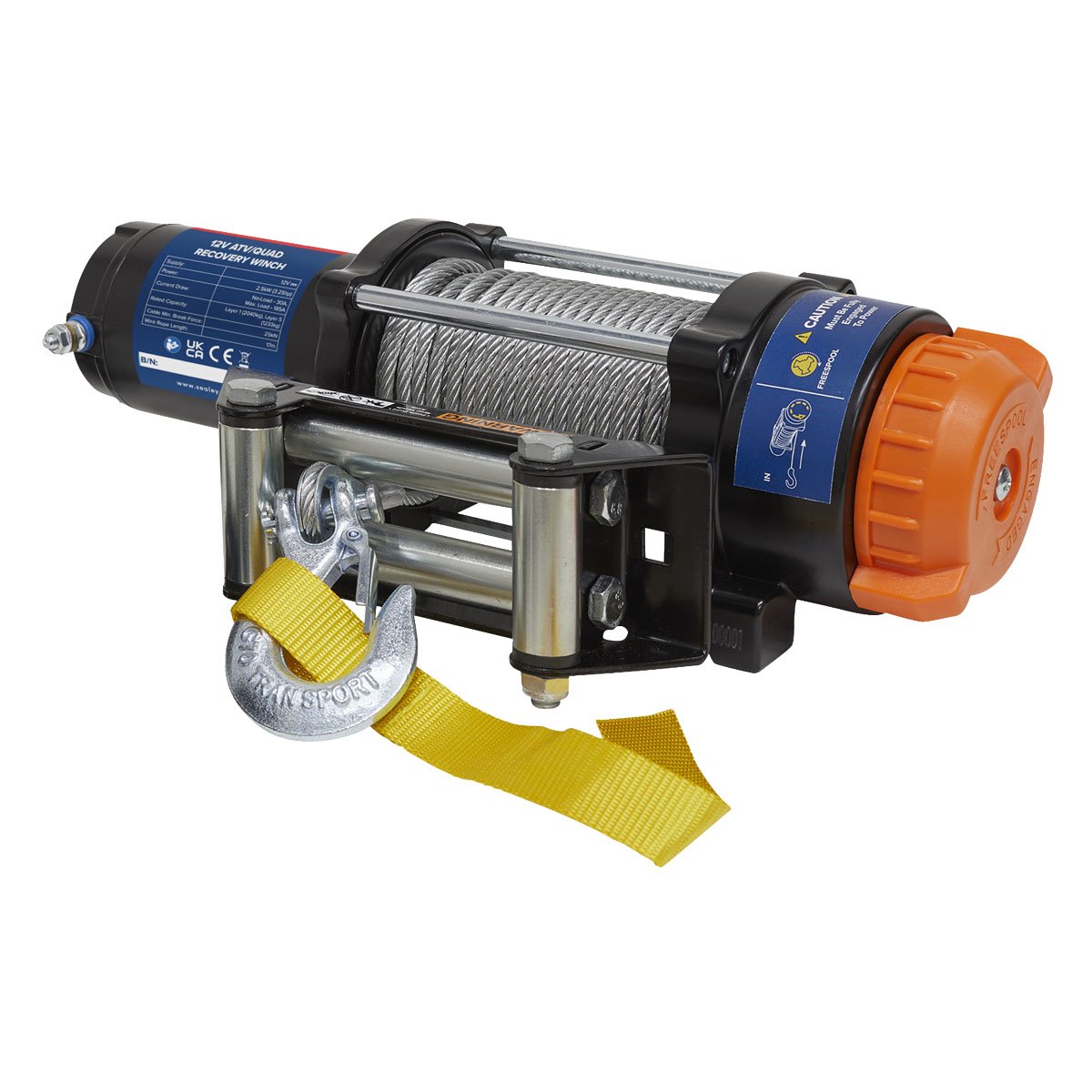

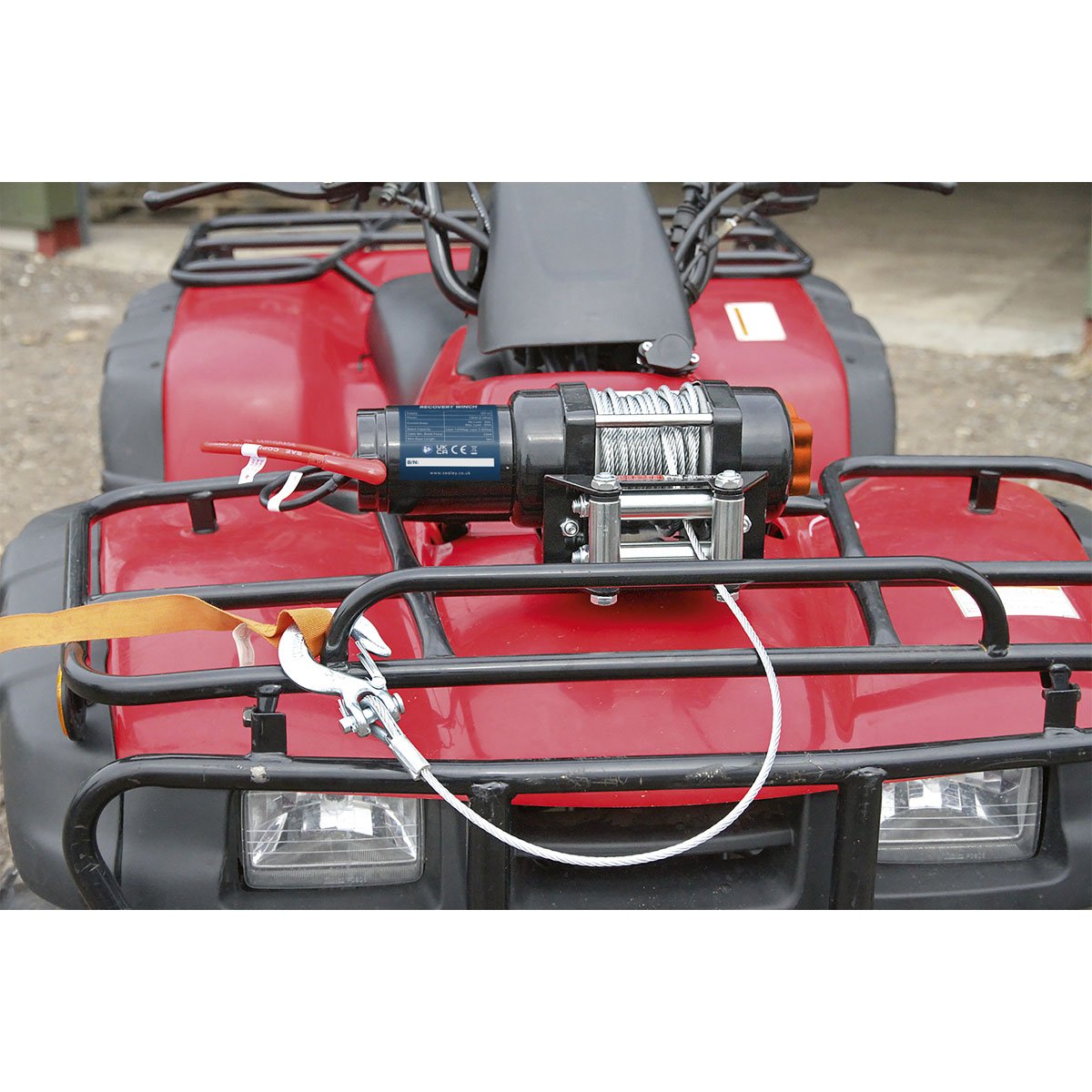

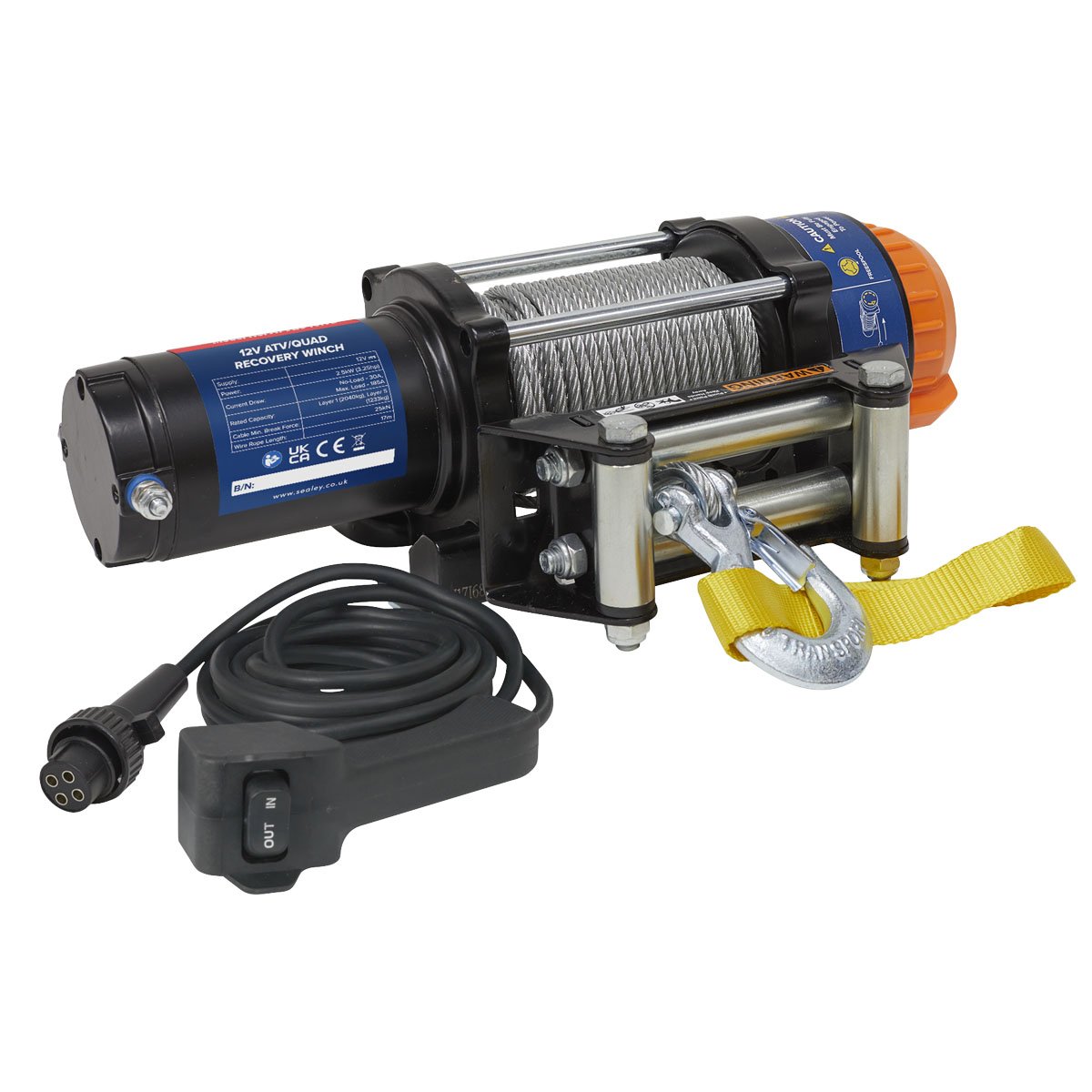

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability. High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power. All-metal chassis for long-life and low maintenance. Motor can easily be rotated 90° to meet various wiring and mounting requirements. Patented unique automatic spring brake, reliable in full load operation. High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.

Model Number: ATV2040
Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.
High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power.
All-metal chassis for long-life and low maintenance.
Motor can easily be rotated 90� to meet various wiring and mounting requirements.
Patented unique automatic spring brake, reliable in full load operation.
High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.
Cable Length: 17m.
Line Pull*: 2040kg(4500lb).
IP67 rated.
Gear Ratio: 180:1.
*Performance quoted at first layer of cable on drum.
Warranty: 1 year Years
Sealey catalogue page number: 1364
Variant number of the model: 002

Specification:

Model No	ATV2040
Brand:	Sealey
Consumable Parts:	ATV2040.WR - Wire Rope (Ø5.4mm x 17m) for ATV2040, ATV2040.DR - Dyneema Rope (Ø5.5mm x 17m) for ATV2040
Current Draw:	No-Load - 30A, Maximum Load - 185A
Gear Ratio:	180:1
Line Pull*:	2040kg(4500lb)
Line Speed*:	No Load - 4.5m/min, Maximum Load - 1.3m/min
Motor Power:	2.5kW(3.25hp)
Nett Weight:	13.9kg
Note:	*Performance quoted at first layer of cable on drum
Rated Capacity:	Layer 1: 2043kg, Layer 4: 1234kg
Supply:	12V
Wire Rope Diameter:	5.4mm
Wire Rope Length:	17m
