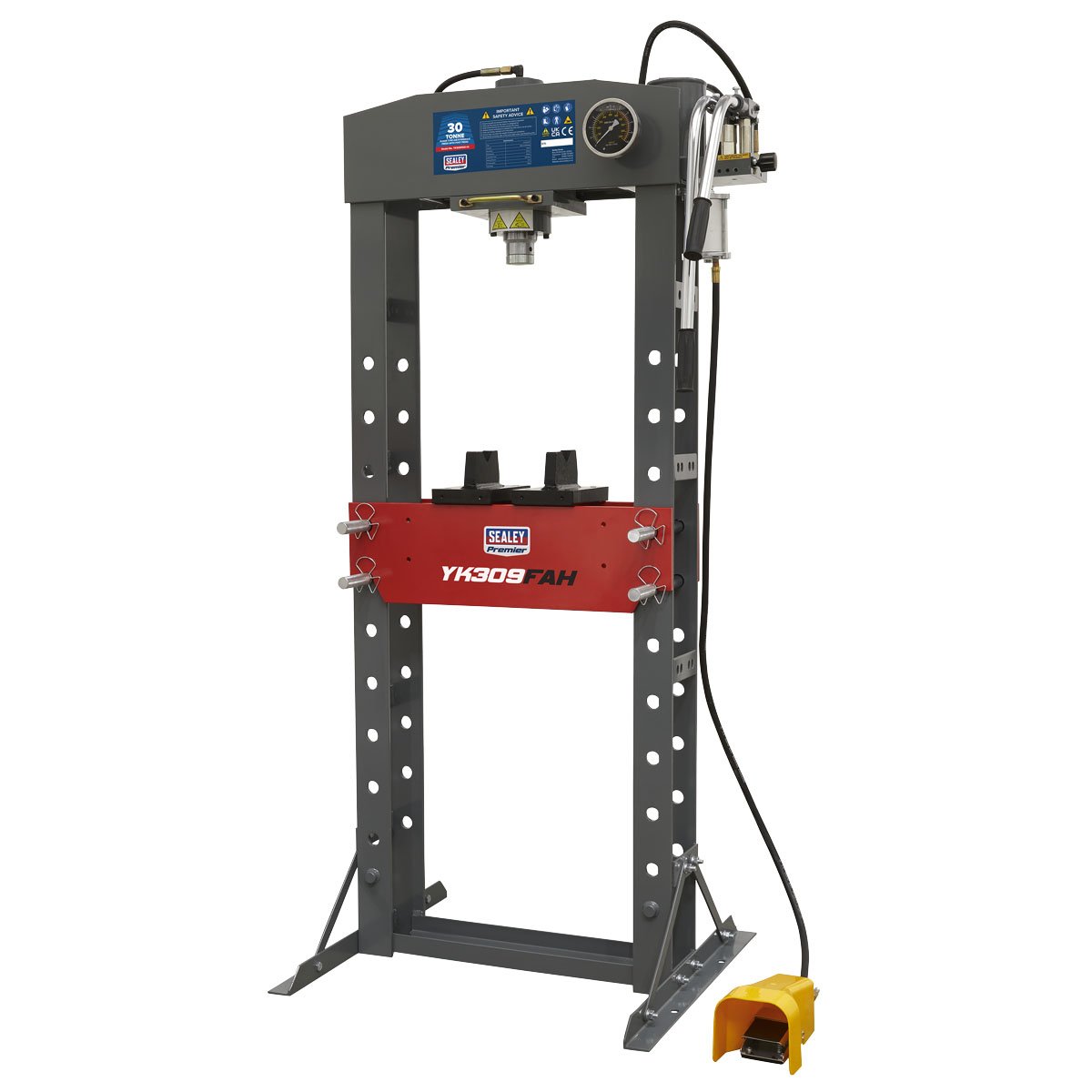

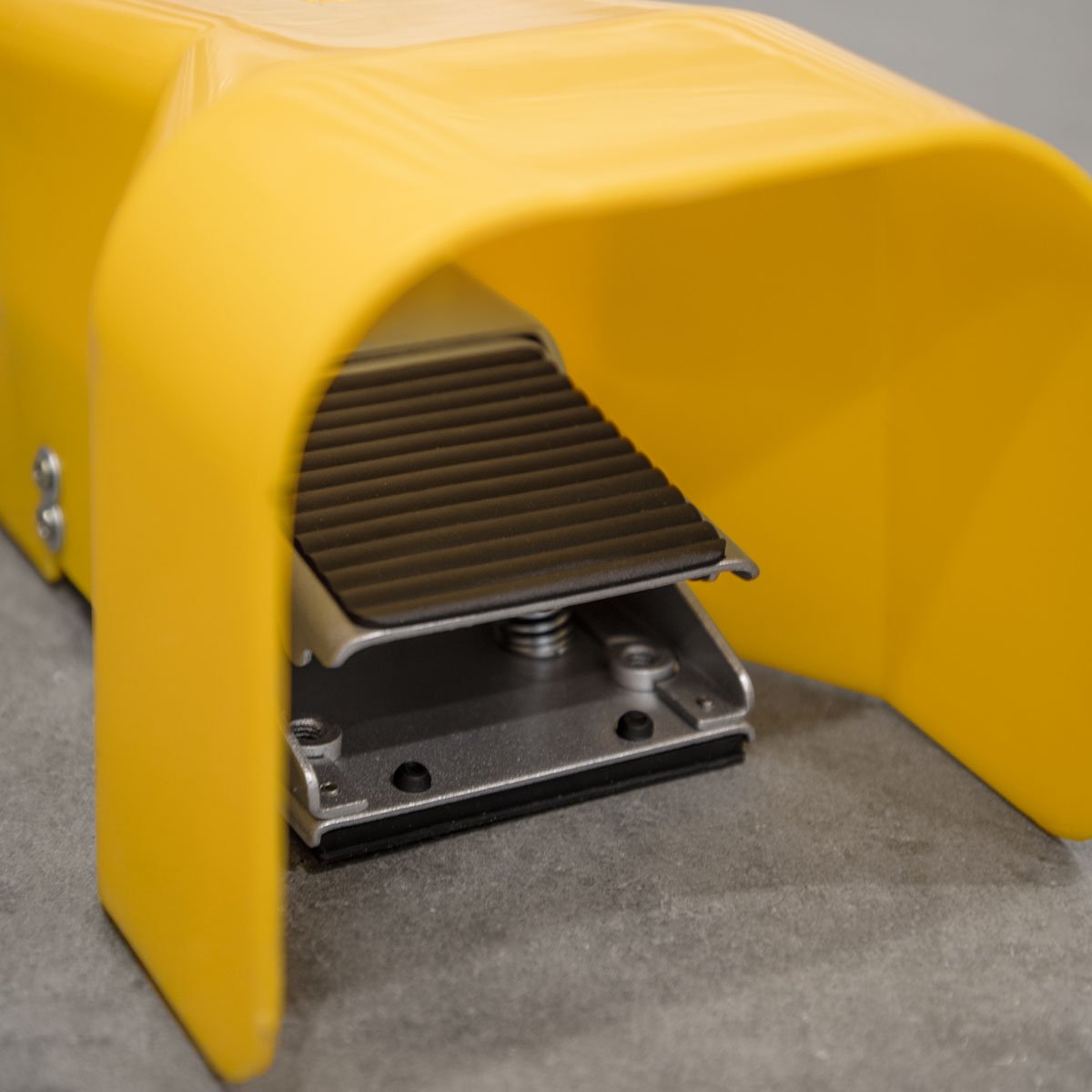

Sealey Premier Air/Hydraulic Floor Type Press with Foot Pedal 30 Tonne

Description

Delivery Information

Ask a question

Material Safety Data Sheet

Parts Diagrams

Instructions

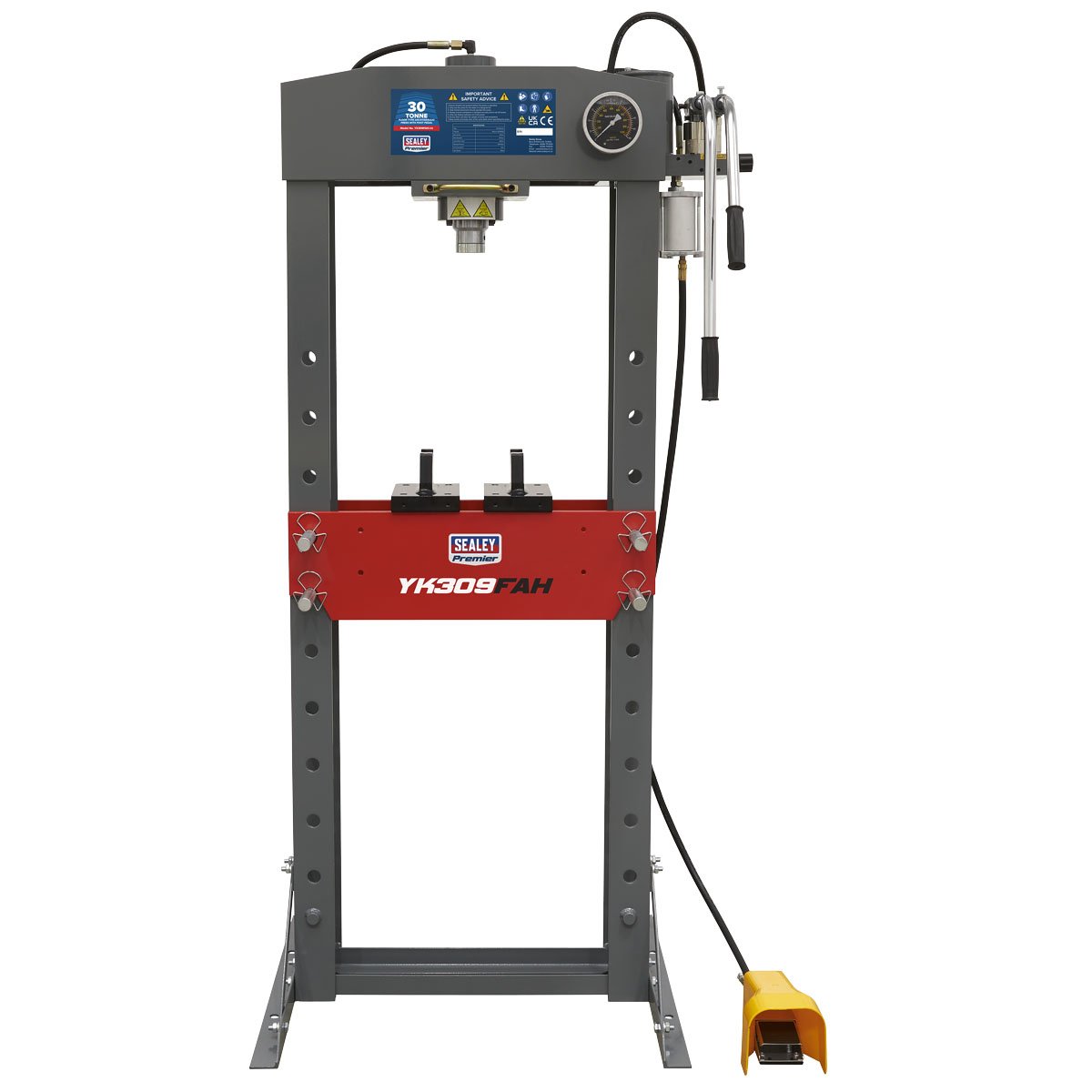

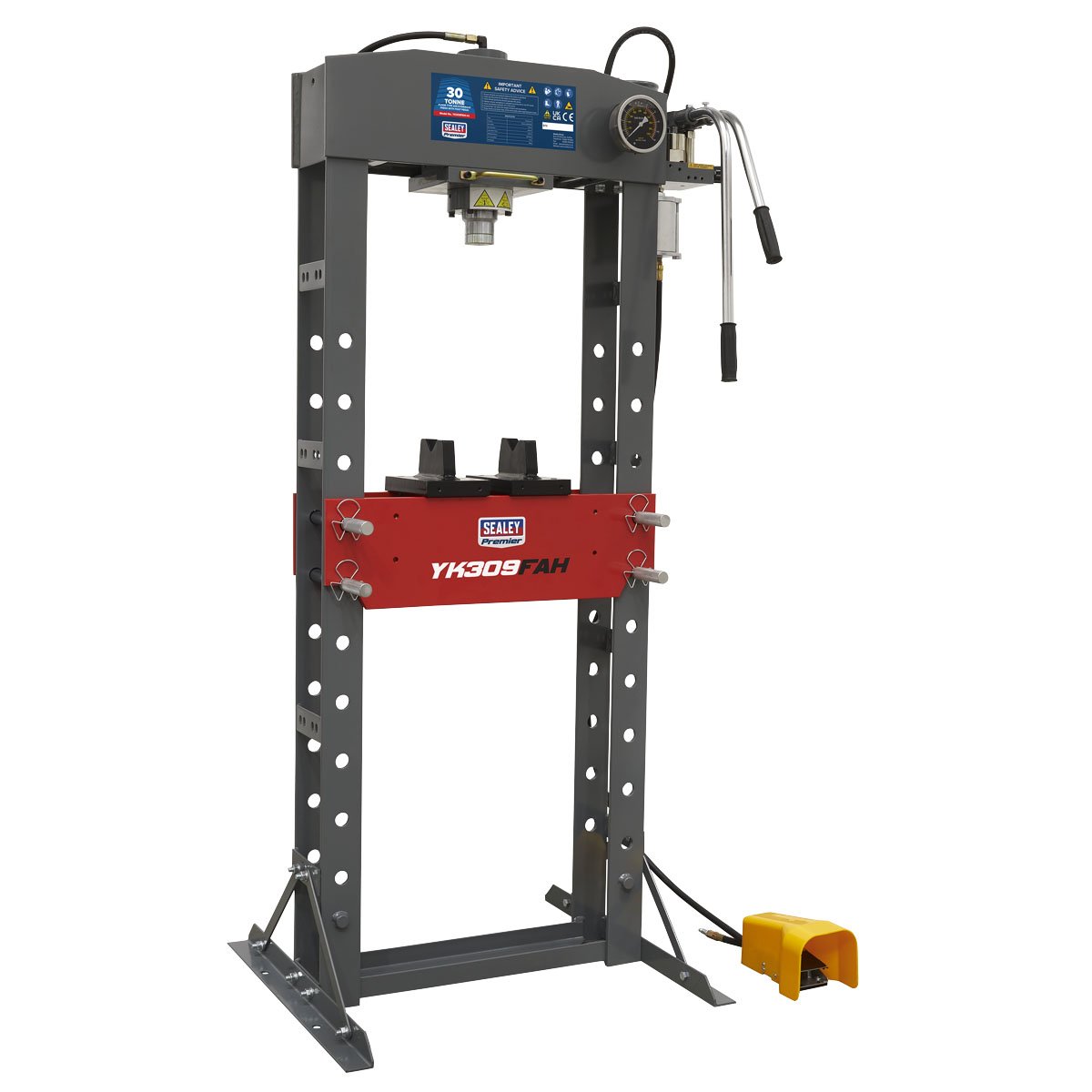

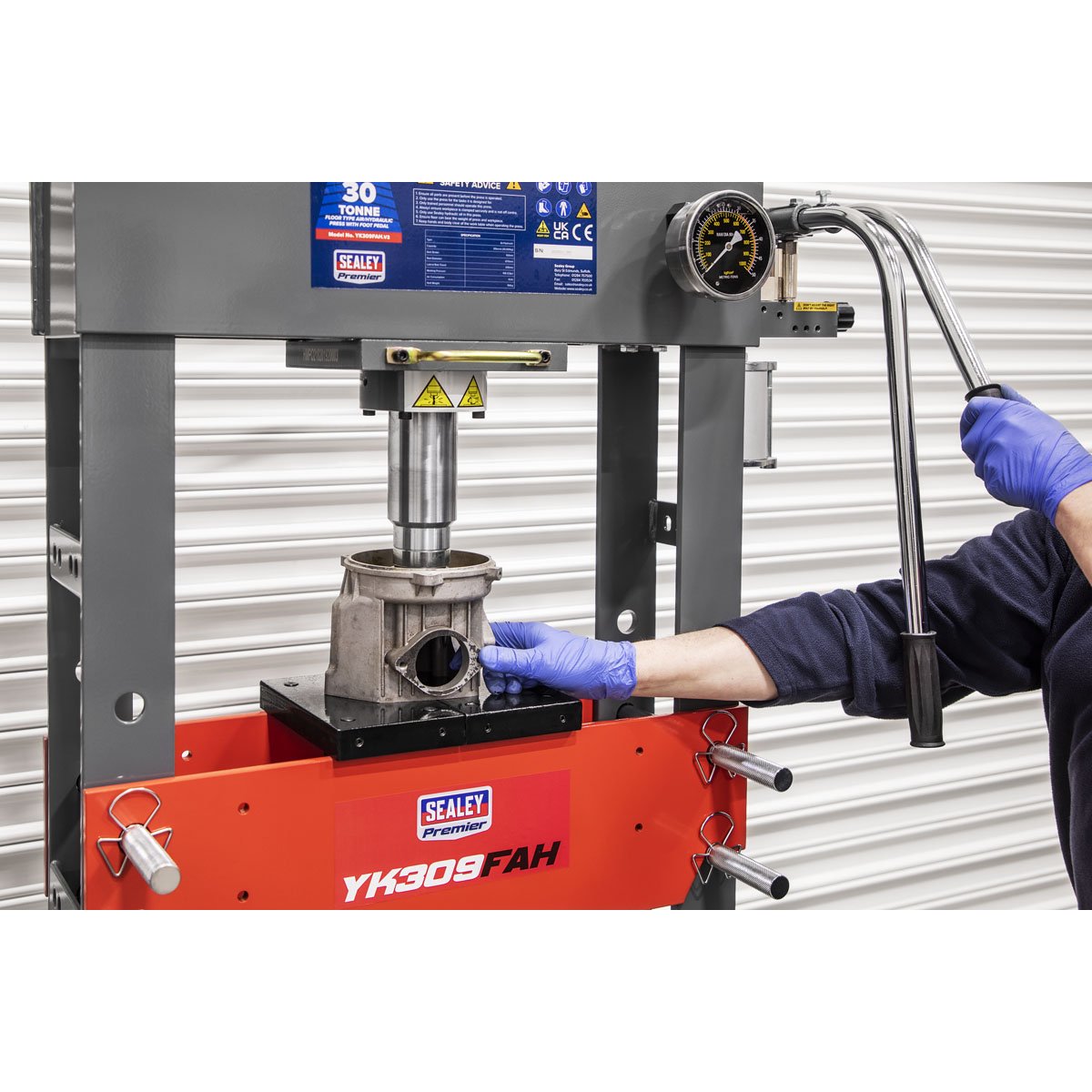

Steel frame construction. Side mounted, air motor powering hydraulic pump unit with 2-speed manual operation. Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.

Model Number: YK309FAH

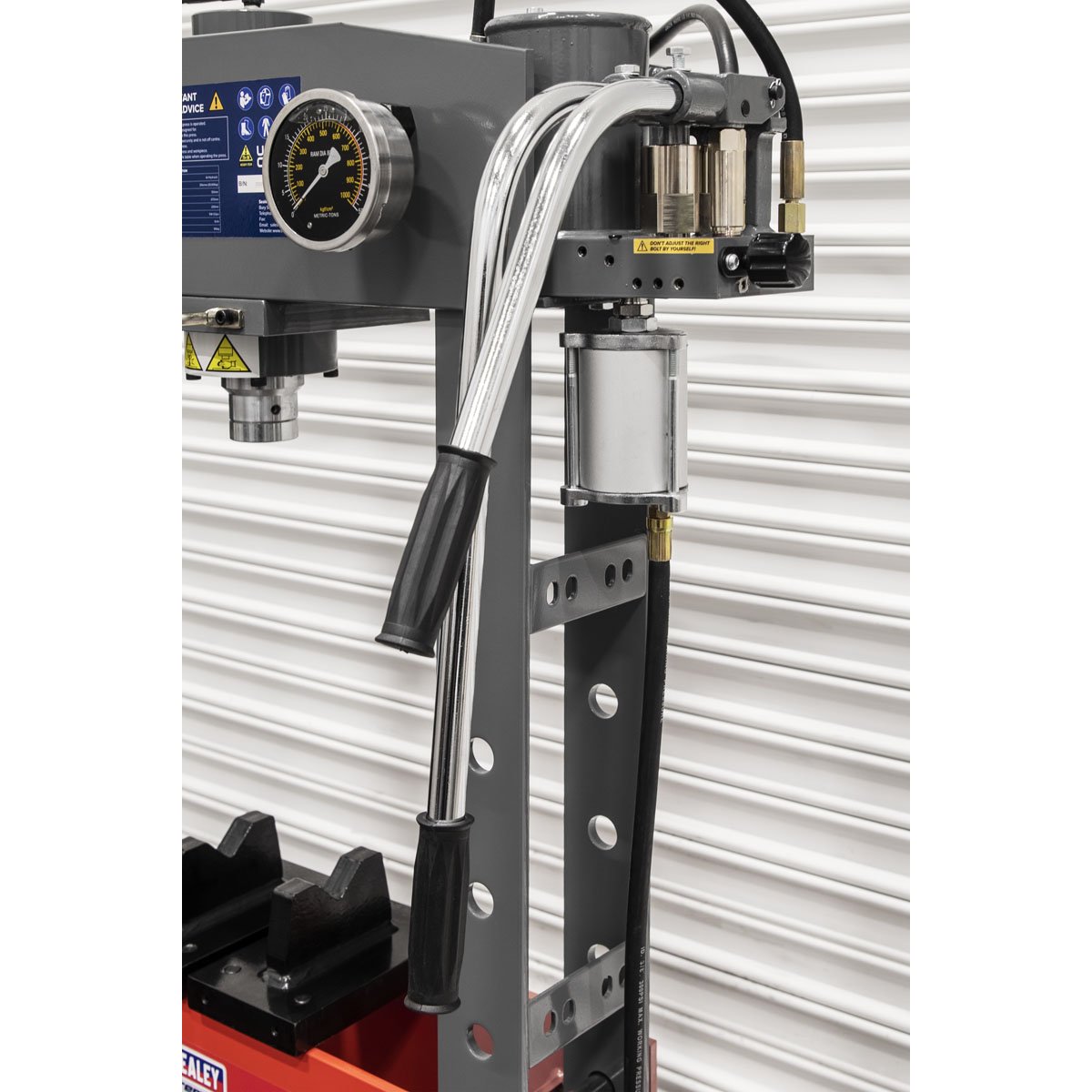

Heavy-duty steel frame construction with side mounted air motor powering hydraulic pump unit.
2-Speed manual operation.

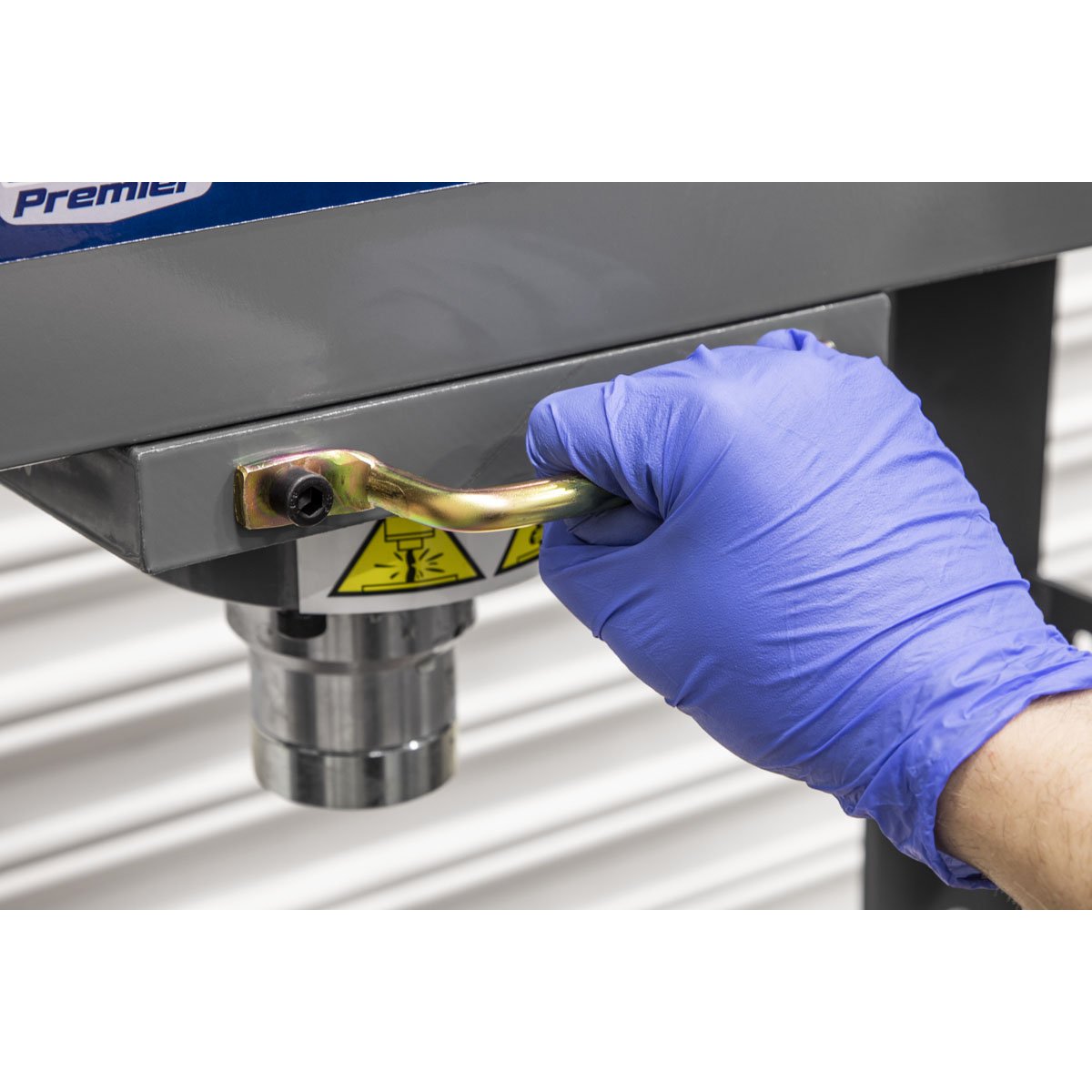

Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.

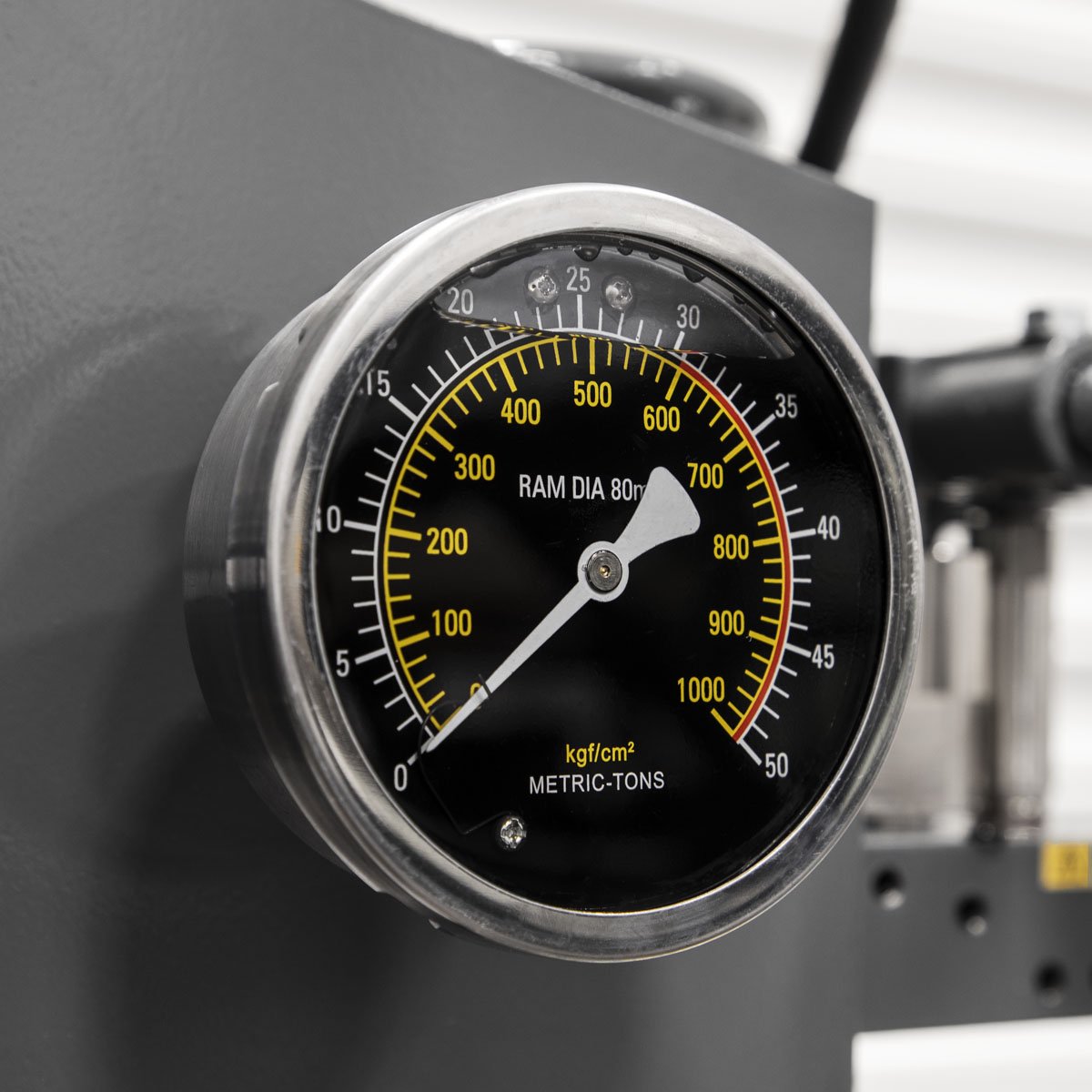

Fitted with ram pressure gauge.

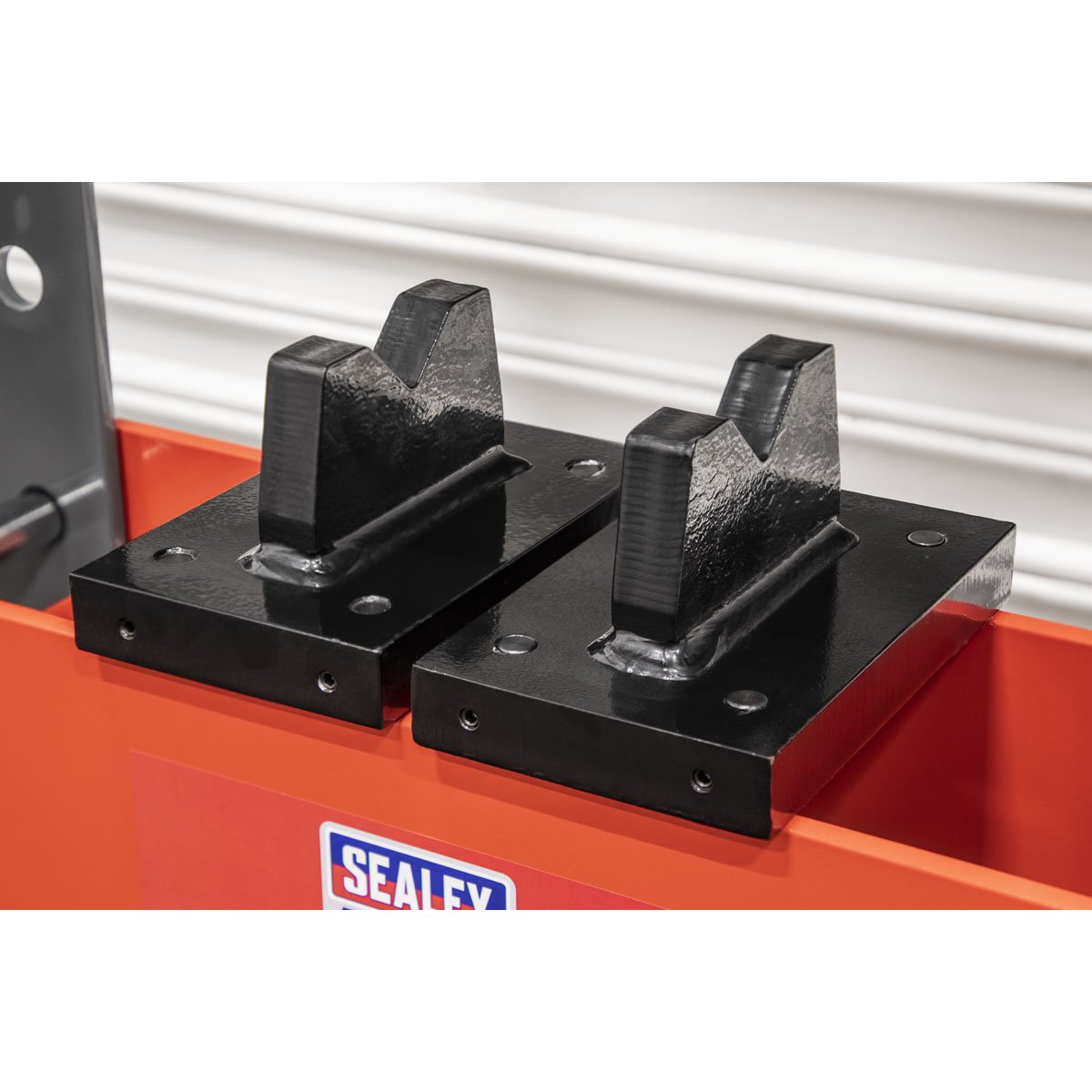

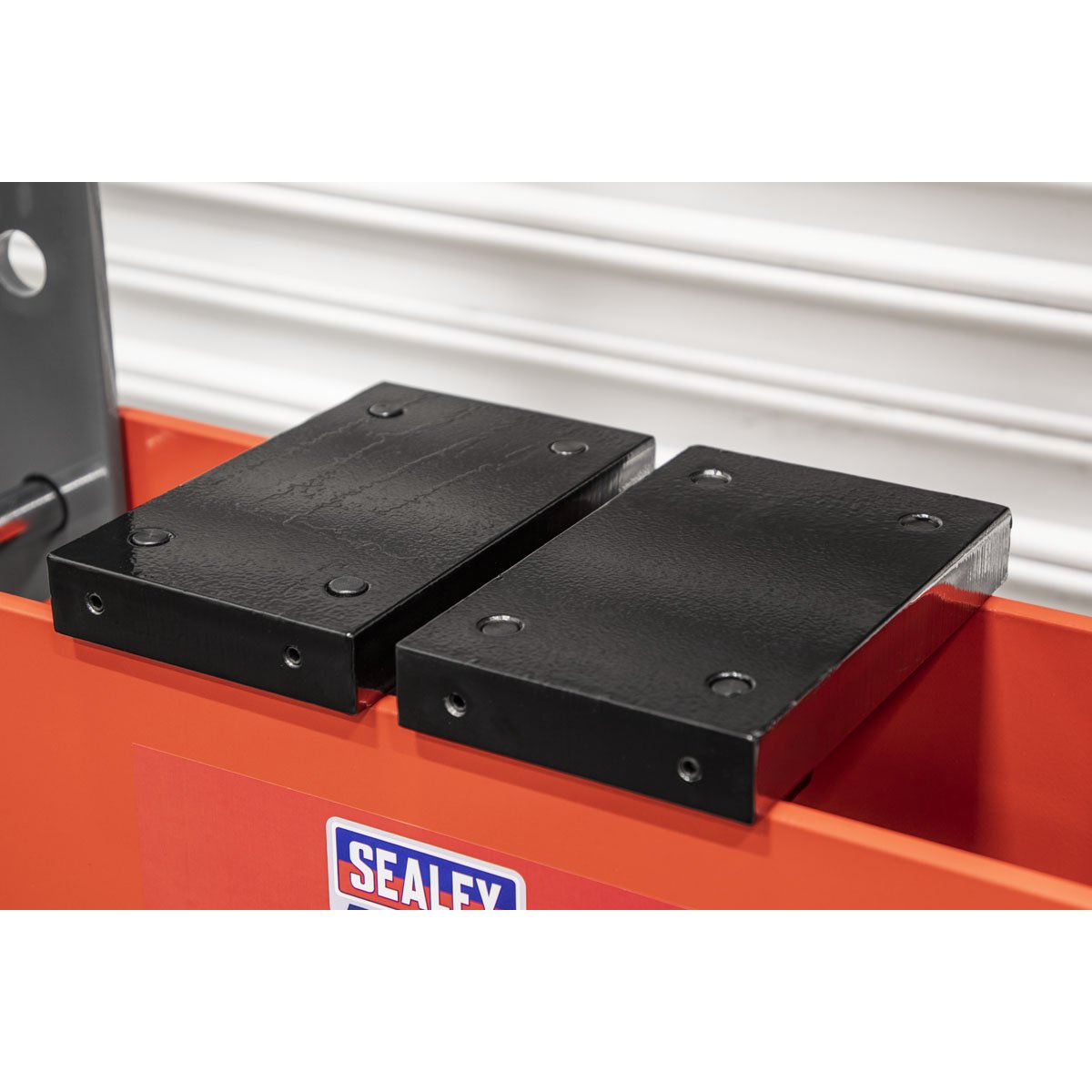

Supplied with flat pressing plate/V-blocks.
5 Year guarantee*.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Warranty: 5 years Years
Sealey catalogue page number: 328
Variant number of the model: 002

Specification:

Model No	YK309FAH
Air Consumption:	9cfm
Bench or Floor Mounting:	Floor
Brand:	Premier
Capacity:	30 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	200mm

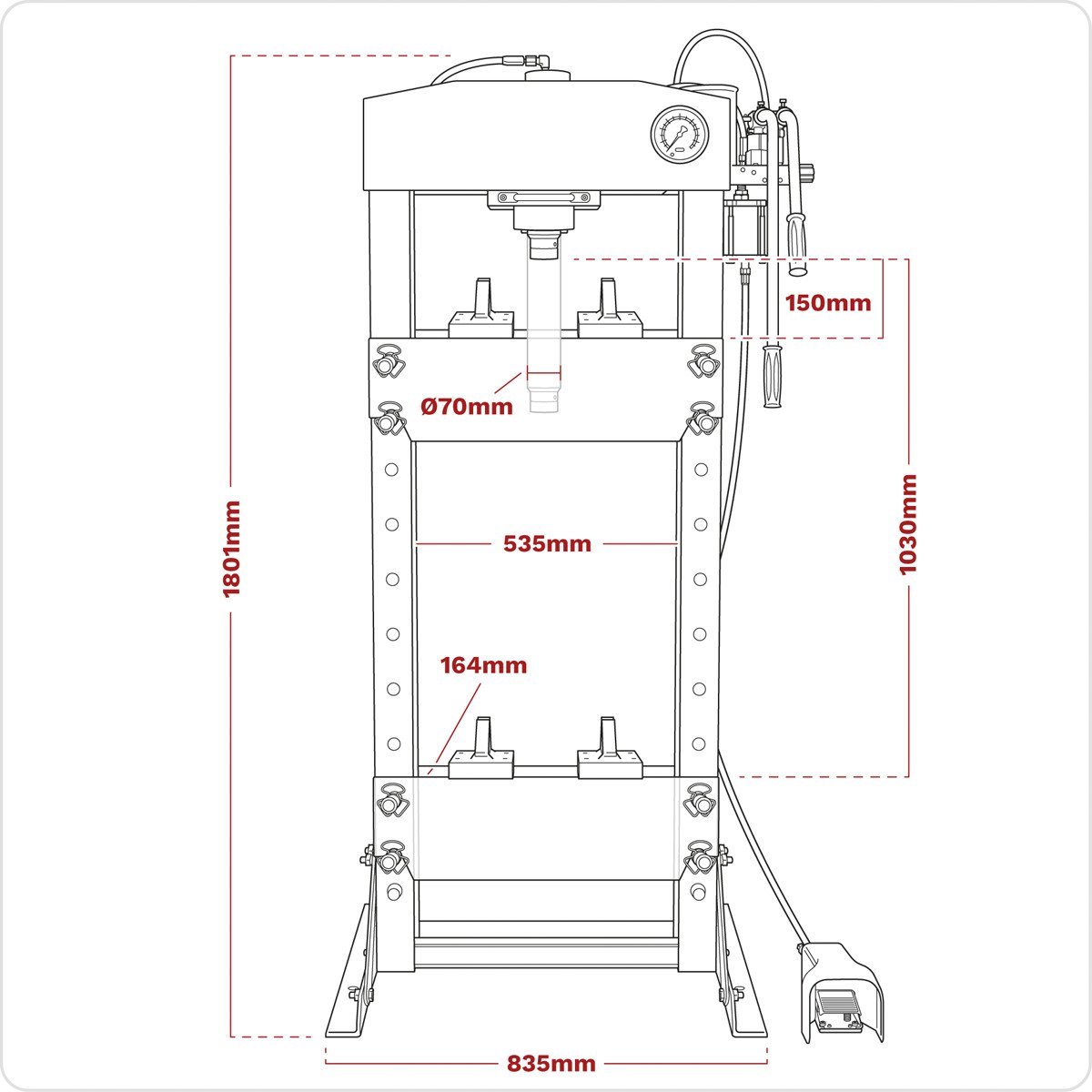

Maximum Height - Ram to Table:	1030mm
Minimum Height - Ram to Table:	150mm
Nett Weight:	168kg
Operating Table Width:	535mm
Optional Accessories:	YKSG30 - Safety Guard, YKPP8 - Press Pin Set
Overall Height:	1801mm
Ram Diameter:	Ø70mm
Ram Stroke:	150mm
Table Aperture:	164mm
Type:	Air/Hydraulic
Working Table Depth:	184mm
Working Table Width:	695mm
