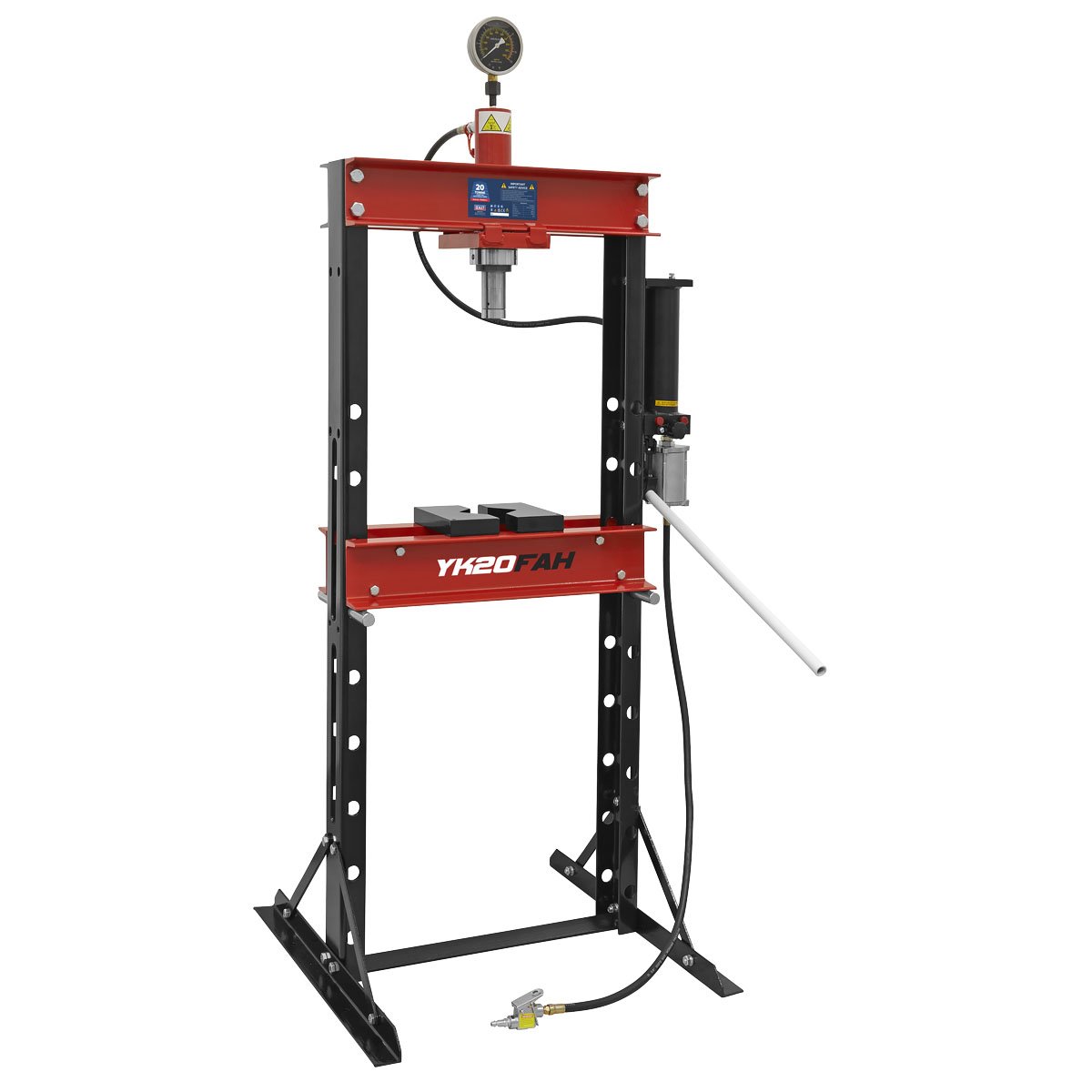

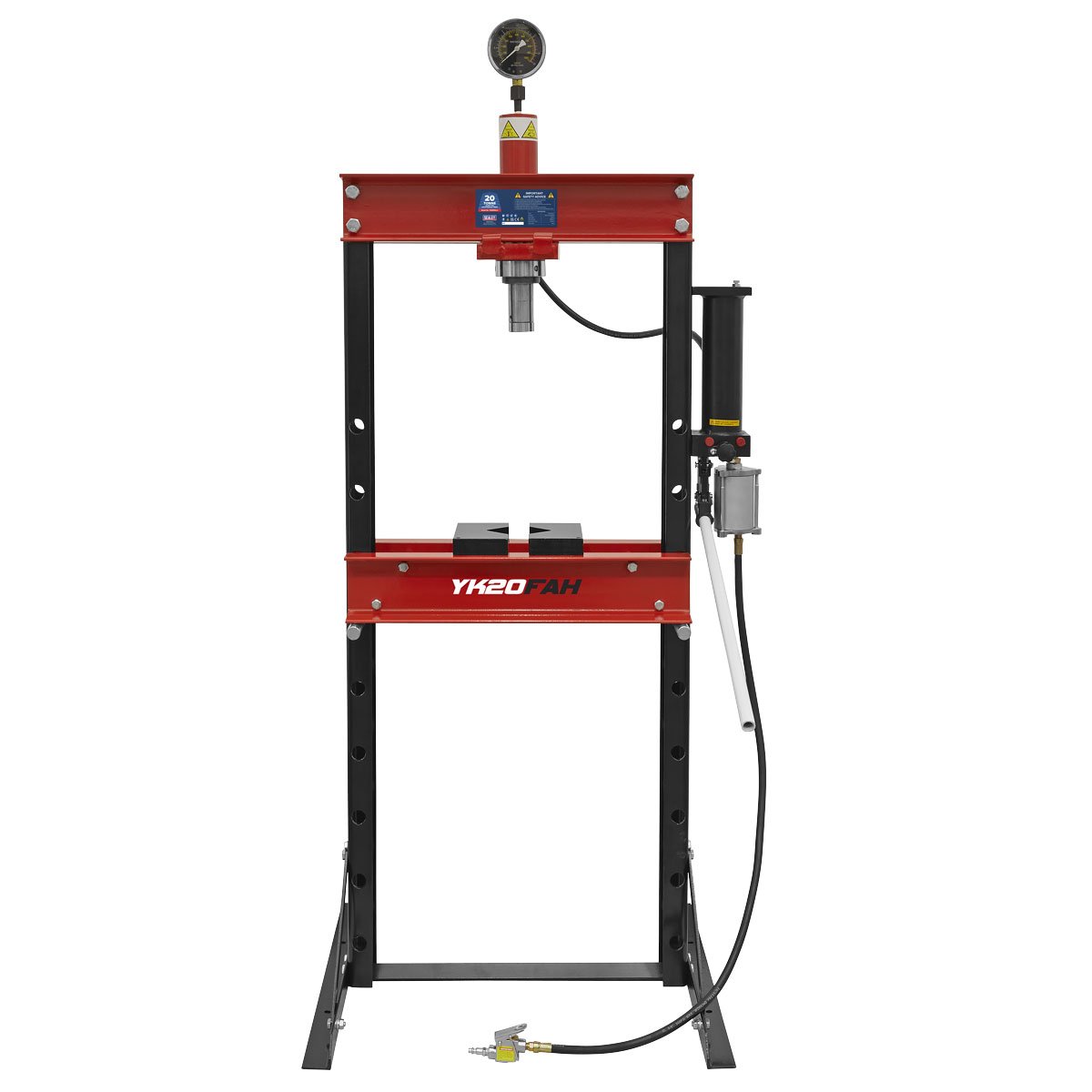

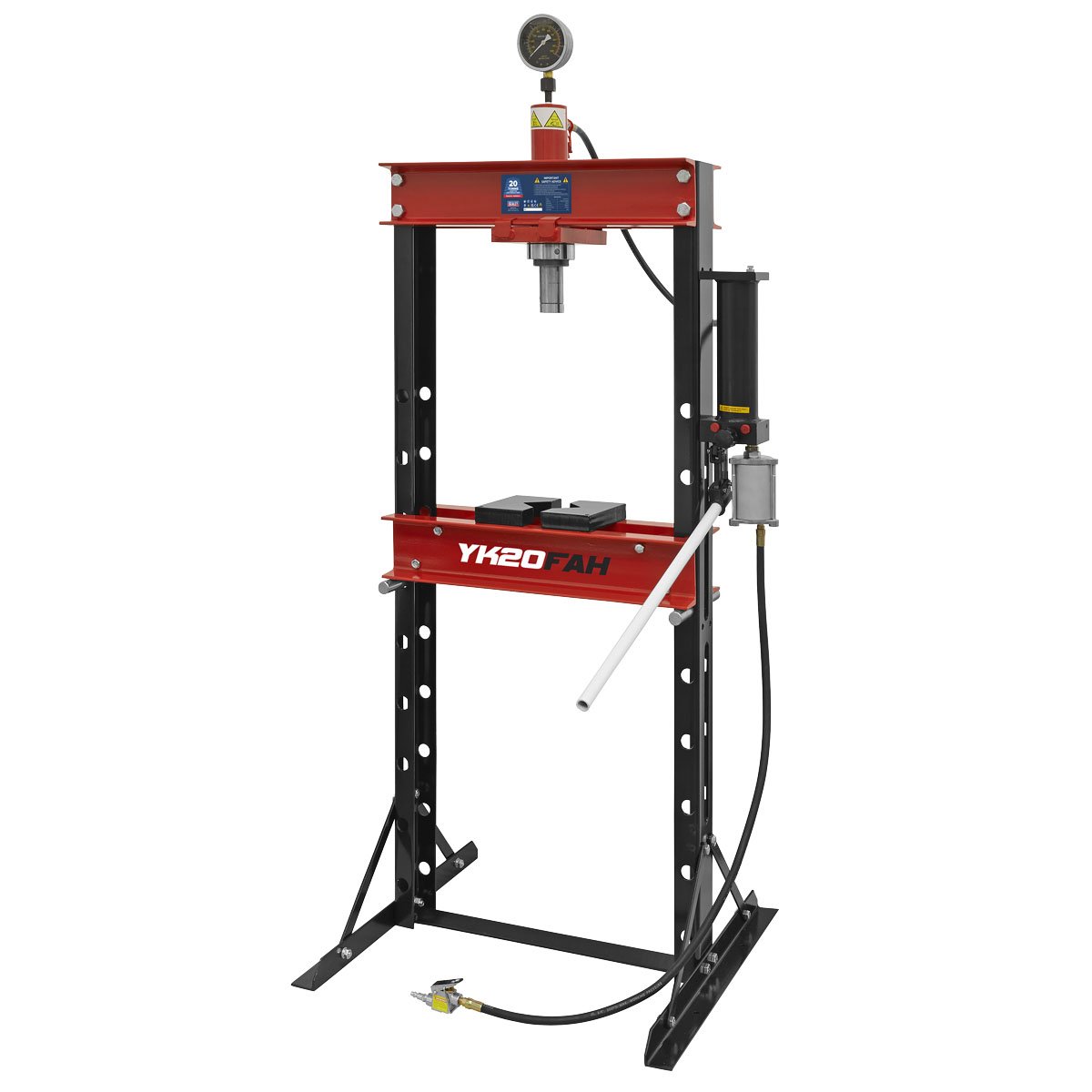

Steel frame construction with side mounted, air motor powering hydraulic pump unit. Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.

Model Number: YK20FAH
Steel frame construction with side mounted air motor powering hydraulic pump unit.
Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications.

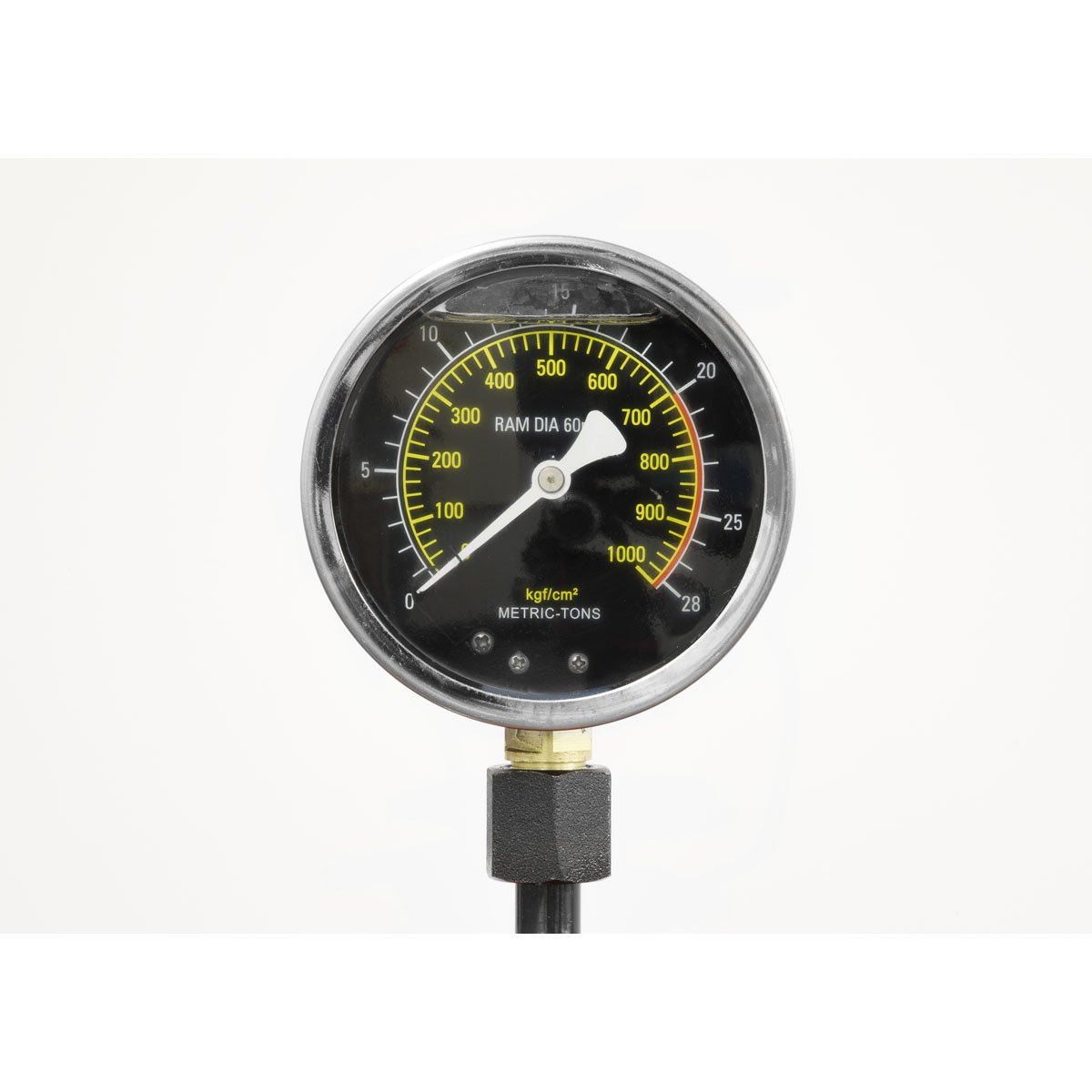

Fitted with ram pressure gauge.

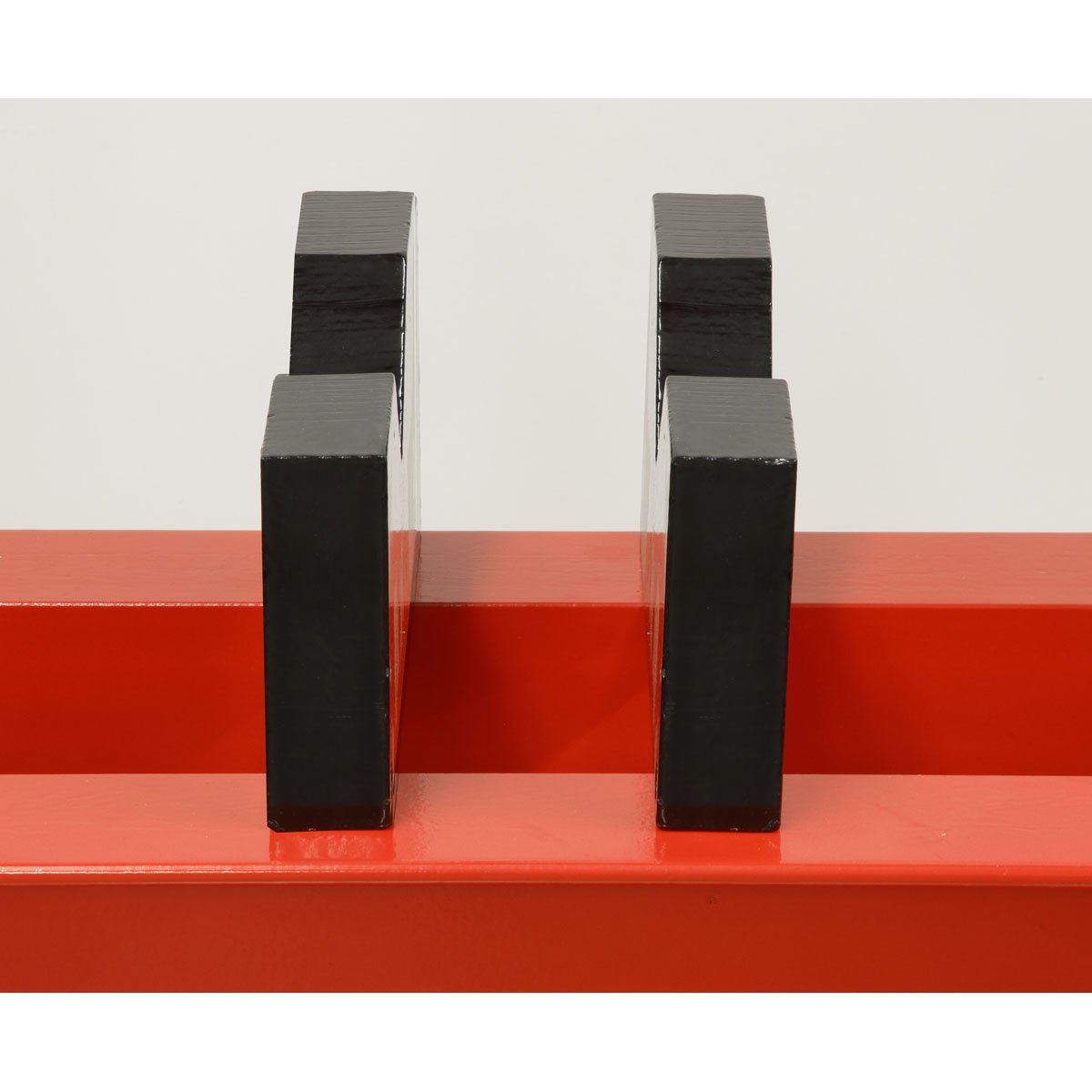

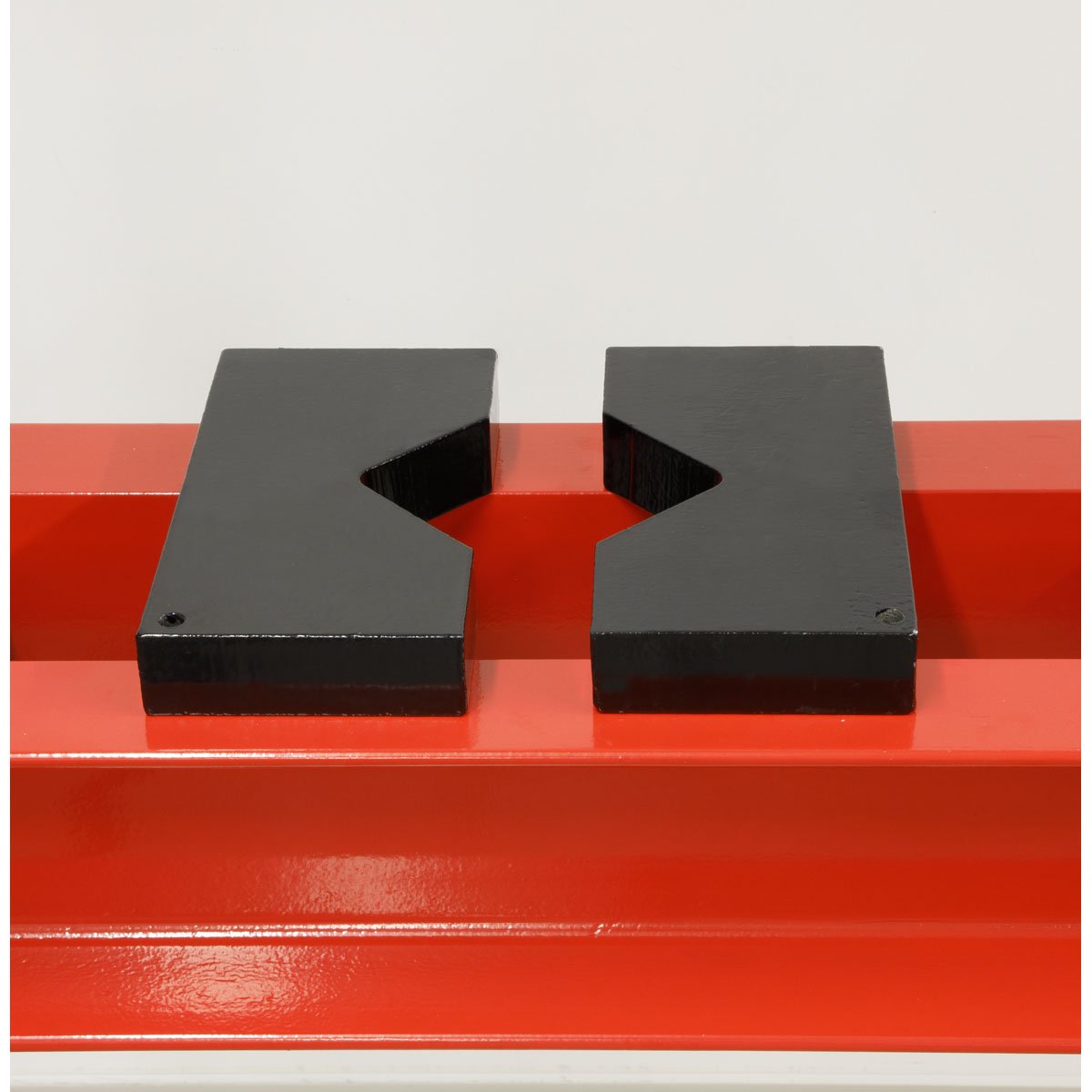

Supplied with flat pressing plate/V-blocks.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Warranty: 1 year Years
Sealey catalogue page number: 327
Variant number of the model: 003

Specification:

Model No	YK20FAH
Air Consumption:	7.06cfm
Bench or Floor Mounting:	Floor
Brand:	Sealey
Capacity:	20 Tonne
Gauge Included:	Yes
Lateral Ram Travel:	176mm
Maximum Height - Ram to Table:	1018mm
Minimum Height - Ram to Table:	58mm
Nett Weight:	93kg
Operating Table Width:	542mm
Optional Accessories:	YKPP8 - Press Pin Set
Overall Height:	1796mm
Ram Diameter:	Ø48mm
Ram Stroke:	185mm
Table Aperture:	105mm
Type:	Air/Hydraulic
Working Table Depth:	211mm
Working Table Width:	630mm
