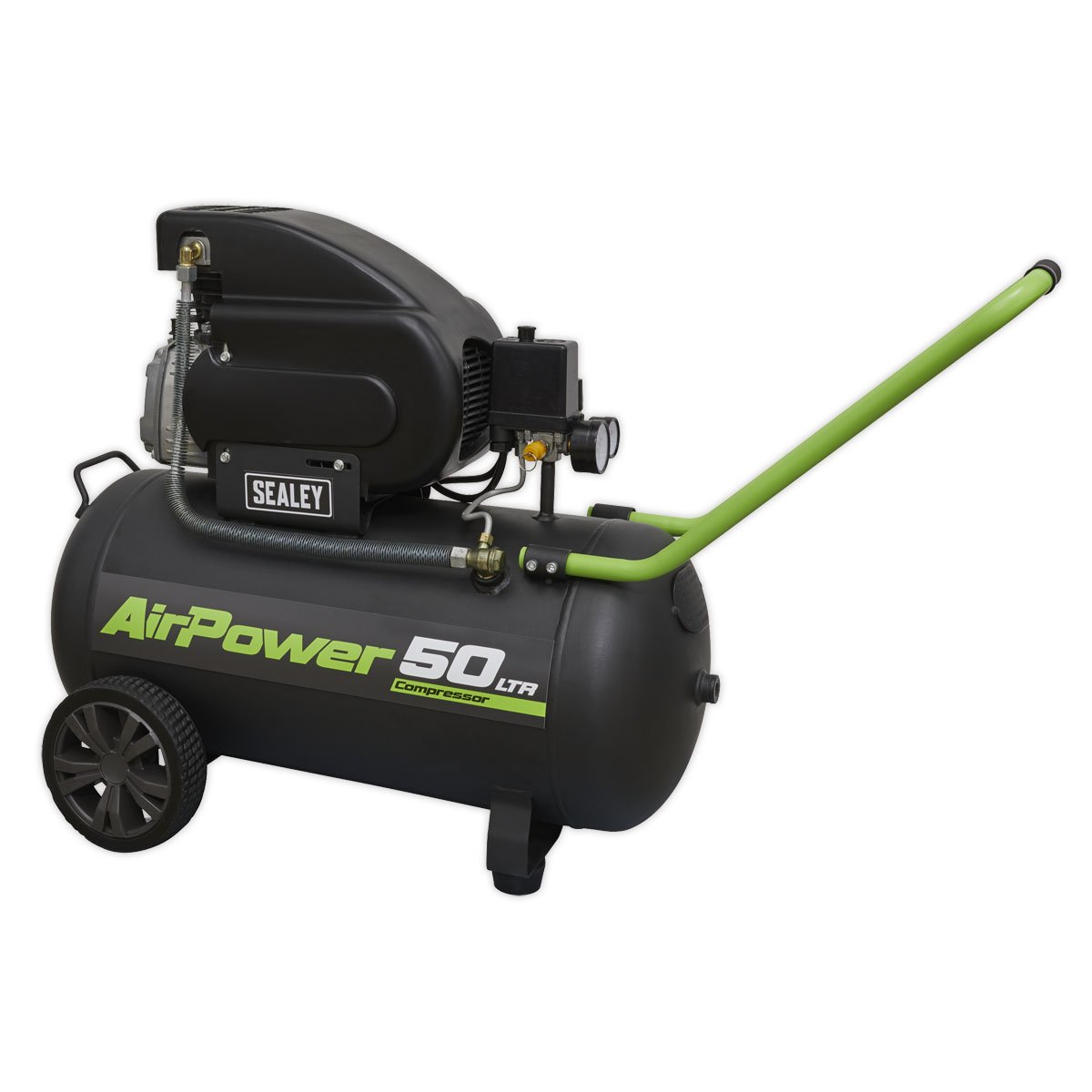

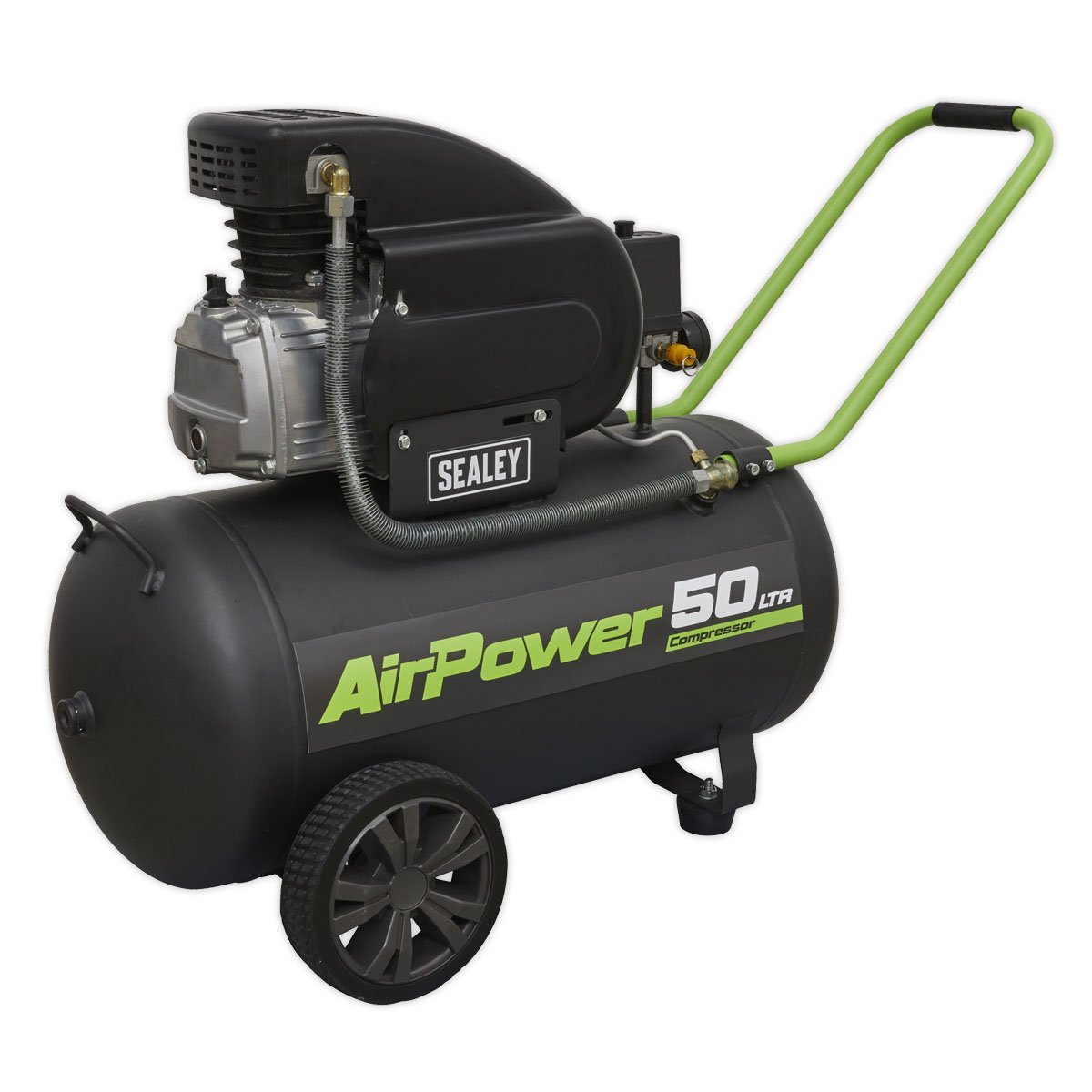

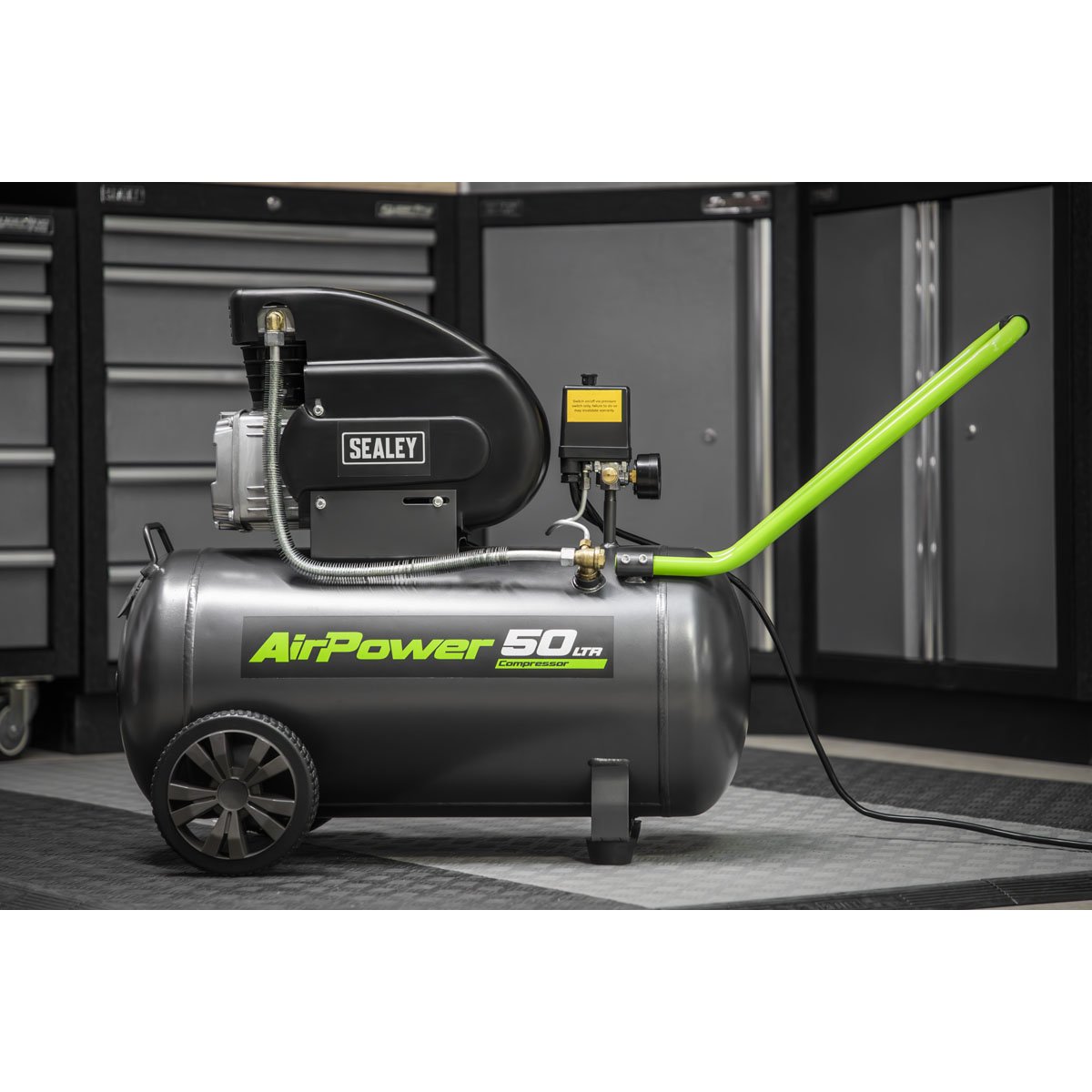

Sealey 50L Direct Drive Air Compressor 2hp

Description

Delivery Information

Ask a question

Instructions

Parts Diagrams

Aluminium cylinder head with cast iron cylinder gives added resistance to wear. Suitable for general-purpose workshop applications. Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation. Precision welded receiver tank manufactured to meet Pressure Vessel Directive. Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures. Fitted with 3-pin plug.

Model Number: SAC5020E
Air Displacement: 6.8cfm(193L/min).
Maximum Free Air Delivery: 4.6cfm(130L/min).
Maximum Pressure: 116psi(8bar).
Aluminium cylinder head with cast iron cylinder gives added resistance to wear.
Suitable for general-purpose workshop applications.
Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation.
Precision welded receiver tank manufactured to meet Pressure Vessel Directive.

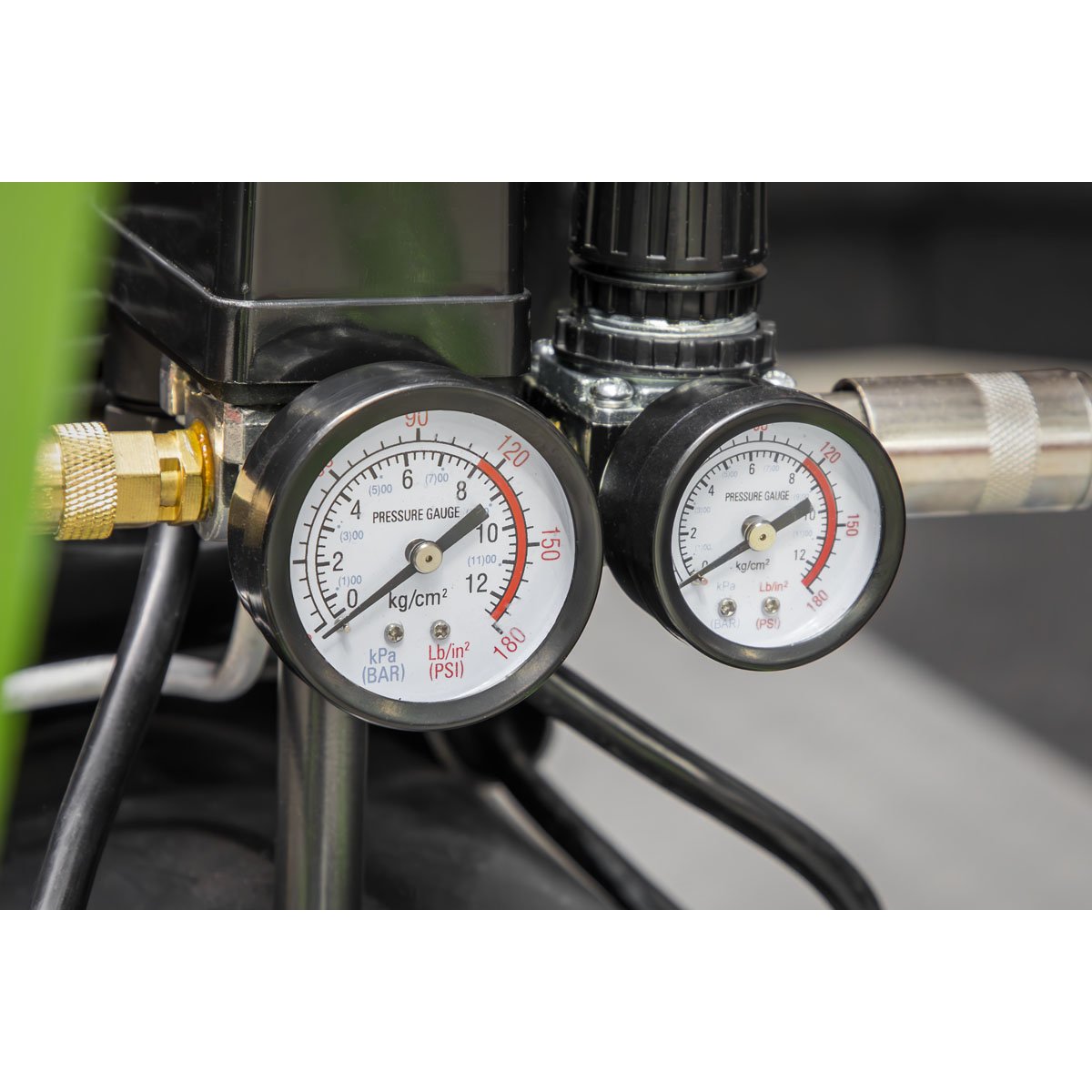

Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
Fitted with 3-pin plug.
Warranty: 1 year Years
Sealey catalogue page number: 772
Variant number of the model: 003

Specification:

Model No	SAC5020E
Air Displacement cfm(L/min):	6.8(193)
Brand:	Sealey
Maximum Free Air Delivery cfm(L/min):	4.6(130)
Maximum Pressure:	116psi(8bar)
Minimum Rated Supply:	13A
Motor Output:	2hp
Nett Weight:	29.0kg
Noise Level:	96dB(A)
Oil Capacity:	0.27L

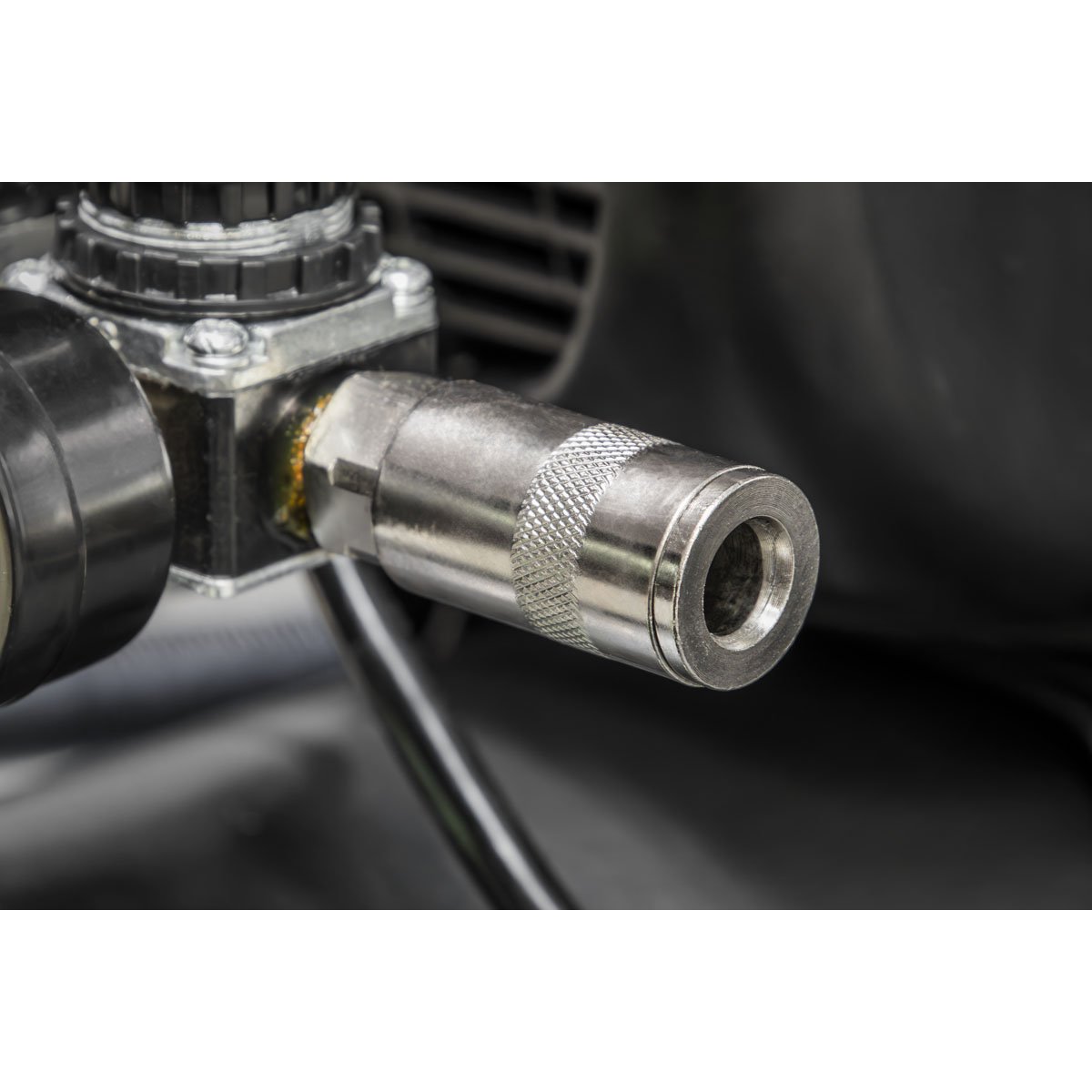

Outlet:	Quick Release Coupling
Phase:	1ph
Receiver Capacity:	50L

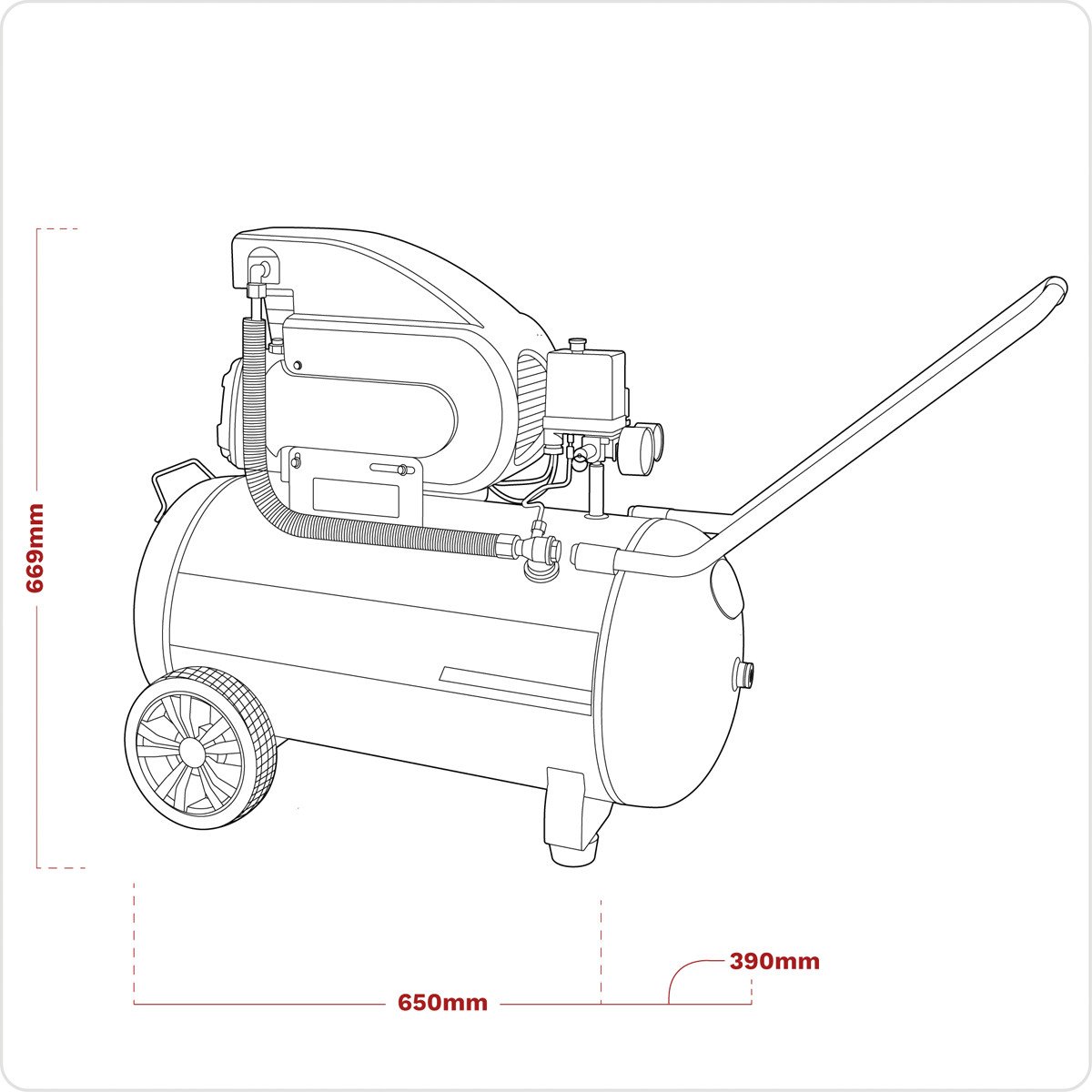

Size (W x D x H):	650 x 390 x 669mm
Supply:	230V/13A
