Sealey 270L Vertical Belt Drive Air Compressor with Cast Cylinders 7.5hp 3ph 2-Stage

Description

Delivery Information

Ask a question

Material Safety Data Sheet

Instructions

Parts Diagrams

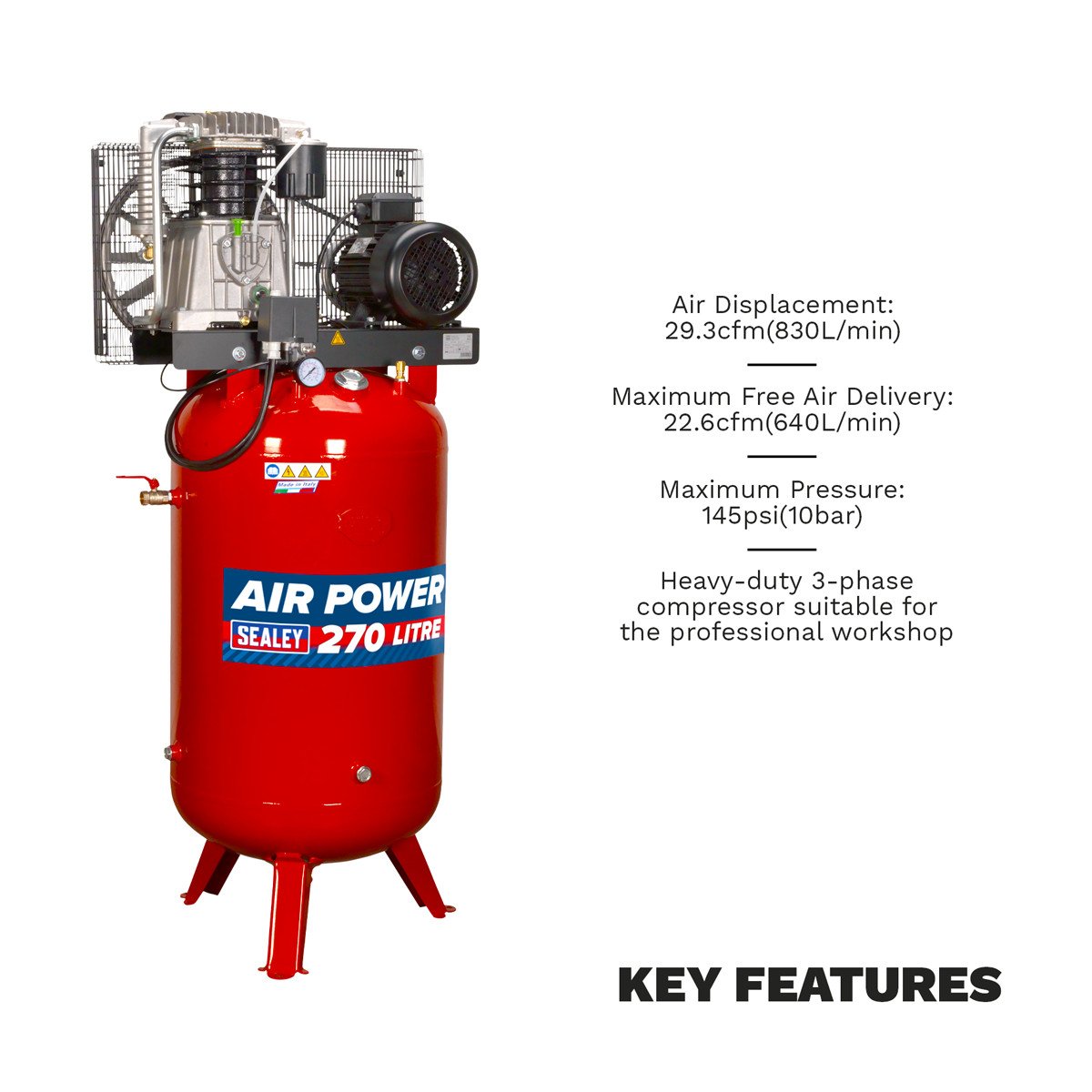

Heavy-duty 3-phase compressor suitable for the professional workshop. 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

Model Number: SACV52775B
Air Displacement: 29.3cfm(830L/min).
Maximum Free Air Delivery: 22.6cfm(640L/min).
Maximum Pressure: 145psi(10bar).
Heavy-duty 3-phase compressor suitable for the professional workshop.
2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.
Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.

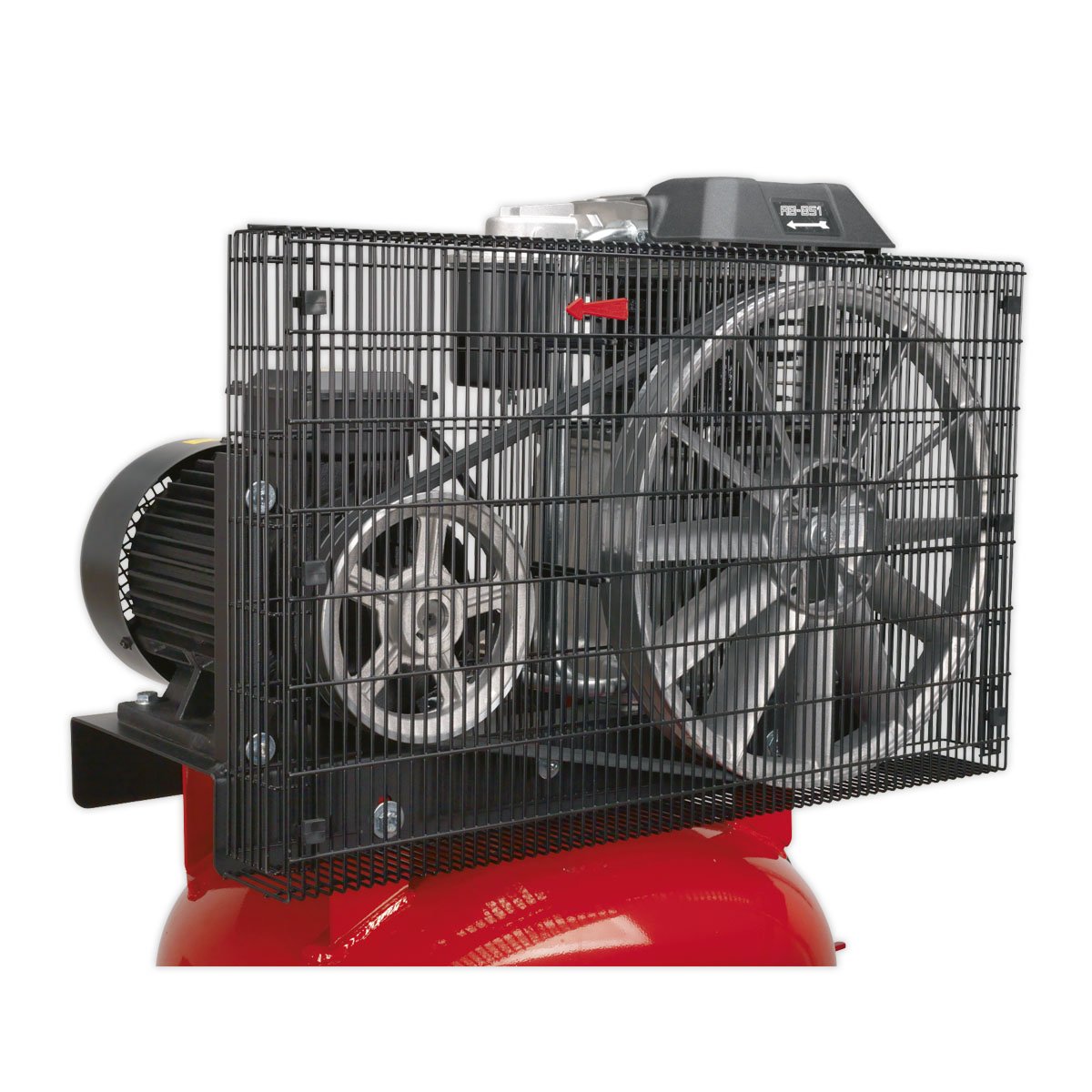

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Warranty: 1 year Years
Sealey catalogue page number: 781
Variant number of the model: 001

Specification:

Model No	SACV52775B
Air Displacement cfm(L/min):	29.3(830)
Brand:	Sealey
Maximum Free Air Delivery cfm(L/min):	22.6(640)
Maximum Pressure:	145psi(10bar)
Minimum Rated Supply:	32A
Motor Output:	7.5hp
Nett Weight:	200kg
Oil Capacity:	1.57L
Outlet:	3/4"BSP Female Tap
Phase:	3ph
Receiver Capacity:	270L
Size (W x D x H):	770 x 620 x 1775mm
Speed:	1280rpm
Supply:	415V/32A
