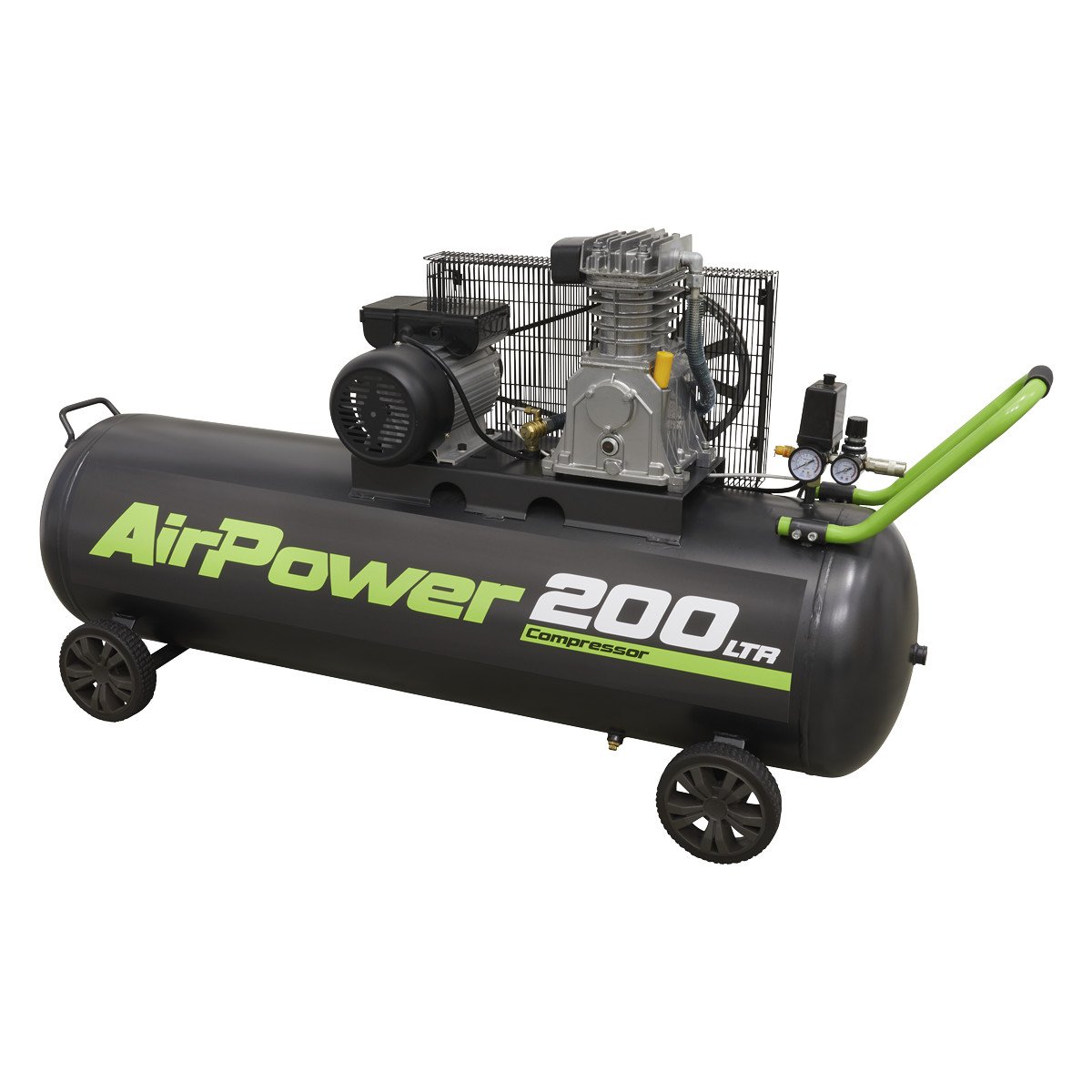

Sealey 200L Belt Drive Air Compressor 3hp

Description

Delivery Information

Ask a question

Parts Diagrams

Material Safety Data Sheet

Instructions

Belt driven pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear. Fitted with a 3hp motor. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Suitable for general-purpose workshop applications. Precision welded receiver tank manufactured to meet Pressure Vessel Directive.

Model Number: SAC20030B
Air Displacement: 10.3cfm(293L/min).
Maximum Free Air Delivery: 6.4cfm(180L/min).
Maximum Pressure: 116psi(8bar).

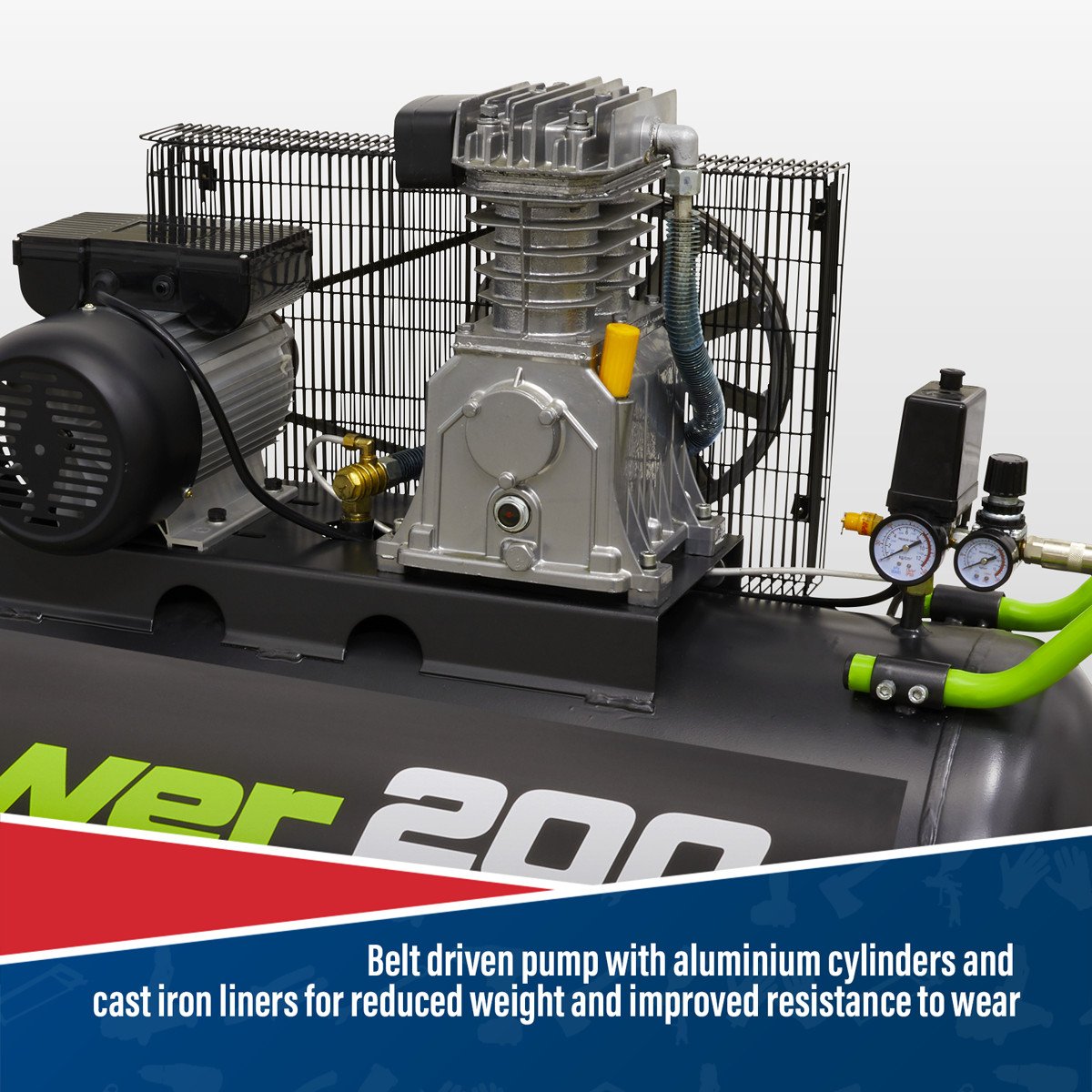

Belt driven pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear.
Fitted with a 3hp motor.

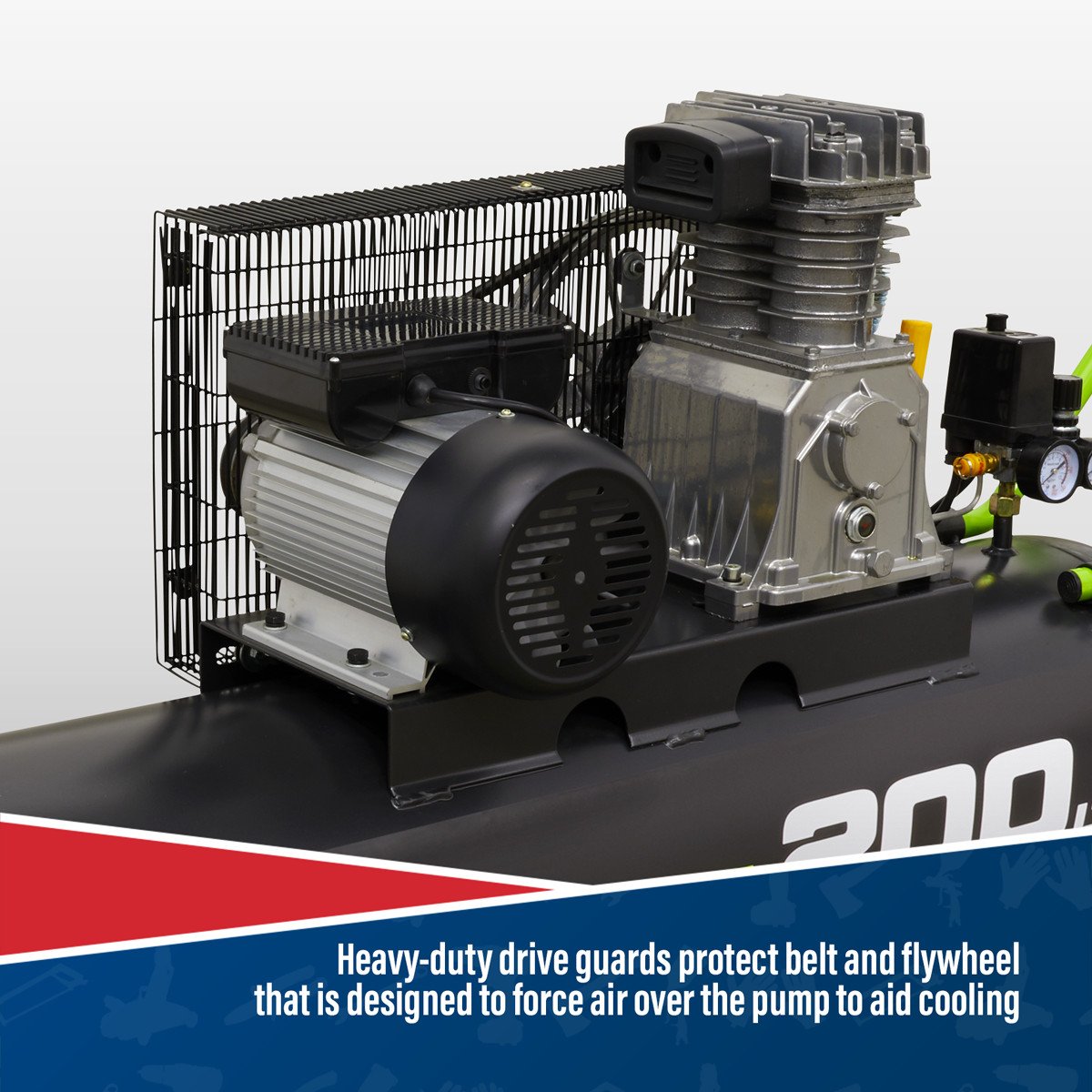

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Suitable for general-purpose workshop applications.

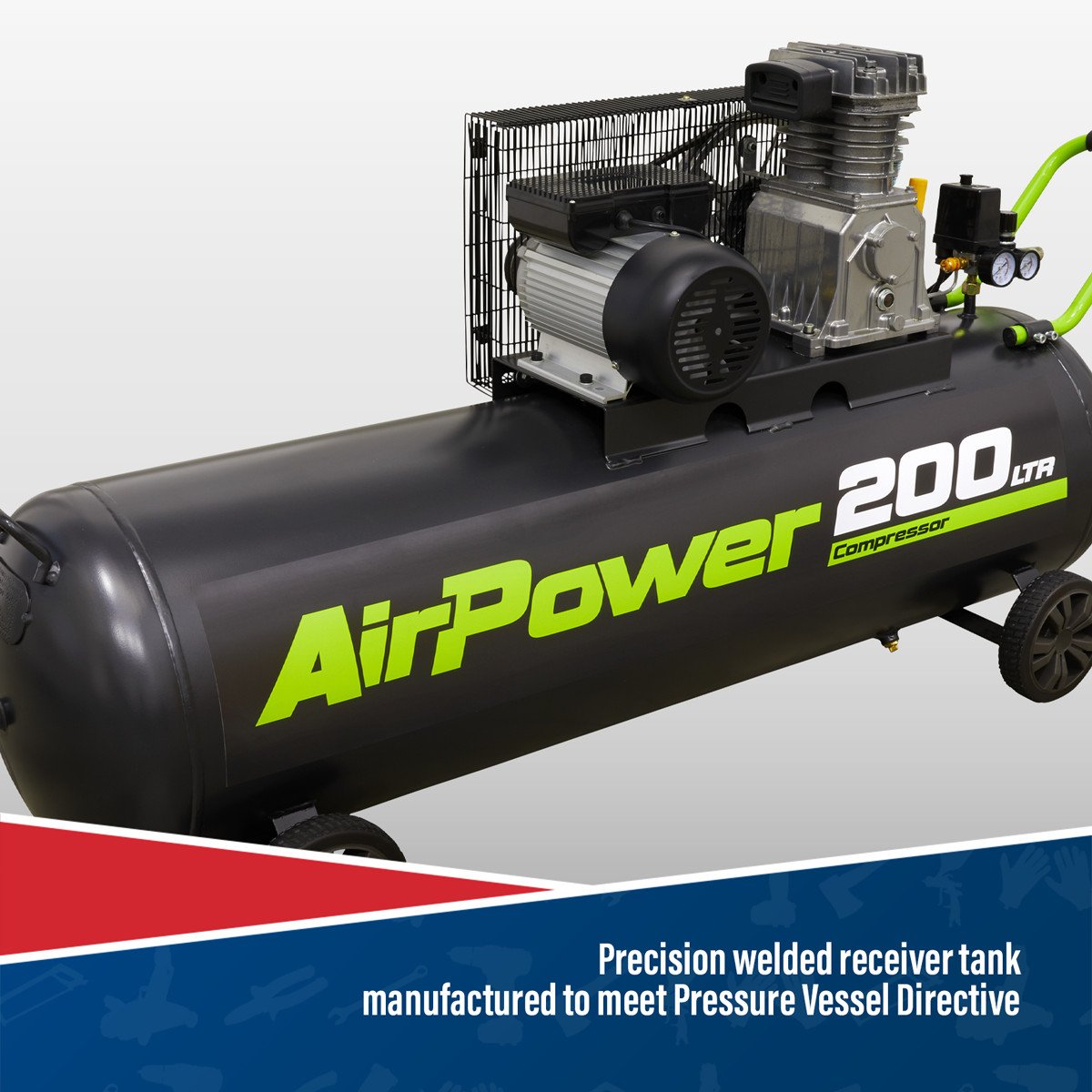

Precision welded receiver tank manufactured to meet Pressure Vessel Directive.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Warranty: 1 year Years
Sealey catalogue page number: 773
Variant number of the model: 001

Specification:

Model No	SAC20030B
Air Displacement cfm(L/min):	10.3cfm(293L/min)
Brand:	Sealey
Maximum Free Air Delivery cfm(L/min):	6.4(180)
Maximum Pressure:	116psi(8bar)
Minimum Rated Supply:	13A
Motor Output:	3hp
Nett Weight:	105kg
Noise Level:	97dB(A)
Oil Capacity:	3 x 0.3L
Outlet:	Quick release coupling
Phase:	1ph
Receiver Capacity:	200L
Size (W x D x H):	1650 x 520 x 820mm
Speed:	1000rpm
Supply:	230V/13A
