Sealey 150L Belt Drive Air Compressor with Petrol Engine 6.5hp

Description

Delivery Information

Ask a question

Instructions

Material Safety Data Sheet

Parts Diagrams

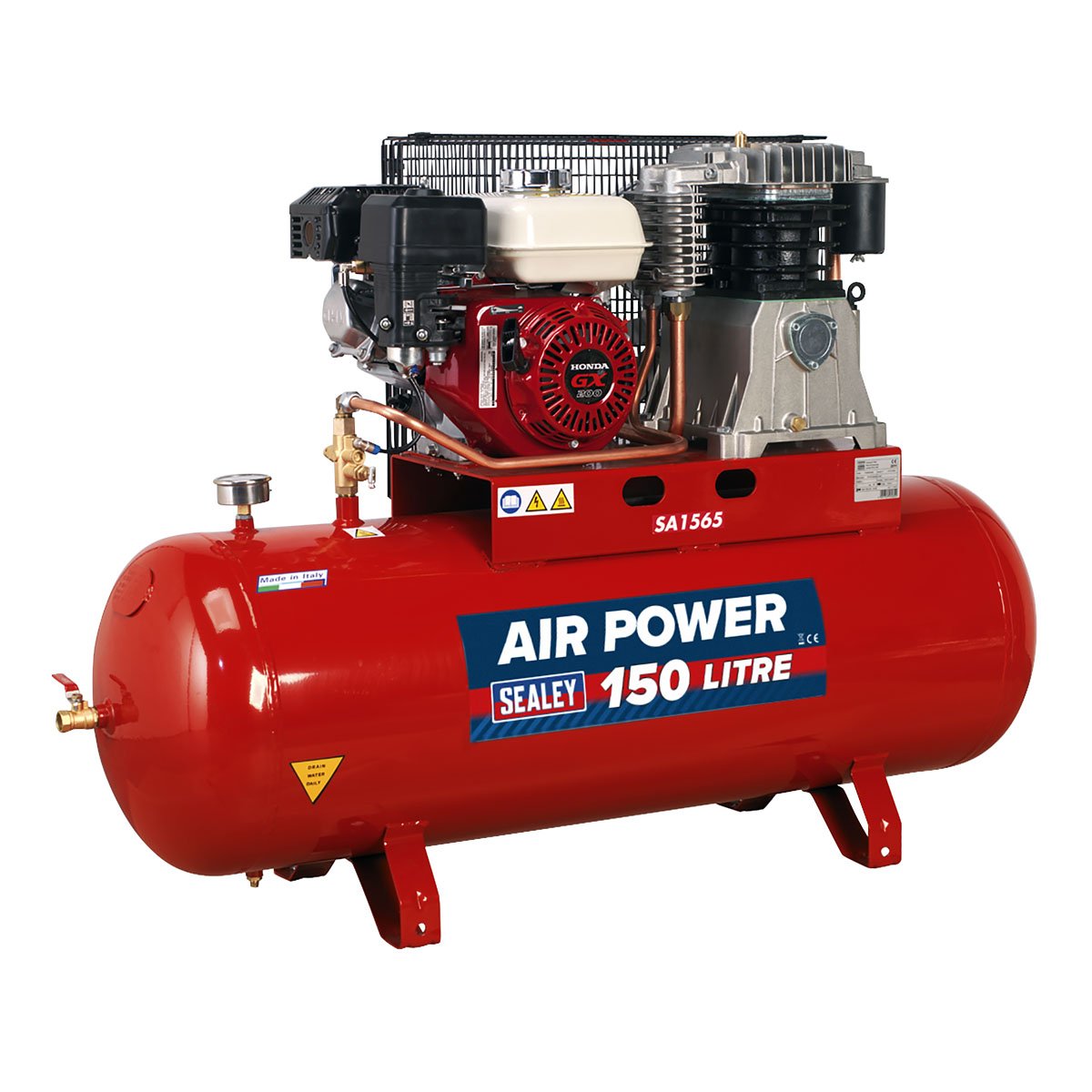

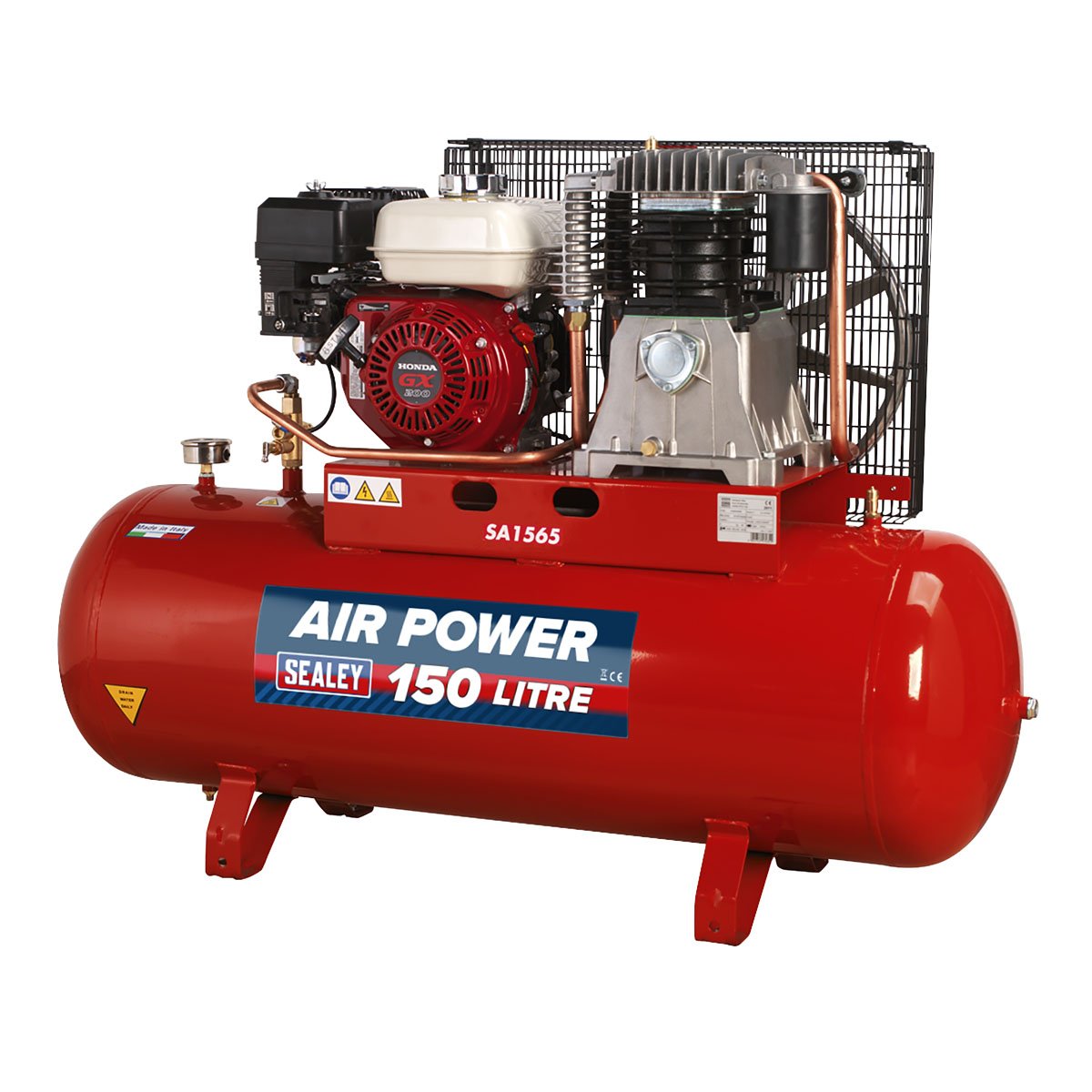

Static compressor with Honda GX200 6.5hp power unit coupled to heavy-duty, 2-stage twin piston, cast iron pump. Pump has heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life. Heavy-duty drive guard protects belt and flywheel that is designed to also force air over the pump to aid cooling. Features twin gauges and air outlet regulator. Runs on unleaded fuel.

Model Number: SA1565
Air Displacement: 20.9cfm(591L/min).
Maximum Free Air Delivery: 15.2cfm(430L/min).
Maximum Pressure: 145psi(10bar).
Static compressor with Honda GX200 6.5hp unit coupled to heavy-duty, 2-stage twin piston, cast iron pump.
Pump has heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
Heavy-duty drive guard protects belt and flywheel that is designed to also force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.
Features gauge and air outlet.
Runs on unleaded fuel.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Warranty: 1 year Years
Sealey catalogue page number: 784
Variant number of the model: 001

Specification:

Model No	SA1565
Air Displacement cfm(L/min):	20.9(591)
Brand:	Sealey
Maximum Free Air Delivery cfm(L/min):	15.2(430)
Maximum Pressure:	145psi(10bar)
Motor Output:	6.5hp
Motor Type:	Honda GX200 Petrol
Nett Weight:	103kg
Noise Level:	97dB(A)
Oil Capacity:	1.2L
Receiver Capacity:	150L
Size (W x D x H):	1360 x 540 x 1110mm
