Sealey Air Compressor 150L Belt Drive 3hp with Cast Cylinders

Description

Delivery Information

Ask a question

Instructions

Parts Diagrams

Material Safety Data Sheet

Suitable for the professional workshop, these units are fitted with a genuine 3hp motor. Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply. Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.

Model Number: SAC1153B
Air Displacement: 13.4cfm(380L/min).
Maximum Free Air Delivery: 8.8cfm(249L/min).
Maximum Pressure: 145psi(10bar).

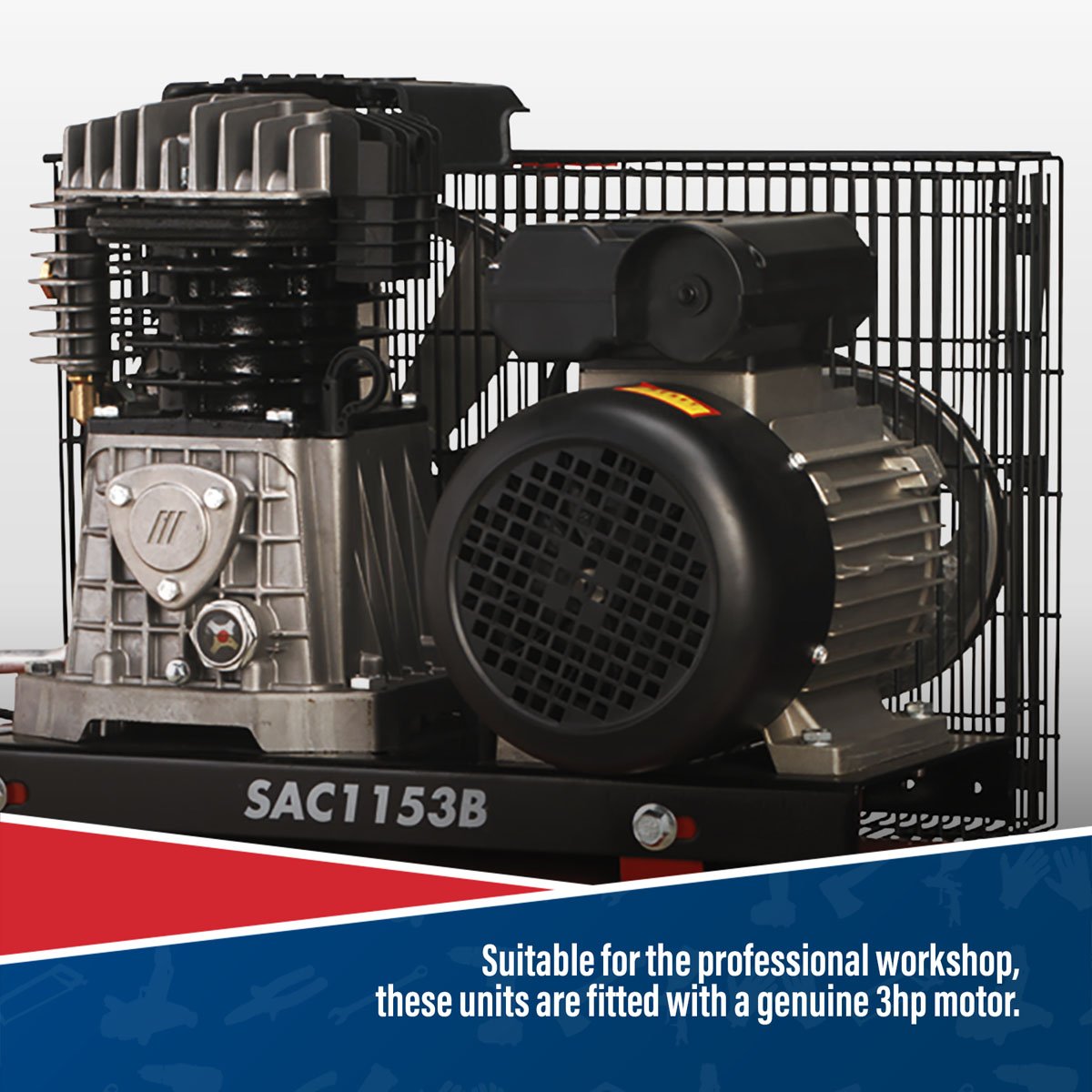

Suitable for the professional workshop, these units are fitted with a genuine 3hp motor.
Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply.
Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

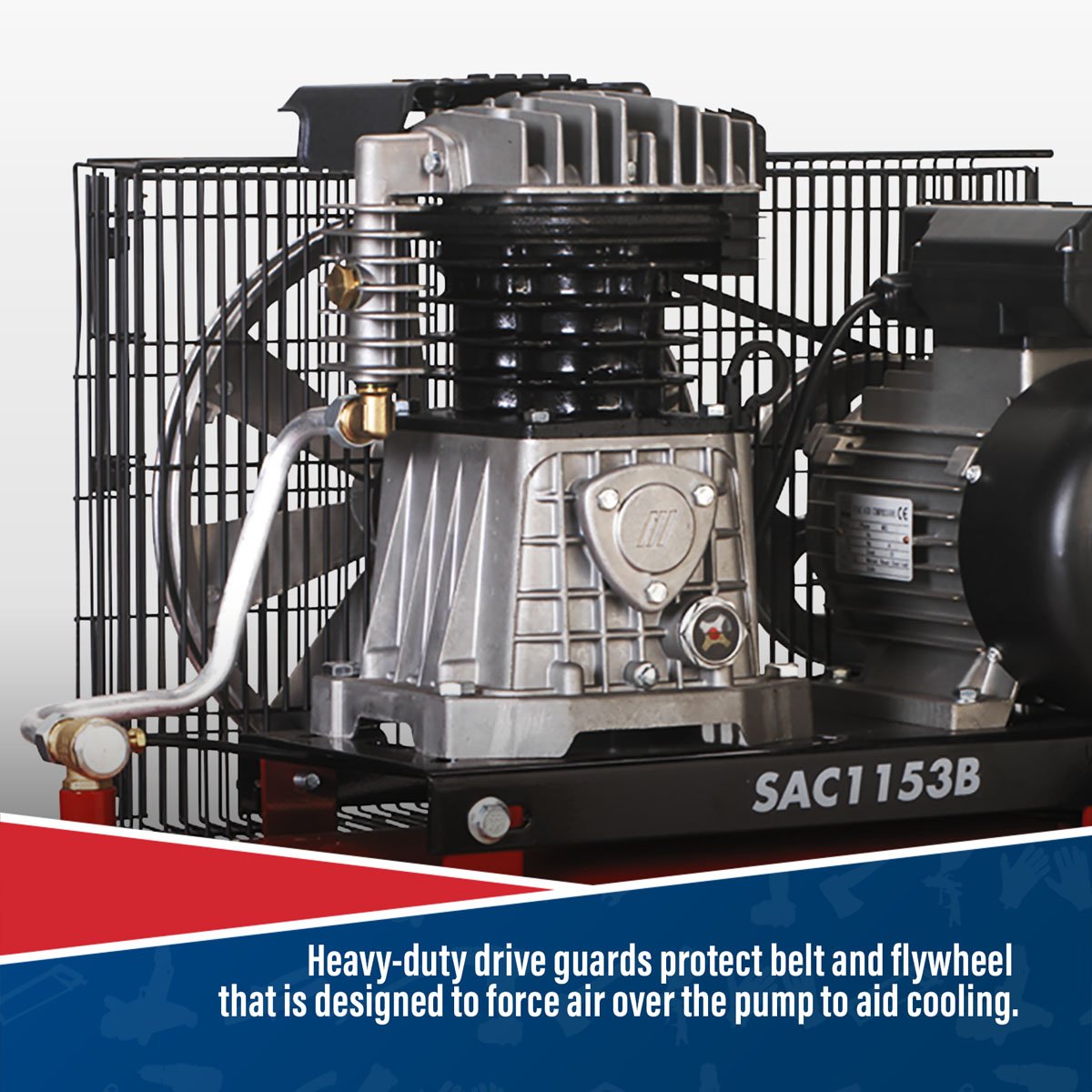

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Warranty: 1 year Years
Sealey catalogue page number: 776
Variant number of the model: 001

Specification:

Model No	SAC1153B
Air Displacement cfm(L/min):	13.4(380)
Brand:	Sealey
Maximum Free Air Delivery cfm(L/min):	8.8(249)
Maximum Pressure:	145psi(10bar)
Minimum Rated Supply:	13A
Motor Output:	3hp
Nett Weight:	78kg
Oil Capacity:	0.45L
Outlet:	1/2"BSP Female Tap
Phase:	1ph
Receiver Capacity:	150L
Size (W x D x H):	1320 x 400 x 820mm
Speed:	1630rpm
Supply:	230V/13A
