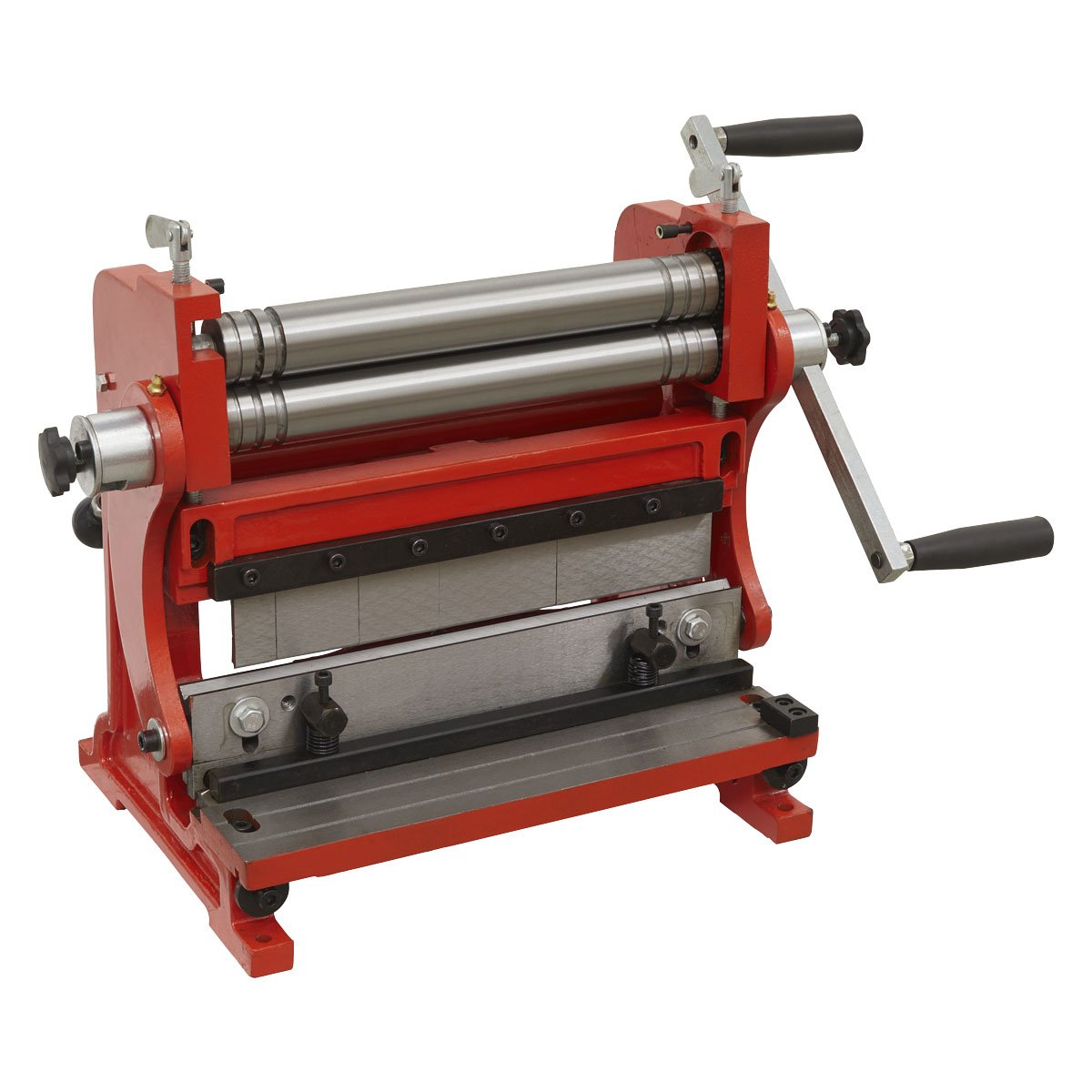

12" 3-in-1 light sheet metal working machine. Can shear, bend and roll a variety of metals including mild steel, aluminium and copper. The rollers have grooves with diameters of Ø2.5mm, 3mm, 4mm, 5mm, 5.5mm and 6mm for bending rods. Adjust the distance and angle of the rollers to create the desired curvature for curves, cylinders or cones. Shear sheets of metal up to 305mm wide. Make pans with a maximum lip of 1" and bend (brake) sheets up to an angle of 90°.

Model Number: TIO305

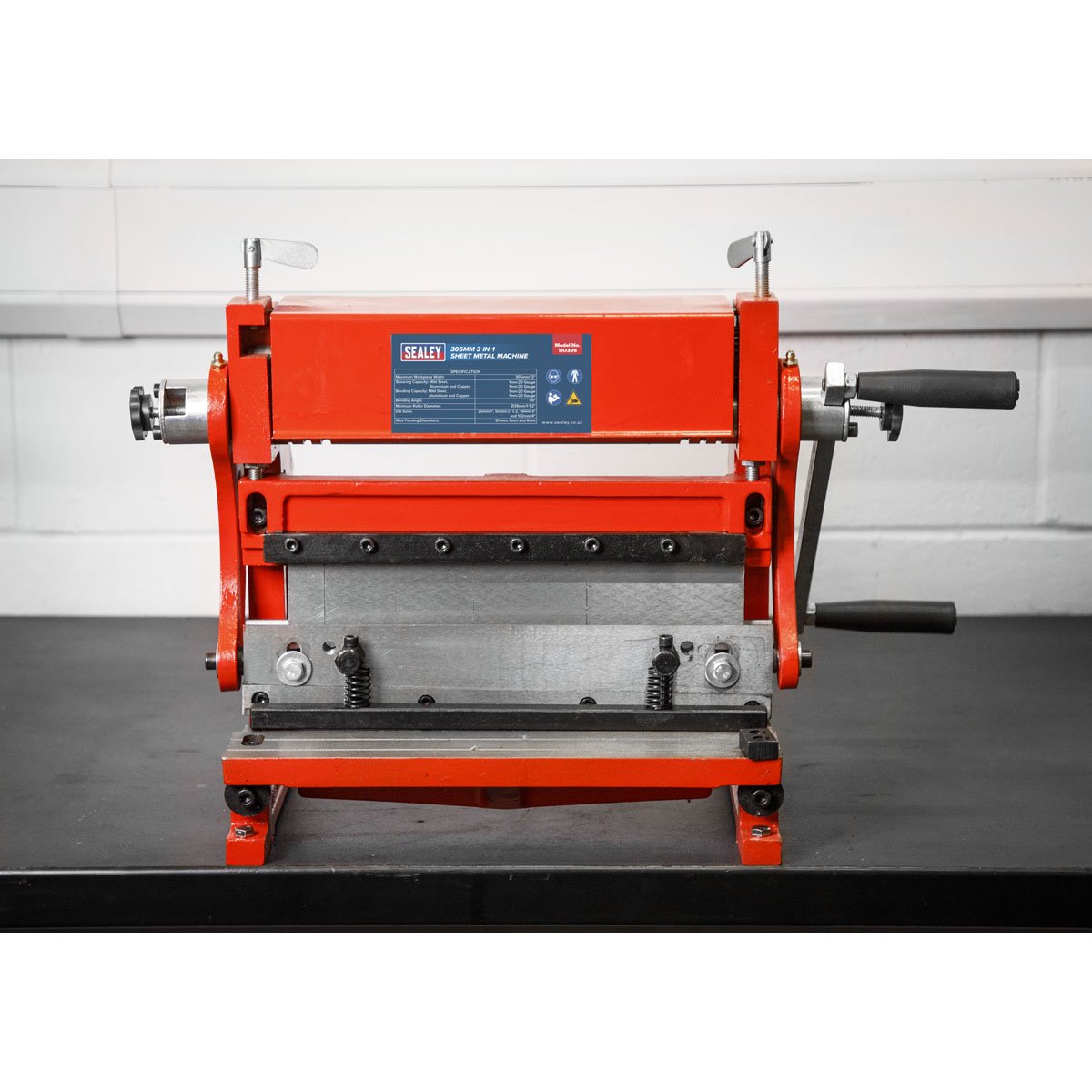

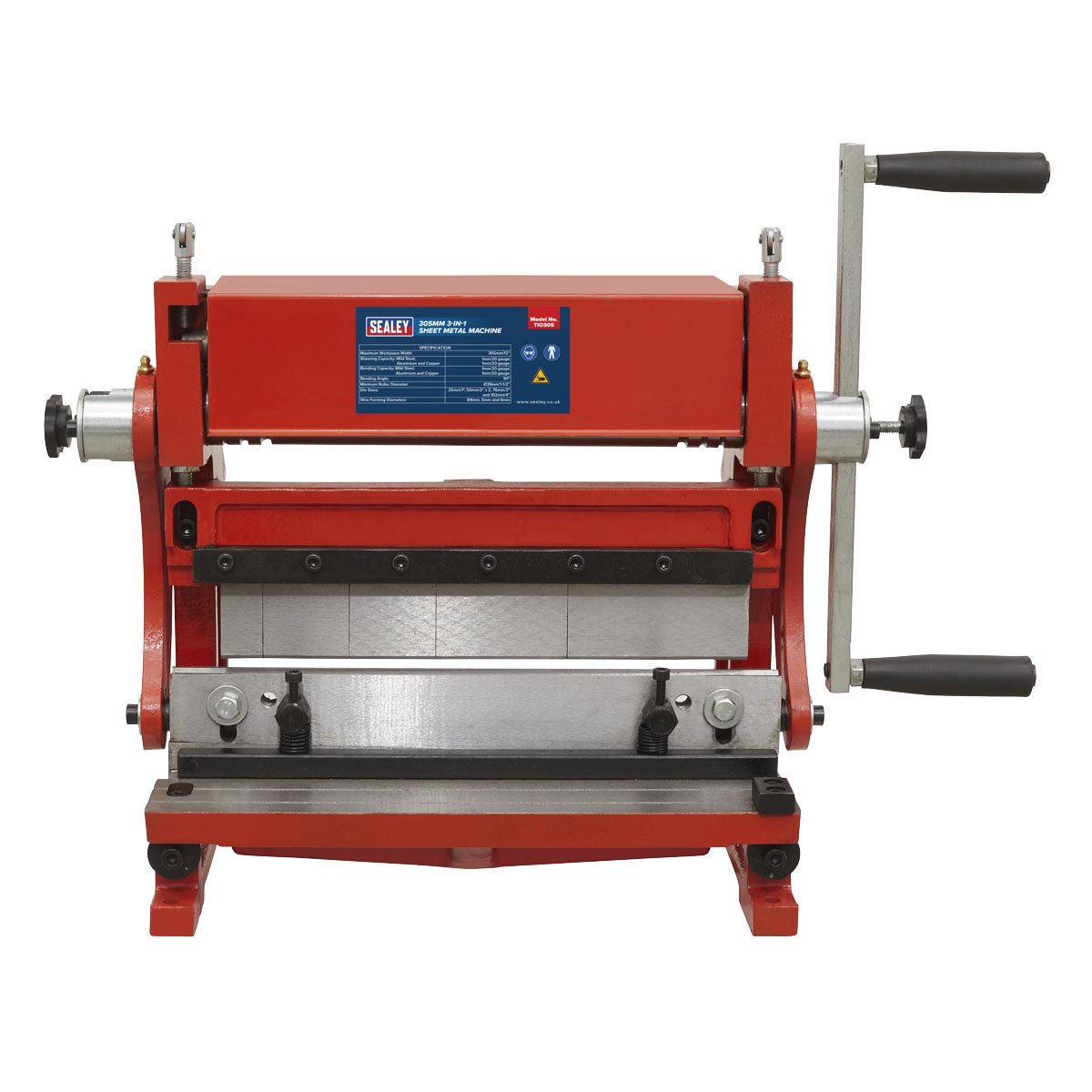

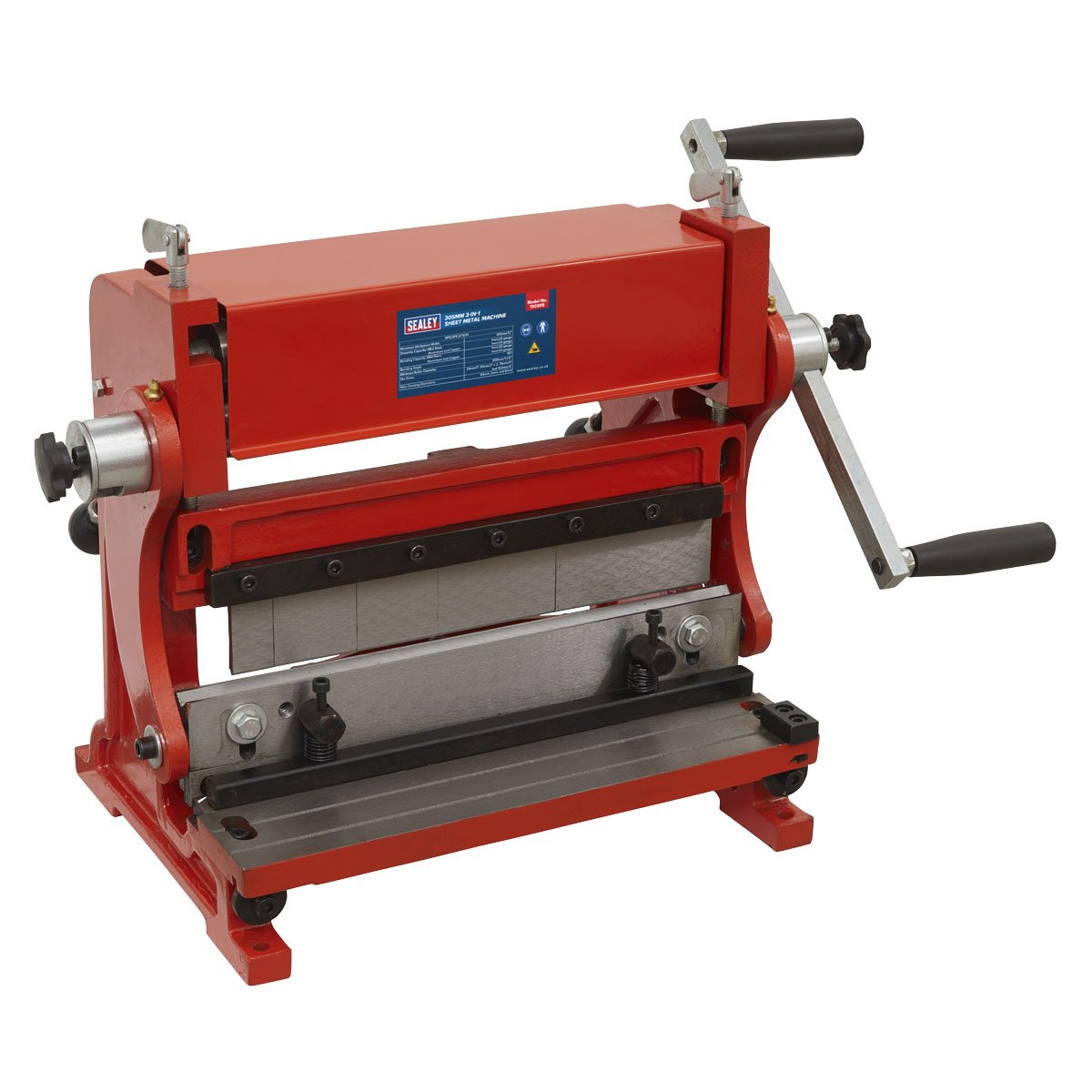

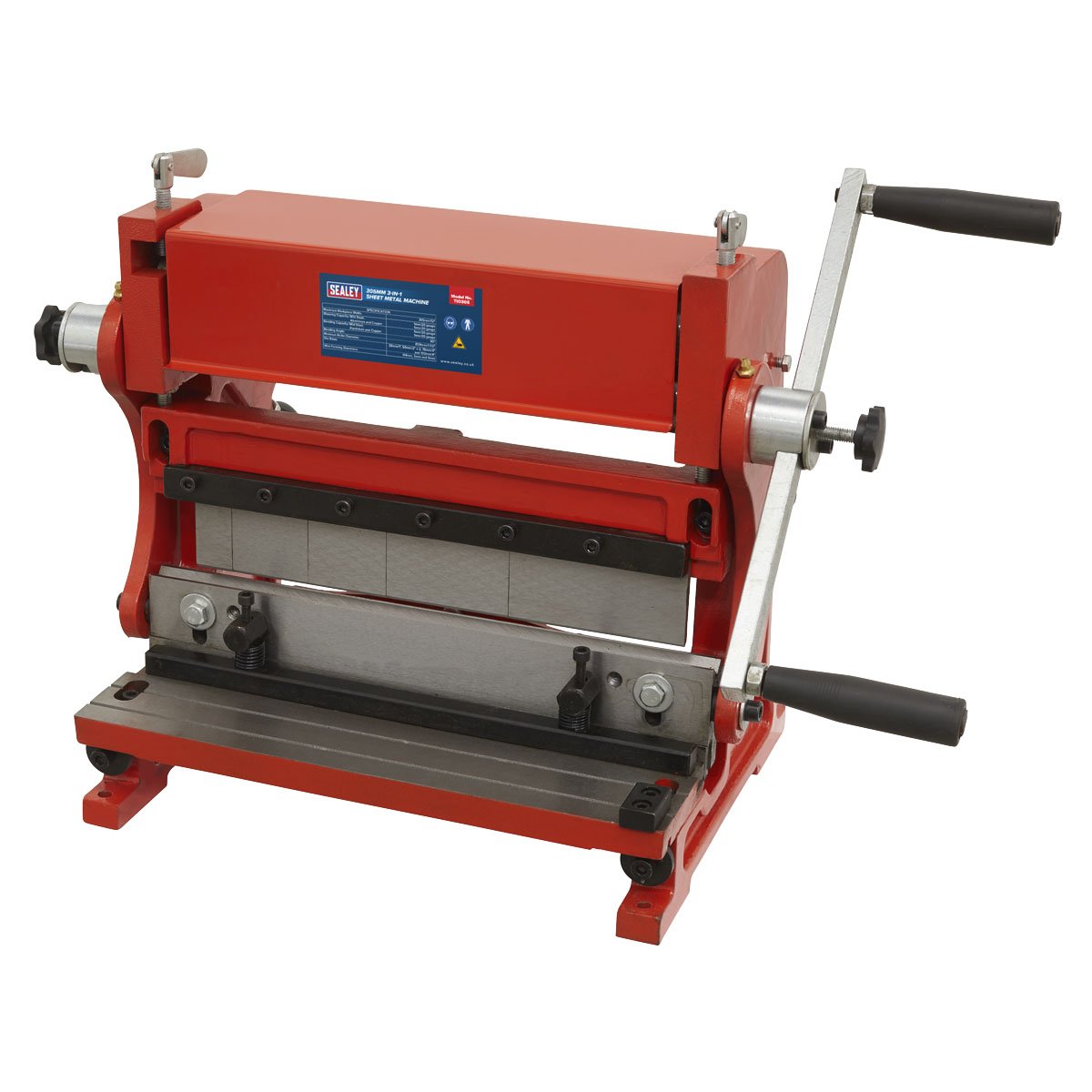

12" 3-in-1 light sheet metal working machine.
Can shear, bend and roll a variety of metals including mild steel, aluminium and copper.

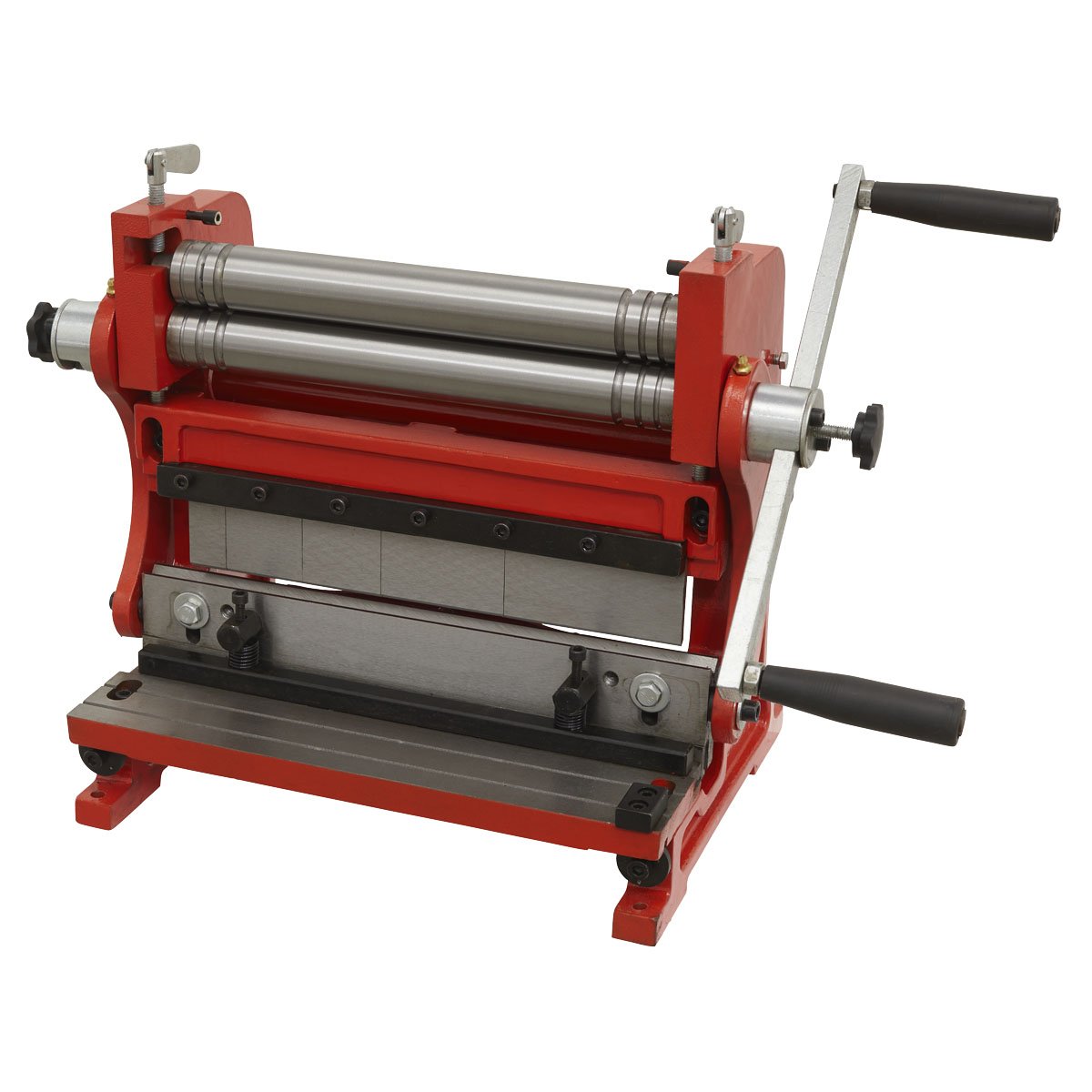

The rollers have grooves with diameters of �2.5mm, 3mm, 4mm, 5mm, 5.5mm and 6mm for bending rods.

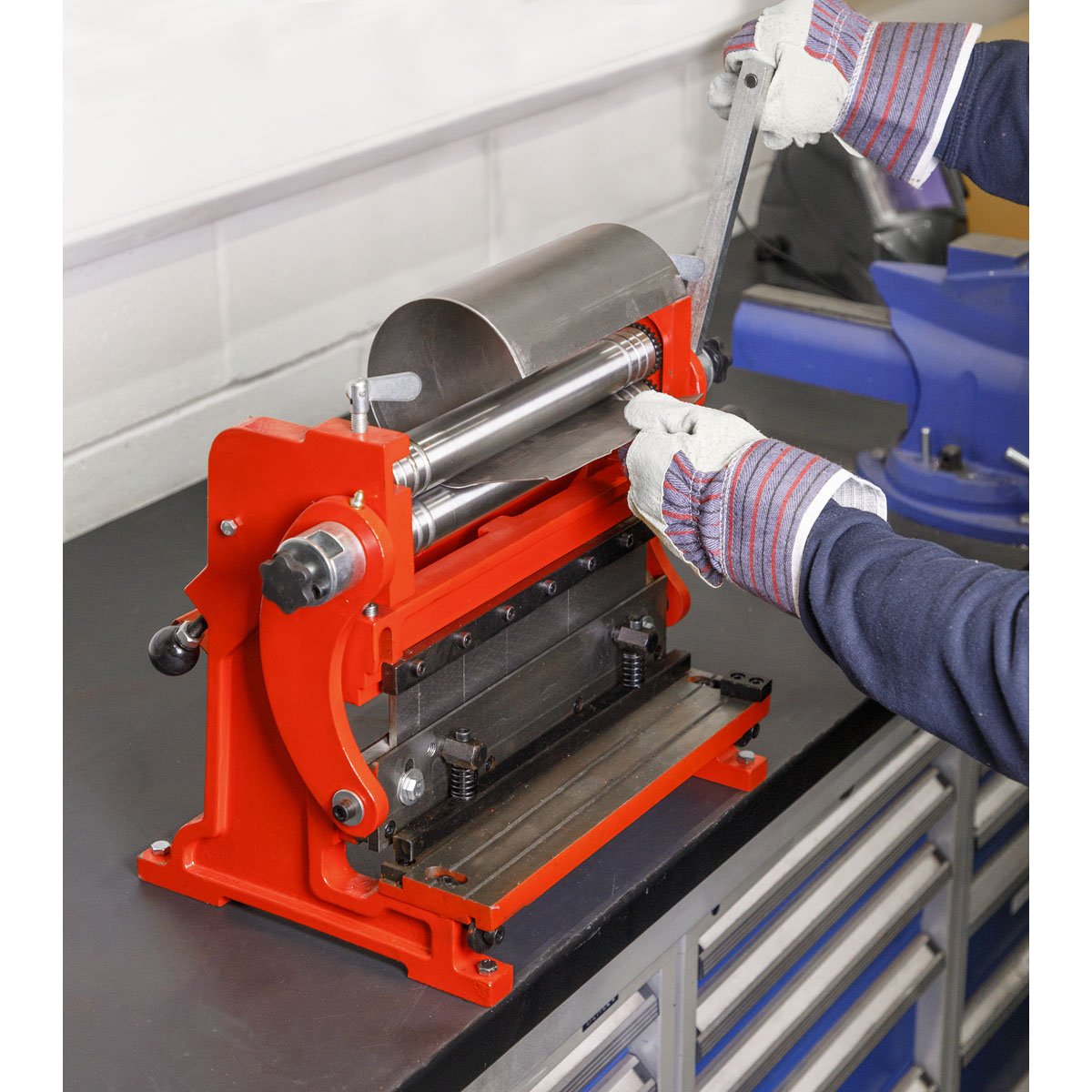

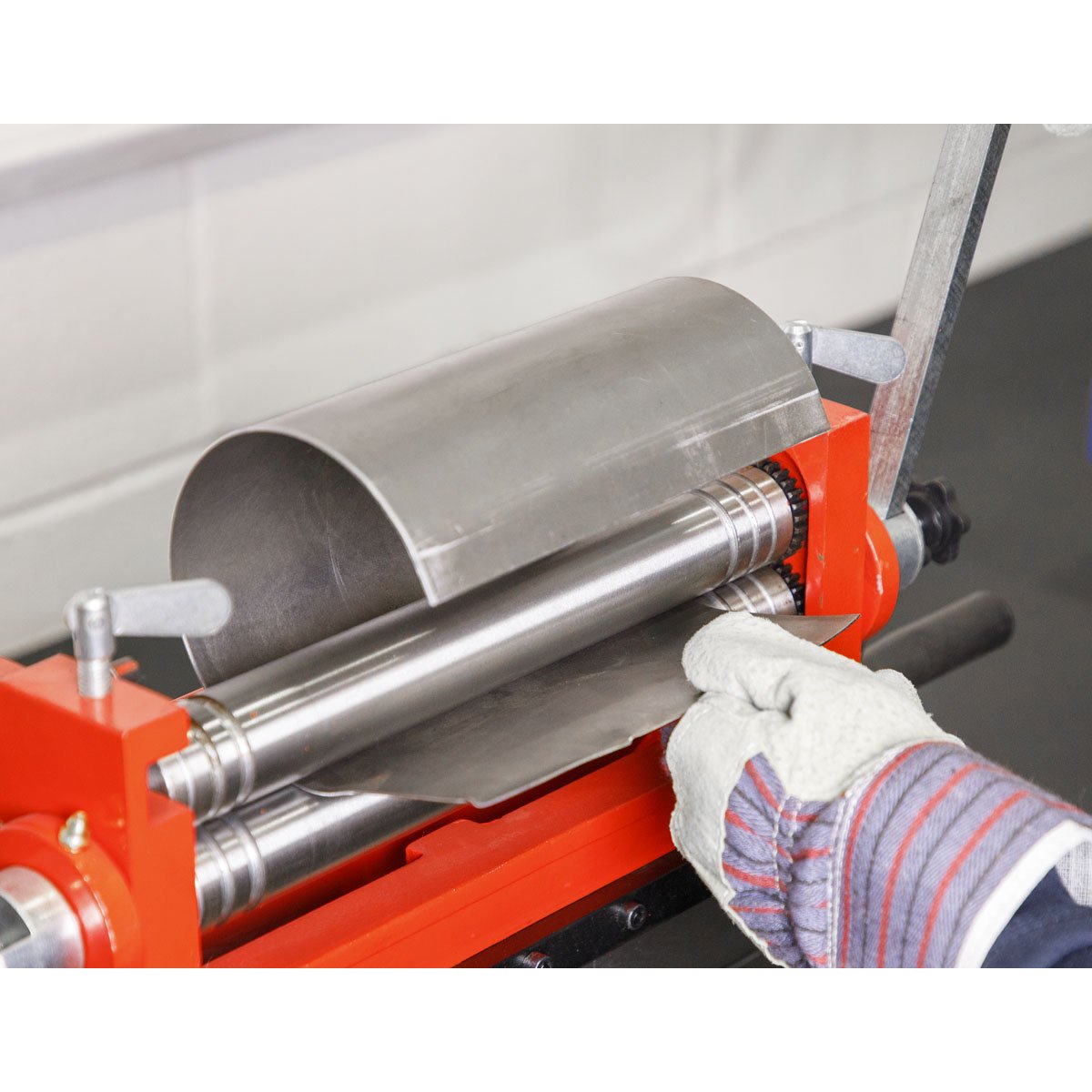

Adjust the distance and angle of the rollers to create the desired curvature for curves, cylinders or cones.
Shear sheets of metal up to 305mm wide.

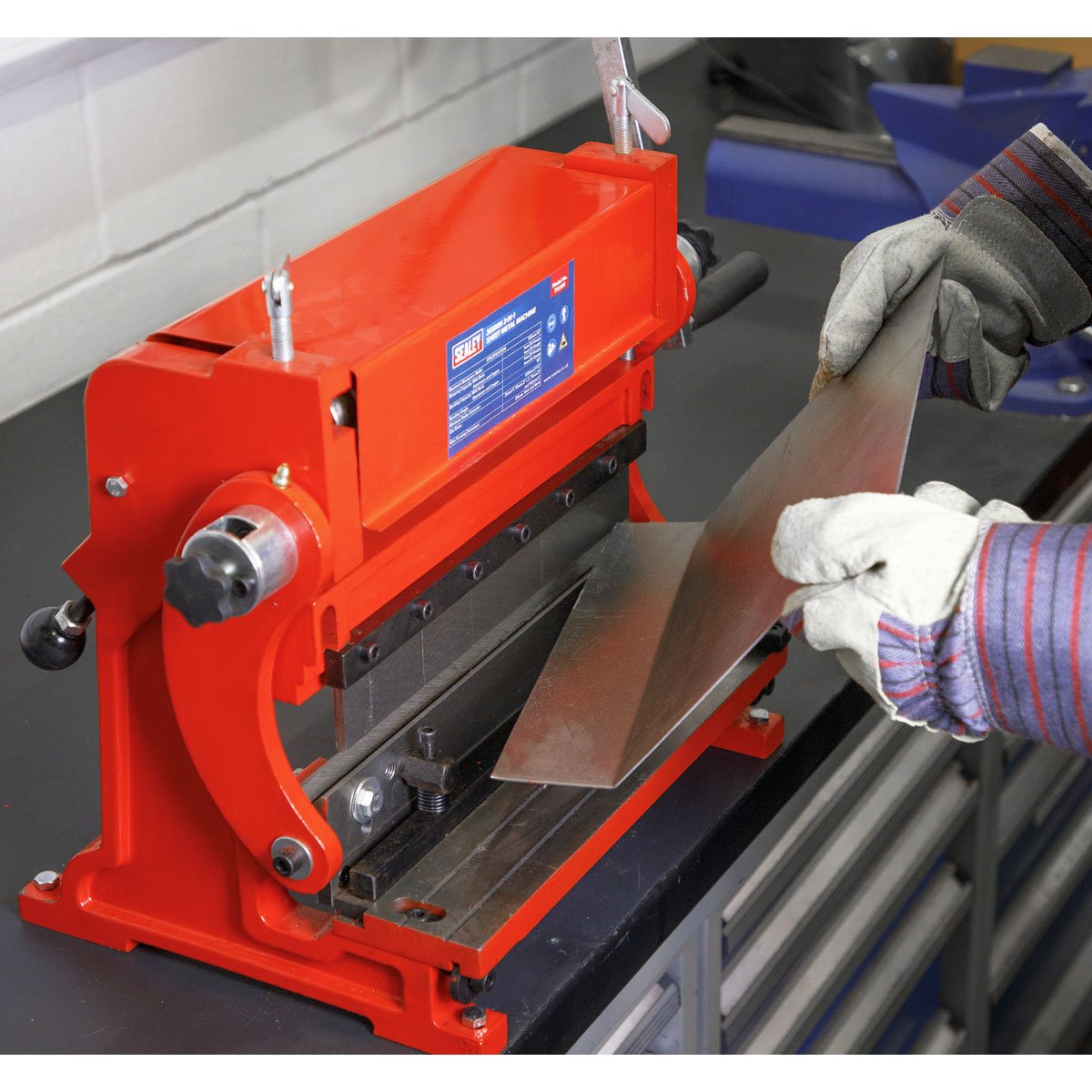

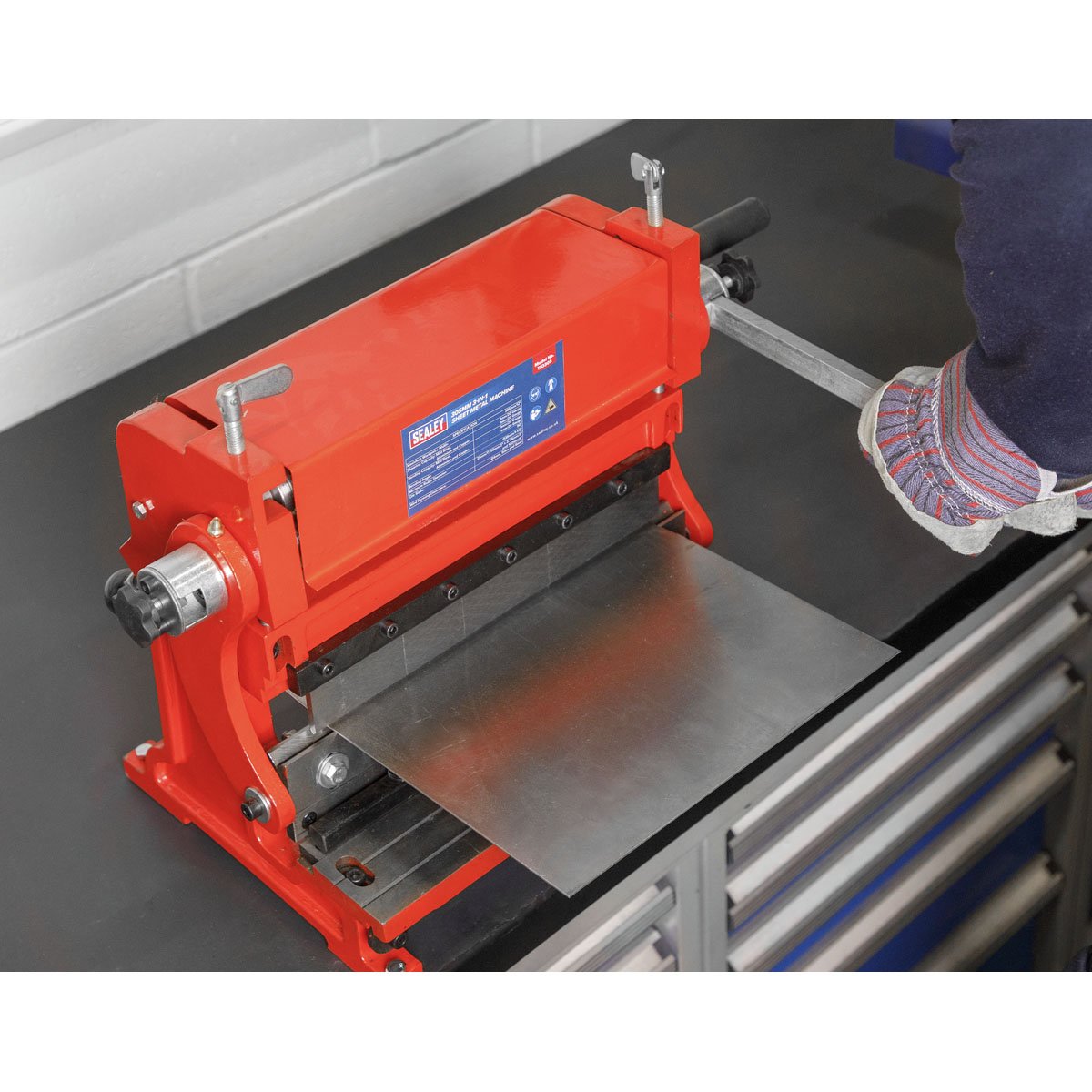

Make pans with a maximum lip of 1� and bend (brake) sheets up to an angle of 90�.
Warranty: 1 year Years
Sealey catalogue page number: 1209
Variant number of the model: 001

Specification:

Model No	TIO305
Brand:	Sealey
Die Sizes:	25mm/1", 50mm/2" (x2), 76mm/3", 102mm/4"
Minimum Roller Diameter:	Ø38mm/1-1/2"
Nett Weight:	42kg
Tube Rolling Diameter:	Ø2.5mm, 3mm, 4mm, 5mm, 5.5mm, 6mm
Workpiece Maximum Thickness:	Mild Steel: 1mm/20 gaugeAluminium and copper: 1.2mm/18 gauge
Workpiece Maximum Width:	305mm/12"
